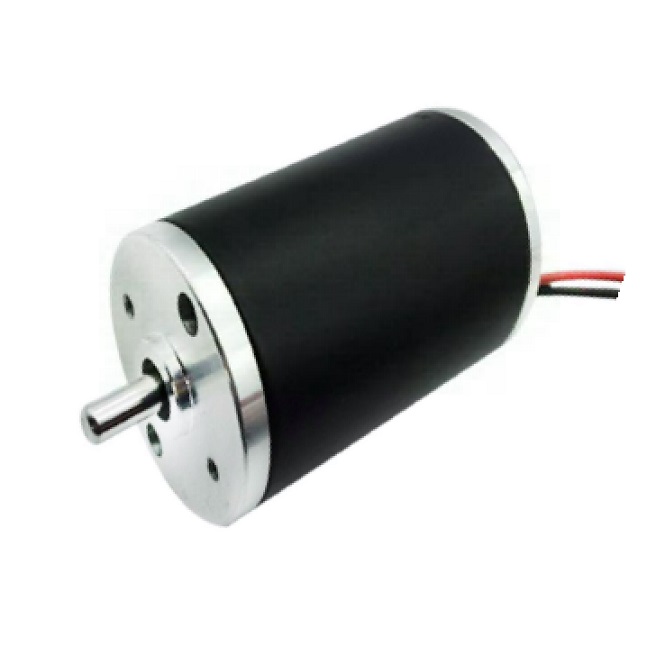

MC38ZYT-02
Ytterligare information
Environmental Conditons | -20°C to 50°C |
---|---|
Bearing Type | Ball bearing |
Rotation Direction | CW/CCW |
Insulation Class | F |
Voltage (V) | 24 |
No Load Speed (rpm) | 3950 |
No Load Current (A) | 0.4 |
Rated Load Current (A) | 4.4 |
Rated Load Power (W) | 33 |
Rated Load Speed (rpm) | 3150 |
Rated Load Torque (nm) | 0.1 |
Stall Torque (nm) | 0.3 |
Stall Current (nma) | 6 |
Body Length (mm) | 80 |
Mass (Kg) | 0.35 |
CUSTOM MOTOR OPTION LINK
Each motor family has a lot of custom options. Please contact our product specialist for more information.
Marcus Caldebäck Phone: +46 703 814400 or marcus@multicomponent.se
