Portrait Mode TFT 1.77″ från Winstar

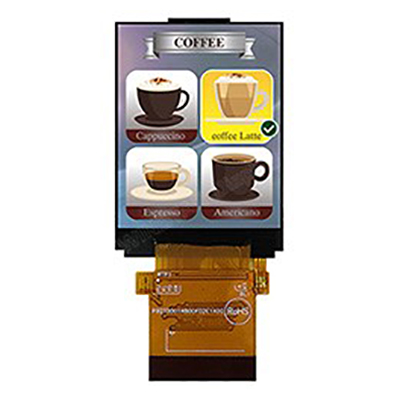

WF18FTLAADNN0 is a full color 128×160 TFT-LCD display module, diagonal size 1.77 inch. This module is built in with ST7735S IC; it supports 8080 8/16-bit parallel and serial 3-wire SPI interface. This model is having module dimension of 34.0 x 45.83 mm and Active area size of 28.03 x 35.04 mm; it’s supply voltage range from for analog is 2.5V to 4.8V.

WF18FTLAADNN0#

Dimension

Size 1.77 inch
Dot Matrix 128 × RGB × 160(TFT)
Module dimension 34.0(W) × 45.83(H) × 2.65(D)mm
Active area 28.03 × 35.04
Dot pitch 0.073 × 0.219
LCD type TFT, Normally White, Transmissive
View Direction 6 o’clock
Gray Scale Inversion    Direction 12 o’clock
Aspect Ratio Portrait
IC ST7735S
Backlight Type LED, Normally White
Touch Panel Under development
Surface Anti-Glare
