LED Matrix

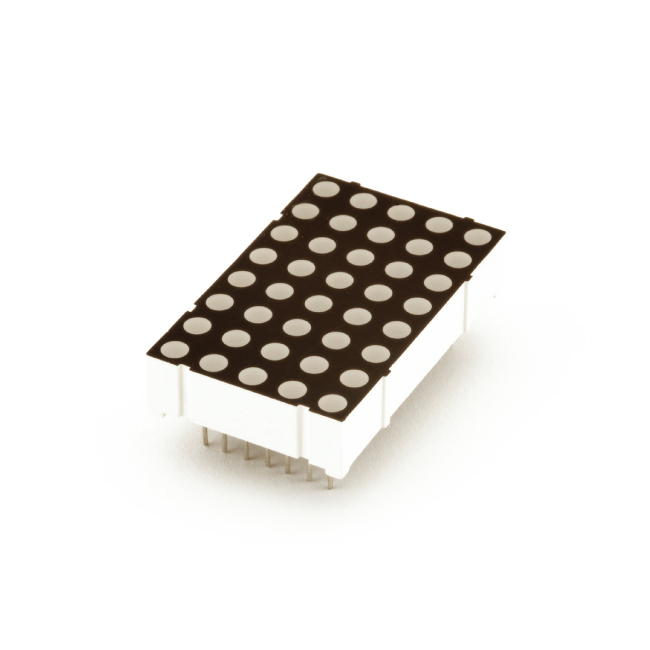

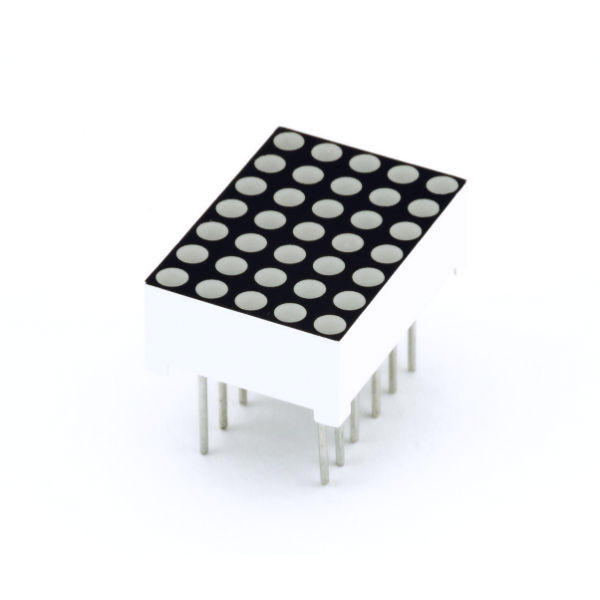

Led matrix are availible in different patterns like 5×7, 5×8, 8×8, 16×16 and 16×20. Also a number of colors to be select.
-
TOM-757AMRL-1N
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-red
λd (nm):
640
Iv (mcd) vid 10mA:
21.9 -
TOM-757AMG/BMG
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-757AMG-B
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-757AMG-N
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-757BMG-N
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-757BMG-B
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-757AMY-N
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
15.5 -
TOM-757AME-B
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
21.9 -
TOM-4057AMR/BMR
LED Array:
5 x 7
LED (Ø mm):
10
Color:
Ultra-red
λd (nm):
630
Iv (mcd) vid 10mA:
21.9 -
TOM-3057AME/BME
LED Array:
5 x 7
LED (Ø mm):
5
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-2057AMG/BMG
LED Array:
5 x 7
LED (Ø mm):
5
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
21.9 -
TOM-757BMRL-1N
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-red
λd (nm):
640
Iv (mcd) vid 10mA:
15.5 -
TOM-D757AMR/BMR
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-red
λd (nm):
630
Iv (mcd) vid 10mA:
15.5 -
TOM-757BMY-B
LED Array:
5 x 7
LED (Ø mm):
1,9
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
21.9 -
TOM-1058AME-B
LED Array:
5 x 8
LED (Ø mm):
3
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-1058AME/BME
LED Array:
5 x 8
LED (Ø mm):
3
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-4058AMY/BMY
LED Array:
5 x 8
LED (Ø mm):
10
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
21.9 -
TOM-3058AMR/BMR
LED Array:
5 x 8
LED (Ø mm):
7,62
Color:
Ultra-red
λd (nm):
630
Iv (mcd) vid 10mA:
21.9 -
TOM-1058BME-B
LED Array:
5 x 8
LED (Ø mm):
3
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-788BMEC-V
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
74 -
TOM-788BMG-B
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
570
Iv (mcd) vid 10mA:
15.5 -
TOM-788BME-B
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-788BMA-B
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-amber
λd (nm):
605
Iv (mcd) vid 10mA:
21.9 -
TOM-788AMRL-1B
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-red
λd (nm):
640
Iv (mcd) vid 10mA:
15.5 -
TOM-1988AME/BME
LED Array:
8 x 8
LED (Ø mm):
4,8
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
11.9 -
TOM-1988BMG-B
LED Array:
8 x 8
LED (Ø mm):
4,8
Color:
Ultra-green
λd (nm):
570
Iv (mcd) vid 10mA:
21.9 -
TOM-1688BMG-N
LED Array:
8 x 8
LED (Ø mm):
3,8
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
11.9 -
TOM-1588HMY-B
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
32.9 -
TOM-1588BMRL-N
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-red
λd (nm):
640
Iv (mcd) vid 10mA:
32.9 -
TOM-1588BMY-B
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
32.9 -
TOM-2088AME/BME
LED Array:
8 x 8
LED (Ø mm):
5
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
49.4 -
TOM-2088MY-N.pdf-U
LED Array:
8 x 8
LED (Ø mm):
5
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
49.4 -
TOM-788AME/BME
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
4.1 -
TOM-5188AME/BME
LED Array:
8 x 8
LED (Ø mm):
Ø 5
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-788AMA-B
LED Array:
8 x 8
LED (Ø mm):
1,9
Color:
Ultra-amber
λd (nm):
605
Iv (mcd) vid 10mA:
21.9 -
TOM-1588BMRL-B
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-red
λd (nm):
640
Iv (mcd) vid 10mA:
32.9 -
TOM-1088AMY-B
LED Array:
8 x 8
LED (Ø mm):
3
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
32.9 -
TOM-1088BMY-B
LED Array:
8 x 8
LED (Ø mm):
3
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
32.9 -
TOM-1588BME-B
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-1588AMG-N
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-1588AME/BME
LED Array:
8 x 8
LED (Ø mm):
3,7
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
32.9 -
TOM-1088AMG/BMG
LED Array:
8 x 8
LED (Ø mm):
3
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
15.5 -
TOM-D1516AMG/BMG
LED Array:
16 x 16
LED (Ø mm):
1,8
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
21.9 -
TOM-D1616/AMR/BMR
LED Array:
16 x 16
LED (Ø mm):
2
Color:
Ultra-red
λd (nm):
630
Iv (mcd) vid 10mA:
15.5 -
TOM-D1316CMG/DMG
LED Array:
16 x 16
LED (Ø mm):
1,4
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
4.1 -
TOM-D1216CMY/DMY
LED Array:
16 x 16
LED (Ø mm):
1,6
Color:
Ultra-yellow
λd (nm):
590
Iv (mcd) vid 10mA:
15.5 -
TOM-D2516AME-B
LED Array:
16 x 20
LED (Ø mm):
1,9
Color:
Ultra-orange
λd (nm):
623
Iv (mcd) vid 10mA:
-
TOM-D2516AMG/BMG
LED Array:
16 x 20
LED (Ø mm):
1,9
Color:
Ultra-green
λd (nm):
572
Iv (mcd) vid 10mA:
21.9 -
TOM-D2516AMRMG-B
LED Array:
16 x 20
LED (Ø mm):
1,9
Color:
Red-green
λd (nm):
630/572
Iv (mcd) vid 10mA:
21.9
