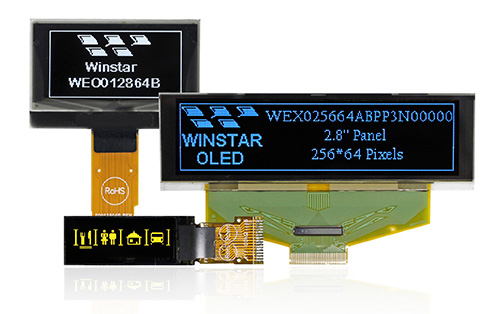

Graphic OLED Display Modules, OLED Graphic
Graphic OLED display are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic resolution in 50×16 OLED graphic display, 100×8 OLED graphic, 100×16 monochrome OLED, 100×32 graphic OLED, 200×16 graphic OLED, 128×32 OLED, OLED display 128×64, 128×128 OLED graphic, and 256×64 OLED. The graphic OLED display in the Winstar product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
We offer a wide range of OLED display modules in sizes from 0.49″ OLED, 0.66″ OLED, 0.91″ OLED, 0.96″ OLED, 2″ OLED to 5.5″ OLED, and custom design solutions.
Small OLED display module are perfect for a number of devices that require electronic display panel. These applications include wearable devices, E-cigarette, POS system, white goods, home applications, industrial instrument, POS system, automation, audio/visual display systems, medical devices, personal care appliances, household goods, automobile displays , Dynamic information displays.
Fler PMOLED Grafiska displayer finns i sortimentet än vad du ser på sidan. Kontakta oss.
-
WEO006432A
Size (inch):
0.49
Active Area (mm):
11.18 x 5.58
Display Format:
64 x 32
Outline Dimension (mm):
14.5 x 11.6
Interface:
I2C
Brand:
Winstar -
WEA006432A
Size (inch):
0.49
Active Area (mm):
11.18×5.58
Display Format:
64×32
Outline Dimension (mm):
14.85×16.6
Interface:
I2C
Brand:
Winstar -
ELW0501ABR
Size (inch):
0.5
Active Area (mm):
11.25 x 5.99
Display Format:
60 x 32
Outline Dimension (mm):
15.3 x 10.2
Interface:
I2C / SPI
Brand:
Futaba -
WEO006448A
Size (inch):
0.66
Active Area (mm):
13.42 x 10.06
Display Format:
64 x 48
Outline Dimension (mm):
18.46 x 18.1
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
WEA006448A
Size (inch):
0.66
Active Area (mm):
13.42×10.06
Display Format:
64×48
Outline Dimension (mm):
19.9×23.1
Interface:
I2C
Brand:
Winstar -
WEO009632B
Size (inch):
0.68
Active Area (mm):
16.298×5.418
Display Format:
96×32
Outline Dimension (mm):
19.8×12.32×1.21
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
WEO009616B
Size (inch):
0.69
Active Area (mm):
17.26×3.18
Display Format:
96×16
Outline Dimension (mm):
26.3×8
Interface:
I2C
Brand:
Winstar -
ELF0701AB
Size (inch):
0.7
Active Area (mm):
12.832 x 11.40
Display Format:
84 x RGB x 84
Outline Dimension (mm):
18.1 x 18.4
Interface:
SPI
Brand:
Futaba -
EPW0702AB
Size (inch):
0.7
Active Area (mm):
15.074 x 9.41
Display Format:
128 x 80
Outline Dimension (mm):
25.80 x 15.00
Interface:
SPI / I2C
Brand:
Futaba -
WEO004864A
Size (inch):
0.71
Active Area (mm):
10.54 x 14.7
Display Format:
48 x 64
Outline Dimension (mm):
13.9 x 22
Interface:
I2C
Brand:
Winstar -
WEA004864A
Size (inch):
0.71
Active Area (mm):
10.54×14.7
Display Format:
48×64
Outline Dimension (mm):
15.9×27
Interface:
I2C
Brand:
Winstar -

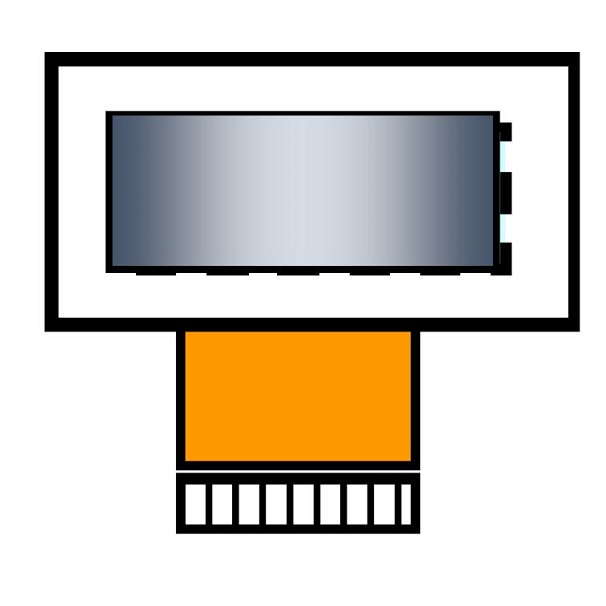

ELW0804AA
Size (inch):
0.8
Active Area (mm):
18.53 x 9.26
Display Format:
128 x 64
Outline Dimension (mm):
25.45 x 18.3
Interface:
SPI
Brand:
Futaba -

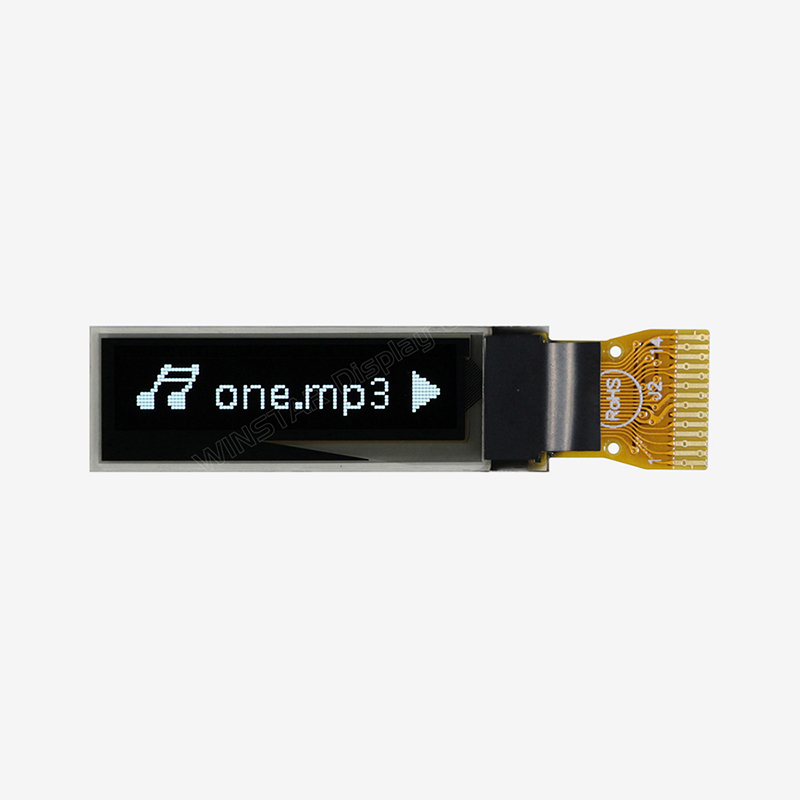

WEO009616A
Size (inch):
0.84
Active Area (mm):
21.104 x 3.504
Display Format:
96 x 16
Outline Dimension (mm):
29.1 x 9.2
Interface:
I2C
Brand:
Winstar -

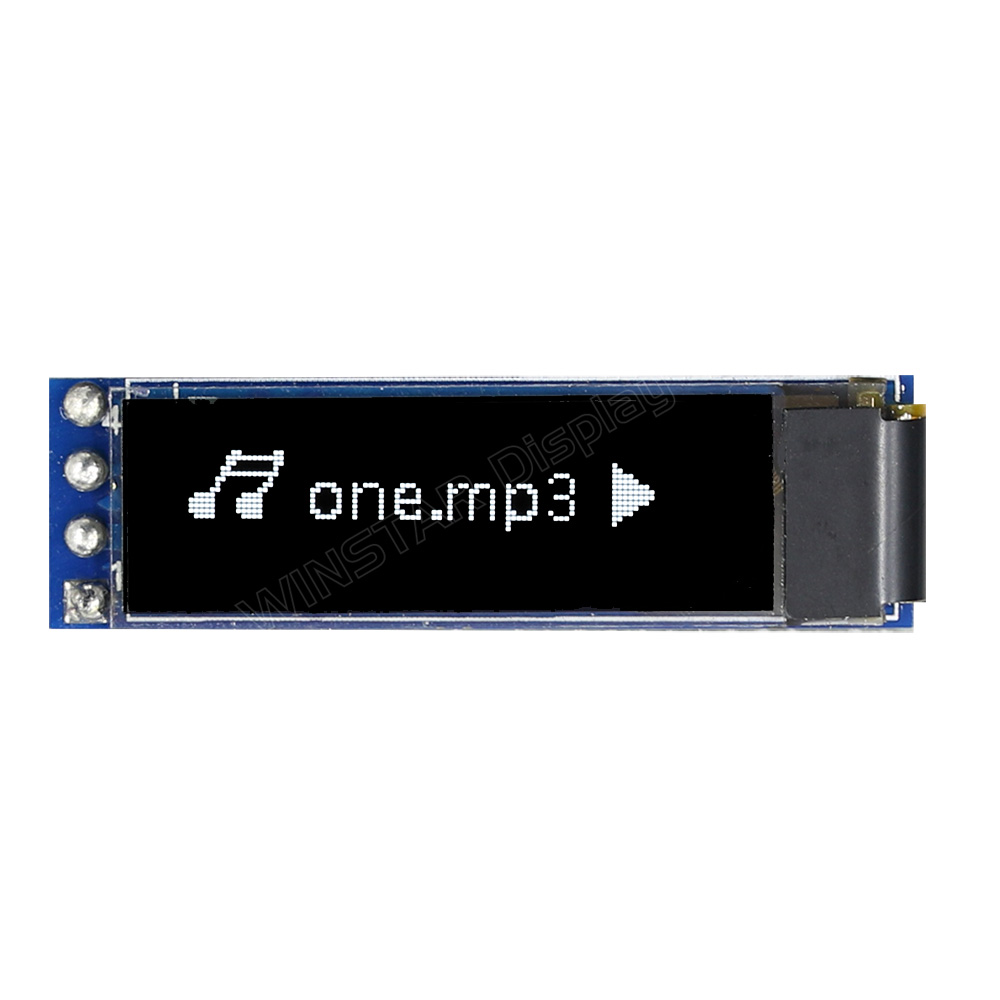

WEA009616A
Size (inch):
0.84
Active Area (mm):
21.104×3.504
Display Format:
96×16
Outline Dimension (mm):
33×10
Interface:
I2C
Brand:
Winstar -

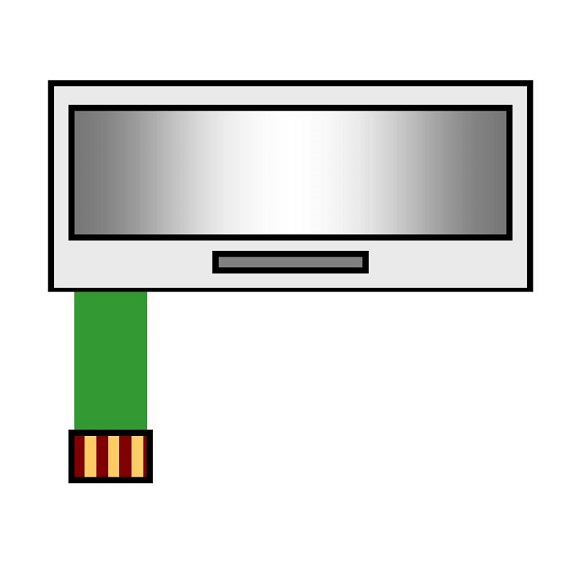

ELW0901AAR
Size (inch):
0.9
Active Area (mm):
21.734 x 6.095
Display Format:
128 x 36
Outline Dimension (mm):
25.28 x 9.9
Interface:
SPI
Brand:
Futaba -

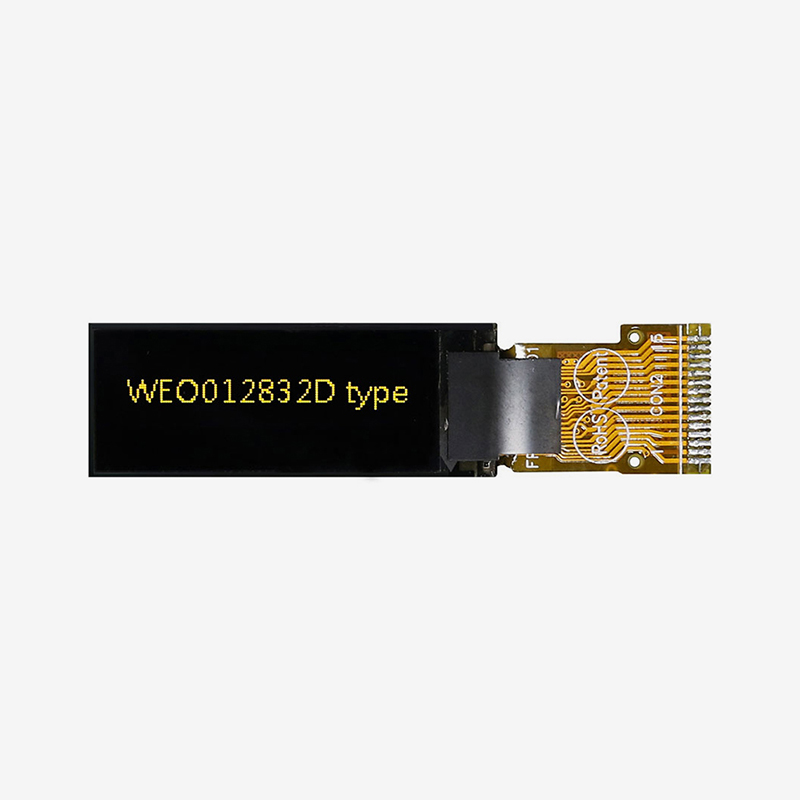

WEO012832D
Size (inch):
0.91
Active Area (mm):
22.384 x 5.584
Display Format:
128 x 32
Outline Dimension (mm):
30 x 11.5
Interface:
SPI
Brand:
Winstar -

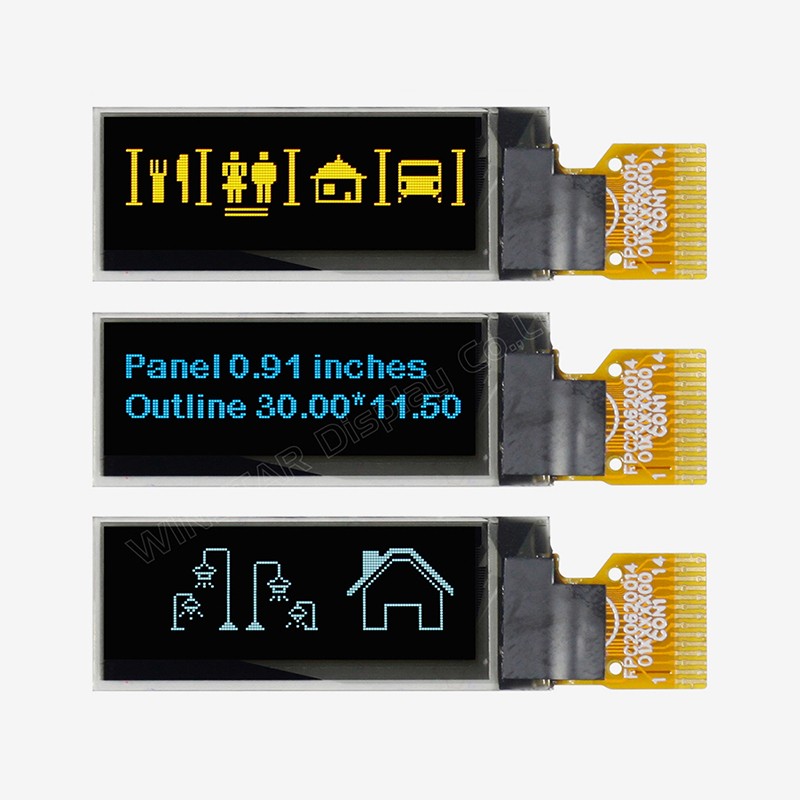

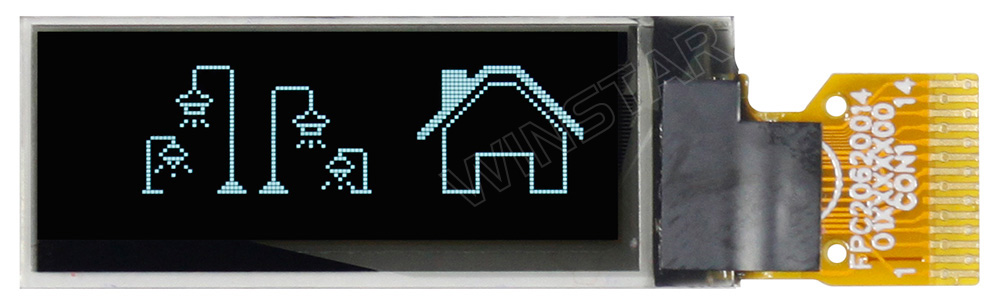

WEO012832F
Size (inch):
0.91
Active Area (mm):
22.38 x 5.58
Display Format:
128 x 32
Outline Dimension (mm):
30 x 11.5
Interface:
I2C
Brand:
Winstar -
WEO012832F
Size (inch):
0.91
Active Area (mm):
22.384×5.584
Display Format:
128×32
Outline Dimension (mm):
30×11.5
Interface:
I2C
Brand:
Winstar -

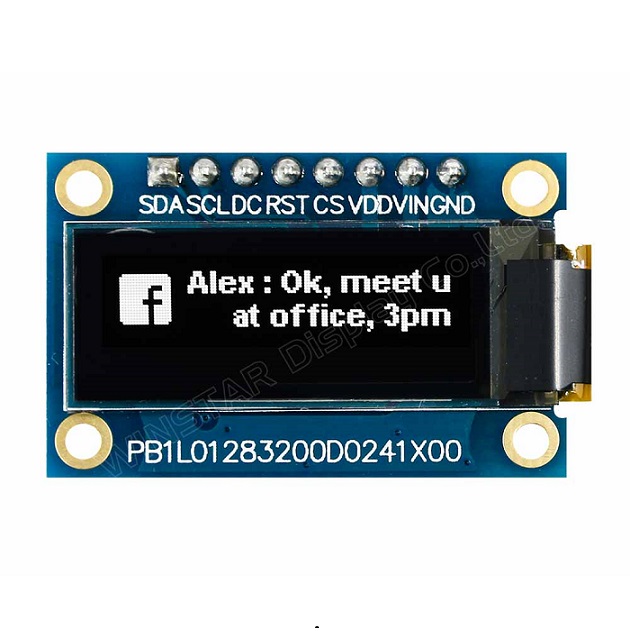

WEA012832D
Size (inch):
0.91
Active Area (mm):
22.384×5.584
Display Format:
128×32
Outline Dimension (mm):
32.5×20.5
Interface:
SPI
Brand:
Winstar -
WEA012832F
Size (inch):
0.91
Active Area (mm):
22.384×5.584
Display Format:
128×32
Outline Dimension (mm):
35.8×12
Interface:
I2C
Brand:
Winstar -

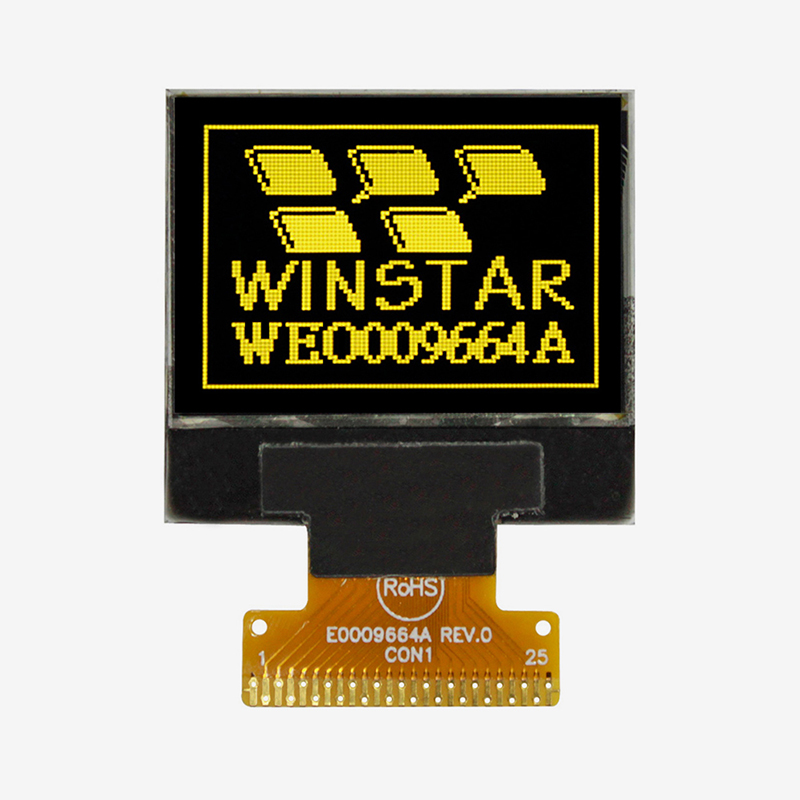

WEO009664A
Size (inch):
0.95
Active Area (mm):
19.946 x 13.418
Display Format:
96 x 64
Outline Dimension (mm):
24.9 x 22.95
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

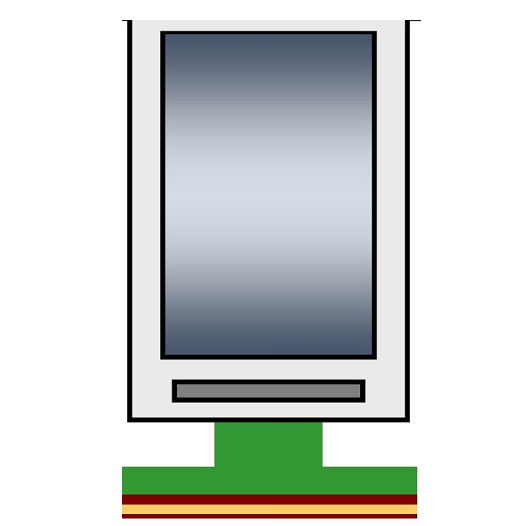

ELW1004AA
Size (inch):
0.96
Active Area (mm):
10.856 x 21.736
Display Format:
128 x 64
Outline Dimension (mm):
15 x 28
Interface:
SPI / I2C / Parallel
Brand:
Futaba -

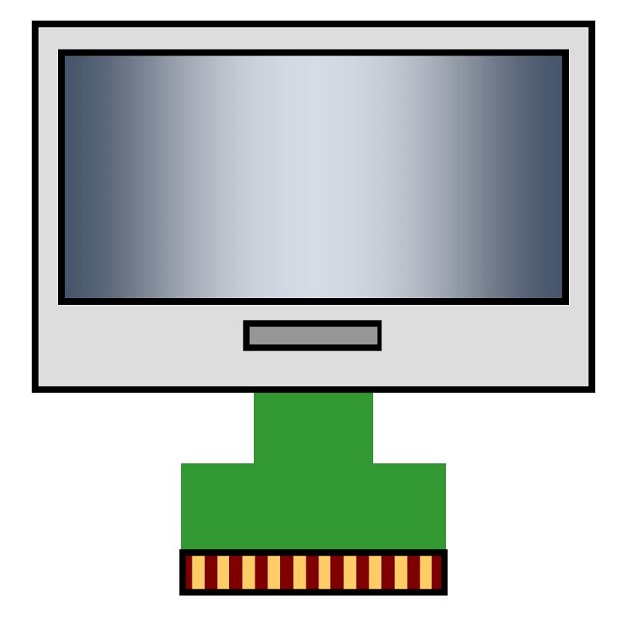

ELW1005AA
Size (inch):
0.96
Active Area (mm):
21.74 x 11.175
Display Format:
128 x 64
Outline Dimension (mm):
24.7 x 16.6
Interface:
SPI
Brand:
Futaba -
WEO012864C
Size (inch):
0.96
Active Area (mm):
21.74 x 10.86
Display Format:
128 x 64
Outline Dimension (mm):
26.7 x 19.26
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

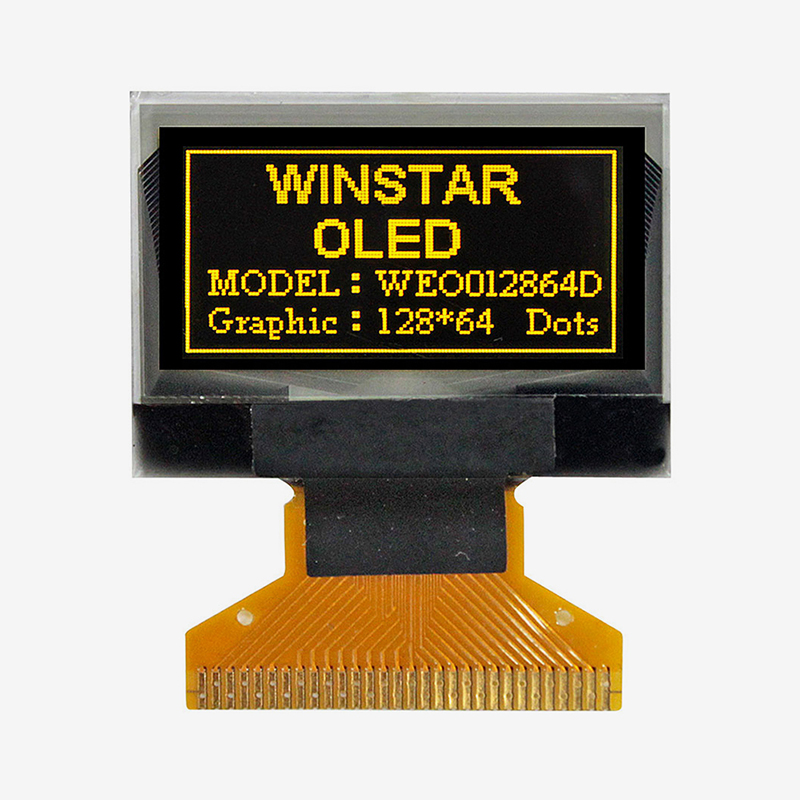

WEO012864D
Size (inch):
0.96
Active Area (mm):
21.738 x 10.858
Display Format:
128 x 64
Outline Dimension (mm):
26.7 x 19.26
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

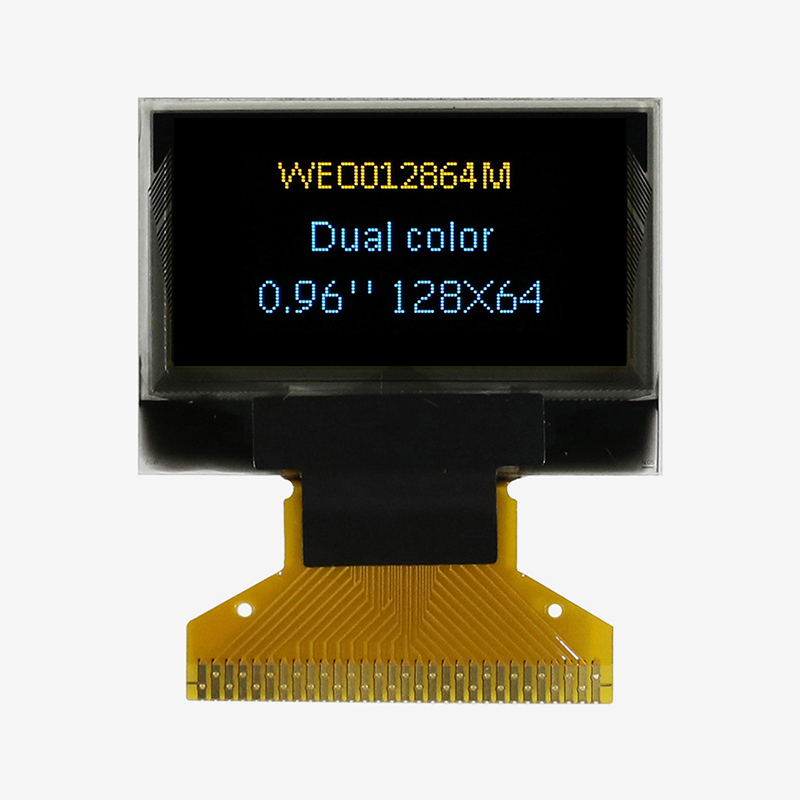

WEO012864M
Size (inch):
0.96
Active Area (mm):
21.744 x 11.204
Display Format:
128 x 64
Outline Dimension (mm):
26.7 x 19.26
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

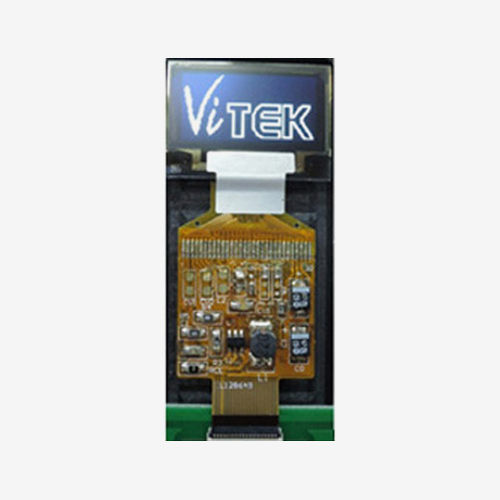

VL128649
Size (inch):
0.96
Active Area (mm):
21.744 x 10.864
Display Format:
128 x 64
Outline Dimension (mm):
26.7 x 31.26
Interface:
68xx, 8-bit
Brand:
Vitek -

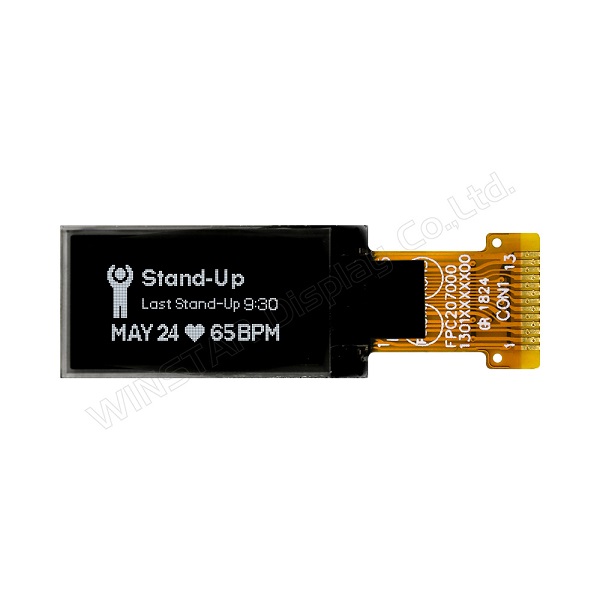

WEO064128A
Size (inch):
0.96
Active Area (mm):
10.86×21.74
Display Format:
64×128
Outline Dimension (mm):
14×28
Interface:
SPI,I2C
Brand:
Winstar -

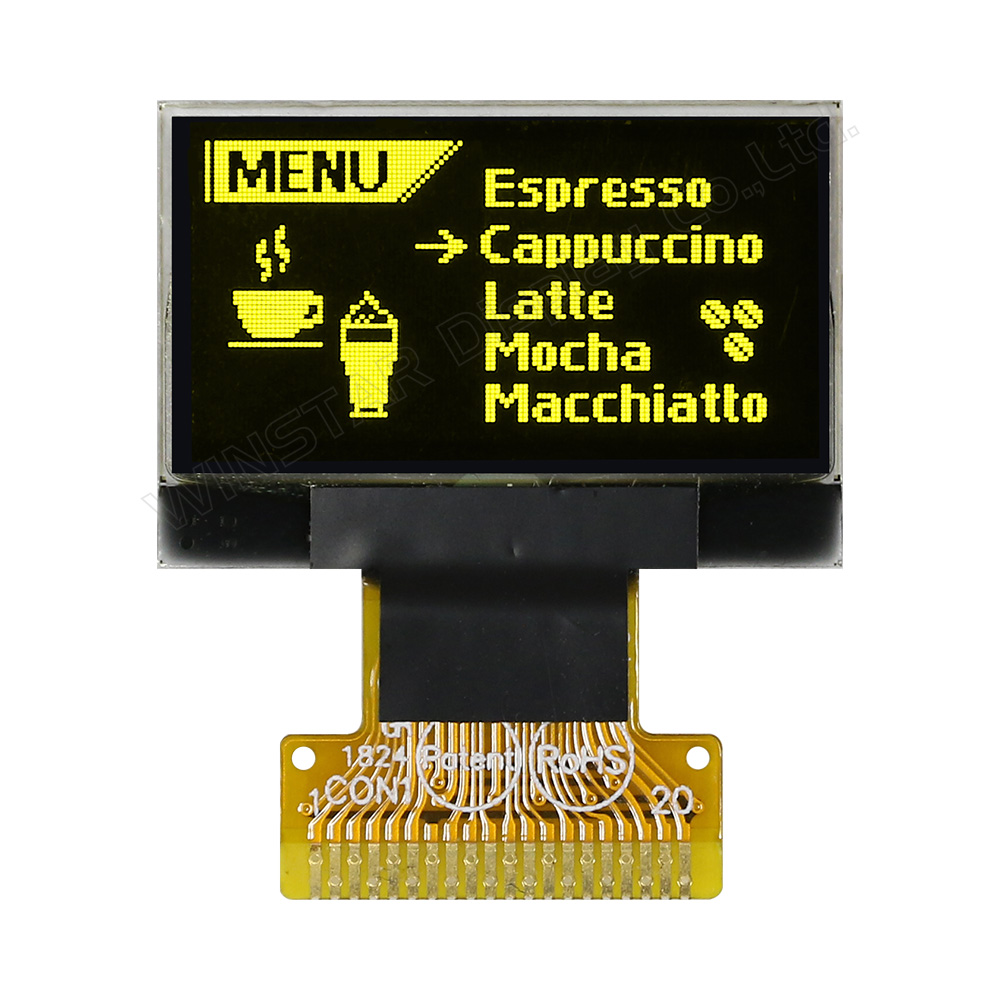

WEO012864V
Size (inch):
0.96
Active Area (mm):
21.74×10.86
Display Format:
128×64
Outline Dimension (mm):
24.74×16.9
Interface:
SPI,I2C
Brand:
Winstar -

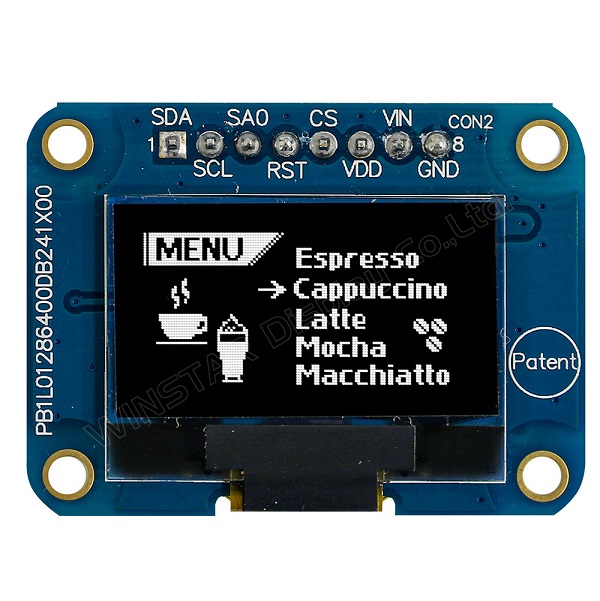

WEA012864D-01
Size (inch):
0.96
Active Area (mm):
21.74×10.86
Display Format:
128×64
Outline Dimension (mm):
38×28.5
Interface:
SPI,I2C
Brand:
Winstar -

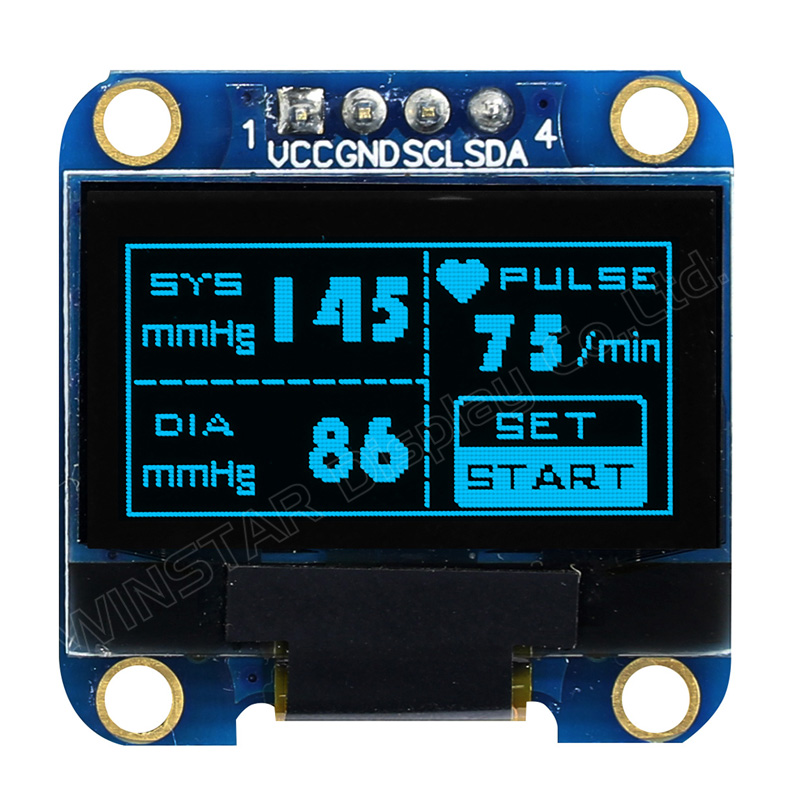

WEA012864D-03
Size (inch):
0.96
Active Area (mm):
21.74×10.86
Display Format:
128×64
Outline Dimension (mm):
27.3×27.3
Interface:
I2C
Brand:
Winstar -

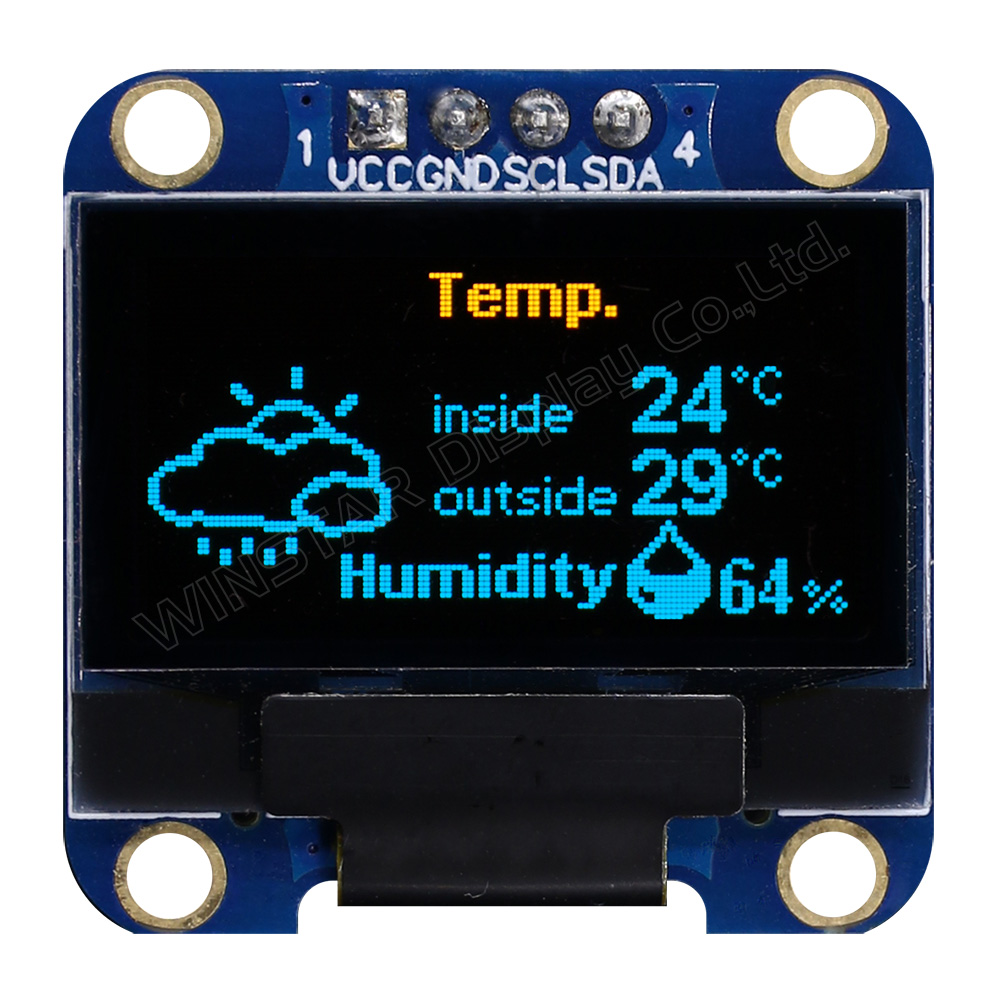

WEA012864MX
Size (inch):
0.96
Active Area (mm):
21.746×11.206
Display Format:
128×64
Outline Dimension (mm):
27.3×27.3
Interface:
I2C
Brand:
Winstar -

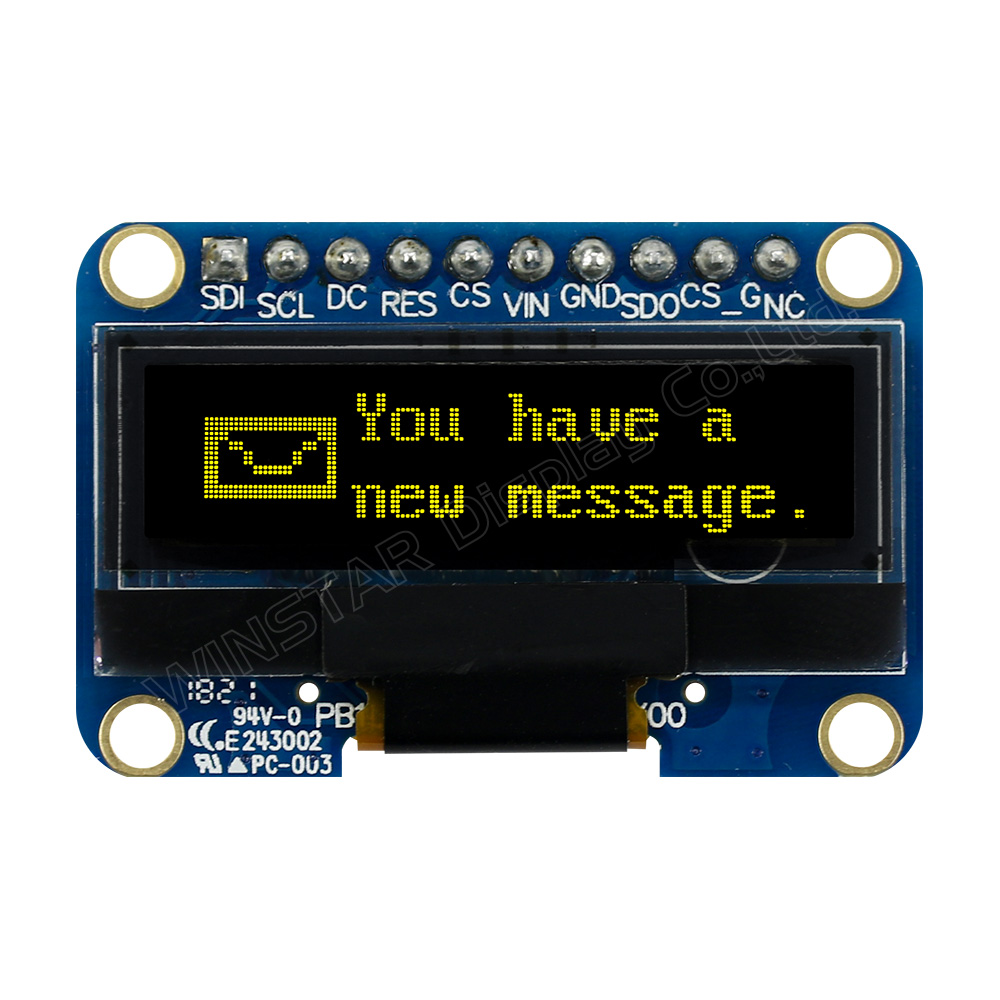

WEA012832E
Size (inch):
1.04
Active Area (mm):
25.58×6.38
Display Format:
128×32
Outline Dimension (mm):
35.4×23.5
Interface:
SPI
Brand:
Winstar -

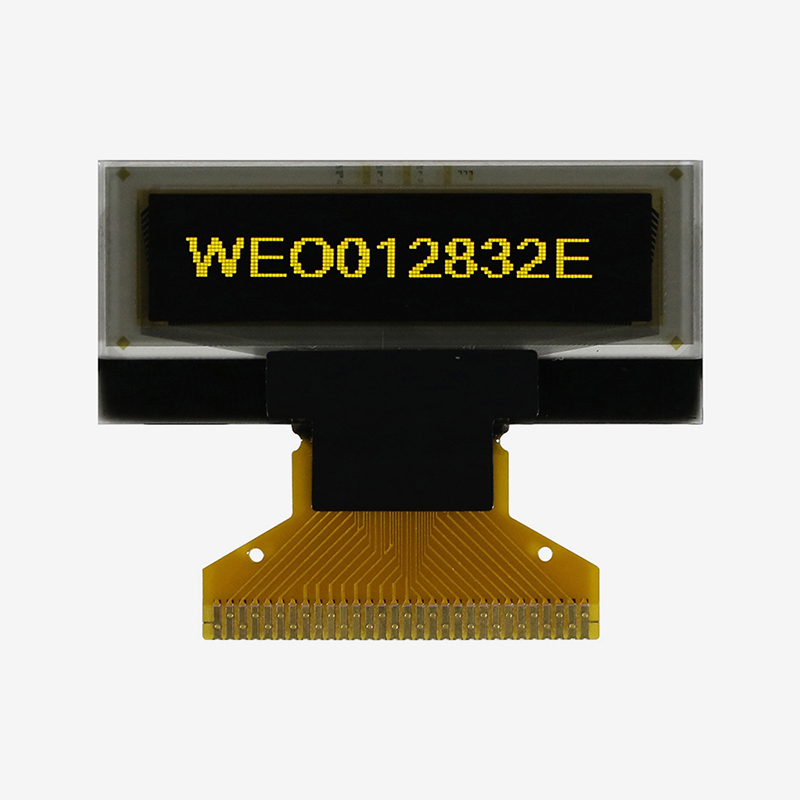

WEO012832E
Size (inch):
1.04
Active Area (mm):
25.58 x 6.38
Display Format:
128 x 32
Outline Dimension (mm):
33.4 x 14.5
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
ELW1101AAR
Size (inch):
1.1
Active Area (mm):
20.2 x 20.2
Display Format:
128 x 128
Outline Dimension (mm):
25.64 x 27.85
Interface:
SPI / I2C / Parallel
Brand:
Futaba -

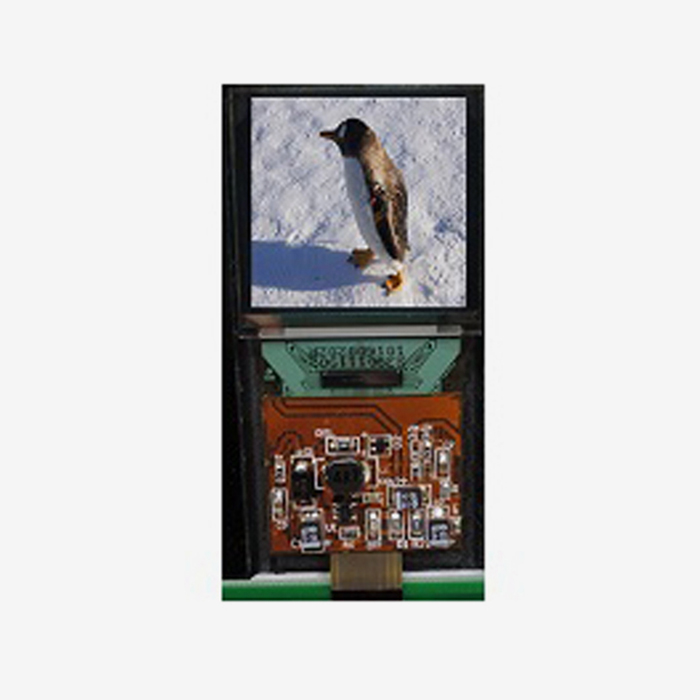

VL96642
Size (inch):
1.06
Active Area (mm):
22.14 x 15.42
Display Format:
96 x 64
Outline Dimension (mm):
24.8 x 62
Interface:
68xx, 8-bit
Brand:
Vitek -

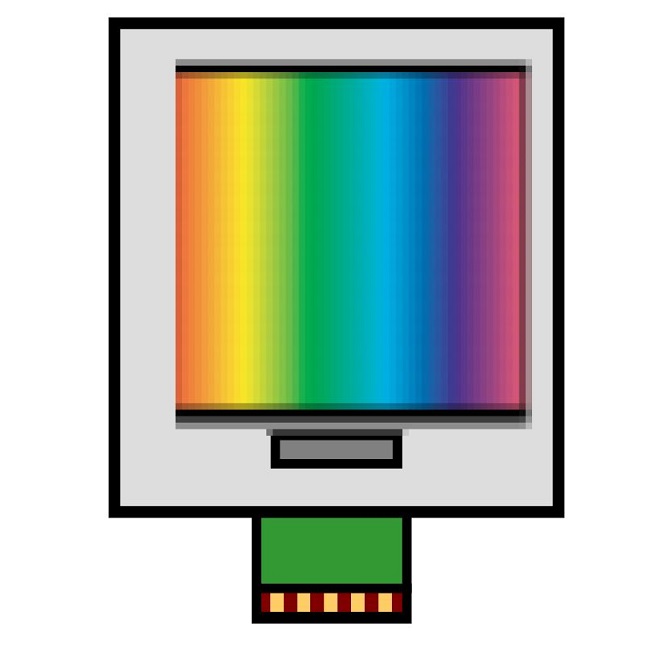

ELF1101AA
Size (inch):
1.1
Active Area (mm):
20.137 x 20.136
Display Format:
96 x RGB x 96
Outline Dimension (mm):
25.81 x 27.07
Interface:
Parallel
Brand:
Futaba -

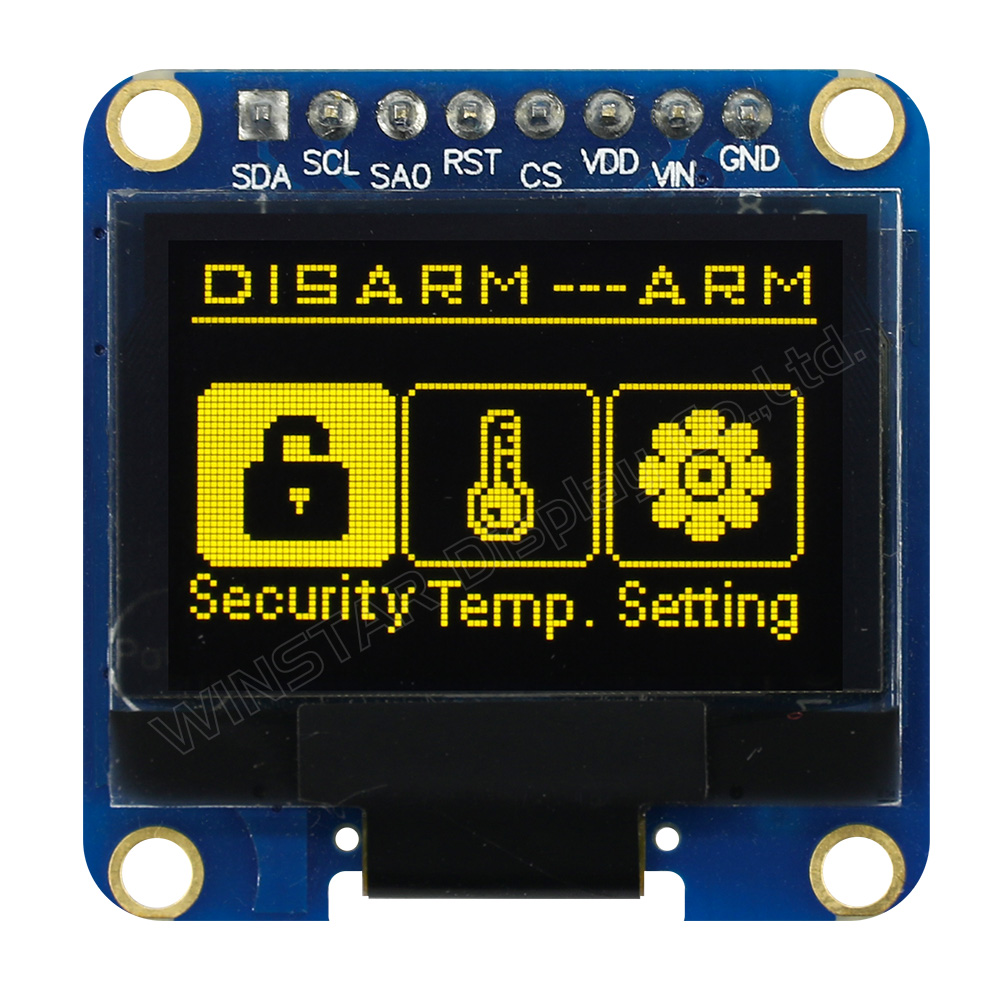

WEA009664B
Size (inch):
1.1
Active Area (mm):
22.53×15.01
Display Format:
96×64
Outline Dimension (mm):
31.5×31.5
Interface:
SPI,I2C
Brand:
Winstar -

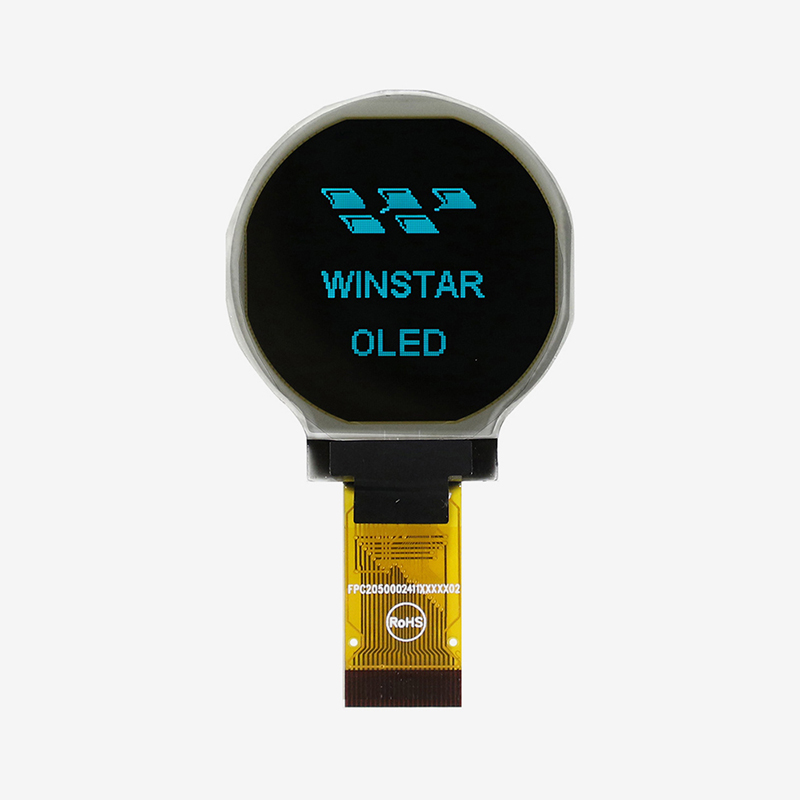

WEO128128B
Size (inch):
1.18
Active Area (mm):
30 x 30
Display Format:
128 x 128
Outline Dimension (mm):
36.98 x 41.23 x 2.05
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
WEG005016A
Size (inch):
1.26
Active Area (mm):
29.96 x 11.16
Display Format:
50 x 16
Outline Dimension (mm):
58 x 32
Interface:
6800,8080,SPI
Brand:
Winstar -

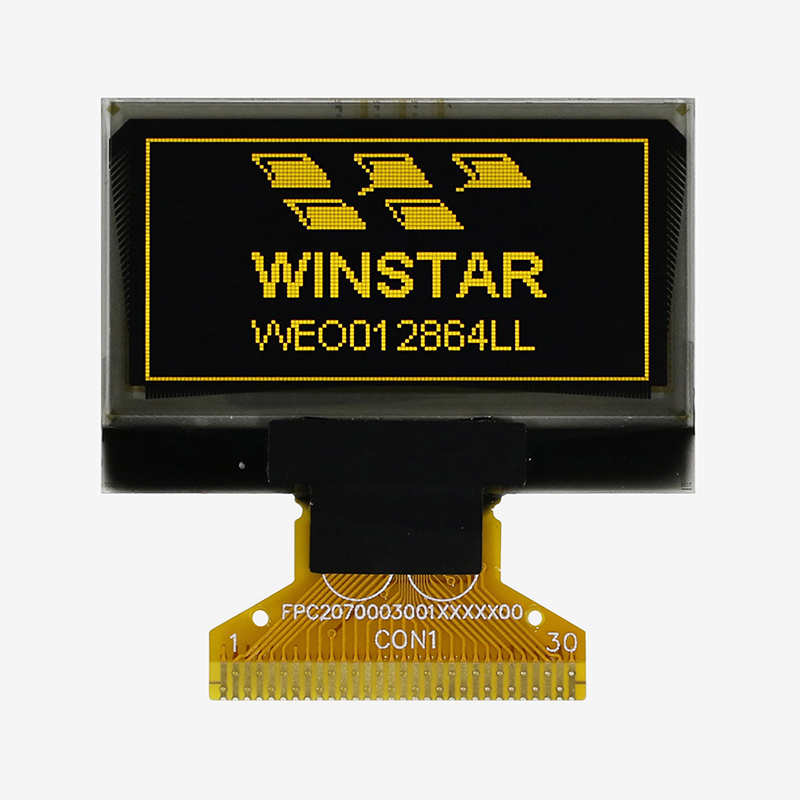

WEO012864L
Size (inch):
1.28
Active Area (mm):
29.42 x 14.2
Display Format:
128 x 64
Outline Dimension (mm):
34.5 x 23
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

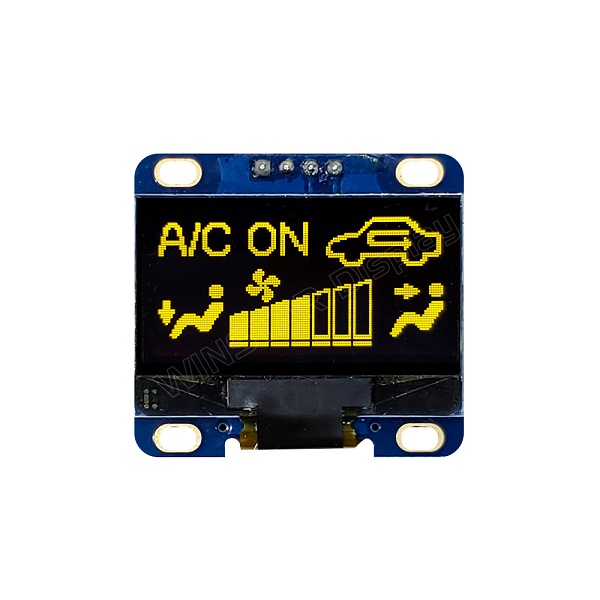

WEA012864L
Size (inch):
1.28
Active Area (mm):
29.42×14.2
Display Format:
128×64
Outline Dimension (mm):
35.5×32
Interface:
I2C
Brand:
Winstar -

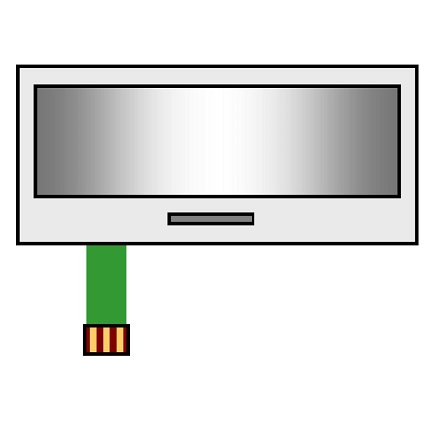

ELW1301AAR
Size (inch):
1.3
Active Area (mm):
31.84 x 8.65
Display Format:
128 x 40
Outline Dimension (mm):
36.74 x 14
Interface:
SPI / I2Cc
Brand:
Futaba -

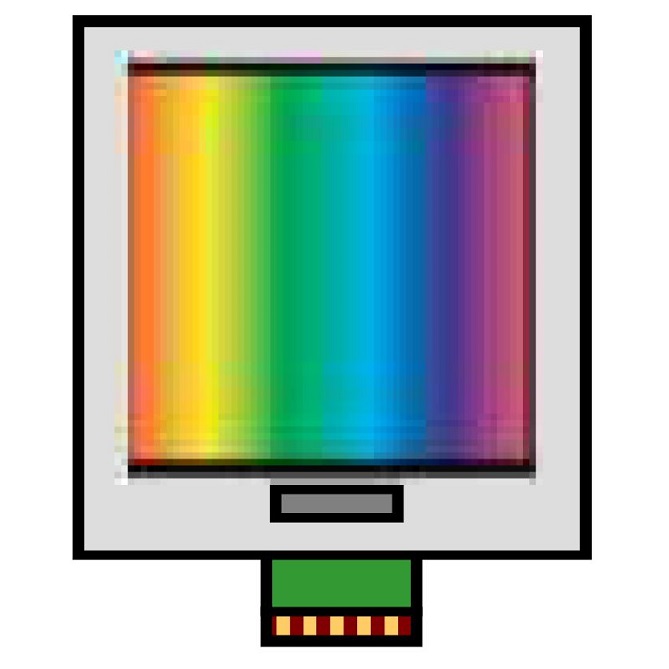

ELF1308AB
Size (inch):
1.3
Active Area (mm):
23.401 x 23.400
Display Format:
128 x RGB x 128
Outline Dimension (mm):
28.40 x 29.60
Interface:
SPI
Brand:
Futaba -
EPF1402BA
Size (inch):
1.4
Active Area (mm):
34.408 x 3.432
Display Format:
128 x RGB x16
Outline Dimension (mm):
45.60 x 9.03
Interface:
SPI / I2C
Brand:
Futaba -
ELW1501AAR
Size (inch):
1.5
Active Area (mm):
26.09 x 26.09
Display Format:
128 x 128
Outline Dimension (mm):
31.55 x 33.77
Interface:
SPI
Brand:
Futaba -

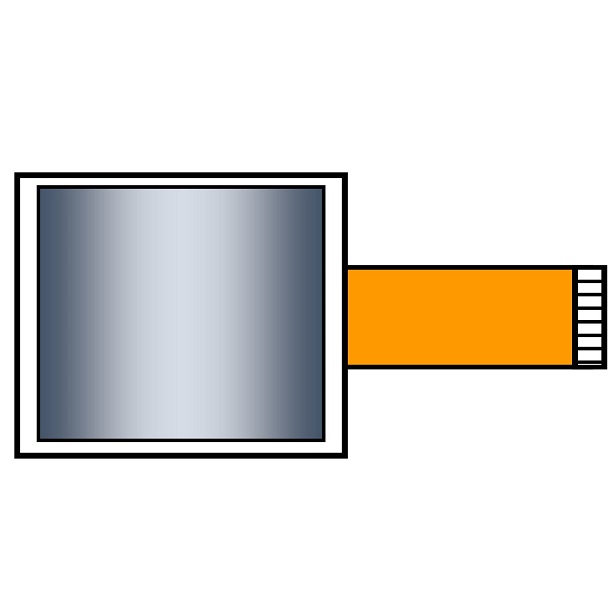

ELW1502AAG
Size (inch):
1.5
Active Area (mm):
26.20 x 26.63
Display Format:
120 Segment
Outline Dimension (mm):
35.0 x 39.8
Interface:
SPI
Brand:
Futaba -

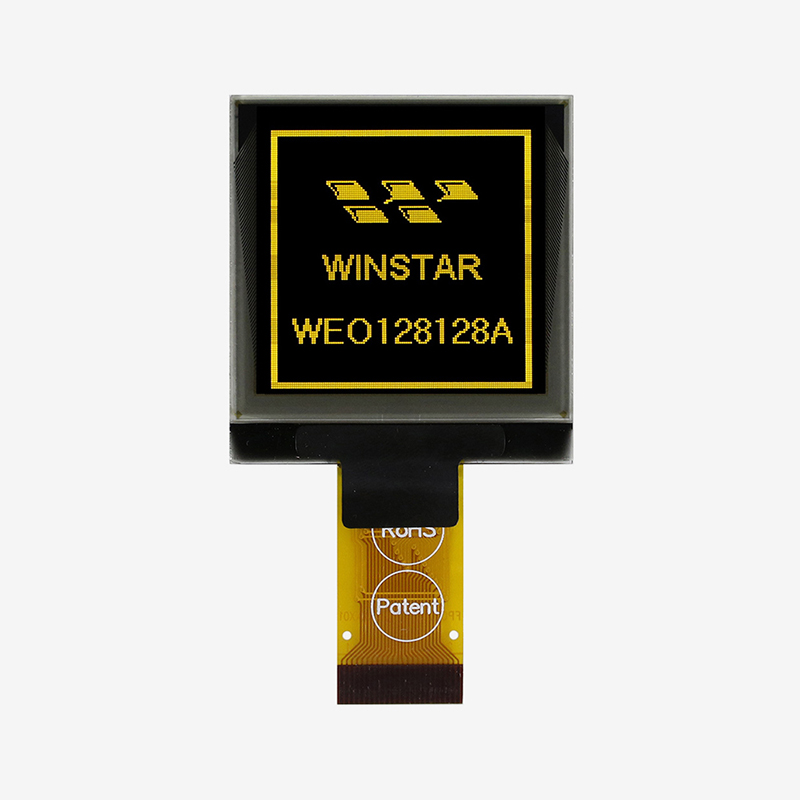

WEO128128A
Size (inch):
1.5
Active Area (mm):
26.86 x 26.86
Display Format:
128 x 128
Outline Dimension (mm):
33.8 x 36.5
Interface:
6800,8080,I2C
Brand:
Winstar -

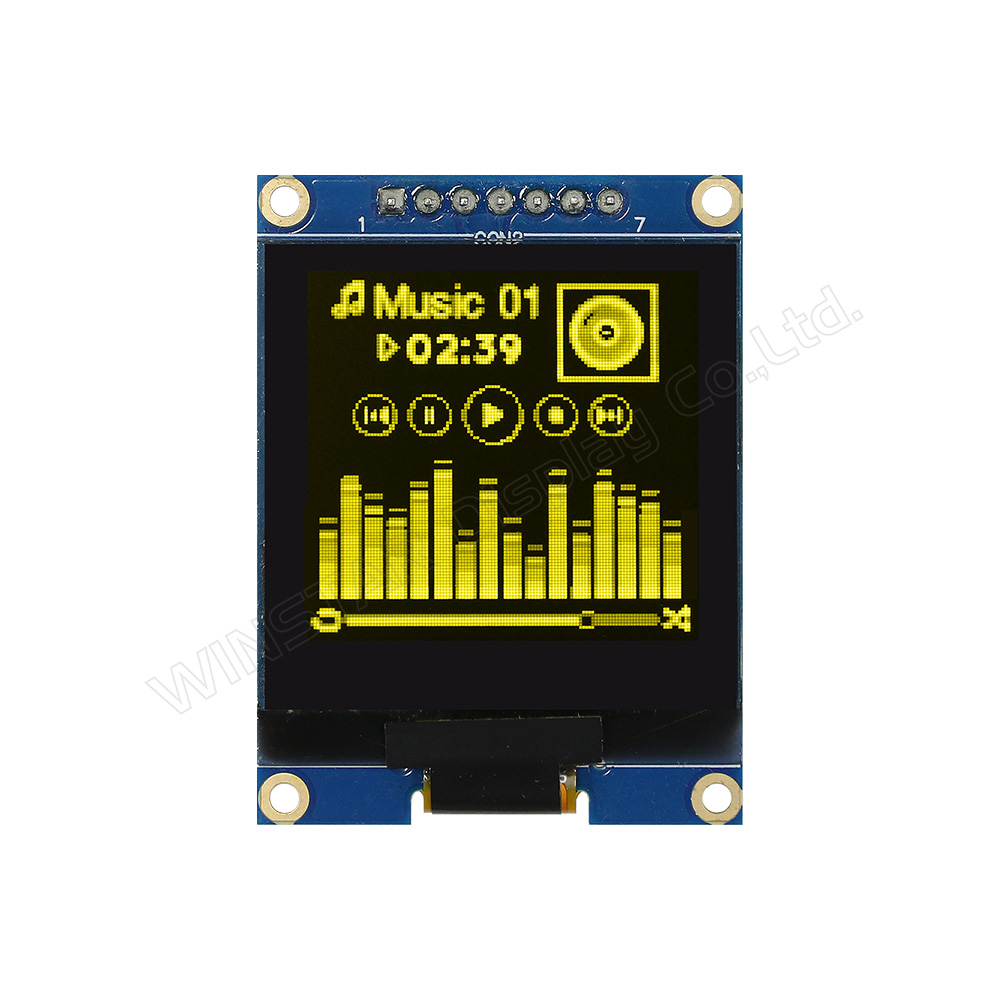

WEA128128A
Size (inch):
1.5
Active Area (mm):
26.86×26.86
Display Format:
128×128
Outline Dimension (mm):
34.2×45.5
Interface:
SPI,I2C
Brand:
Winstar -

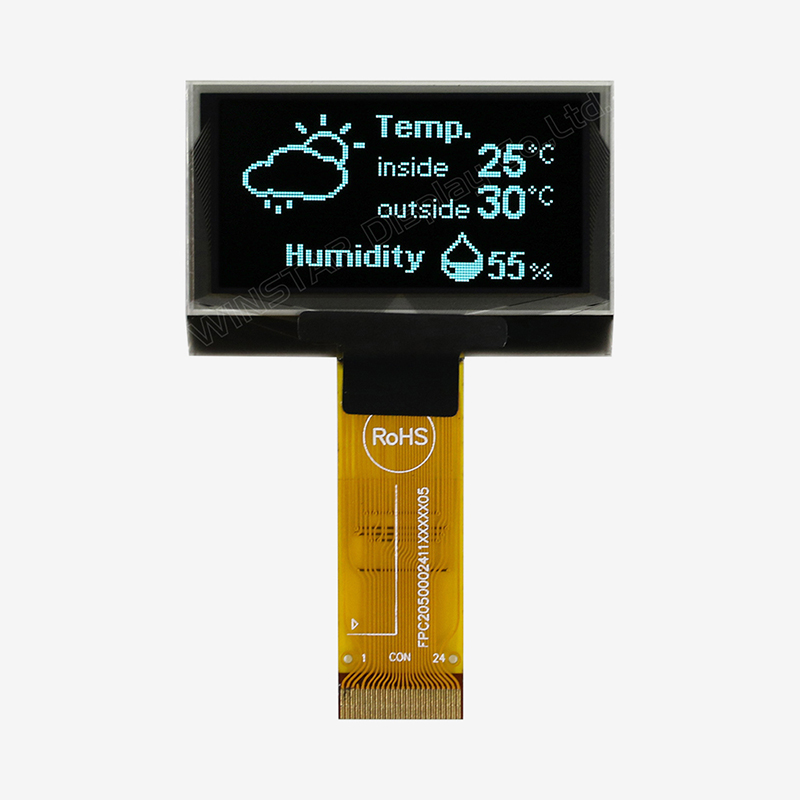

WEO012864A
Size (inch):
1.54
Active Area (mm):
35.05 x 17.51
Display Format:
128 x 64
Outline Dimension (mm):
42.04 x 27.22
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

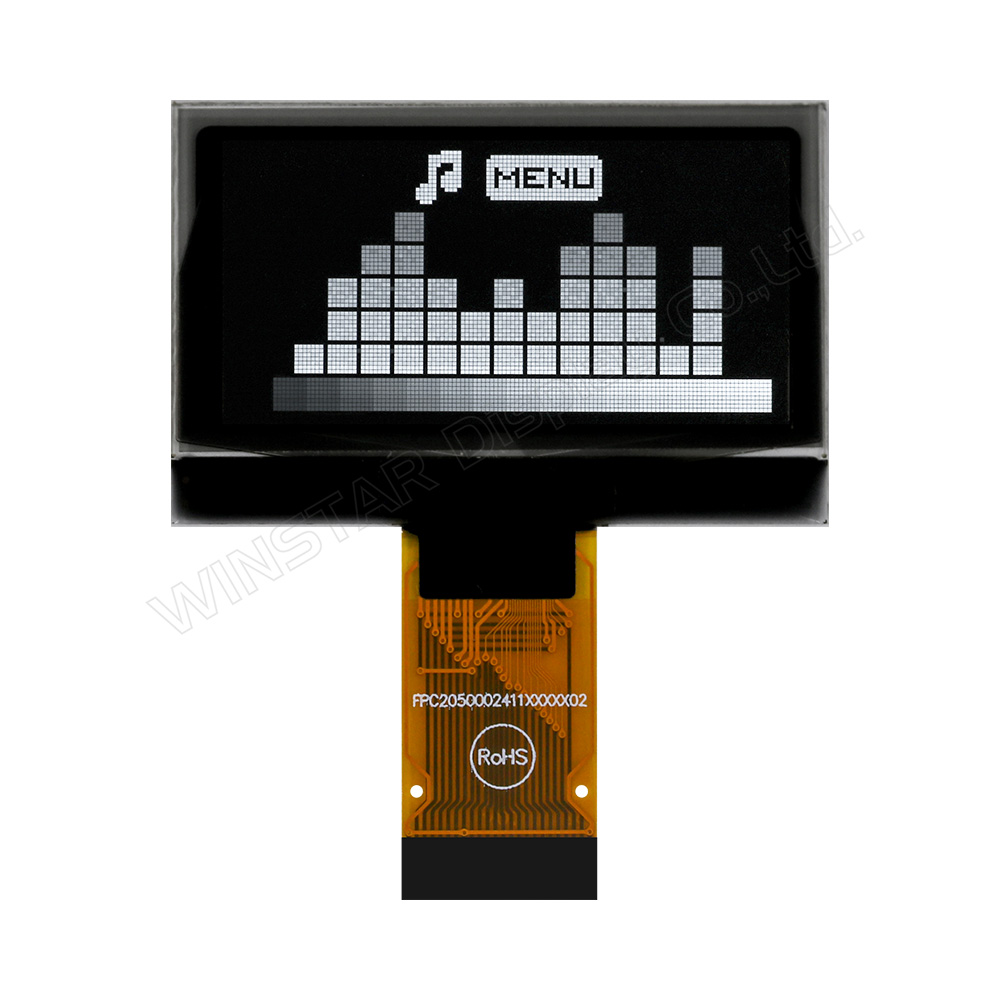

WEO012864AA
Size (inch):
1.54
Active Area (mm):
35.05×17.51
Display Format:
128×64
Outline Dimension (mm):
42.04×27.22
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
WEO012864Y
Size (inch):
1.54
Active Area (mm):
35.05×17.51
Display Format:
128×64
Outline Dimension (mm):
45.24×29.14
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

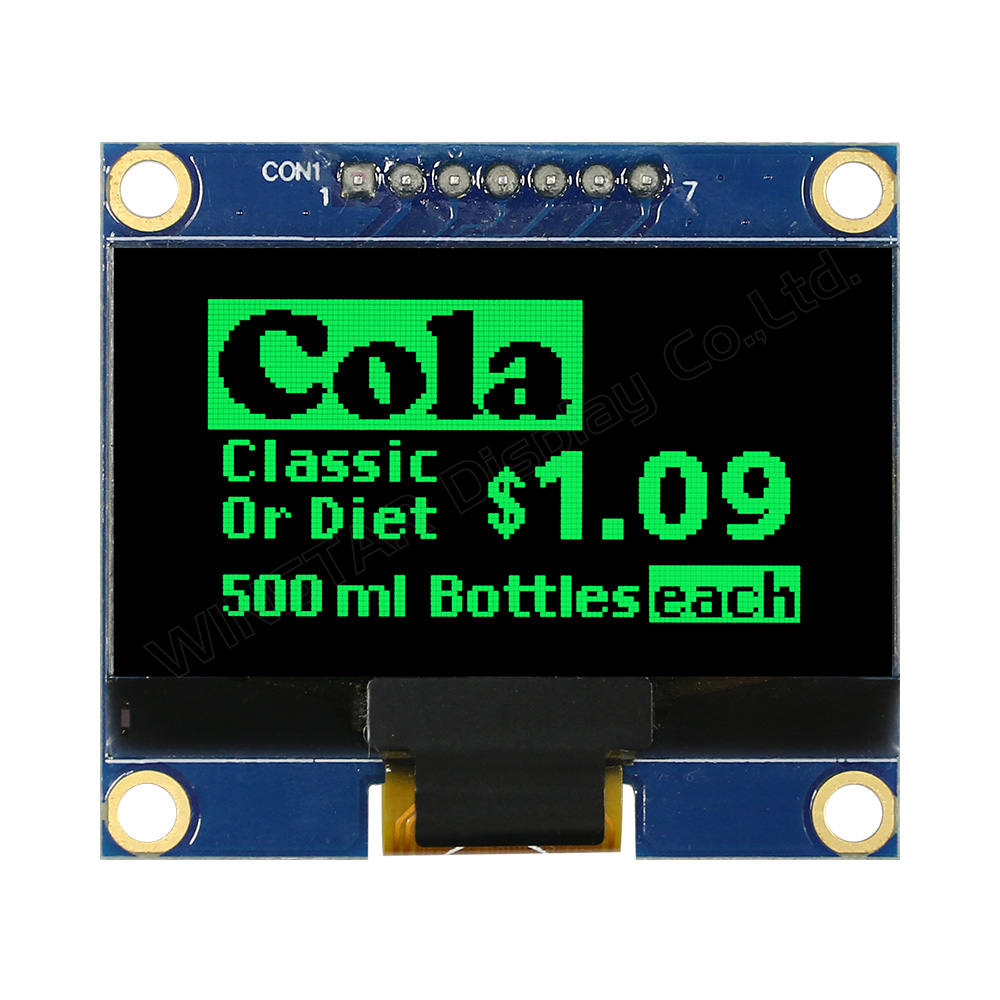

WEA012864A
Size (inch):
1.54
Active Area (mm):
35.05×17.51
Display Format:
128×64
Outline Dimension (mm):
42.4×38
Interface:
SPI,I2C
Brand:
Winstar -

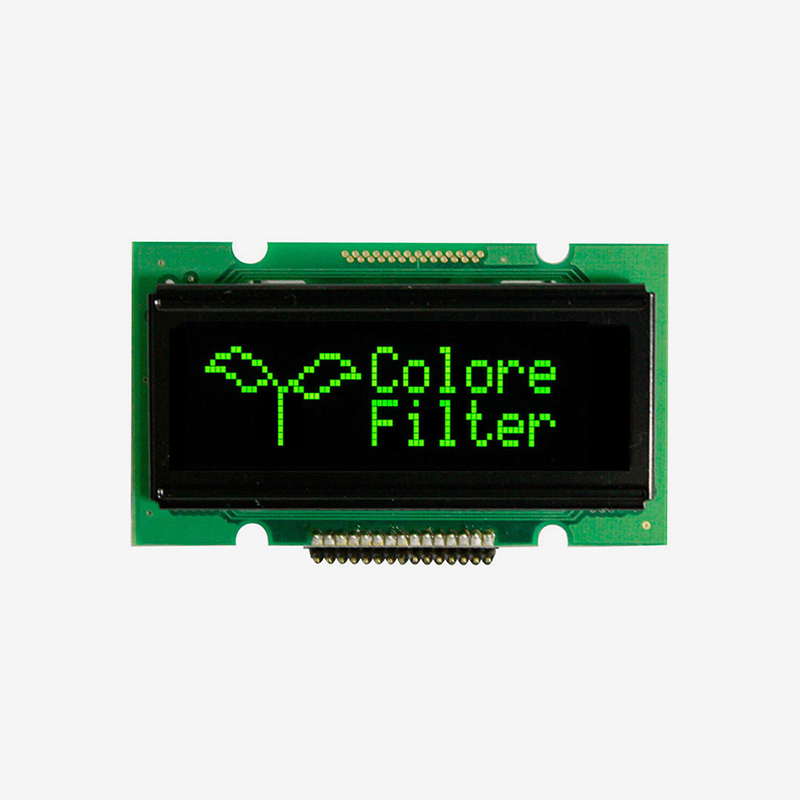

WEG007616A
Size (inch):
1.7
Active Area (mm):
47.7 x 11.1
Display Format:
76 x 16
Outline Dimension (mm):
55.7 x 32
Interface:
6800,8080,SPI
Brand:
Winstar -

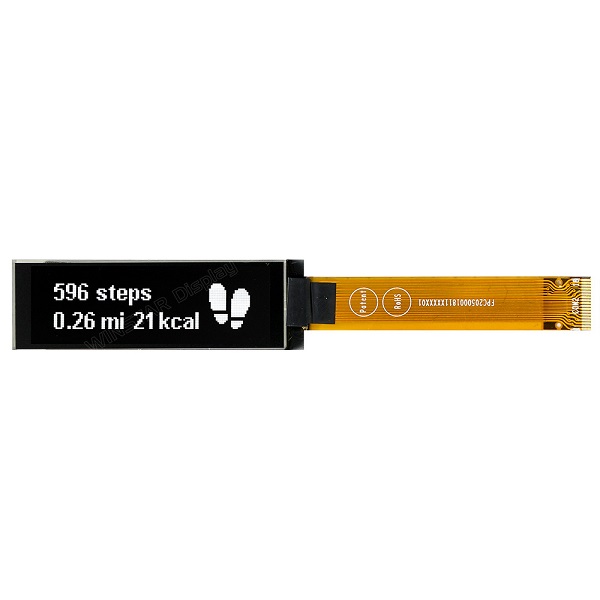

WEO012832G
Size (inch):
1.71
Active Area (mm):
42.22×10.54
Display Format:
128×32
Outline Dimension (mm):
50.50×15.75
Interface:
SPI,I2C
Brand:
Winstar -
EPW1802BA
Size (inch):
1.8
Active Area (mm):
45.096 x 9.000
Display Format:
160 x 32
Outline Dimension (mm):
55.30 x 14.94
Interface:
SPI / I2C
Brand:
Futaba -

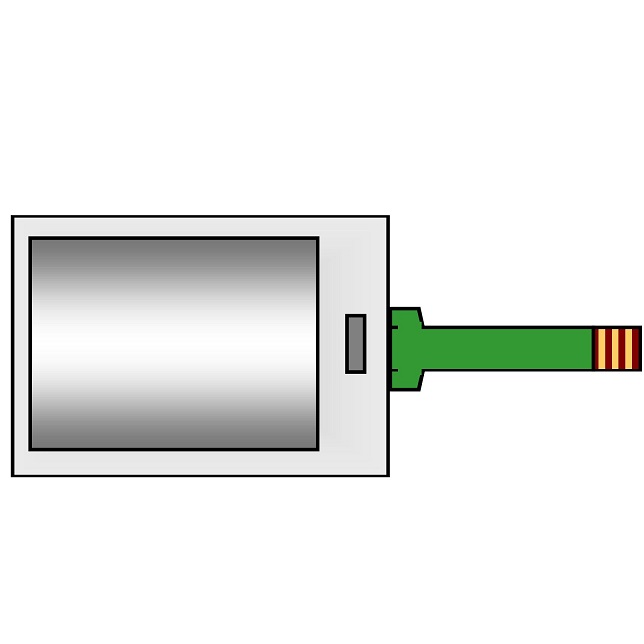

ELW1904AAG
Size (inch):
1.9
Active Area (mm):
39.34 x 28.90
Display Format:
160 x 128
Outline Dimension (mm):
48.8 x 34.5
Interface:
SPI / I2C / Parallel
Brand:
Futaba -
VL1281281
Size (inch):
1.46
Active Area (mm):
26.279 x 26.284
Display Format:
128 x 128
Outline Dimension (mm):
33.5 x 76.33
Interface:
68xx, 8-bit
Brand:
Vitek -

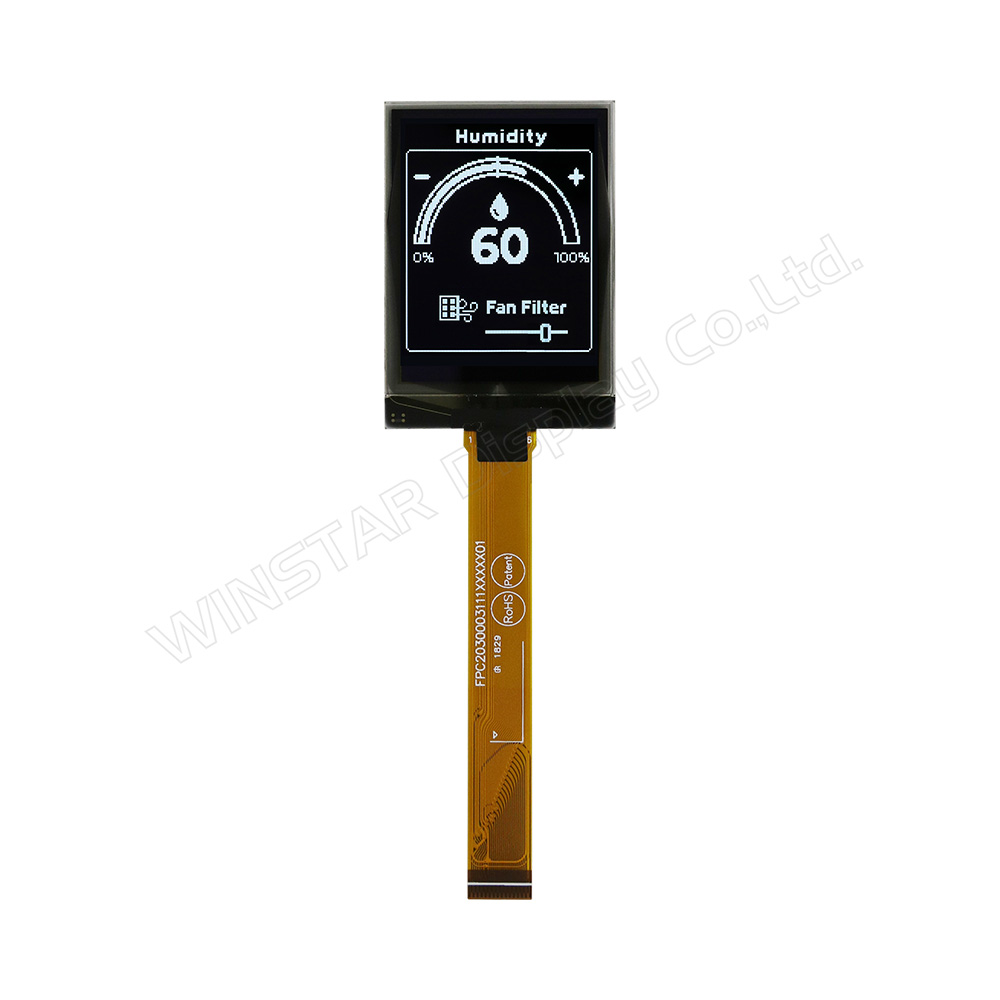

WEO160128A
Size (inch):
1.92
Active Area (mm):
28.908×39.34
Display Format:
160×128
Outline Dimension (mm):
34.5×48.8
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

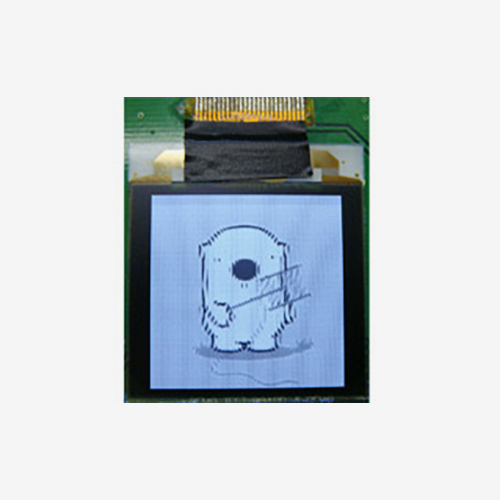

VL1281282
Size (inch):
1.5
Active Area (mm):
26.86 x 26.86
Display Format:
128 x 128
Outline Dimension (mm):
33.8 x 78.7
Interface:
68xx, 8-bit
Brand:
Vitek -

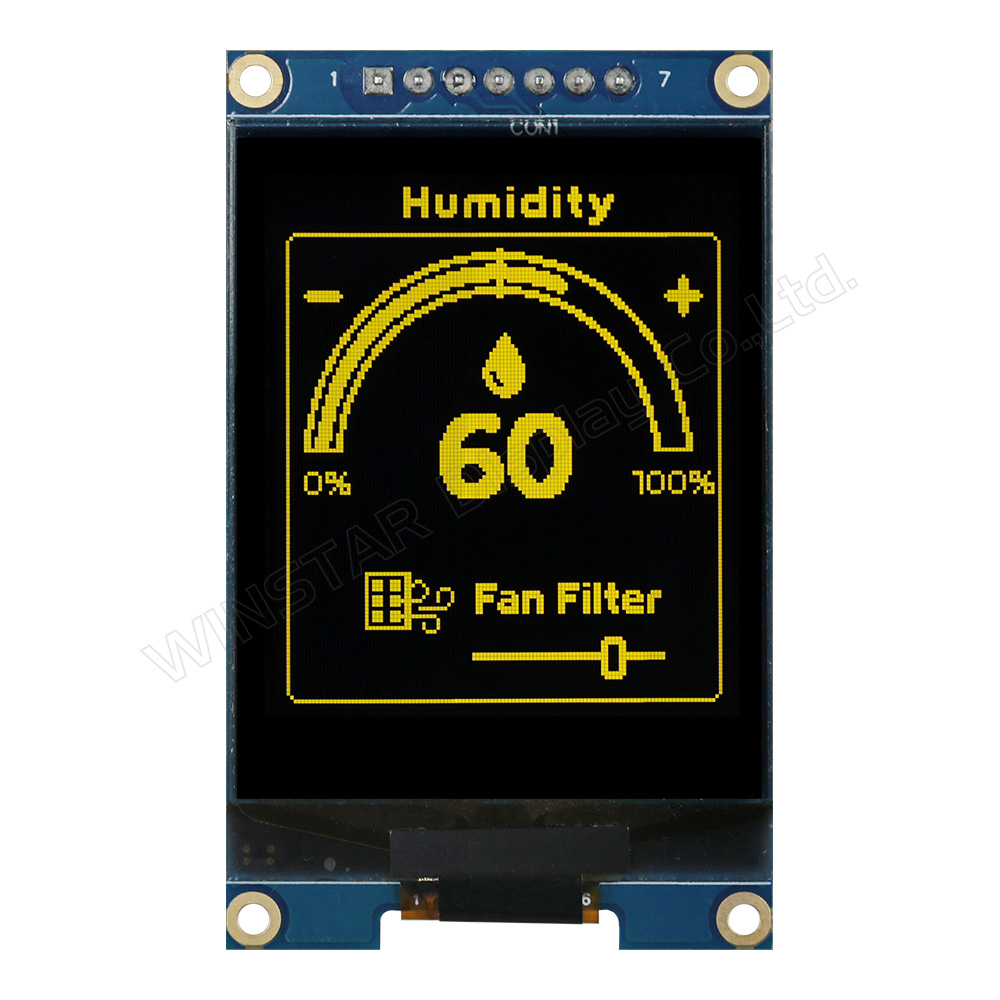

WEA160128A
Size (inch):
1.92
Active Area (mm):
28.908×39.34
Display Format:
160×128
Outline Dimension (mm):
34.9×57.8
Interface:
SPI
Brand:
Winstar -

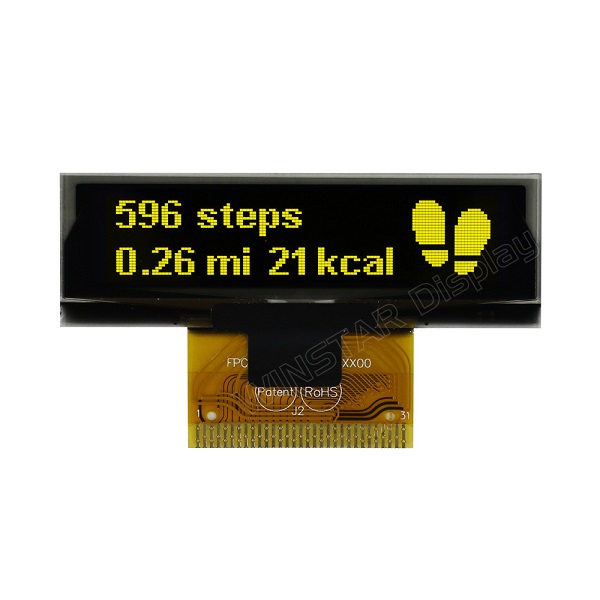

WEO012832K
Size (inch):
2.0
Active Area (mm):
50.535×10.695
Display Format:
128×32
Outline Dimension (mm):
59×18.86
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

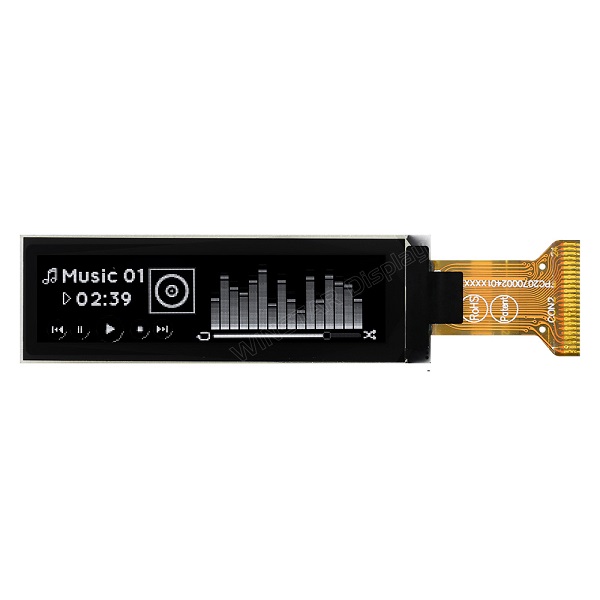

WEO025664A
Size (inch):
2.08
Active Area (mm):
51.18×12.78
Display Format:
256×64
Outline Dimension (mm):
60.5×19
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

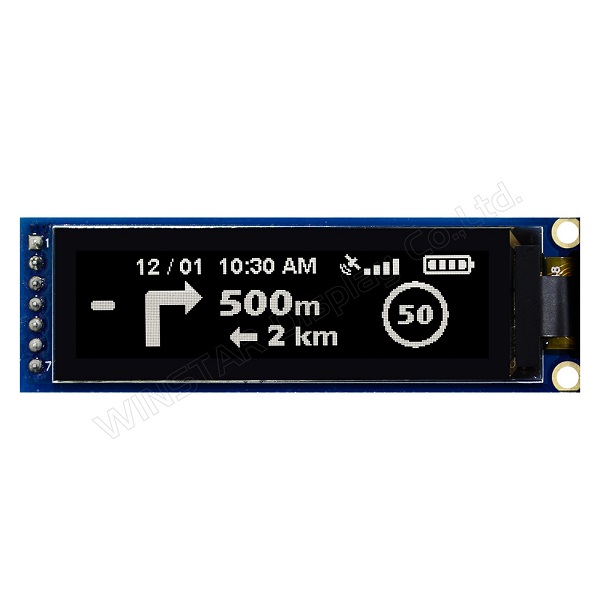

WEA025664A
Size (inch):
2.08
Active Area (mm):
51.18×12.78
Display Format:
256×64
Outline Dimension (mm):
70×22
Interface:
SPI
Brand:
Winstar -

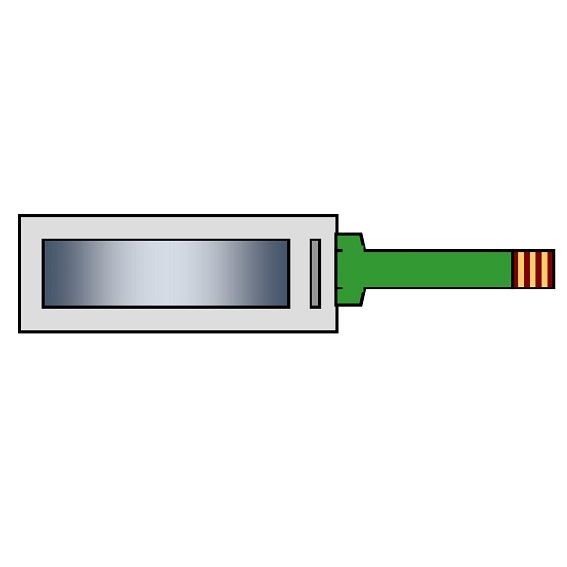

ELW2106AA
Size (inch):
2.1
Active Area (mm):
50.66 x 12.39
Display Format:
256 x 64
Outline Dimension (mm):
60.60 x 17.50
Interface:
SPI
Brand:
Futaba -
ELF2101AA
Size (inch):
2.1
Active Area (mm):
50.664 x 12.364
Display Format:
176 x RGB x 48
Outline Dimension (mm):
60.50 x 19.50
Interface:
SPI / I2C
Brand:
Futaba -
ELF2101BAT
Size (inch):
2.2
Active Area (mm):
50.664 x 12.365
Display Format:
177 x RGB x 48
Outline Dimension (mm):
60.50 x 19.51
Interface:
SPI / I2C
Brand:
Futaba -

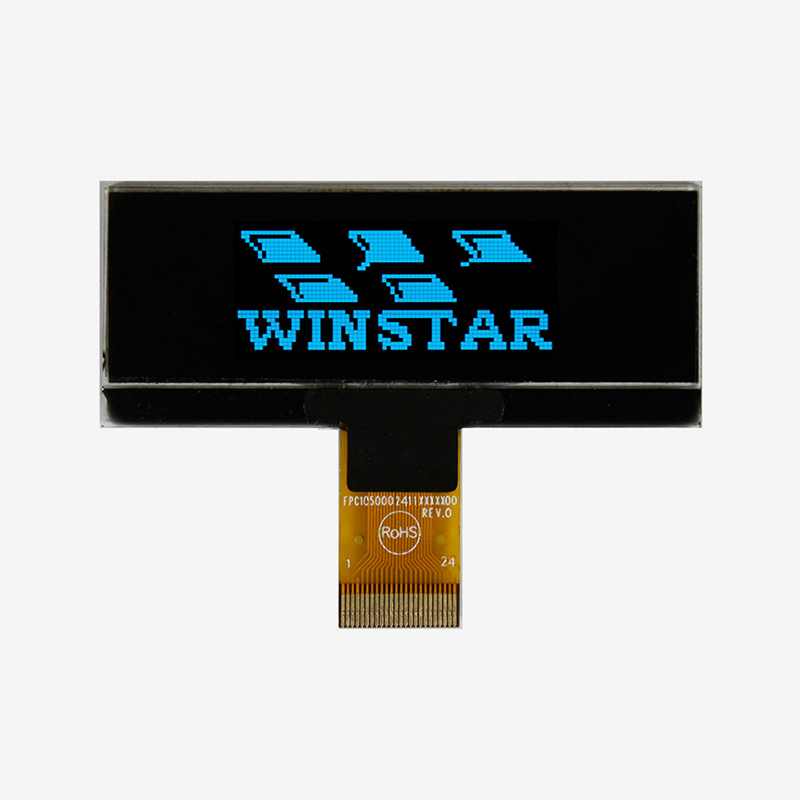

WEO012832A
Size (inch):
2.22
Active Area (mm):
55.018 x 13.098
Display Format:
128 x 32
Outline Dimension (mm):
62 x 24
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

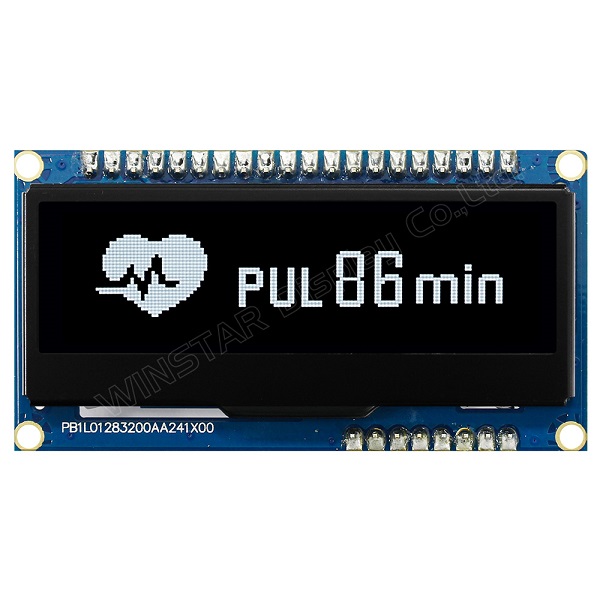

WEP012832A
Size (inch):
2.23
Active Area (mm):
55.018×13.098
Display Format:
128×32
Outline Dimension (mm):
66.5×35
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

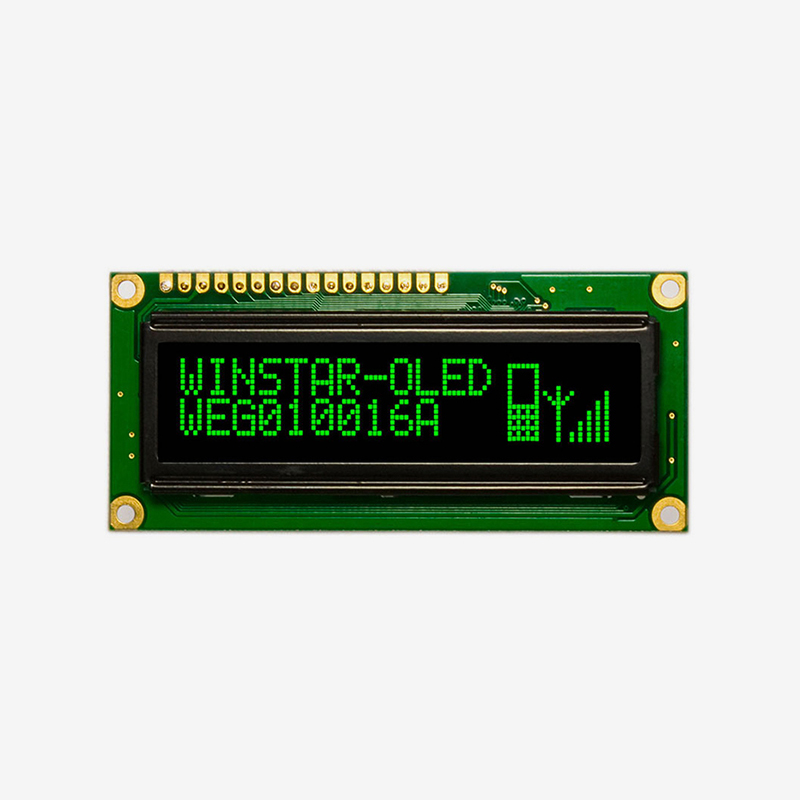

WEG010016A
Size (inch):
2.4
Active Area (mm):
59.95 x 11.15
Display Format:
100 x 16
Outline Dimension (mm):
80 x 36
Interface:
6800,8080,SPI
Brand:
Winstar -

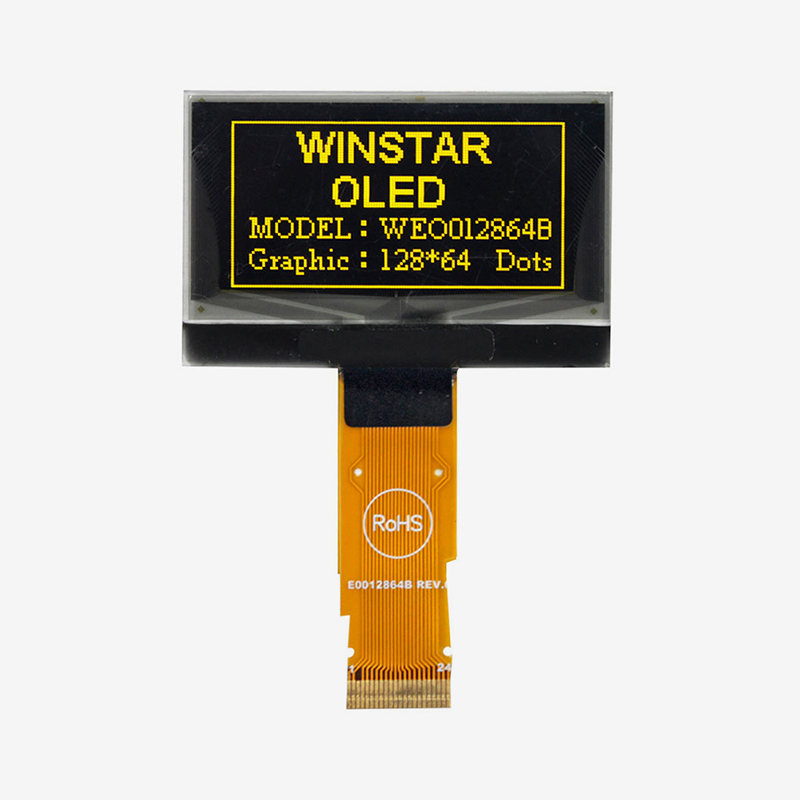

WEO012864B
Size (inch):
1.54
Active Area (mm):
35.056 x 17.52
Display Format:
128 x 64
Outline Dimension (mm):
45.24 x 29.14
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

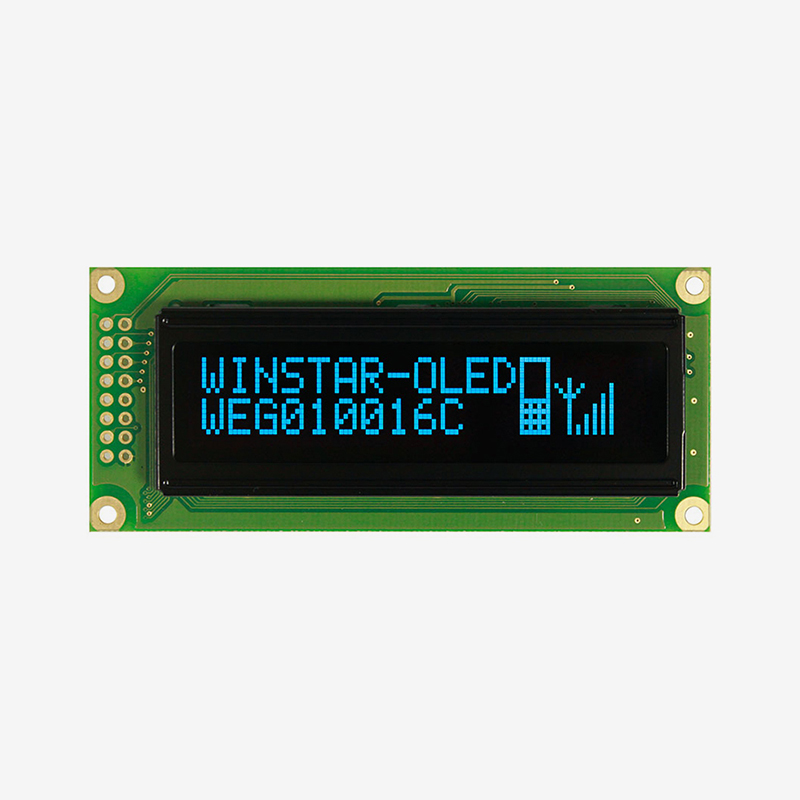

WEG010016C
Size (inch):
2.4
Active Area (mm):
59.95 x 11.15
Display Format:
100 x 16
Outline Dimension (mm):
85 x 36
Interface:
6800,8080,SPI
Brand:
Winstar -

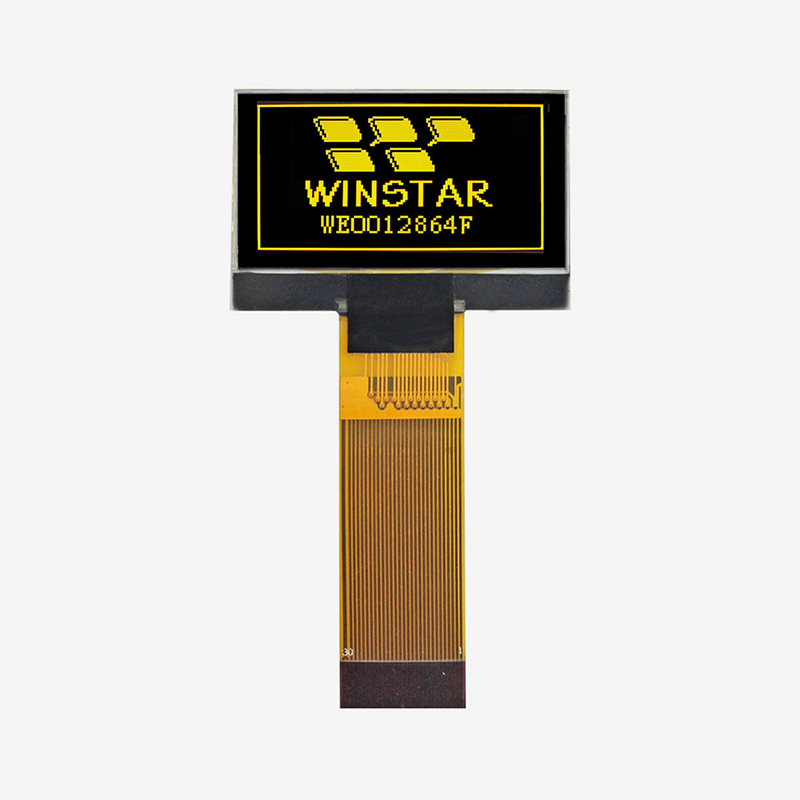

WEO012864F
Size (inch):
1.6
Active Area (mm):
36.45 x 18.21
Display Format:
128 x 64
Outline Dimension (mm):
41.8 x 27.9
Interface:
6800,8080,SPI
Brand:
Winstar -

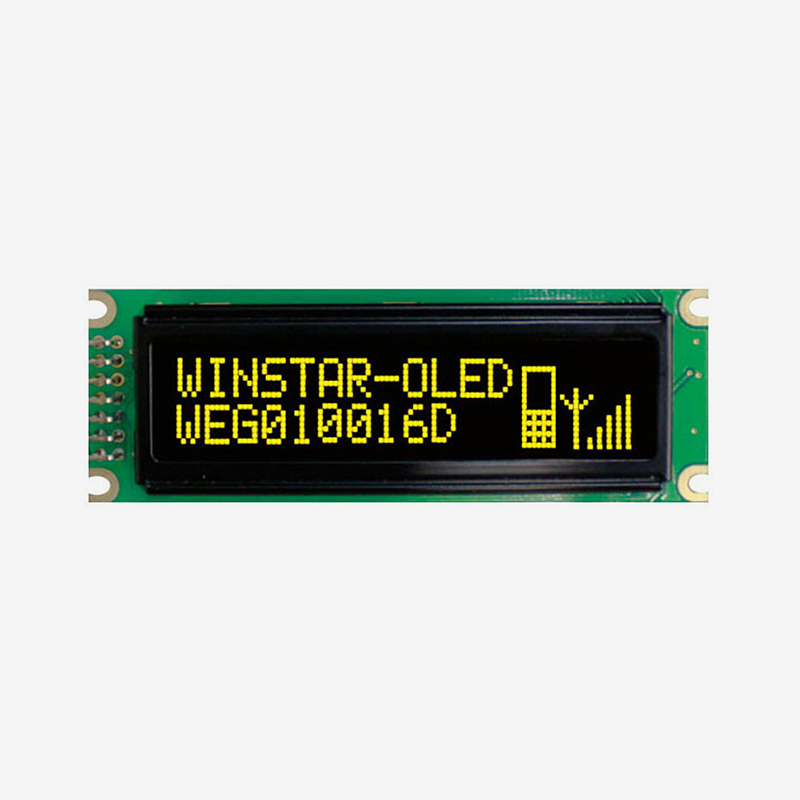

WEG010016D
Size (inch):
2.4
Active Area (mm):
59.95 x 11.15
Display Format:
100 x 16
Outline Dimension (mm):
85 x 30
Interface:
6800,808
Brand:
Winstar -
VL1601281
Size (inch):
1.77
Active Area (mm):
35.015 x 28.012
Display Format:
160 x 128
Outline Dimension (mm):
42.7 x 77.5
Interface:
68xx, 8-bit
Brand:
Vitek -

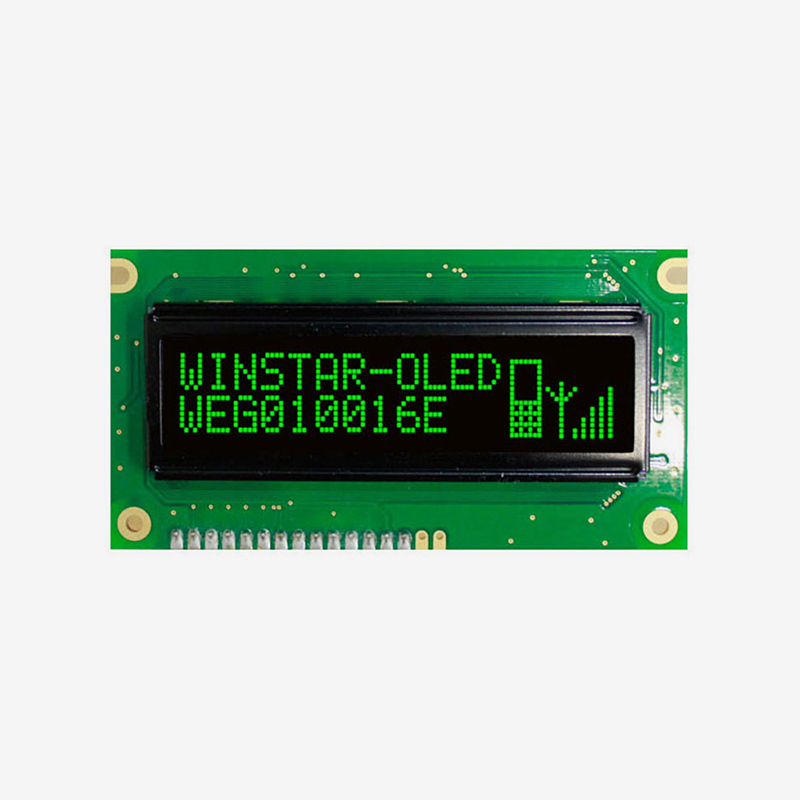

WEG010016E
Size (inch):
2.4
Active Area (mm):
59.95 x 11.15
Display Format:
100 x 16
Outline Dimension (mm):
84 x 44
Interface:
6800,808
Brand:
Winstar -

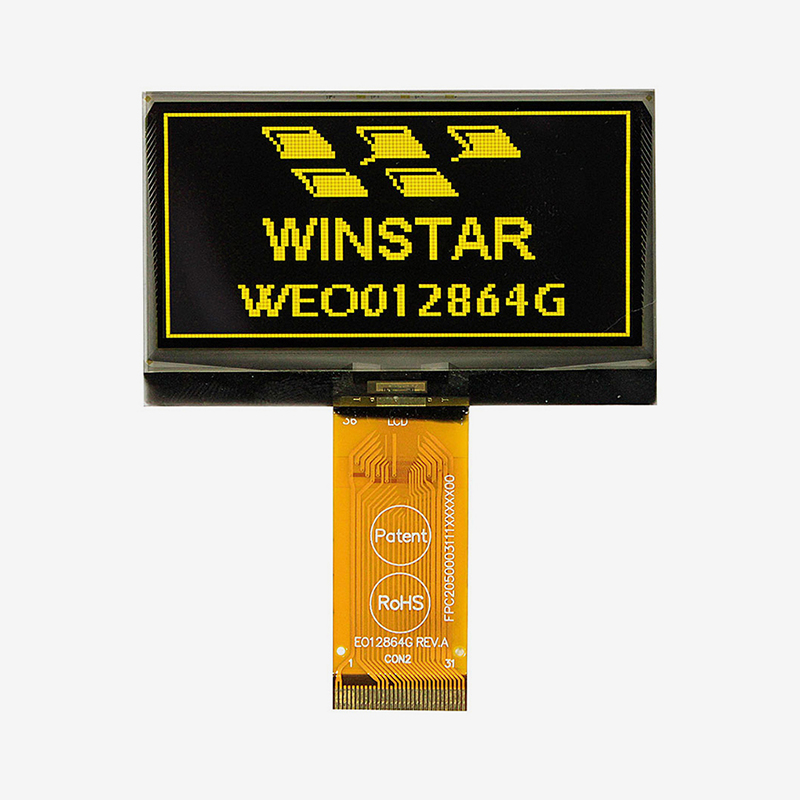

WEO012864G
Size (inch):
2.42
Active Area (mm):
55.01 x 27.49
Display Format:
128 x 64
Outline Dimension (mm):
60.5 x 37
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

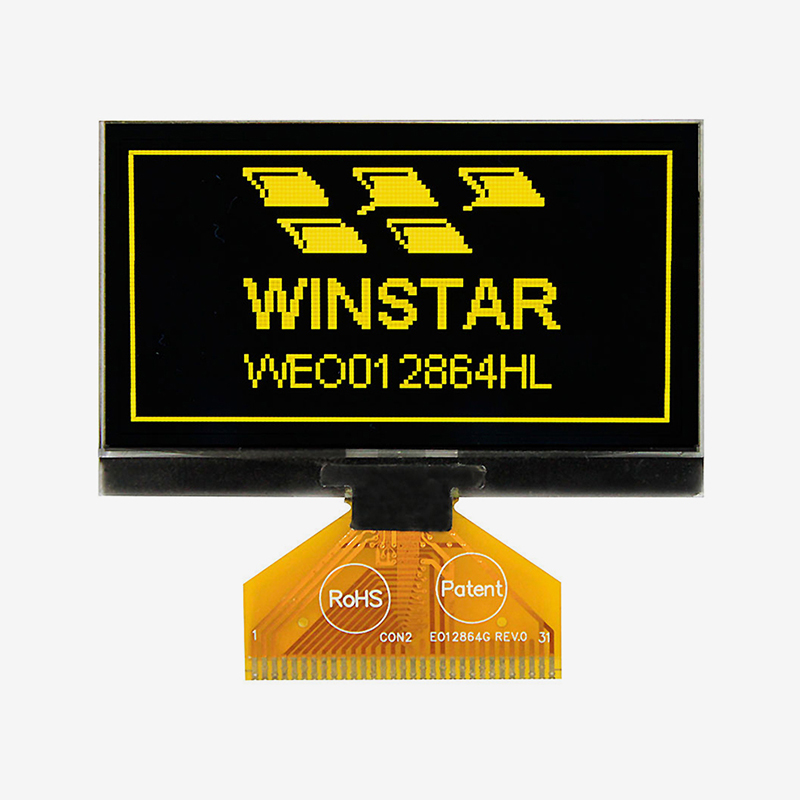

WEO012864H
Size (inch):
2.42
Active Area (mm):
55.01 x 27.49
Display Format:
128 x 64
Outline Dimension (mm):
60.5 x 37
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
WEO012864J
Size (inch):
2.42
Active Area (mm):
55.01 x 27.49
Display Format:
128 x 64
Outline Dimension (mm):
75 x 52.7
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -
WEG010032A
Size (inch):
2.44
Active Area (mm):
58.95 x 19.15
Display Format:
100 x 32
Outline Dimension (mm):
98 x 60
Interface:
6800,8080,SPI
Brand:
Winstar -

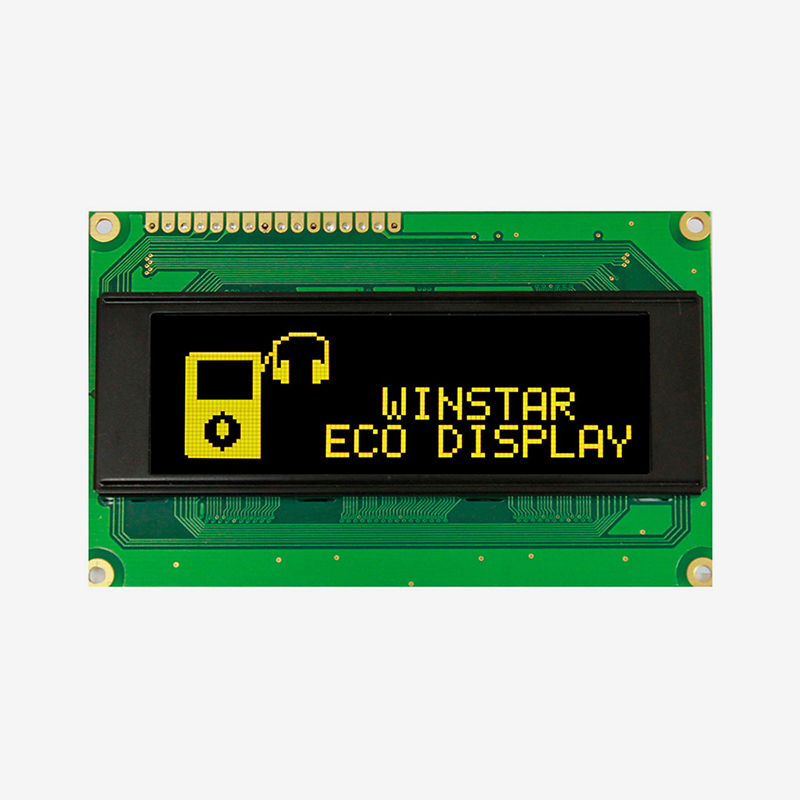

WEG010032B
Size (inch):
2.44
Active Area (mm):
58.95 x 19.15
Display Format:
100 x 32
Outline Dimension (mm):
98 x 60
Interface:
6800,8080,SPI
Brand:
Winstar -

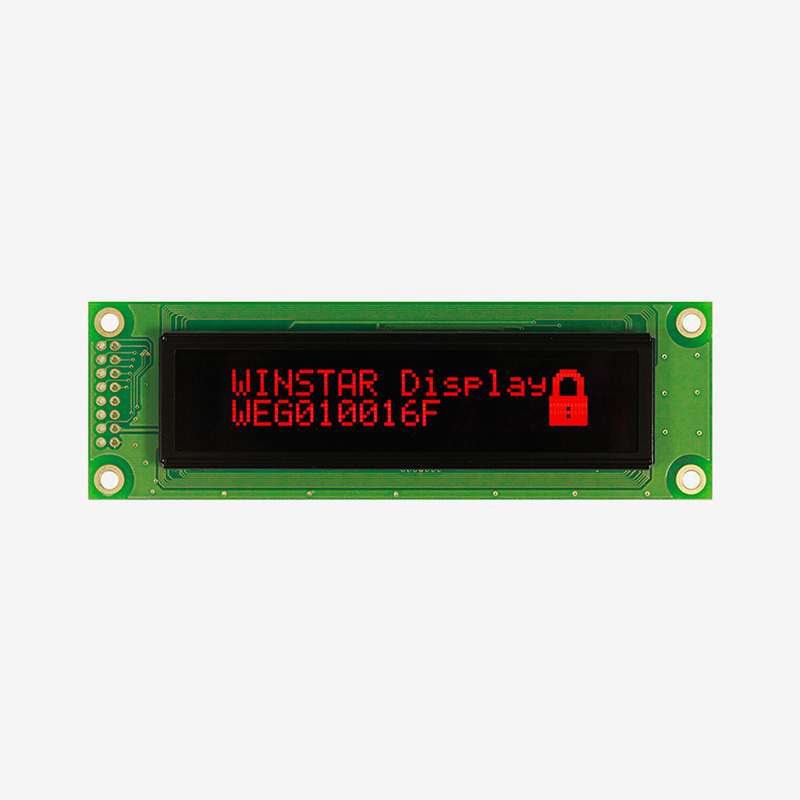

WEG010016F
Size (inch):
2.59
Active Area (mm):
64.95 x 11.15
Display Format:
100 x 16
Outline Dimension (mm):
116 x 37
Interface:
6800,8080,SPI
Brand:
Winstar -

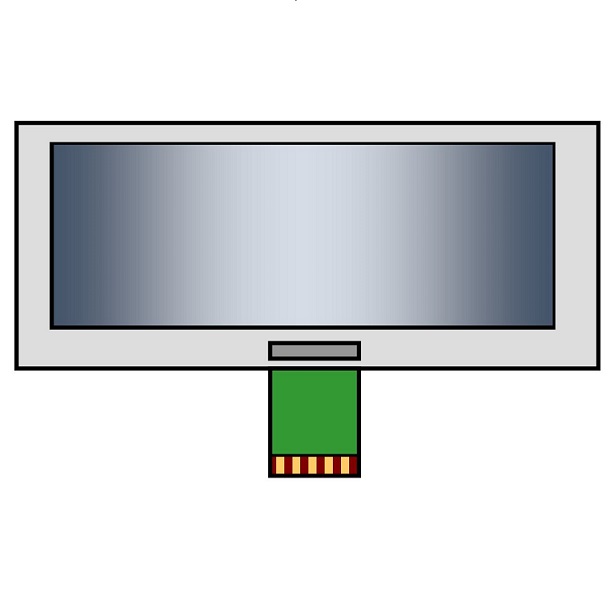

ELW2701ARR
Size (inch):
2.7
Active Area (mm):
65.794 x 19.676
Display Format:
176 x 52
Outline Dimension (mm):
75.80 x 31.44
Interface:
SPI
Brand:
Futaba -

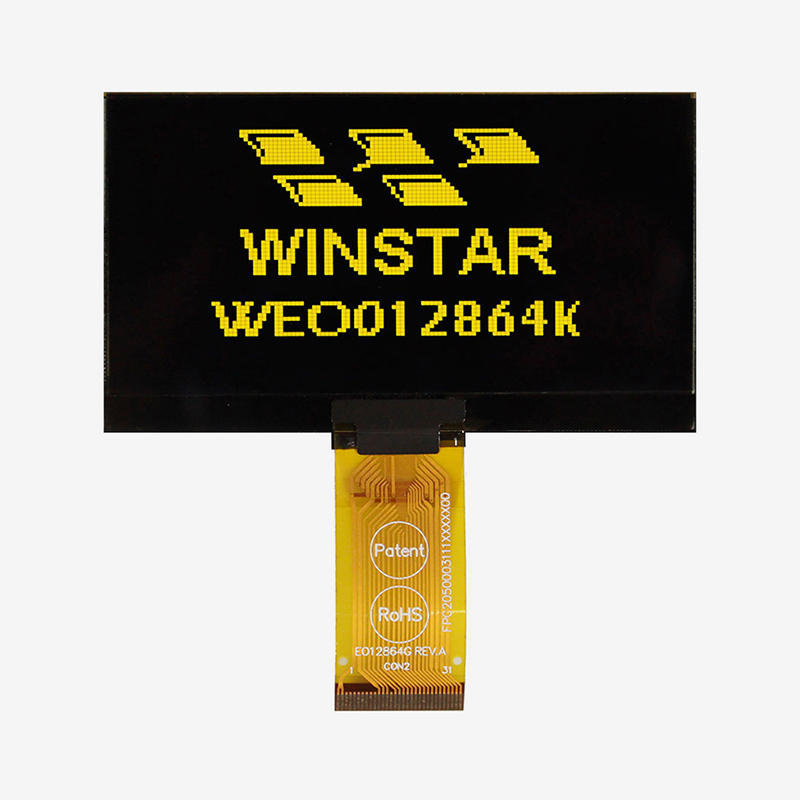

WEO012864K
Size (inch):
2.7
Active Area (mm):
61.41 x 30.69
Display Format:
128 x 64
Outline Dimension (mm):
73 x 41.86
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

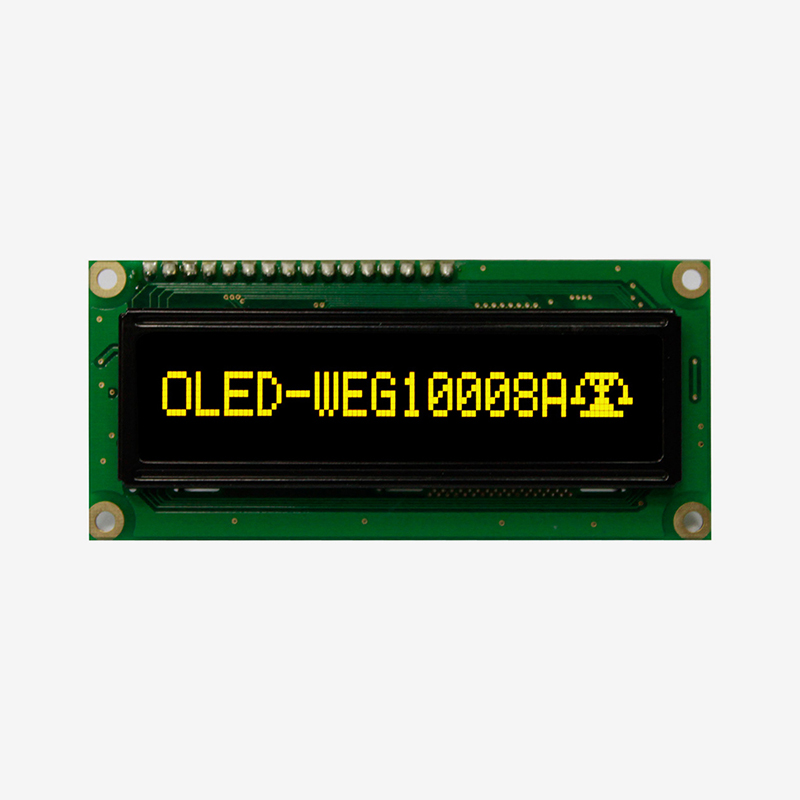

WEG010008A
Size (inch):
2.37
Active Area (mm):
59.95 x 6.35
Display Format:
100 x 8
Outline Dimension (mm):
80 x 36
Interface:
6800,8080,SPI
Brand:
Winstar -

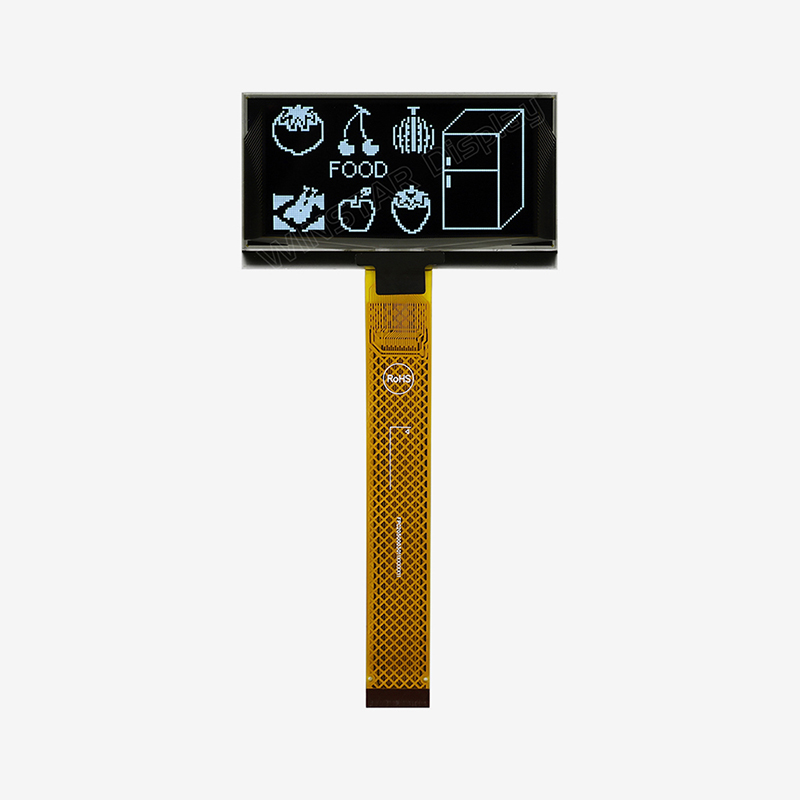

WEO012864Q
Size (inch):
2.7
Active Area (mm):
61.41 x 30.69
Display Format:
128 x 64
Outline Dimension (mm):
73 x 41.86
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

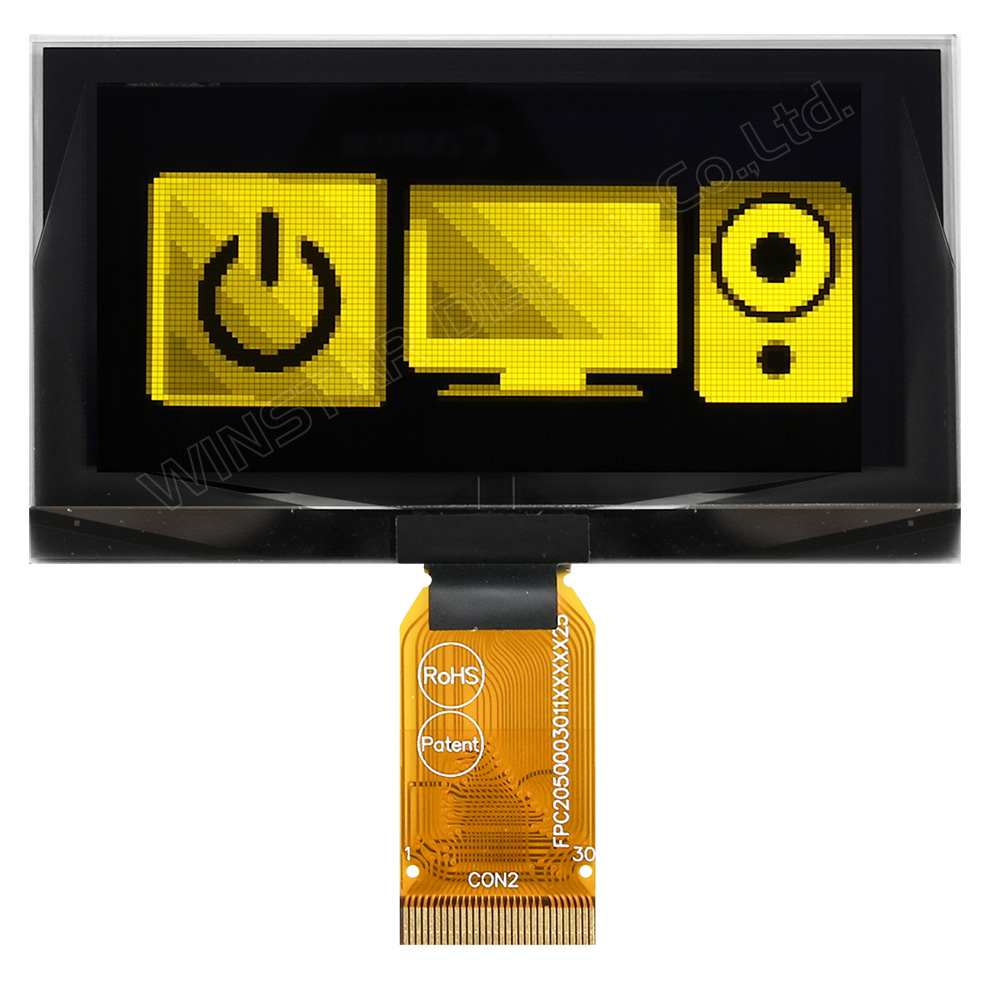

WEO012864U
Size (inch):
2.7
Active Area (mm):
61.41×30.69
Display Format:
128×64
Outline Dimension (mm):
73×41.86
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

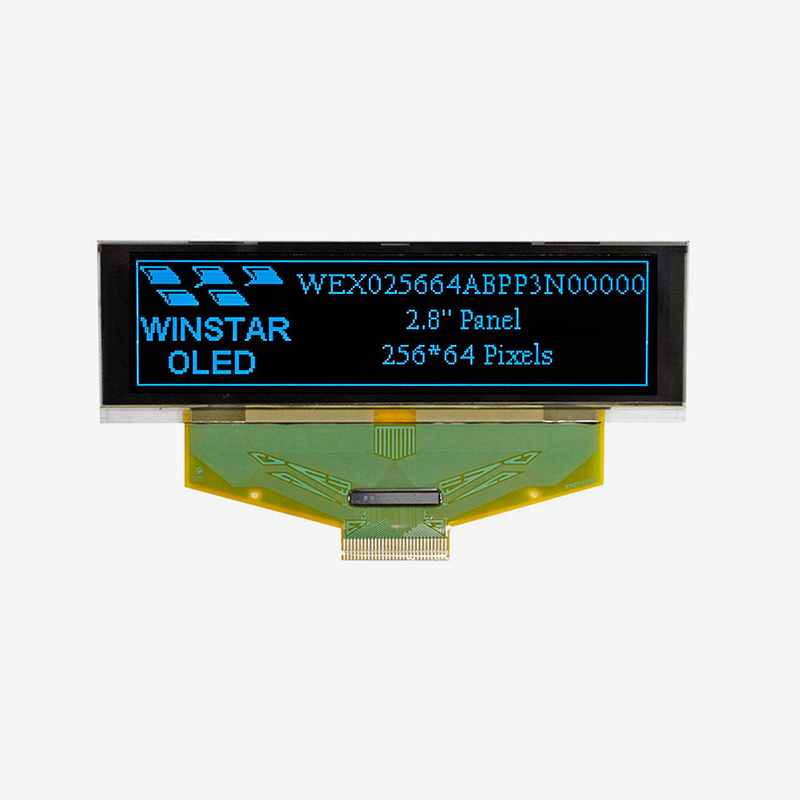

WEX025664A
Size (inch):
2.8
Active Area (mm):
69.098 x 17.258
Display Format:
256 x 64
Outline Dimension (mm):
84 x 25.8
Interface:
6800,8080,SPI
Brand:
Winstar -
WEX025664A
Size (inch):
2.8
Active Area (mm):
69.098×17.258
Display Format:
256×64
Outline Dimension (mm):
84×25.8
Interface:
6800,8080,SPI
Brand:
Winstar -

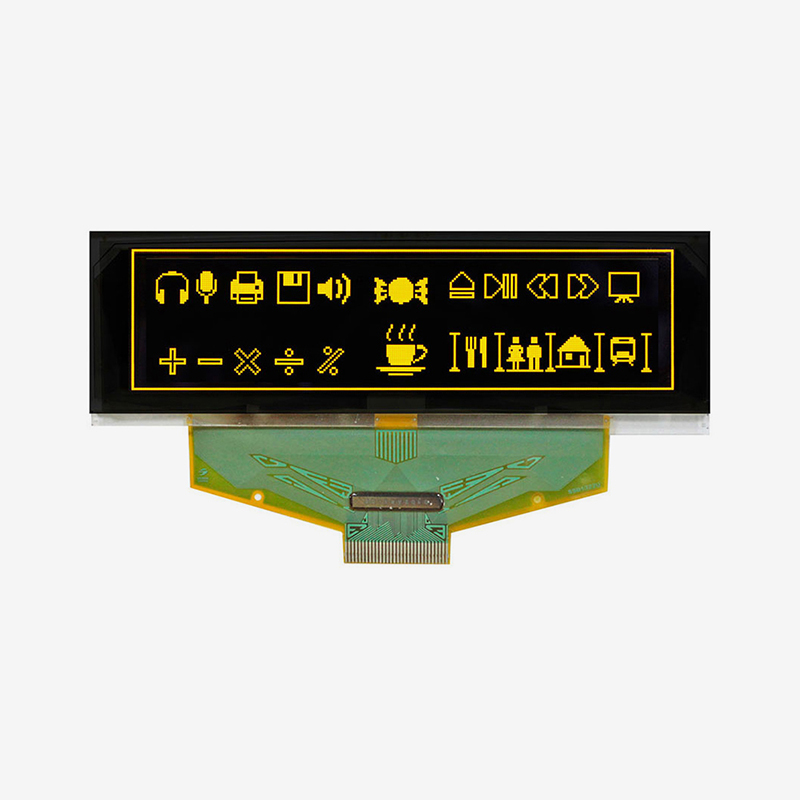

WEX025664B
Size (inch):
3.12
Active Area (mm):
76.778 x 19.178
Display Format:
256 x 64
Outline Dimension (mm):
88 x 27.8
Interface:
6800,8080,SPI
Brand:
Winstar -
WEX025664B
Size (inch):
3.12
Active Area (mm):
76.778×19.178
Display Format:
256×64
Outline Dimension (mm):
88×27.8
Interface:
6800,8080,SPI
Brand:
Winstar -

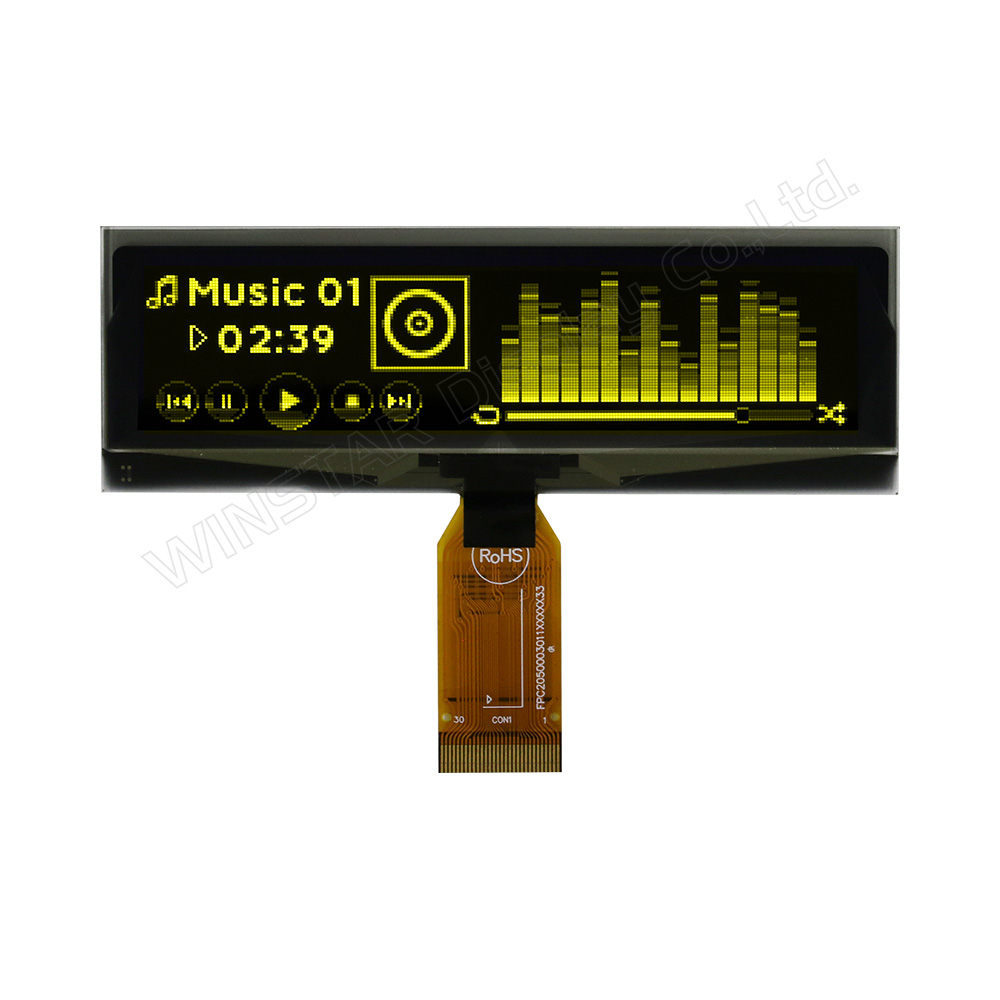

WEO025664D
Size (inch):
3.55
Active Area (mm):
87.52×21.28
Display Format:
256×64
Outline Dimension (mm):
99.2×33.5
Interface:
6800,8080,SPI
Brand:
Winstar -
ELW3601AAR
Size (inch):
3.6
Active Area (mm):
87.528 x 21.288
Display Format:
256 x 64
Outline Dimension (mm):
94.70 x 30.80
Interface:
SPI
Brand:
Futaba -

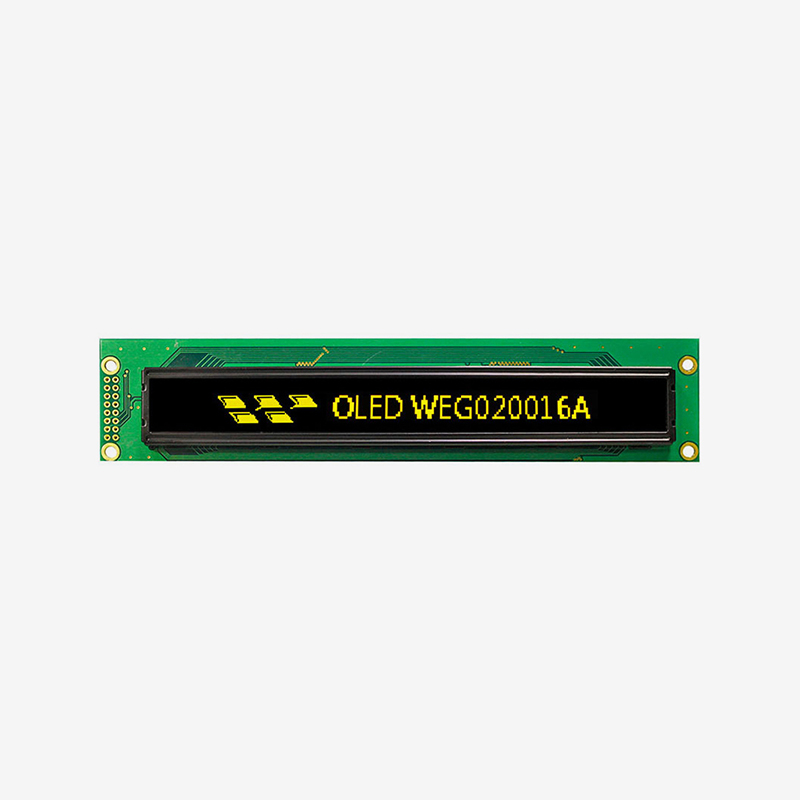

WEG020016A
Size (inch):
4.9
Active Area (mm):
123.95 x 11.15
Display Format:
200 x 16
Outline Dimension (mm):
182 x 38.5
Interface:
6800,8080,SPI
Brand:
Winstar -

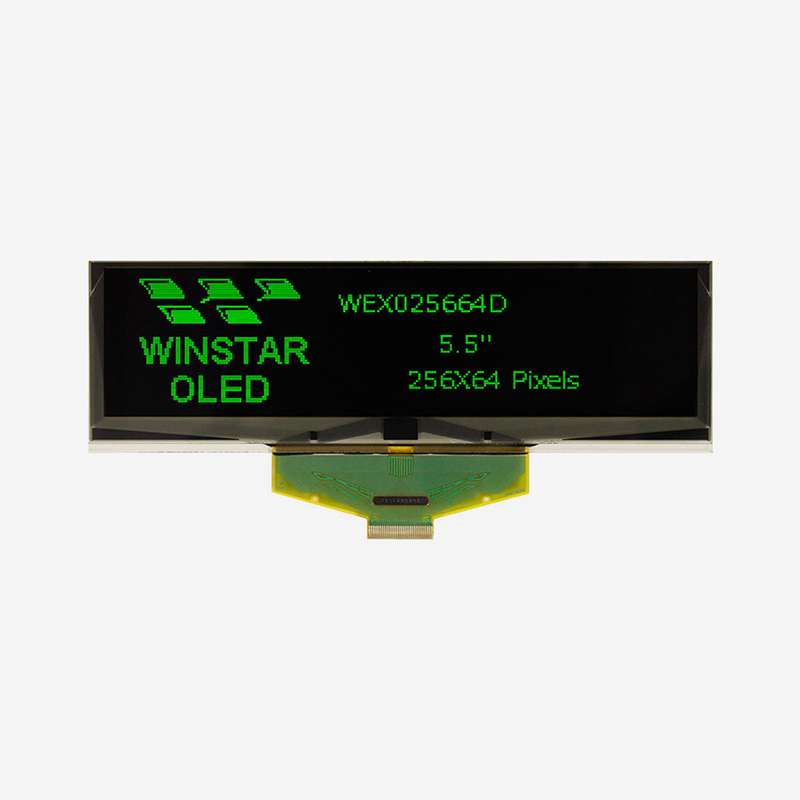

WEX025664D
Size (inch):
5.5
Active Area (mm):
135.65 x 33.89
Display Format:
256 x 64
Outline Dimension (mm):
146 x 45
Interface:
6800,8080,SPI
Brand:
Winstar -

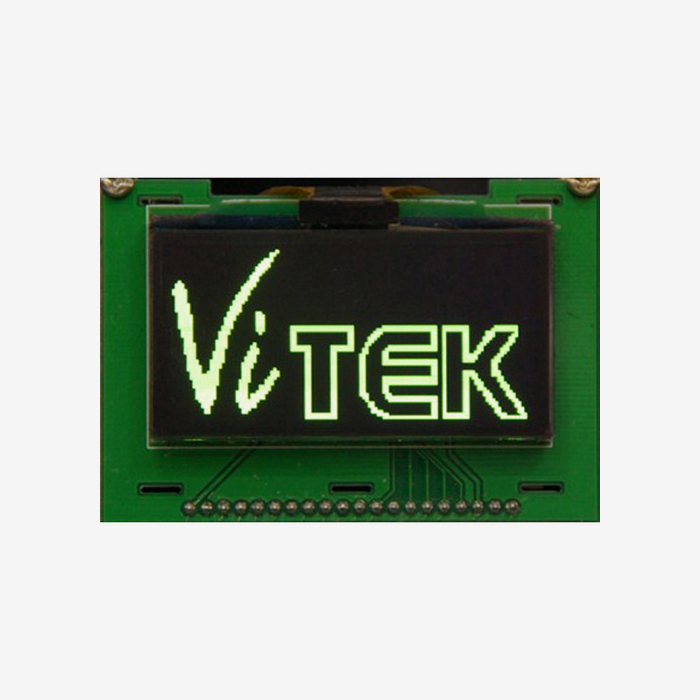

VL128646A
Size (inch):
2.53
Active Area (mm):
57.01 x 29.49
Display Format:
128 x 64
Outline Dimension (mm):
75 x 52.7
Interface:
68xx, 8-bit
Brand:
Vitek -

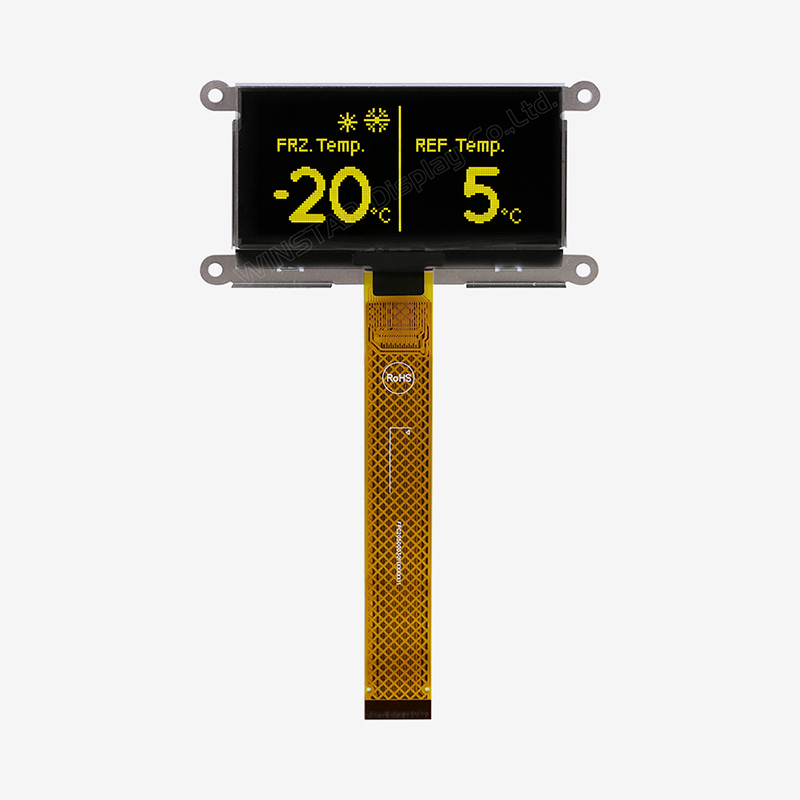

WEF012864Q
Size (inch):
2.7
Active Area (mm):
61.41 x 30.69
Display Format:
128 x 64
Outline Dimension (mm):
89.7 x 47.2
Interface:
6800,8080,SPI,I2C
Brand:
Winstar -

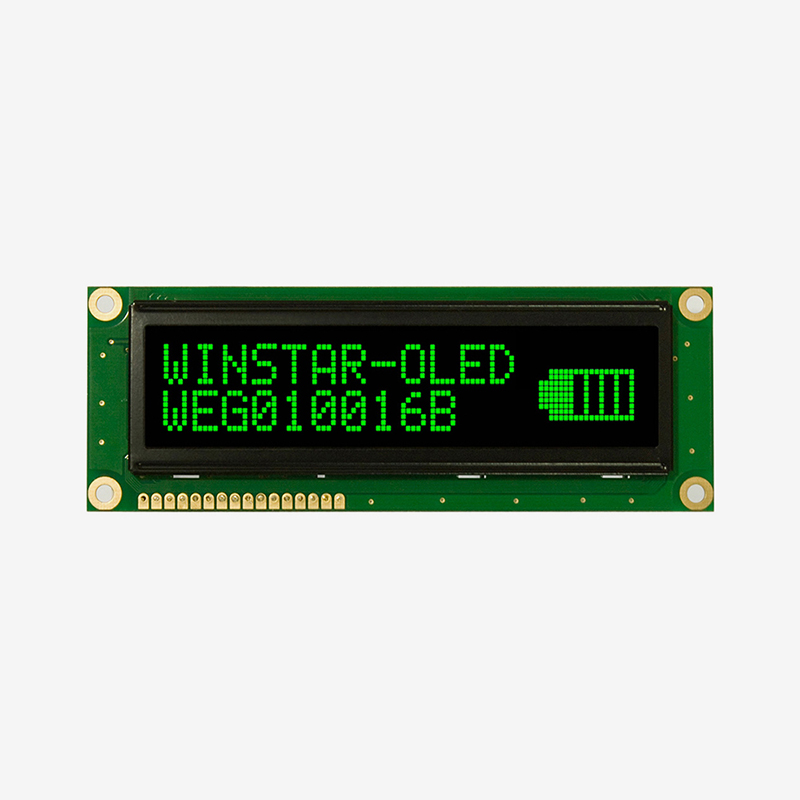

WEG010016B
Size (inch):
3.84
Active Area (mm):
95.94 x 17.86
Display Format:
100 x 16
Outline Dimension (mm):
122 x 44
Interface:
6800,8080,SPI
Brand:
Winstar -

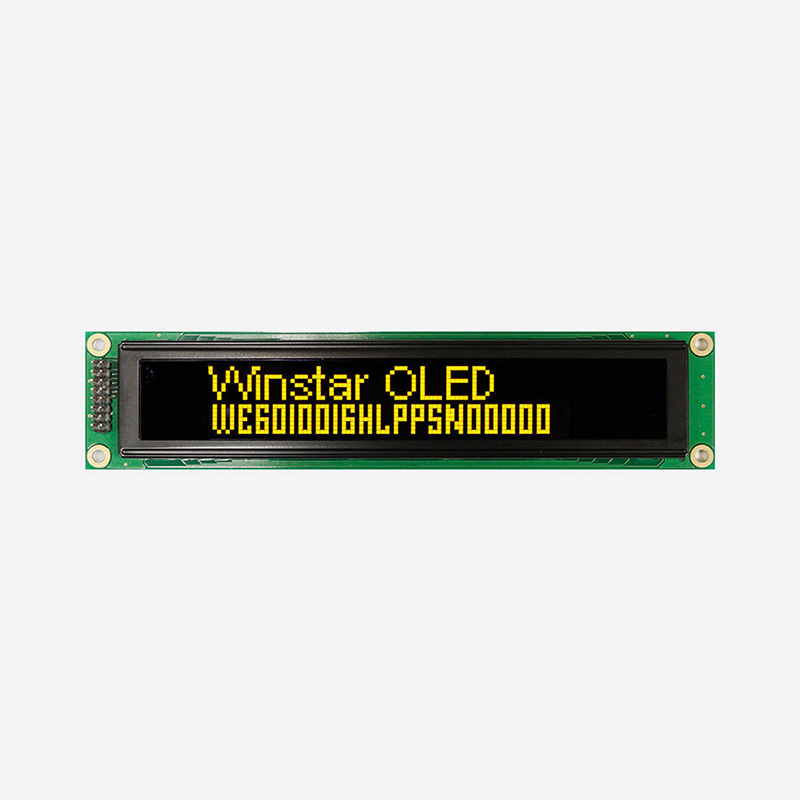

WEG010016H
Size (inch):
4.86
Active Area (mm):
121.9 x 19.42
Display Format:
100 x 16
Outline Dimension (mm):
180 x 40
Interface:
6800,8080,SPI
Brand:
Winstar
