Fluid sensors provide more than just an on/off signal. Our fluid sensor solutions use a wide range of switching technologies – from magnetic reed switch technology to conductive and hall effect technology. A single PCB with many reed switches can provide multi-level measurements. But that’s not all. We’re experts in delivering smarter solutions to the most demanding fluid level sensing applications. These include basic fluid sensors driven by external electronics to turnkey sensor systems with discreet voltage outputs. Our fluid sensor designs include single, multi, or continuous level output. They can include custom packaging and header designs as well as integrated hermetic connectors. Send our experts a design request.
FRÅGA OSS GÄRNA OM CUSTOM LÖSNINGAR
-
LS01-Series
Contact Form:
1A, 1B, 1C
Rated Power Max:
100W / 400VDC / 1A
Shaft/Float:
PA, PP/PA, PP, NBR
Description:
Compact single level vertical mount sensor -

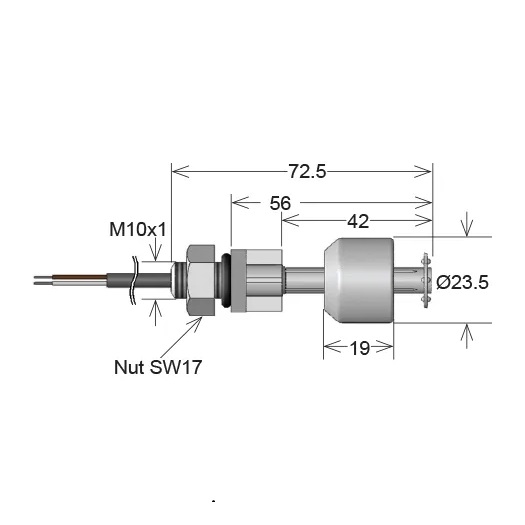

LS02-Series
Contact Form:
1A, 1B, 1C
Rated Power Max:
100W / 400VDC / 1A
Shaft/Float:
PA, PP/PA, PP, NBR
Description:
Compact single level vertical mount sensor -

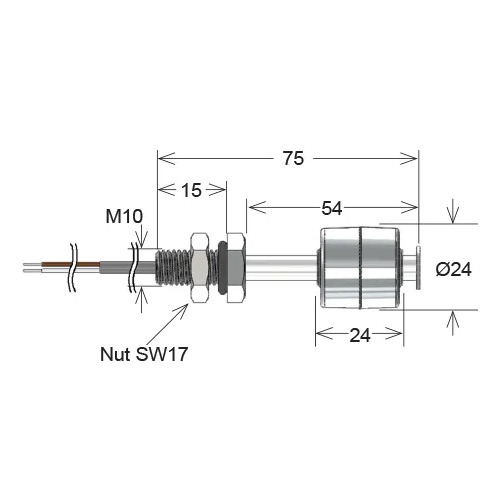

LS02 (S)-Series
Contact Form:
1A, 1B, 1C
Rated Power Max:
100W / 400VDC / 1A
Shaft/Float:
PA, PP/PA, PP, NBR
Description:
IP68-only up to screw in thread, 120° -

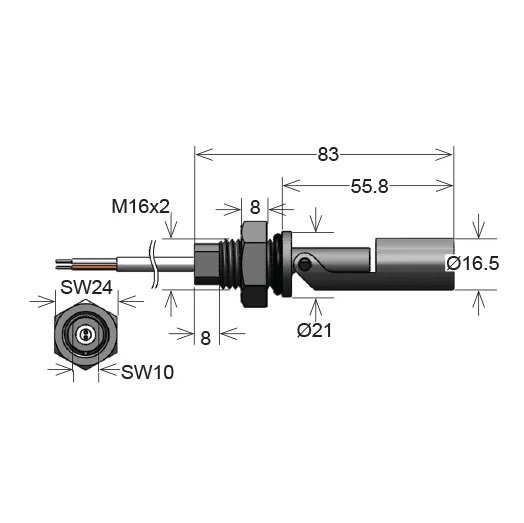

LS03-Series
Contact Form:
1A, 1B, 1C
Rated Power Max:
100W / 400VDC / 1A
Shaft/Float:
PA, PP/PA, PP
Description:
Horizontal mount -

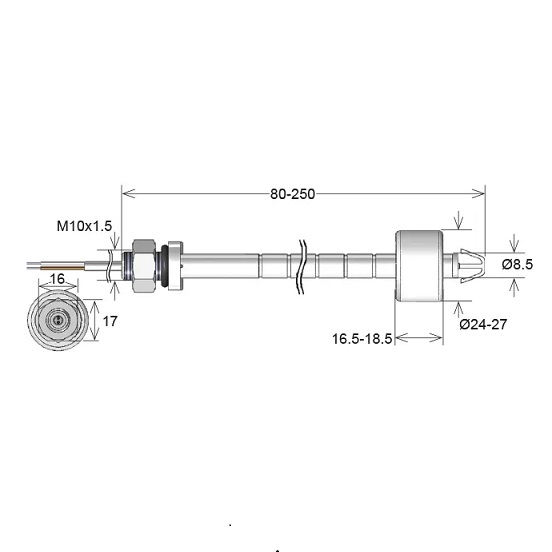

LS04-Series
Contact Form:
1A, 1B, 1C, 1E
Rated Power Max:
100W / 400VDC / 1A
Shaft/Float:
PP/PP, NBR
Description:
Versatile LS04 series liquid level -

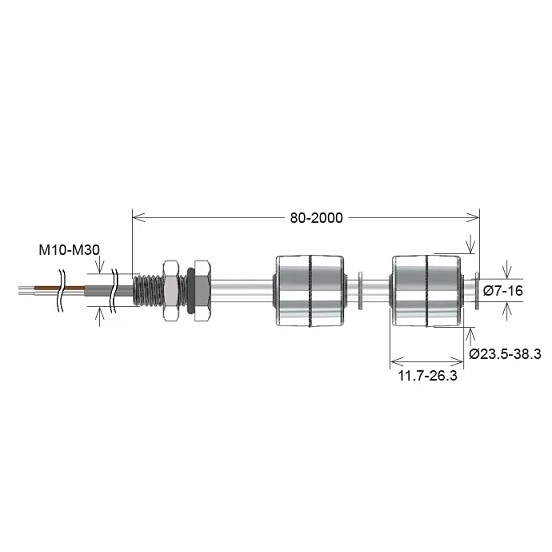

LS05-Series
Contact Form:
1A, 1B, 1C, 1E
Rated Power Max:
100W / 400VDC / 1A
Shaft/Float:
SS/PA, PP, NBR, SS
Description:
Versatile stainless steel -

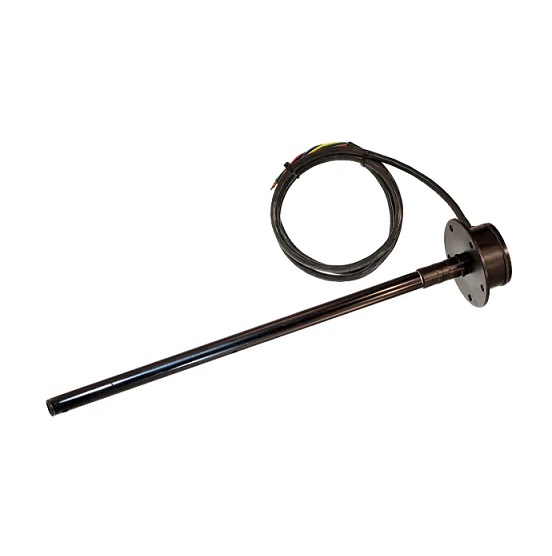

CLS-Series
Contact Form:
Hall
Rated Power Max:
0-5V or 4-20mA
Shaft/Float:
PP, PA
Description:
Aluminium, Stainless steel -
HLS-Series
Contact Form:
Hall
Rated Power Max:
0-5V or 4-20mA
Shaft/Float:
PP, PA, NBR
Description:
Stainless steel, NBR, Plastic versions
