Character OLED LCD Module, OLED Character Display

Character OLED modules come in standard sizes and come be used as compatible replacements for STN LCD modules. Our OLED character displays are available in 8×2 OLED mini display, 16×1 character OLED, OLED 16×2, 20×2 character OLED display, 20×4 OLED display, and character OLED 40×2 format with 5×8 dot matrix characters.

These 5V modules have built in Winstar IC WS0010 controller which offers 4 fonts sets on module. These fonts include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian). Sizes are all comparable to industry standard LCD character displays. Customers can upgrade applications from STN LCD to OLED displays easily.

OLED character display modules are perfect for a number of devices.  These applications include coffee machine, POS system, 3D printer, car audio, storage device, set-top box, remote control, timer, medical equipment, pedometer, measuring machine/equipment, medical equipment, etc.

Fler PMOLED Teckendisplayer finns i sortimentet än vad du ser på sidan Kontakta oss

FILTRERA PRODUKTER Showing all 23 results
Size (inch)
Display Format
Interface
  • WEH000802A

    WEH000802A

    Size (inch):
    1.2
    Active Area (mm):
    28.16 x 11.86
    Display Format:
    08 x 2
    Outline Dimension (mm):
    58 x 32
    Interface:
    6800,8080,SPI

  • WEH001202A

    WEH001202A

    Size (inch):
    1.6
    Active Area (mm):
    38.95 x 11.8
    Display Format:
    12 x 2
    Outline Dimension (mm):
    55.7 x 32
    Interface:
    6800,8080,SPI

  • WEH1601B

    WEH1601B

    Size (inch):
    2.25
    Active Area (mm):
    66×16
    Display Format:
    16 X 1
    Outline Dimension (mm):
    80 x 36
    Interface:
    6800,8080,SPI

  • WEH001602A

    WEH001602A

    Size (inch):
    2.29
    Active Area (mm):
    56.95 x 11.85
    Display Format:
    16 x 2
    Outline Dimension (mm):
    80 x 36
    Interface:
    6800,8080,SPI

  • WEH001602C

    WEH001602C

    Size (inch):
    2.29
    Active Area (mm):
    56.95 x 11.85
    Display Format:
    16 x 2
    Outline Dimension (mm):
    85 x 36
    Interface:
    6800,8080,SPI

  • WEH001602D

    WEH001602D

    Size (inch):
    2.29
    Active Area (mm):
    56.95 x 11.85
    Display Format:
    16 x 2
    Outline Dimension (mm):
    85 x 30
    Interface:
    6800,8080

  • WEH001602E

    WEH001602E

    Size (inch):
    2.29
    Active Area (mm):
    56.95 x 11.85
    Display Format:
    16 x 2
    Outline Dimension (mm):
    84 x 44
    Interface:
    6800,8080,SPI

  • WEH001602H

    WEH001602H

    Size (inch):
    3.67
    Active Area (mm):
    91.14 x 18.98
    Display Format:
    16 x 2
    Outline Dimension (mm):
    122 x 44
    Interface:
    6800,8080,SPI

  • WEO001602B

    WEO001602B

    Size (inch):
    1.23
    Active Area (mm):
    30.69 x 5.94
    Display Format:
    16 x 2
    Outline Dimension (mm):
    53 x 20
    Interface:
    6800,8080,SPI,I2C

  • WEO001602C

    WEO001602C

    Size (inch):
    2.26
    Active Area (mm):
    56.22 x 11.52
    Display Format:
    16 x 2
    Outline Dimension (mm):
    68.5 x 17.5
    Interface:
    6800,8080,SPI,I2C

  • WEO001602G

    WEO001602G

    Size (inch):
    2.26
    Active Area (mm):
    56.22 x 11.52
    Display Format:
    16 x 2
    Outline Dimension (mm):
    84 x 44
    Interface:
    6800,8080,SPI,I2C

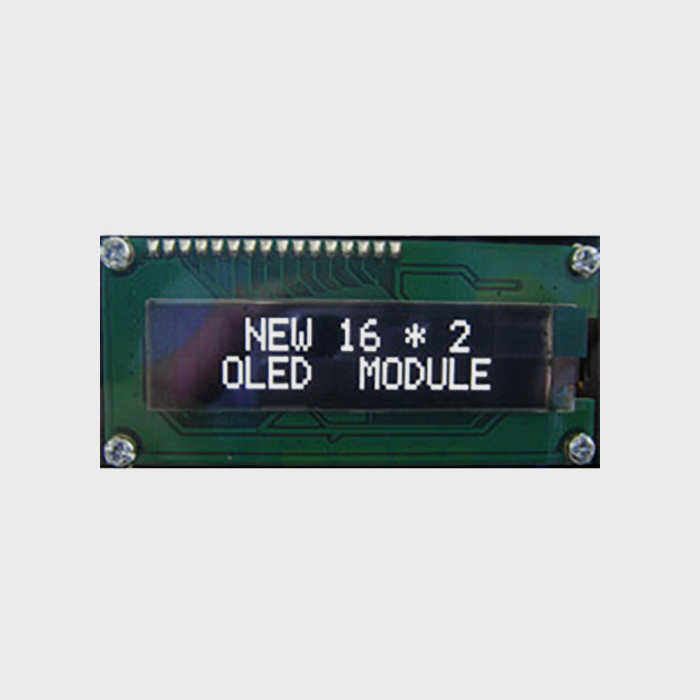

  • VL1621

    VL1621

    Size (inch):
    2.26
    Active Area (mm):
    56,22 x 11,52
    Display Format:
    16 x 2
    Outline Dimension (mm):
    80 x 36
    Interface:
    6800,8080,SPI,I2C

  • VL1625

    VL1625

    Size (inch):
    3.67
    Active Area (mm):
    91.14 x 18.98
    Display Format:
    16 x 2
    Outline Dimension (mm):
    122 x 44
    Interface:
    6800,8080,SPI,I2C

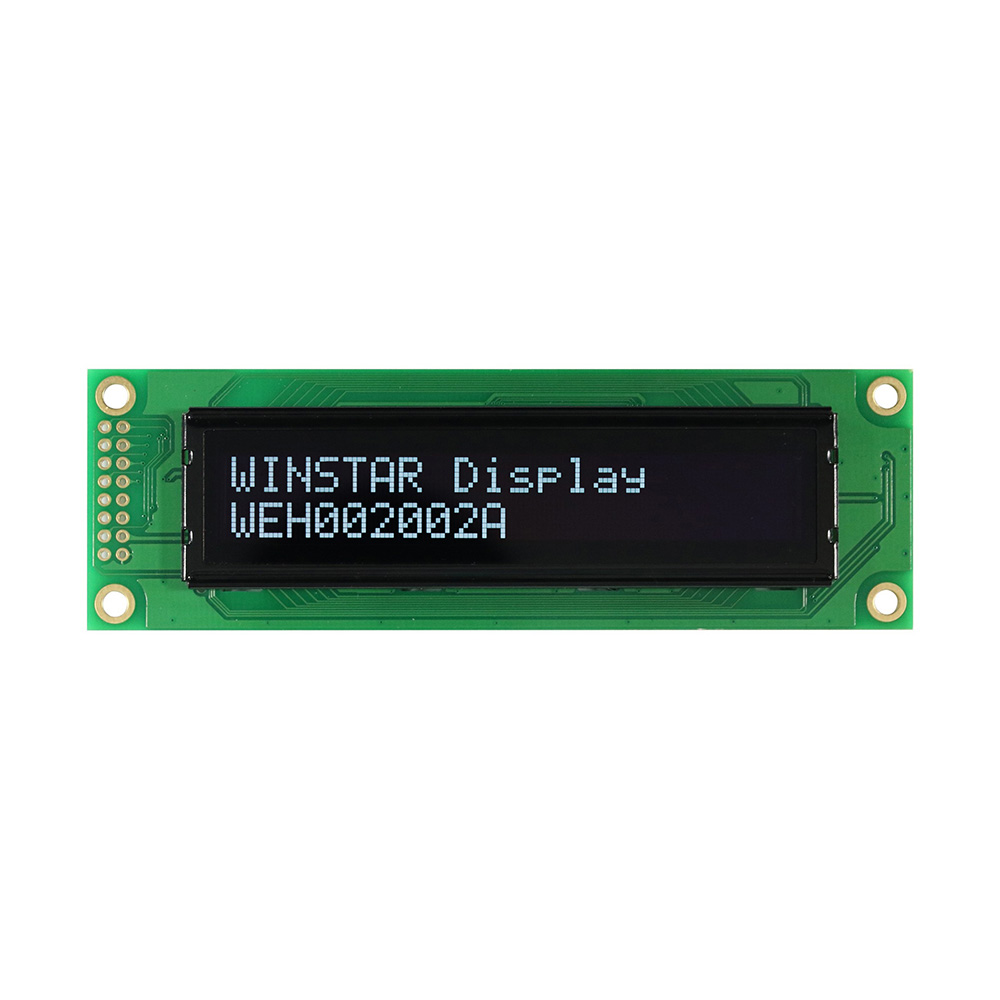

  • WEH002002A

    WEH002002A

    Size (inch):
    3.08
    Active Area (mm):
    77.3 x 11.85
    Display Format:
    20 x 2
    Outline Dimension (mm):
    116 x 37
    Interface:
    6800,8080,SPI,I2C

  • WEO002002A

    WEO002002A

    Size (inch):
    2.93
    Active Area (mm):
    73.52 x 11.52
    Display Format:
    20 x 2
    Outline Dimension (mm):
    84.5 x 19.28
    Interface:
    6800,8080,SPI,I2C

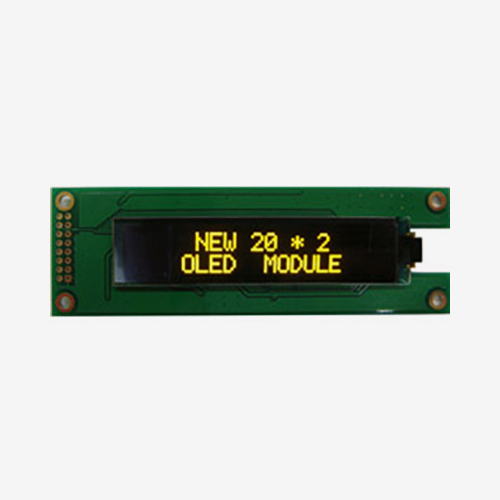

  • VL2021

    VL2021

    Size (inch):
    2.93
    Active Area (mm):
    73.52 x 11.52
    Display Format:
    20 x 2
    Outline Dimension (mm):
    116 x 37
    Interface:
    6800,8080,SPI,I2C

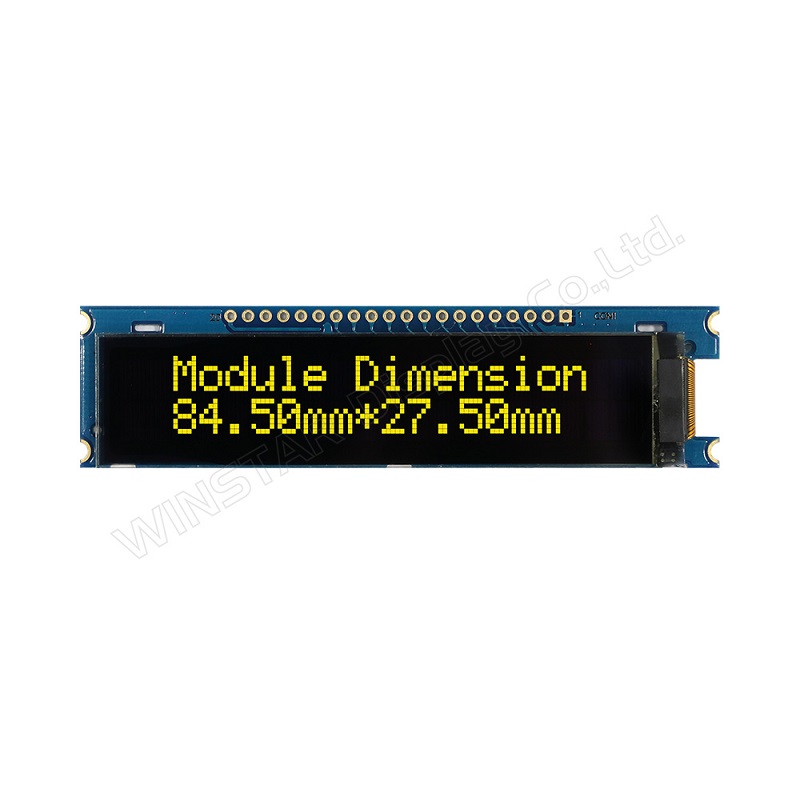

  • WEA002002A

    WEA002002A

    Size (inch):
    2.93
    Active Area (mm):
    73.52×13.52
    Display Format:
    20 x 2
    Outline Dimension (mm):
    92.3×23.3
    Interface:
    6800,8080,SPI,I2C

  • WEH002004A

    WEH002004A

    Size (inch):
    2.88
    Active Area (mm):
    70.16 x 20.95
    Display Format:
    20 x 4
    Outline Dimension (mm):
    98 x 60
    Interface:
    6800,8080,SPI

  • WEH002004B

    WEH002004B

    Size (inch):
    2.88
    Active Area (mm):
    70.16 x 20.95
    Display Format:
    20 x 4
    Outline Dimension (mm):
    98 x 60
    Interface:
    6800,8080,SPI

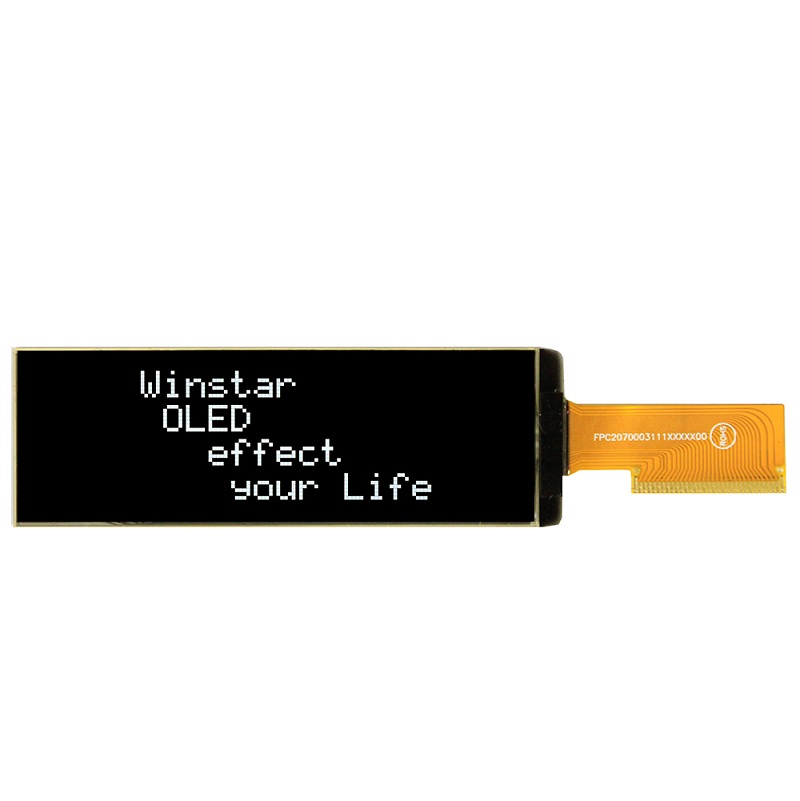

  • WEO002004C

    WEO002004C

    Size (inch):
    2.89
    Active Area (mm):
    70.42 x 20.82
    Display Format:
    20 x 4
    Outline Dimension (mm):
    84.5 x 27.5
    Interface:
    6800,8080,SPI,I2C

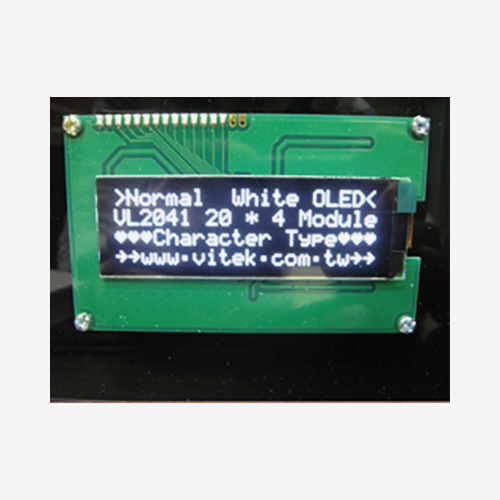

  • VL2041

    VL2041

    Size (inch):
    2.89
    Active Area (mm):
    70.42 x 20.82
    Display Format:
    20 x 4
    Outline Dimension (mm):
    98 x 60
    Interface:
    6800,8080,SPI,I2C

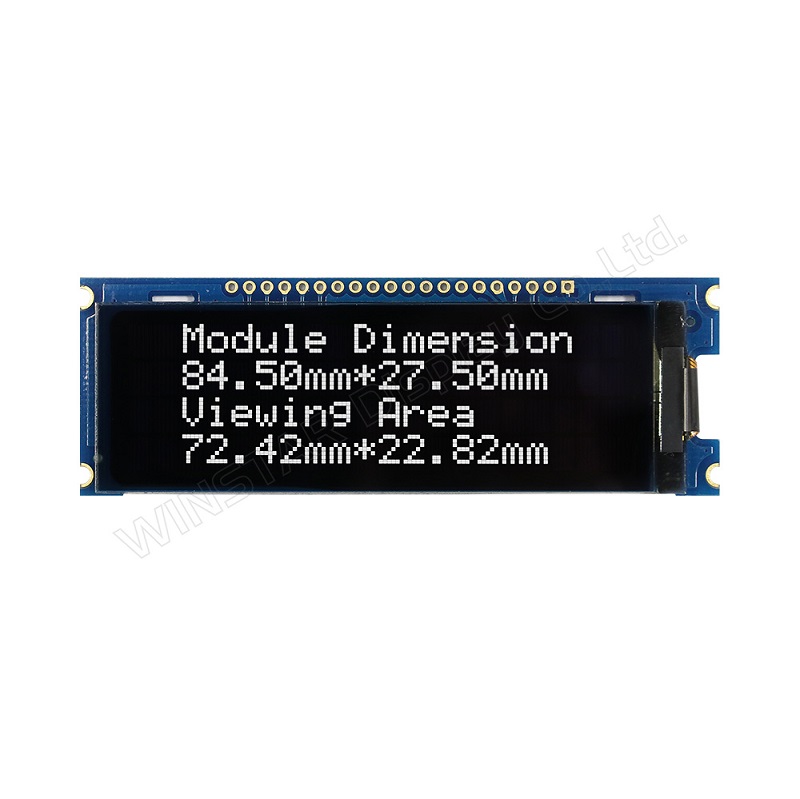

  • WEA002004C

    WEA002004C

    Size (inch):
    2.89
    Active Area (mm):
    70.42X20.82
    Display Format:
    20 x 4
    Outline Dimension (mm):
    92X31.5
    Interface:
    6800,8080,SPI,I2C

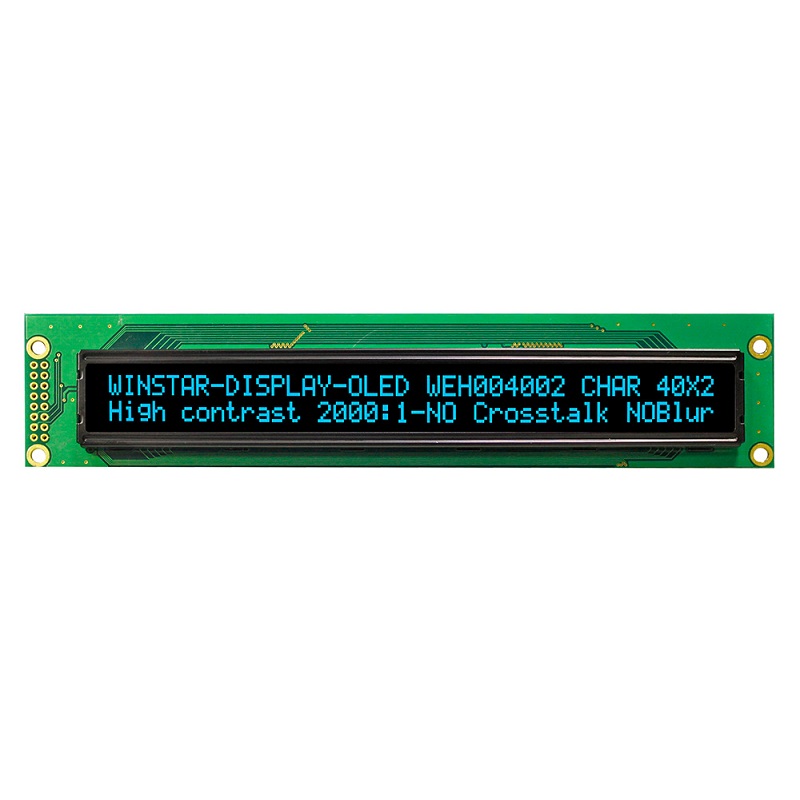

  • WEH004002A

    WEH004002A

    Size (inch):
    5.85
    Active Area (mm):
    148.13 x 11.85
    Display Format:
    40 x 2
    Outline Dimension (mm):
    182×38.5
    Interface:
    6800,8080,SPI
