IPS TFT LCD, TFT IPS, IPS LCD Panel, IPS LCD Display

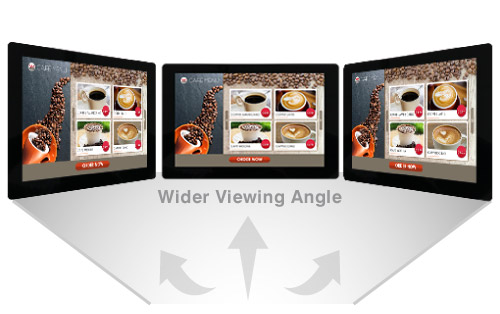

TFT LCD product portfolio come with IPS (In-Plane Switching) TFT LCD display modules, we offer a full range of modules; available sizes are including mini IPS TFT 0.96″, 2.4″, 3.5″, 3.97″, 5″, 7″, 8.8″, 9″, 10.1″ , 12.1″ and 12.3 inch, to deliver better performance in a range of demanding situations, we also offer higher brightness version (750~1100 cd/m2) as options for some models, such as WF35W, WF50D, WF50E, WF70A4 and WF12.3B. We offer resistive touchscreen (RTP) or capacitive touchscreen (PCAP) for optional as well. These wider view TFT IPS LCD display can be operating at temperature range from -20℃ to +70℃ or up to +85℃; and storage temperatures from -30℃ to +85℃ or +90℃. The IPS TFT LCD Panel is becoming very popular because of featuring super wider viewing angle. It also improves the aperture ratio to produce higher brightness with improved color reproducibility.
Fler TFT IPS finns i sortimentet än vad du ser på sidan. Kontakta oss.
-
WF0096ATYAA3DNN0
Display Format:
80×160
Size(inch):
0.96
Outline Dimension(mm):
13.50×27.95
Active Area(mm):
10.80×21.696
Interface:
SPI -
WF0096ATYAA3DNF10
Display Format:
80×160
Size(inch):
0.96
Outline Dimension(mm):
18.70×31.90
Active Area(mm):
10.80×21.696
Interface:
SPI -
WF24LTYAJDNN0
Display Format:
240×320
Size(inch):
2.40
Outline Dimension(mm):
42.72×60.26
Active Area(mm):
36.72×48.96
Interface:
SPI,MCU -
WF28JTYAJDNN0
Display Format:
240×320
Size(inch):
2.80
Outline Dimension(mm):
50.50×69.70
Active Area(mm):
43.20×57.60
Interface:
SPI,MCU -
WF28JSYAJDNN0
Display Format:
240×320
Size(inch):
2.80
Outline Dimension(mm):
50.50×69.70
Active Area(mm):
43.20×57.60
Interface:
SPI,MCU -
WF35XTYACDNN0
Display Format:
320×240
Size(inch):
3.50
Outline Dimension(mm):
76.84×63.84
Active Area(mm):
70.08×52.56
Interface:
RGB -
WF35XSYACDNN0
Display Format:
320×240
Size(inch):
3.50
Outline Dimension(mm):
76.84×63.84
Active Area(mm):
70.08×52.56
Interface:
RGB -
WF35UTYAIDNN0
Display Format:
320×480
Size(inch):
3.50
Outline Dimension(mm):
54.50×83.00
Active Area(mm):
48.96×73.44
Interface:
SPI,MCU,RGB -
WF40CTYAQMNN0
Display Format:
480×800
Size(inch):
3.97
Outline Dimension(mm):
57.14×96.85
Active Area(mm):
51.84×86.40
Interface:
MIPI DSI -
WF40ETWAA6MNN0
Display Format:
480×480
Size(inch):
4.00
Outline Dimension(mm):
78.80×82.95
Active Area(mm):
71.856×70.176
Interface:
MIPI DSI -
WF40ETWAA6DNN0
Display Format:
480×480
Size(inch):
4.00
Outline Dimension(mm):
78.80×82.95
Active Area(mm):
71.856×70.176
Interface:
RGB -
WF40ESWAA6MNN0
Display Format:
480×480
Size(inch):
4.00
Outline Dimension(mm):
78.80×82.95
Active Area(mm):
71.856×70.176
Interface:
MIPI DSI -
WF40ESWAA6MNT0
Display Format:
480×480
Size(inch):
4.00
Outline Dimension(mm):
78.80×82.95
Active Area(mm):
71.856×70.176
Interface:
MIPI DSI -
WF43WSWAEDNN0
Display Format:
480×272
Size(inch):
4.30
Outline Dimension(mm):
105.50×67.20
Active Area(mm):
95.04×53.856
Interface:
RGB -
WF43WTWAEDNN0
Display Format:
480×272
Size(inch):
4.30
Outline Dimension(mm):
105.50×67.20
Active Area(mm):
95.04×53.856
Interface:
RGB -
WF43XTWAGDNN0
Display Format:
800×480
Size(inch):
4.30
Outline Dimension(mm):
105.50×67.20
Active Area(mm):
95.04×53.856
Interface:
RGB -
WF43XTWAGDNG0
Display Format:
800×480
Size(inch):
4.30
Outline Dimension(mm):
105.50×67.20
Active Area(mm):
95.04×53.856
Interface:
RGB -
WF50FTWAGDNN0
Display Format:
800×480
Size(inch):
5.00
Outline Dimension(mm):
120.70×75.80
Active Area(mm):
108.00×64.80
Interface:
RGB -
WF50FTWAGLNN0
Display Format:
800×480
Size(inch):
5.00
Outline Dimension(mm):
120.70×75.80
Active Area(mm):
108.00×64.80
Interface:
LVDS -
WF50FSWAGDNN0
Display Format:
800×480
Size(inch):
5.00
Outline Dimension(mm):
120.70×75.80
Active Area(mm):
108.00×64.80
Interface:
RGB -
WF50DTYA3MNN0
Display Format:
720×1280
Size(inch):
5.00
Outline Dimension(mm):
66.10×120.40
Active Area(mm):
62.10×110.40
Interface:
MIPI DSI -
WF50DTYA3MNG10
Display Format:
720×1280
Size(inch):
5.00
Outline Dimension(mm):
73.30×127.60
Active Area(mm):
62.10×110.40
Interface:
MIPI DSI -
WF50DSYA3MNN0
Display Format:
720×1280
Size(inch):
5.00
Outline Dimension(mm):
68.40×122.70
Active Area(mm):
62.10×110.40
Interface:
MIPI DSI -
WF70A9TWAGDNN0
Display Format:
800×480
Size(inch):
7.00
Outline Dimension(mm):
165.80×106.61
Active Area(mm):
152.40×91.44
Interface:
RGB -
WF70A9TWAGDNT0
Display Format:
800×480
Size(inch):
7.00
Outline Dimension(mm):
165.80×106.61
Active Area(mm):
152.40×91.44
Interface:
RGB -
WF70A9SWAGDNN0
Display Format:
800×480
Size(inch):
7.00
Outline Dimension(mm):
165.80×106.61
Active Area(mm):
152.40×91.44
Interface:
RGB -
WF70A9SWAGDNT0
Display Format:
800×480
Size(inch):
7.00
Outline Dimension(mm):
165.80×106.61
Active Area(mm):
152.40×91.44
Interface:
RGB -
WF70A9SWAGDNB0
Display Format:
800×480
Size(inch):
7.00
Outline Dimension(mm):
165.80×106.61
Active Area(mm):
152.40×91.44
Interface:
RGB -
WF70A9SWAGLNN0
Display Format:
800×480
Size(inch):
7.00
Outline Dimension(mm):
165.80×106.61
Active Area(mm):
152.40×91.44
Interface:
LVDS -
WF70A8SYAHLNN0
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2144×85.92
Interface:
LVDS -
WF70A8SYAHLNT0
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2144×85.92
Interface:
LVDS -
WF70A8SYAHLNGB
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2144×85.92
Interface:
LVDS -
WF70A8TYAHLNN0
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2144×85.92
Interface:
LVDS -
WF70A8TYAHLNT0
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2144×85.92
Interface:
LVDS -
WF70A8TYAHLNGB
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2144×85.92
Interface:
LVDS -
WF70A8TYAHMNN0
Display Format:
1024×600
Size(inch):
7.00
Outline Dimension(mm):
169.90×103.40
Active Area(mm):
154.2114×85.92
Interface:
MIPI DSI -
WF88BTYA8MNN0
Display Format:
480×1920
Size(inch):
8.80
Outline Dimension(mm):
231.30×64.30
Active Area(mm):
218.88×54.72
Interface:
MIPI DSI -
WF90BTWAHLNN0
Display Format:
1024×600
Size(inch):
9.00
Outline Dimension(mm):
211.10×126.50
Active Area(mm):
196.608×114.15
Interface:
LVDS -
WF101JTYAHMNB0
Display Format:
1024×600
Size(inch):
10.10
Outline Dimension(mm):
235.00×143.00
Active Area(mm):
222.72×125.28
Interface:
MIPI DSI -
WF101JSYAHLNN0
Display Format:
1024×600
Size(inch):
10.10
Outline Dimension(mm):
235.00×143.00
Active Area(mm):
222.72×125.28
Interface:
LVDS -
WF101JSYAHLNB0
Display Format:
1024×600
Size(inch):
10.10
Outline Dimension(mm):
235.00×143.00
Active Area(mm):
222.72×125.28
Interface:
LVDS -
WF101JTYAHLNN0
Display Format:
1024×600
Size(inch):
10.10
Outline Dimension(mm):
235.00×143.00
Active Area(mm):
222.72×125.28
Interface:
LVDS -
WF101JTYAHLNT0
Display Format:
1024×600
Size(inch):
10.10
Outline Dimension(mm):
235.00×143.00
Active Area(mm):
222.72×125.28
Interface:
LVDS -
WF101FSYAPLNB0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
274.50×198.00
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101GTYAPLNN0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
229.34×148.98
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101GTYAPLNT0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
229.34×148.98
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101GTYAPLNG0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
257.96×168.6.
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101FSYAPLNN0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
230.56×155.01
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101FSYAPLNT0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
230.56×155.01
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101FSYAPLNG0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
257.96×168.6.
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101KTYAPLNN0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
229.34×148.98
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF101LSYAPLNN0
Display Format:
1280×800
Size(inch):
10.10
Outline Dimension(mm):
230.56×155.01
Active Area(mm):
216.96×135.60
Interface:
LVDS -
WF121ETWAMLNN0
Display Format:
1024×768
Size(inch):
12.10
Outline Dimension(mm):
260.50×204.00
Active Area(mm):
245.76×184.32
Interface:
LVDS -
WF123BSWAYLNN0
Display Format:
1920×720
Size(inch):
12.30
Outline Dimension(mm):
308.10×130.00
Active Area(mm):
292.032×109.512
Interface:
LVDS
