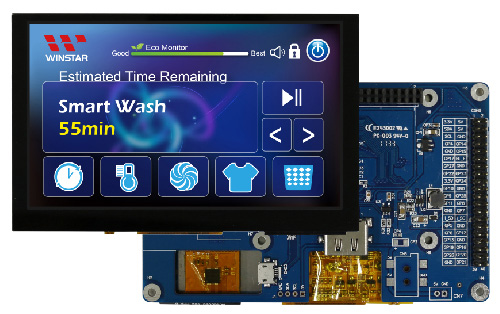

For Small HDMI Signal TFT LCD Display Panel, Mini TFT For HDMI Signal (For Raspberry Use)
HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support HDMI signal output. This series display modules come with a control board with a HDMI signal interface output; it is designed to make Raspberry Pi usage become easily. These displays are featured below advantages:
- Designed to make Raspberry Pi usage becomes easily (Support Rasberry Pi use)
- Support HDMI signal output
- Good touch response
- Fast response time
- Support Raspberry Pi GPIO
- Support mini-PCs, it can work as a computer monitor
- Support RTP with USB interface
- Support PCAP option
- Without Touch panel option is available
Fler TFT HDMI Signal finns i sortimentet än vad du ser på sidan. Kontakta oss.
-
HA-070XIEBCBH6-A
Display Format:
1024×600
Size (inch):
7
Outline Dimension (mm):
182.6x117x23.4
Active Area (mm):
154.21×85.92
Interface:
HDMI -
HA-080GIEBUBA0-A
Display Format:
1024×768
Size (inch):
8
Outline Dimension (mm):
183x141x25.2
Active Area (mm):
162.05×121.54
Interface:
HDMI -
HA-101ZIEBCAD1-A
Display Format:
1280×800
Size (inch):
10,1
Outline Dimension (mm):
245.96×164.6×23.17
Active Area (mm):
216.96×135.6
Interface:
HDMI -
HA-101ZIEBCBD1-A
Display Format:
1280×800
Size (inch):
10,1
Outline Dimension (mm):
229.46×149.1×23.17
Active Area (mm):
216.96×135.6
Interface:
HDMI -
HA-116HIPBCAB0-A
Display Format:
1920×1080
Size (inch):
11,6
Outline Dimension (mm):
287.12×174.98×25.35
Active Area (mm):
256.32×144.18
Interface:
HDMI -
HA-156HIPCUBC1-B
Display Format:
1920×1080
Size (inch):
15,6
Outline Dimension (mm):
396.0×249.0x25.3
Active Area (mm):
344.16×193.59
Interface:
HDMI -
HU-043WISBUAA1-B
Display Format:
800×480
Size (inch):
4,3
Outline Dimension (mm):
105.5×67.2×18.6
Active Area (mm):
95.04×53.856
Interface:
HDMI -
HU-050WISBUBA1-B
Display Format:
800×480
Size (inch):
5
Outline Dimension (mm):
120.7×75.8×19.2
Active Area (mm):
108×64.8
Interface:
HDMI -
OF-070XDHBCEH6F1-S
Display Format:
1024×600
Size (inch):
7
Outline Dimension (mm):
186.2x134x36.3
Active Area (mm):
154.21×85.92
Interface:
HDMI -
OF-101ZIEBCAH0C1-S
Display Format:
1280×800
Size (inch):
10,1
Outline Dimension (mm):
266.96×185.6×32.38
Active Area (mm):
216.95×135.6
Interface:
HDMI -
OF-104GDHBCEF0E1-S
Display Format:
1024×768
Size (inch):
10,4
Outline Dimension (mm):
258x227x38.15
Active Area (mm):
210.432×157.824
Interface:
HDMI -
OF-121GDHBUAA0A1-S
Display Format:
1024×768
Size (inch):
12,1
Outline Dimension (mm):
291×267.32×41.9
Active Area (mm):
245.76×184.32
Interface:
HDMI -
WF101FSYFPLHGV
Display Format:
1280×800
Size (inch):
10,1
Outline Dimension (mm):
257.96×168.6
Active Area (mm):
216.96×135.6
Interface:
HDMI (CN) -
WF101FSYFPLHTV
Display Format:
1280×800
Size (inch):
10,1
Outline Dimension (mm):
230.56×155.01
Active Area (mm):
216.96×135.6
Interface:
HDMI (CN) -
WF43WSYFEDHGV
Display Format:
480×272
Size (inch):
4,3
Outline Dimension (mm):
105.5×84.2
Active Area (mm):
95.04×53.856
Interface:
HDMI (CN) -
WF43WSYFEDHNV
Display Format:
480×272
Size (inch):
4,3
Outline Dimension (mm):
105.5×84.2
Active Area (mm):
95.04×53.856
Interface:
HDMI (CN) -
WF43WSYFEDHTV
Display Format:
480×272
Size (inch):
4,3
Outline Dimension (mm):
105.5×84.2
Active Area (mm):
95.04×53.856
Interface:
HDMI (CN) -
WF50BTIFGDHGV
Display Format:
800×480
Size (inch):
5
Outline Dimension (mm):
120.7×75.8
Active Area (mm):
108×64.8
Interface:
HDMI (CN) -
WF50BTIFGDHTV
Display Format:
800×480
Size (inch):
5
Outline Dimension (mm):
120.7×75.8
Active Area (mm):
108.0×64.8
Interface:
HDMI (CN) -
WF50FSYFGDHGV
Display Format:
800×480
Size (inch):
5
Outline Dimension (mm):
120.7×75.8
Active Area (mm):
108×64.8
Interface:
HDMI (CN) -
WF52ASZFSDHGV
Display Format:
480×128
Size (inch):
5,2
Outline Dimension (mm):
180×75.8
Active Area (mm):
127.152×33.9072
Interface:
HDMI (CN) -
WF70A2TIFGDHGV
Display Format:
800×480
Size (inch):
7
Outline Dimension (mm):
165×100
Active Area (mm):
154.08×85.92
Interface:
HDMI (CN) -
WF70A2TIFGDHTV
Display Format:
800×480
Size (inch):
7
Outline Dimension (mm):
165×100
Active Area (mm):
154.08×85.92
Interface:
HDMI (CN) -
WF70A7TIFHLHGV
Display Format:
1024×600
Size (inch):
7
Outline Dimension (mm):
164.8×99.8
Active Area (mm):
154.2114×85.92
Interface:
HDMI (CN) -
WF70A7TIFHLHTV
Display Format:
1024×600
Size (inch):
7
Outline Dimension (mm):
165×99.8
Active Area (mm):
154.2114×85.92
Interface:
HDMI (CN) -
WF70A8TYFHLHGV
Display Format:
1024×600
Size (inch):
7
Outline Dimension (mm):
169.9×103.4
Active Area (mm):
154.2144×85.92
Interface:
HDMI (CN) -
WF70GTIFGDHGV
Display Format:
800×480
Size (inch):
7
Outline Dimension (mm):
165×100
Active Area (mm):
154.08×85.92
Interface:
HDMI (CN) -
WF70GTIFGDHTV
Display Format:
800×480
Size (inch):
7
Outline Dimension (mm):
165×100
Active Area (mm):
154.08×85.92
Interface:
HDMI (CN)
