LCD Character Display, Character LCD Display Modules

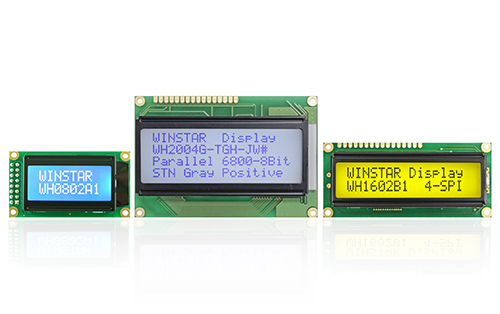

We offers a wide range of standard Character LCD modules for customers’ application. Our LCD character displays are available from 8×2, 12×2, 16×1, 16×2, 16×4, 20×2, 20×4, 24×2 through to 40×4 formats with 5×8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.
To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o’clock. Winstar offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer’s applications including entrance guard’s equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.
Fler LCD Teckendisplayer finns i sortimentet än vad du ser på sidan. Kontakta oss.
-
WH0802A1
Active Area (mm):
27.81 x 11.5
Display Format:
8 x 2
Outline Dimension (mm):
58 x 32
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
VC0821
Active Area (mm):
38 x 16
Display Format:
8 x 2
Outline Dimension (mm):
58 x 32
Interface:
Built-in Controller:
KS0066 or Equivalent -
VC082Y
Active Area (mm):
17.595 x 6.0
Display Format:
8 x 2
Outline Dimension (mm):
25 x 17.5
Interface:
6800
Built-in Controller:
ST7066U -
VC082Z
Active Area (mm):
27.81 x 11.5
Display Format:
8 x 2
Outline Dimension (mm):
58 x 28
Interface:
6800
Built-in Controller:
ST7066U -
WH1202A
Active Area (mm):
37.85 x 11.7
Display Format:
12 x 2
Outline Dimension (mm):
55.7 x 32
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
VC1221
Active Area (mm):
37.85 x 11.7
Display Format:
12 x 2
Outline Dimension (mm):
55.7 x 32
Interface:
6800
Built-in Controller:
ST7066U -
WH1601A
Active Area (mm):
59.62 x 6.56
Display Format:
16 x 1
Outline Dimension (mm):
80 x 36
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
WH1601B
Active Area (mm):
59.62 x 6.56
Display Format:
16 x 1
Outline Dimension (mm):
85 x 28
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
WH1601L
Active Area (mm):
94.84 x 9.66
Display Format:
16 x 1
Outline Dimension (mm):
122 x 33
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
VC1611
Active Area (mm):
59.62 x 6.56
Display Format:
16 x 1
Outline Dimension (mm):
80 x 36
Interface:
6800
Built-in Controller:
ST7066U -
VC1613
Active Area (mm):
94.84 x 9.66
Display Format:
16 x 1
Outline Dimension (mm):
122 x 33
Interface:
6800
Built-in Controller:
ST7066U -

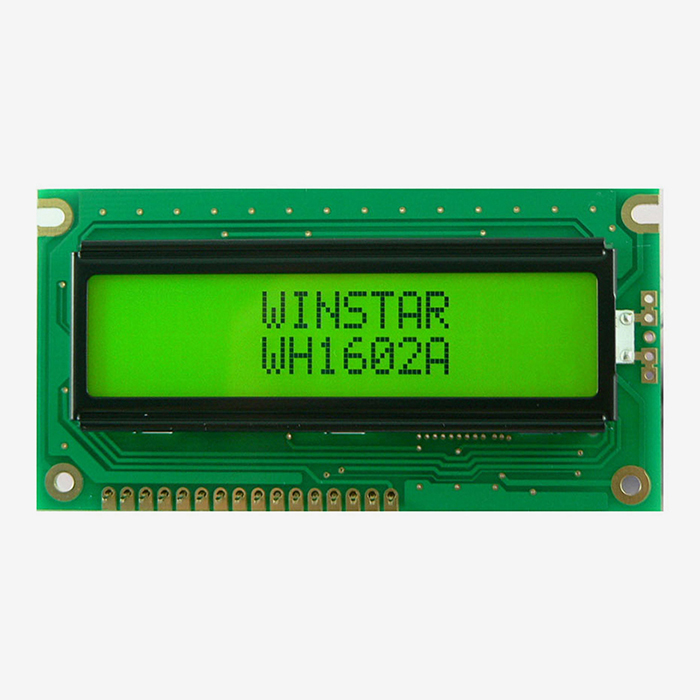

WH1602A
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
84 x 44
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

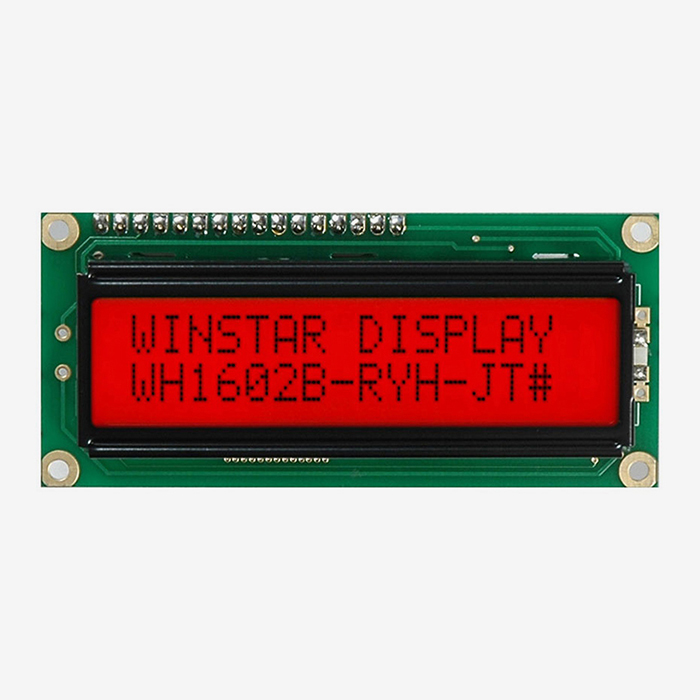

WH1602B
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
80 x 36
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

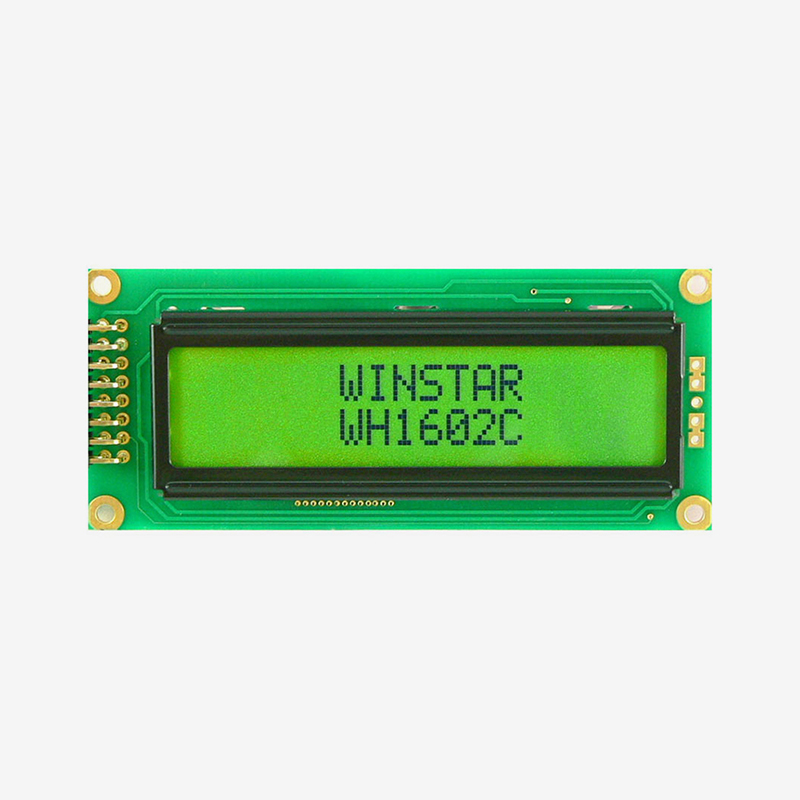

WH1602C
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
80 x 36
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

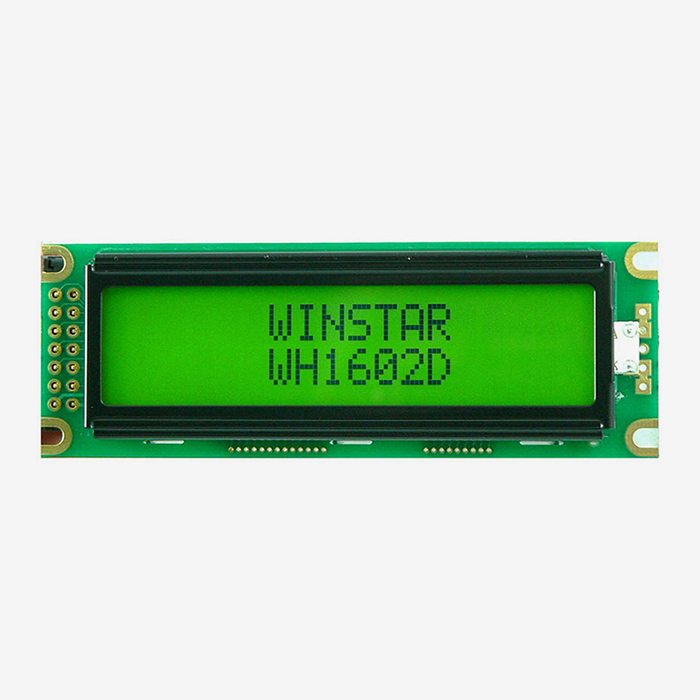

WH1602D
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
85 x 30
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

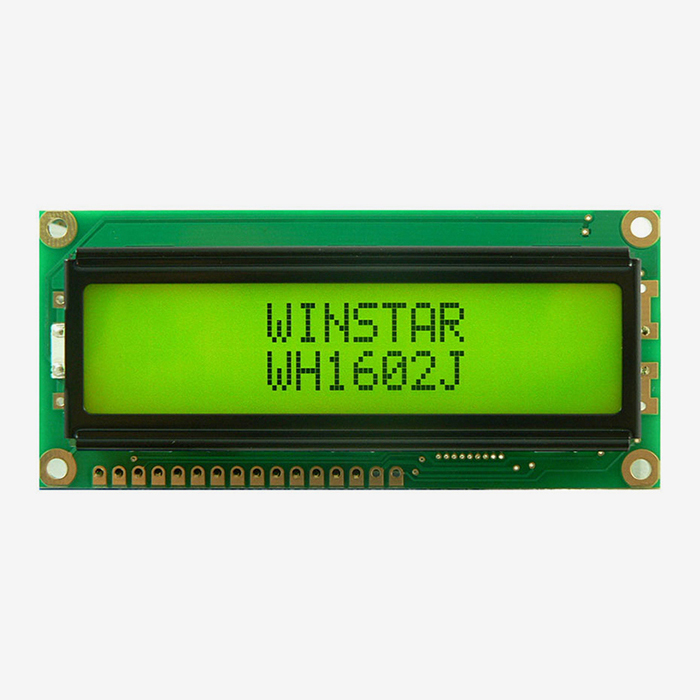

WH1602J
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
80 x 36
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

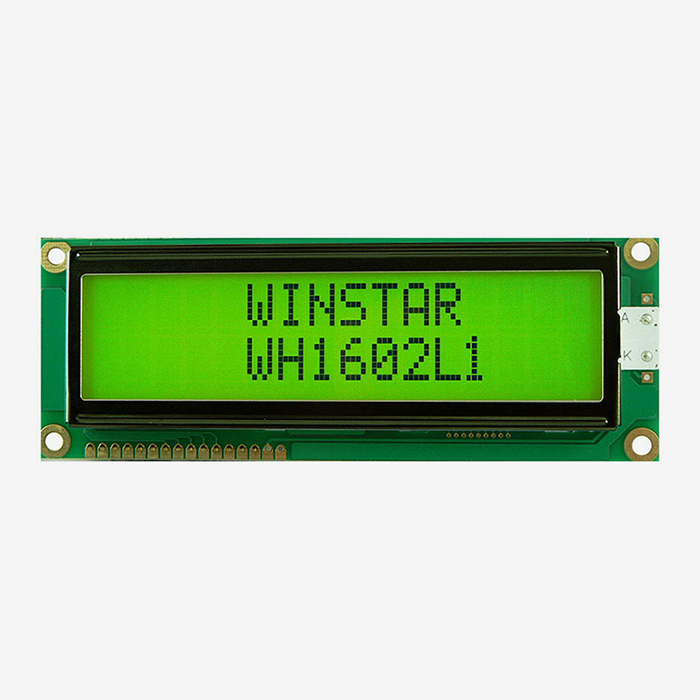

WH1602L1
Active Area (mm):
94.84 x 20
Display Format:
16 x 2
Outline Dimension (mm):
122 x 44
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

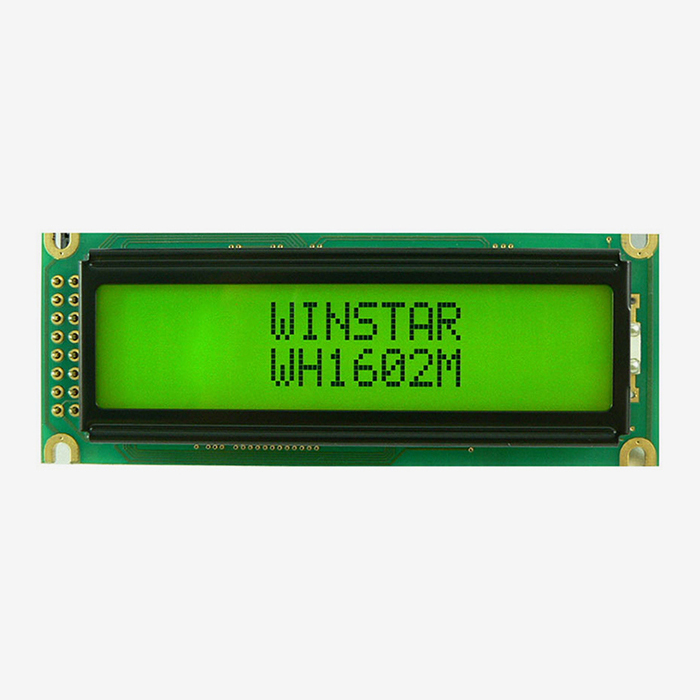

WH1602M
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
85 x 32.6
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

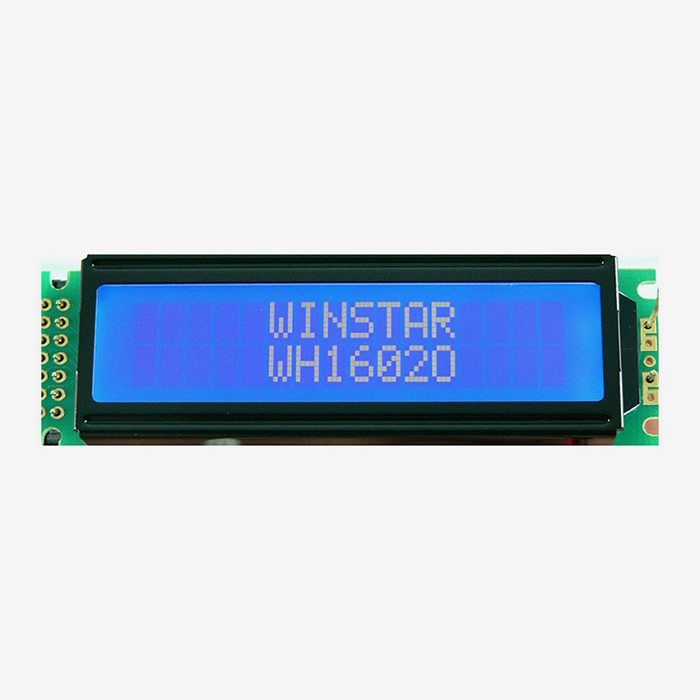

WH1602O
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
85 x 25.2
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

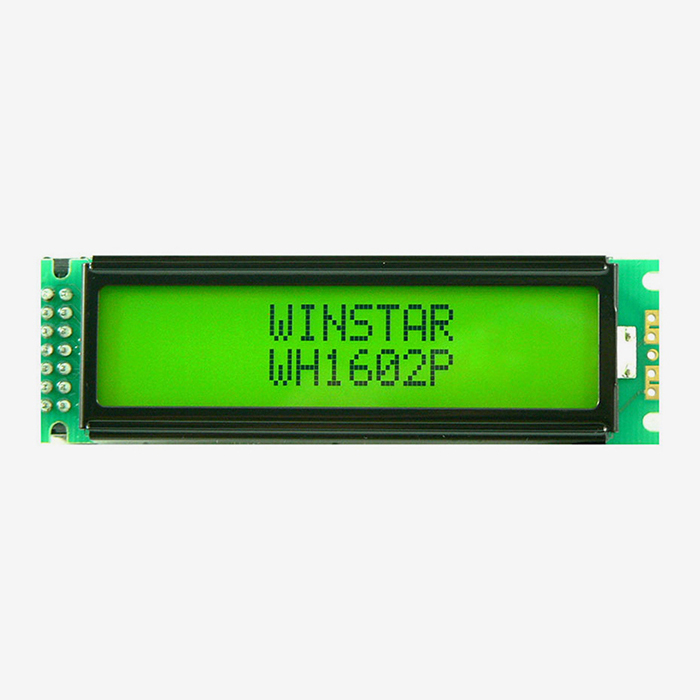

WH1602P
Active Area (mm):
56.21 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
85 x 25.2
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

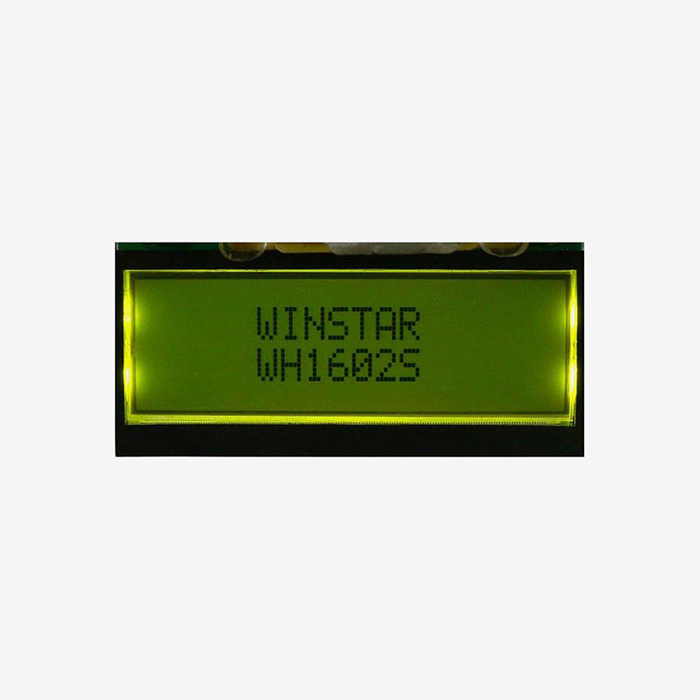

WH1602S
Active Area (mm):
46.7 x 9.84
Display Format:
16 x 2
Outline Dimension (mm):
59 x 29.3
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
WH1602T
Active Area (mm):
48.42 x 12.12
Display Format:
16 x 2
Outline Dimension (mm):
65.4 x 28.2
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

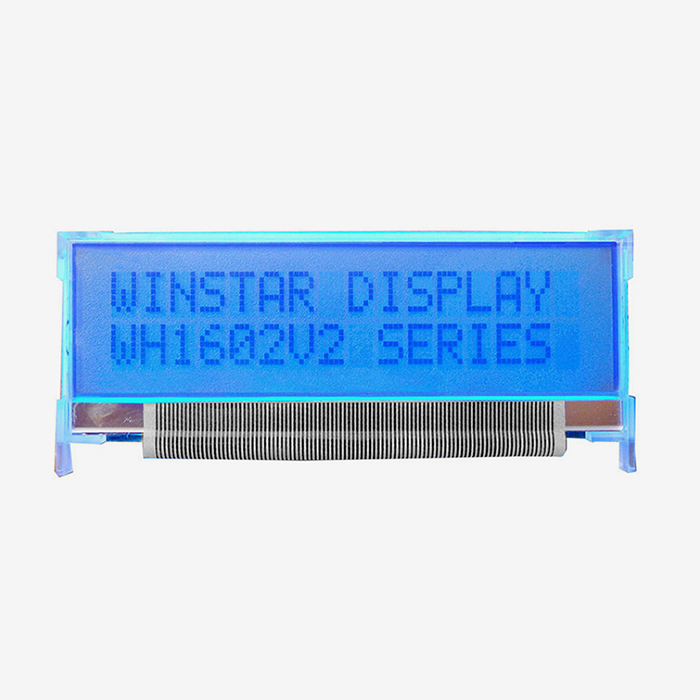

WH1602V2
Active Area (mm):
56.2 x 11.85
Display Format:
16 x 2
Outline Dimension (mm):
66.7 x 23.3
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

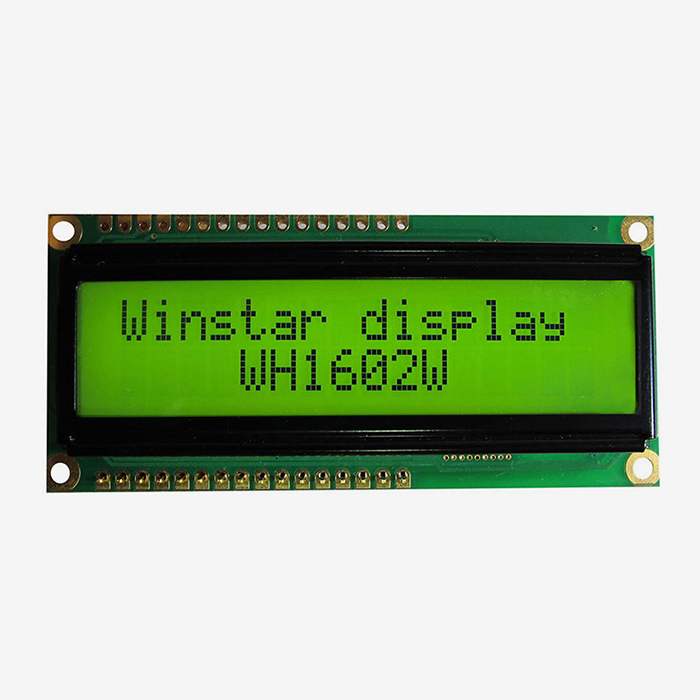

WH1602W
Active Area (mm):
56.2 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
80 x 36
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -
VC1621
Active Area (mm):
56.21 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
84 x 44
Interface:
6800
Built-in Controller:
ST7066U -

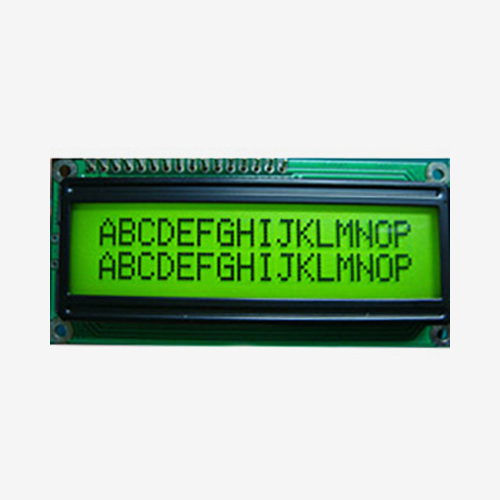

VC1622
Active Area (mm):
56.21 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
80 x 36
Interface:
6800
Built-in Controller:
ST7066U -

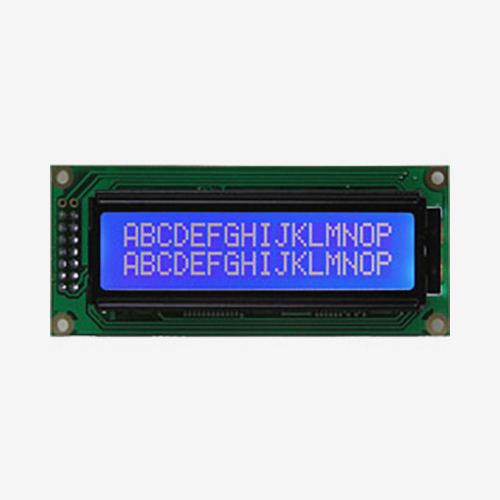

VC1623
Active Area (mm):
56.21 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
85 x 36
Interface:
6800
Built-in Controller:
ST7066U -

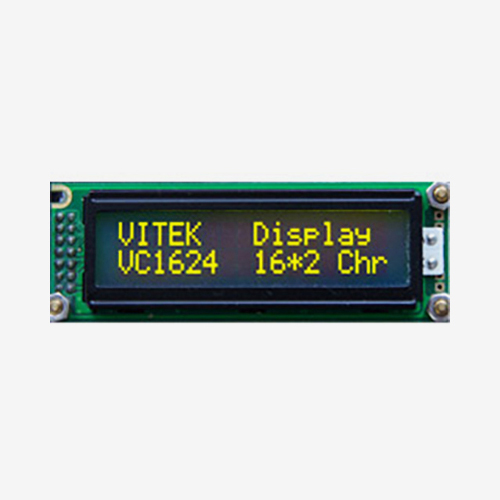

VC1624
Active Area (mm):
56.21 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
85 x 30
Interface:
6800
Built-in Controller:
ST7066U -

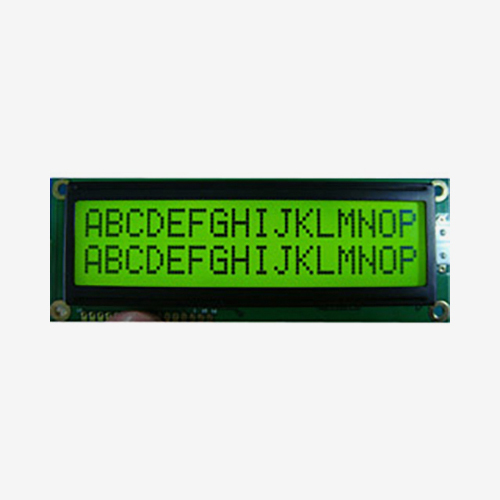

VC1625
Active Area (mm):
94.84 x 9.66
Display Format:
16 x 2
Outline Dimension (mm):
122 x 44
Interface:
6800
Built-in Controller:
ST7066U -

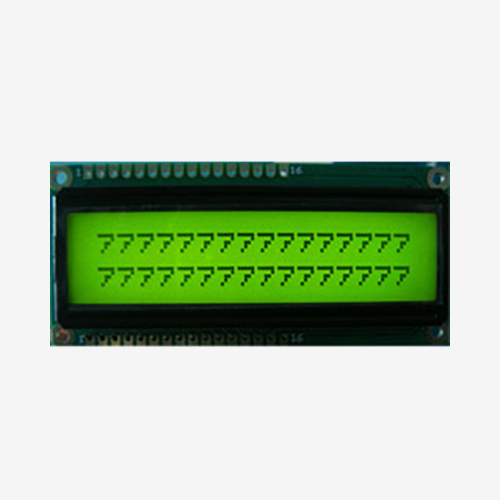

VC1626
Active Area (mm):
56.21 x 11.5
Display Format:
16 x 2
Outline Dimension (mm):
80 x 36
Interface:
6800
Built-in Controller:
ST7066U -

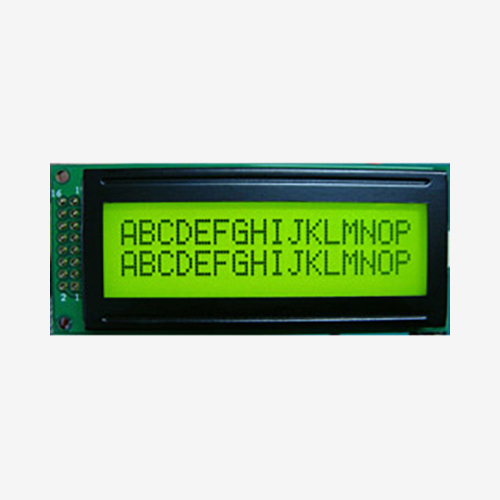

VC1627
Active Area (mm):
62.2 x 17.9
Display Format:
16 x 2
Outline Dimension (mm):
85 x 36
Interface:
Built-in Controller:
ST7066U -

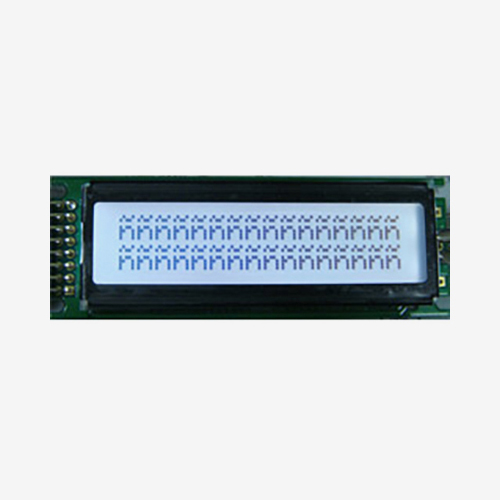

VC1628
Active Area (mm):
66 x 16
Display Format:
16 x 2
Outline Dimension (mm):
85 x 30
Interface:
Built-in Controller:
ST7066U -

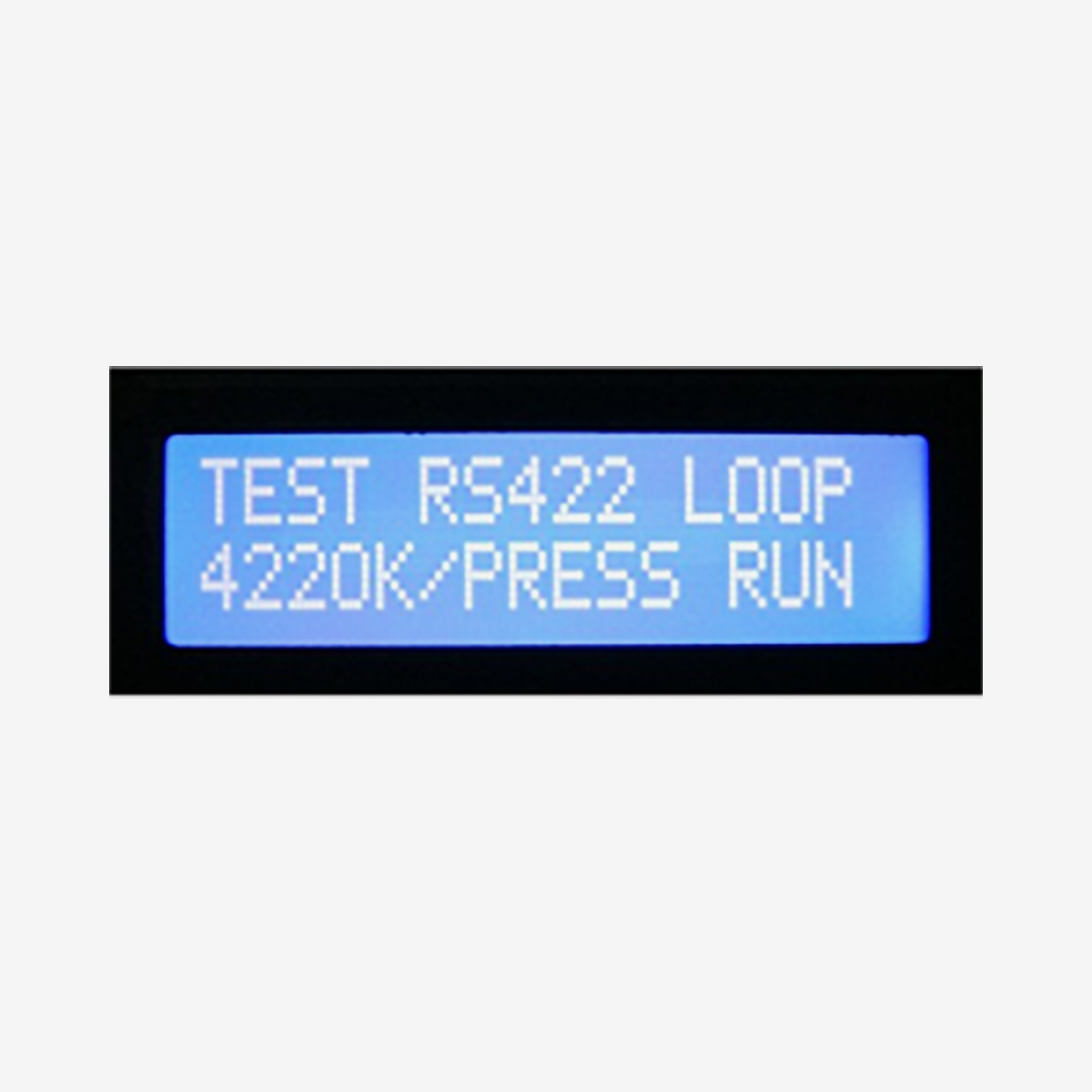

VC1629
Active Area (mm):
35.85 x 9.8
Display Format:
16 x 2
Outline Dimension (mm):
56 x 30
Interface:
Built-in Controller:
SPLC783A1 -

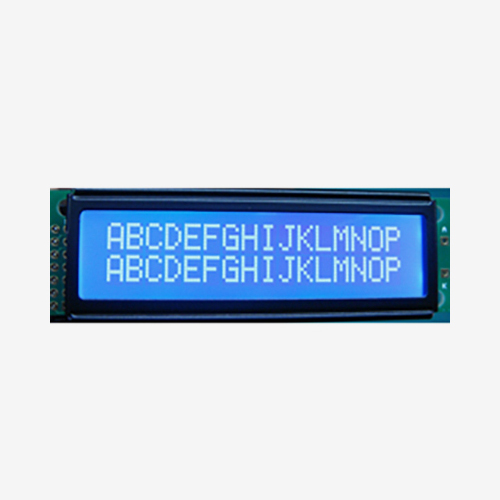

VC162P
Active Area (mm):
66 x 16
Display Format:
16 x 2
Outline Dimension (mm):
85 x 27.2
Interface:
Built-in Controller:
ST7066U -

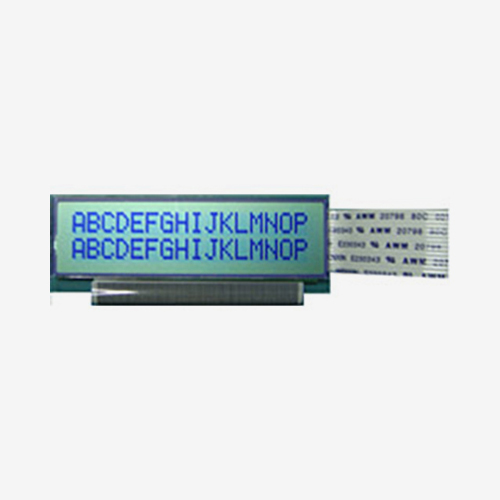

VC162R
Active Area (mm):
61 x 15.9
Display Format:
16 x 2
Outline Dimension (mm):
66.7 x 23.3
Interface:
Built-in Controller:
ST7066U -

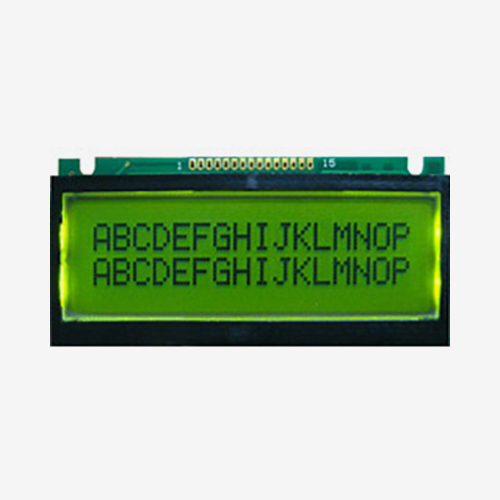

VC162W
Active Area (mm):
56.3 x 19.4
Display Format:
16 x 2
Outline Dimension (mm):
59 x 29.3
Interface:
Built-in Controller:
ST7066U -

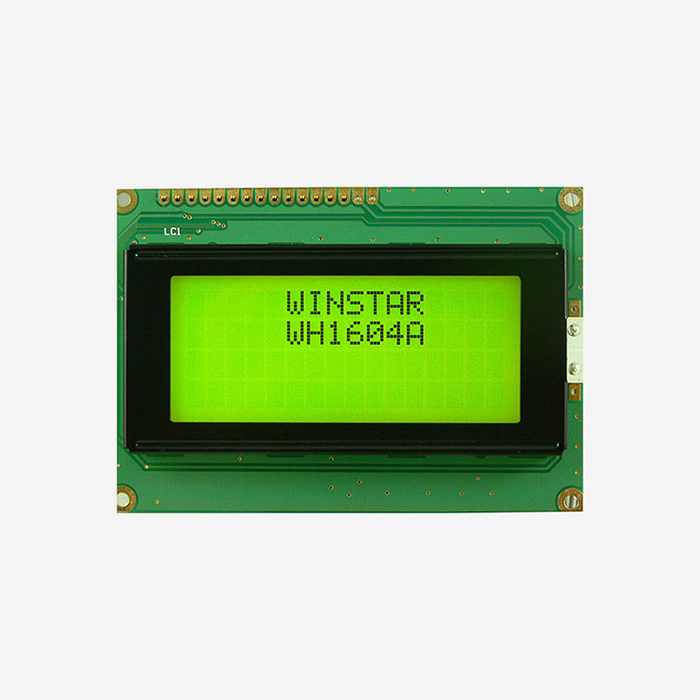

WH1604A
Active Area (mm):
56.2 x 20.8
Display Format:
16 x 4
Outline Dimension (mm):
87 x 60
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

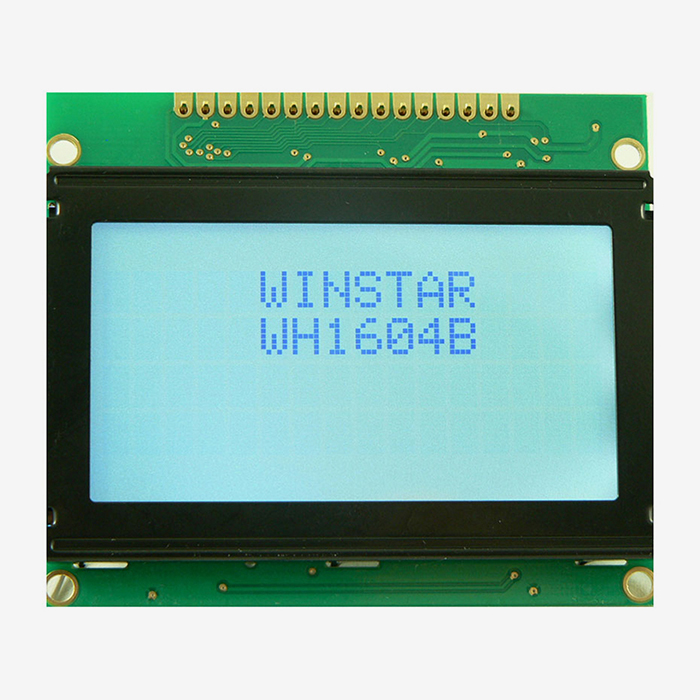

WH1604B
Active Area (mm):
56.2 x 20.8
Display Format:
16 x 4
Outline Dimension (mm):
70.6 x 60
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

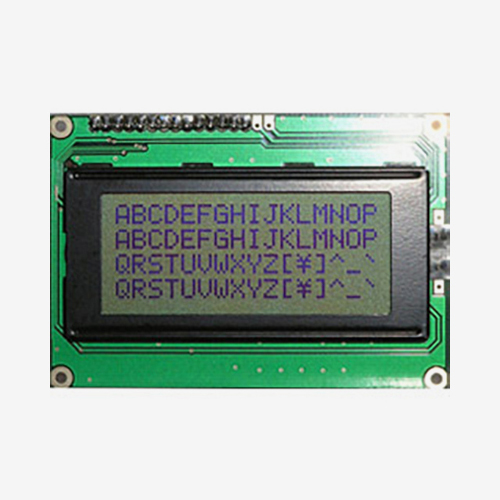

VC1641
Active Area (mm):
62 x 26
Display Format:
16 x 4
Outline Dimension (mm):
87 x 60
Interface:
Built-in Controller:
ST7066U -

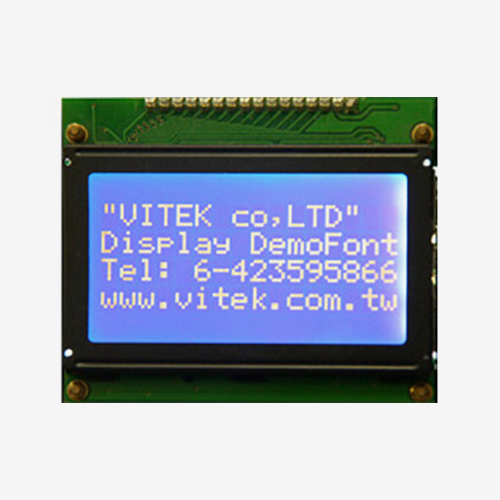

VC1642
Active Area (mm):
60 x 32.6
Display Format:
16 x 4
Outline Dimension (mm):
70.6 x 60
Interface:
Built-in Controller:
ST7066U -

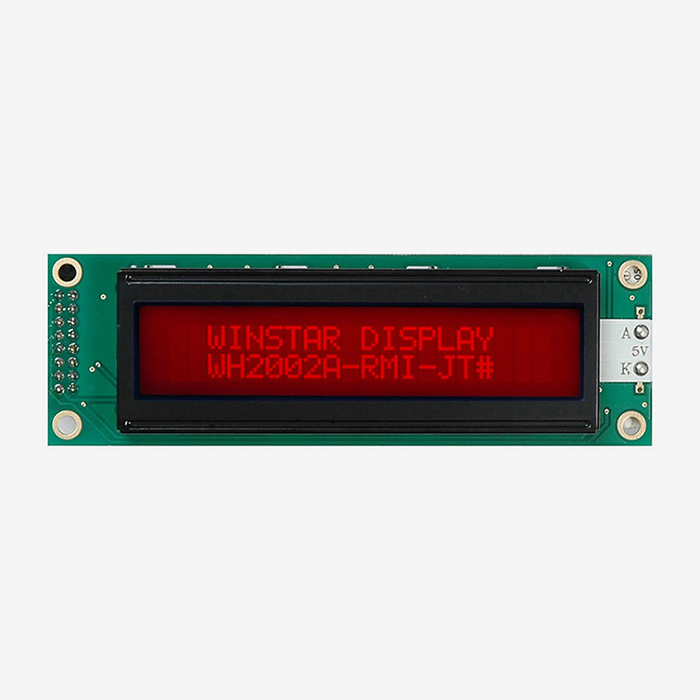

WH2002A
Active Area (mm):
73.5 x 11.5
Display Format:
20 x 2
Outline Dimension (mm):
116 x 37
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

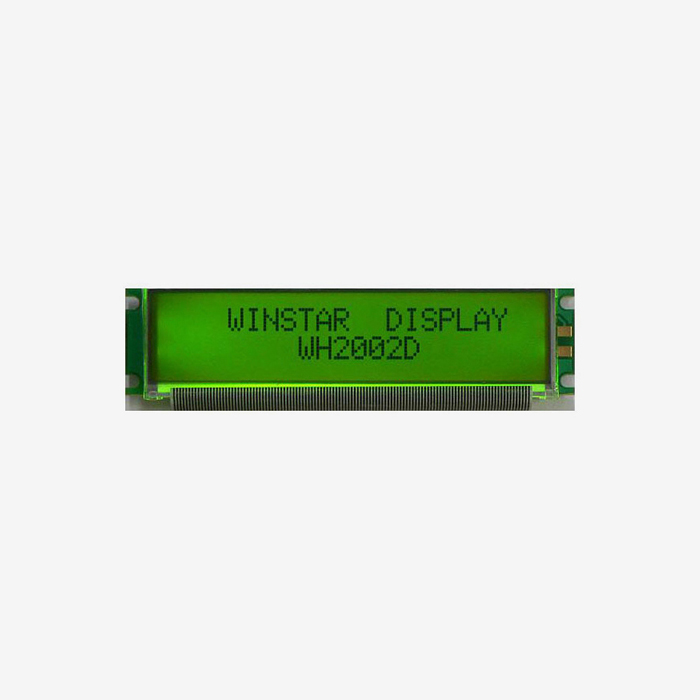

WH2002D
Active Area (mm):
68.5 x 10.7
Display Format:
20 x 2
Outline Dimension (mm):
89 x 21.5
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

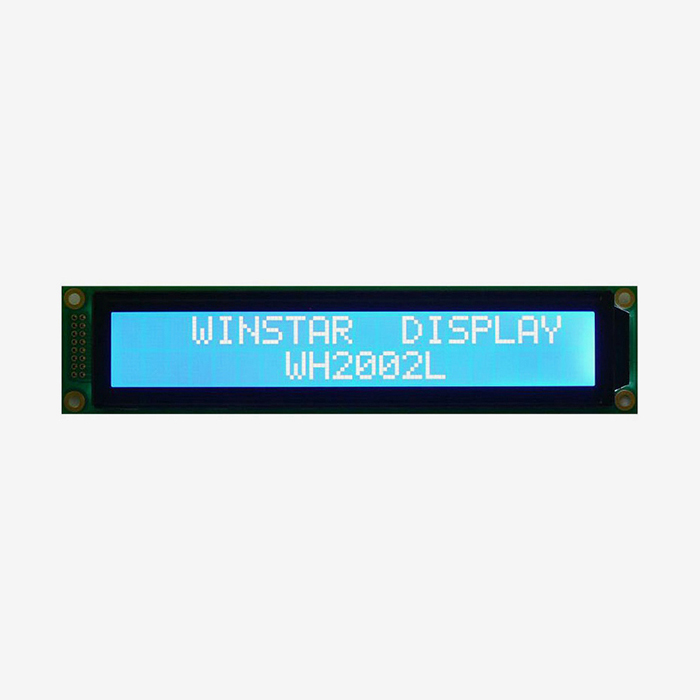

WH2002L
Active Area (mm):
142.8 x 20.64
Display Format:
20 x 2
Outline Dimension (mm):
180 x 40
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

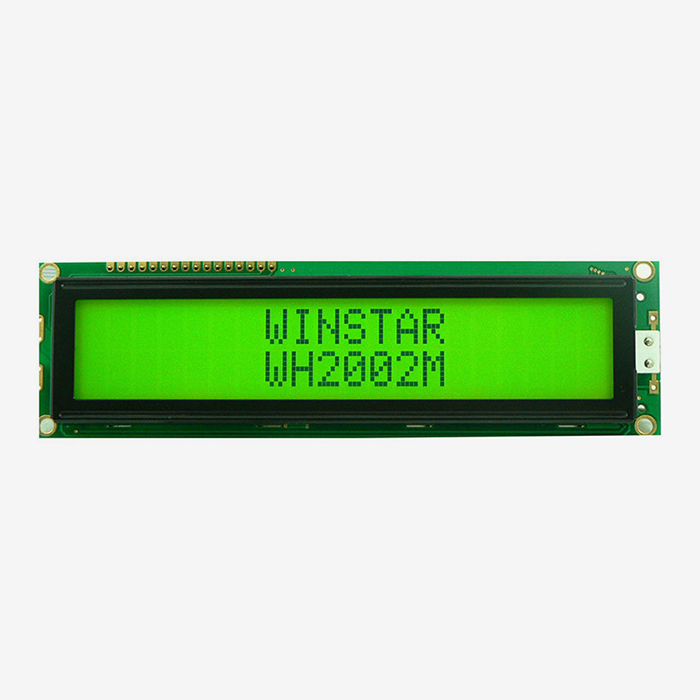

WH2002M
Active Area (mm):
118.84 x 18.97
Display Format:
20 x 2
Outline Dimension (mm):
146 x 43
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

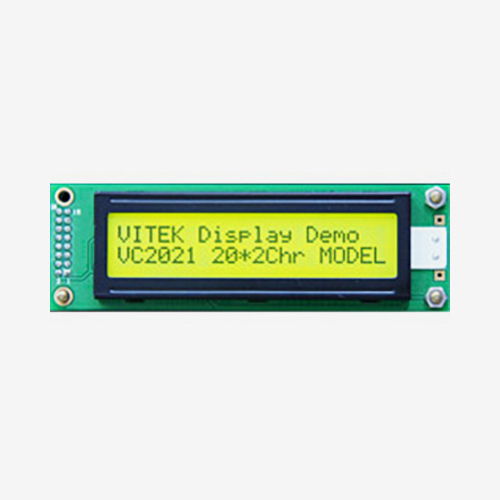

VC2021
Active Area (mm):
85 x 18.6
Display Format:
20 x 2
Outline Dimension (mm):
116 x 37
Interface:
Built-in Controller:
ST7066U -

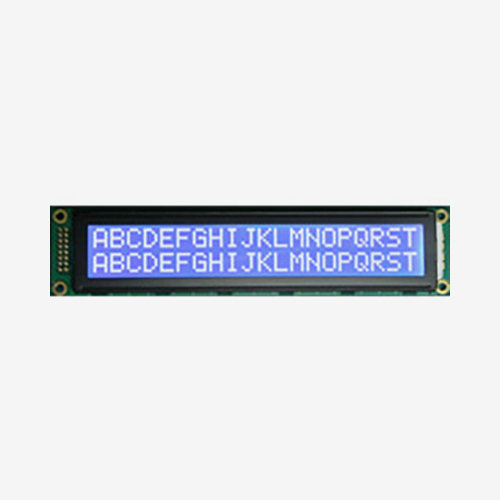

VC2023
Active Area (mm):
149 x 23
Display Format:
20 x 2
Outline Dimension (mm):
180 x 40
Interface:
Built-in Controller:
ST7066U -

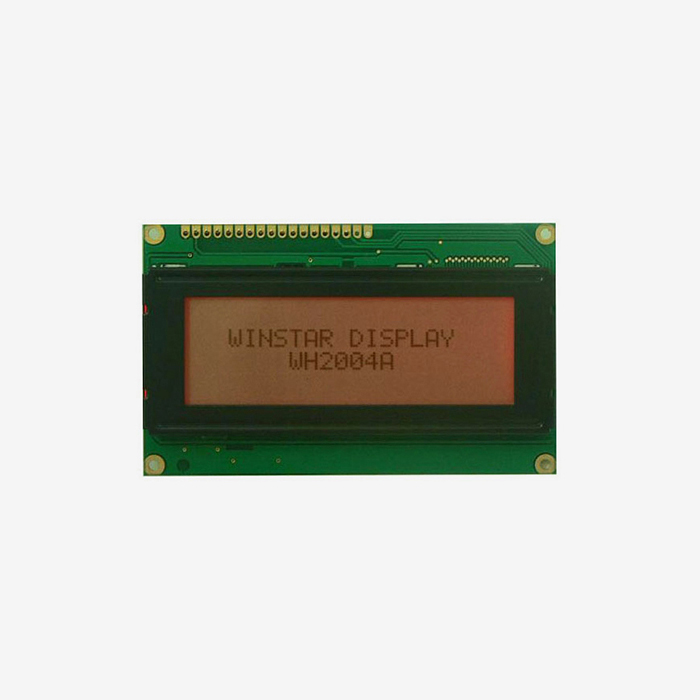

WH2004A
Active Area (mm):
70.4 x 20.8
Display Format:
20 x 4
Outline Dimension (mm):
98 x 60
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

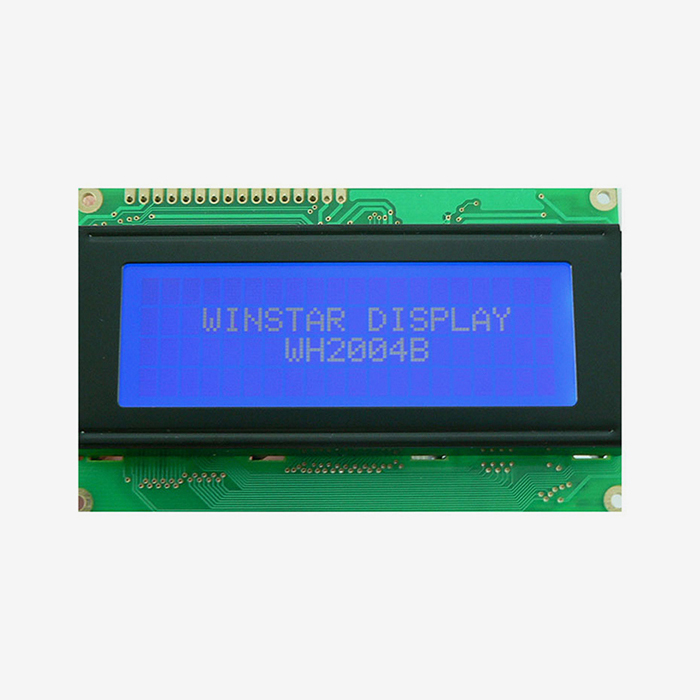

WH2004B
Active Area (mm):
70.4 x 20.8
Display Format:
20 x 4
Outline Dimension (mm):
98 x 60
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

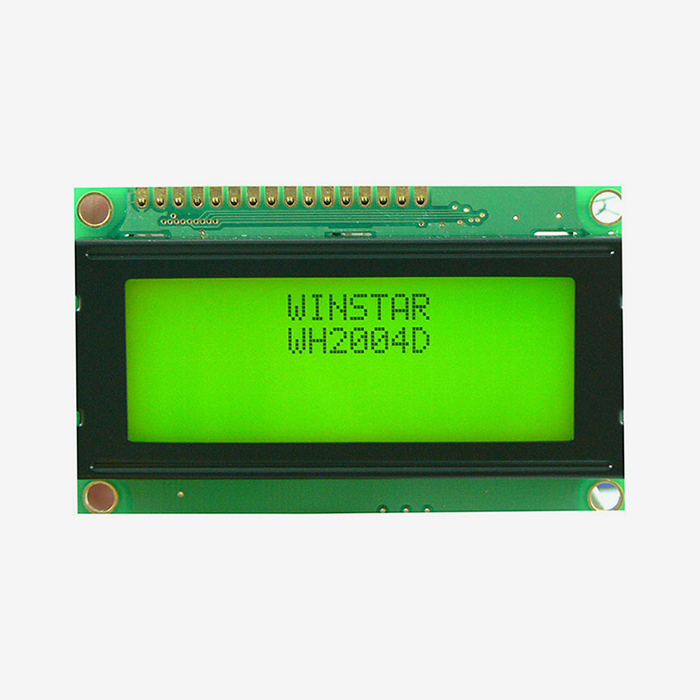

WH2004D
Active Area (mm):
55.1 x 17.56
Display Format:
20 x 4
Outline Dimension (mm):
77 x 47
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

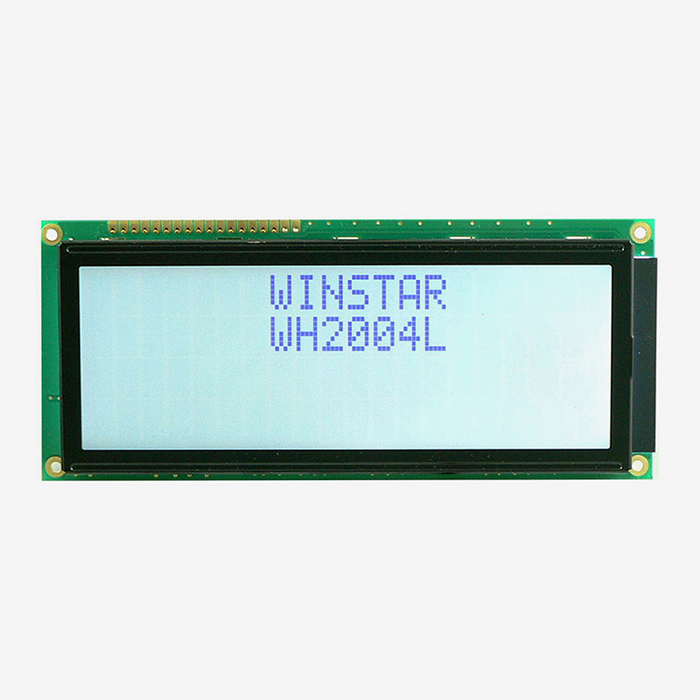

WH2004L
Active Area (mm):
118.84 x 38.47
Display Format:
20 x 4
Outline Dimension (mm):
146 x 62.5
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

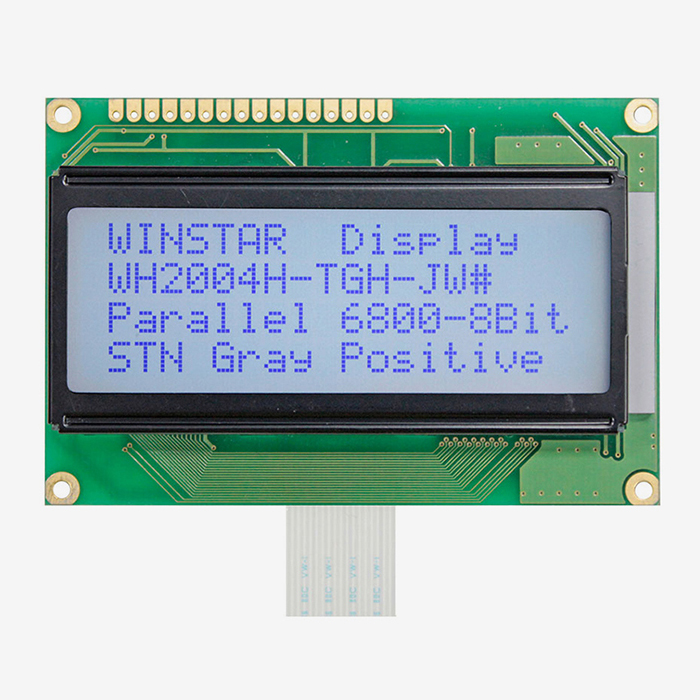

WH2004H
Active Area (mm):
70.4 x 20.8
Display Format:
20 x 4
Outline Dimension (mm):
87 x 58
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

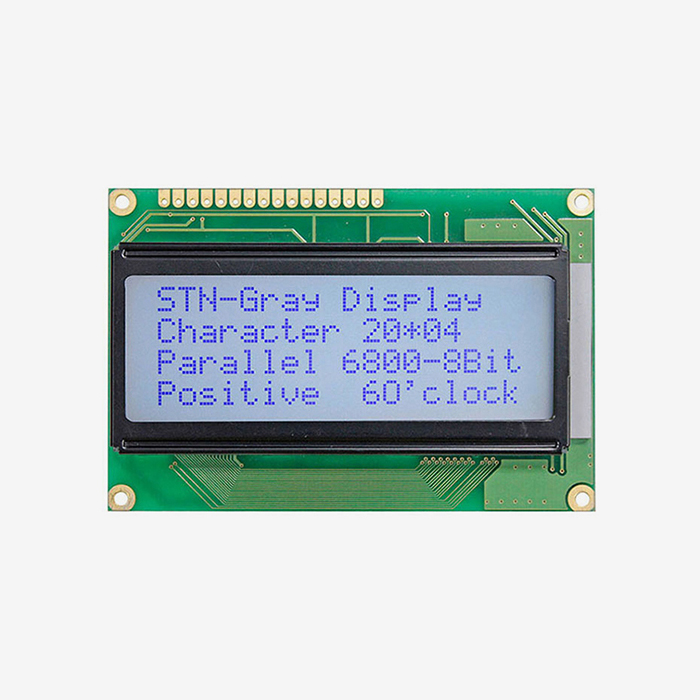

WH2004G
Active Area (mm):
70.4 x 20.8
Display Format:
20 x 4
Outline Dimension (mm):
87 x 58
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

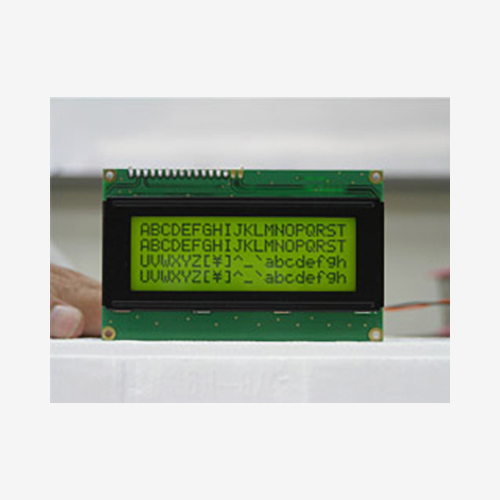

VC2041
Active Area (mm):
77 x 25.2
Display Format:
20 x 4
Outline Dimension (mm):
98 x 60
Interface:
Built-in Controller:
ST7066U -

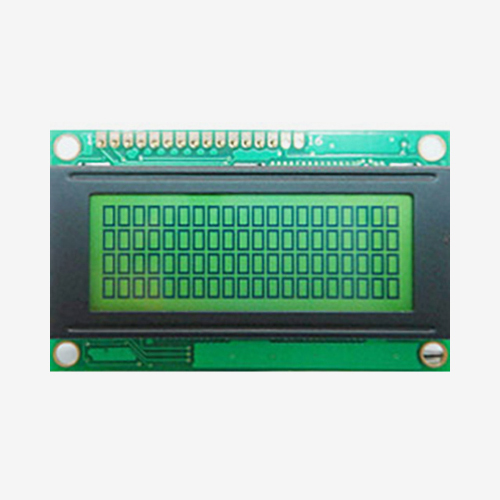

VC2042
Active Area (mm):
60 x 22
Display Format:
20 x 4
Outline Dimension (mm):
77 x 47
Interface:
Built-in Controller:
ST7066U -

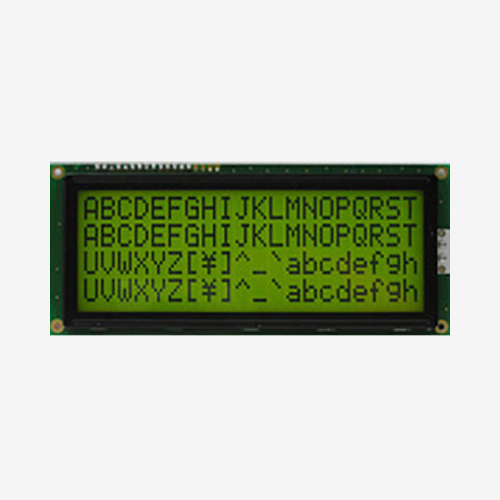

VC2043
Active Area (mm):
123.5 x 43
Display Format:
20 x 4
Outline Dimension (mm):
146 x 62.5
Interface:
Built-in Controller:
ST7066U -

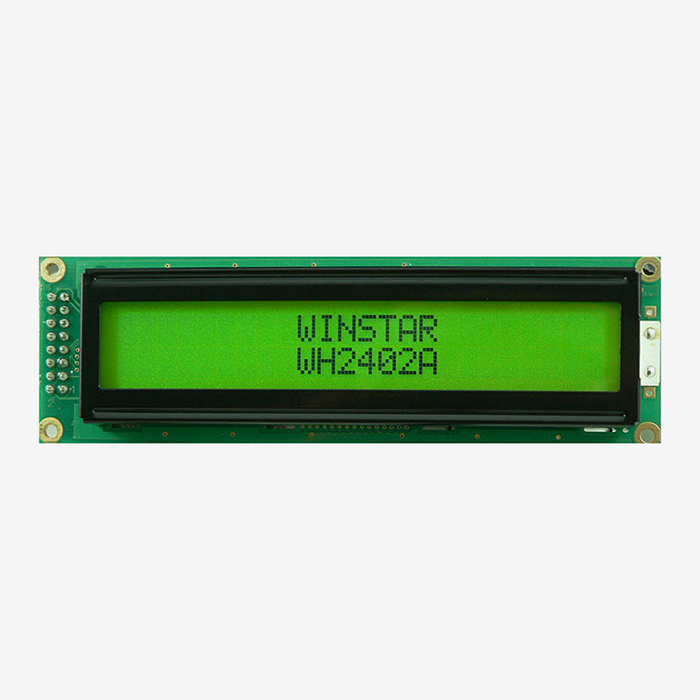

WH2402A
Active Area (mm):
88.3 x 11.5
Display Format:
24 x 2
Outline Dimension (mm):
118 x 36
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

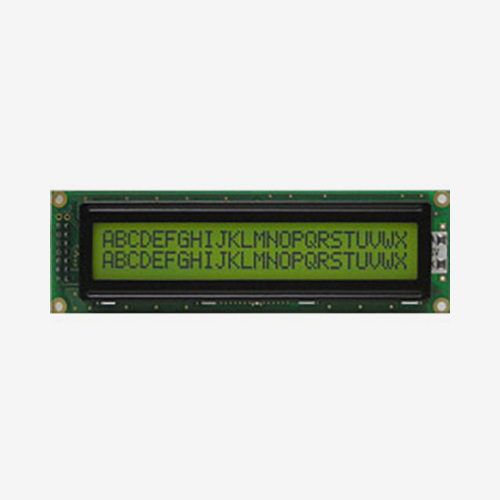

VC2421
Active Area (mm):
94.5 x 16
Display Format:
24 x 2
Outline Dimension (mm):
118 x 36
Interface:
Built-in Controller:
ST7066U -

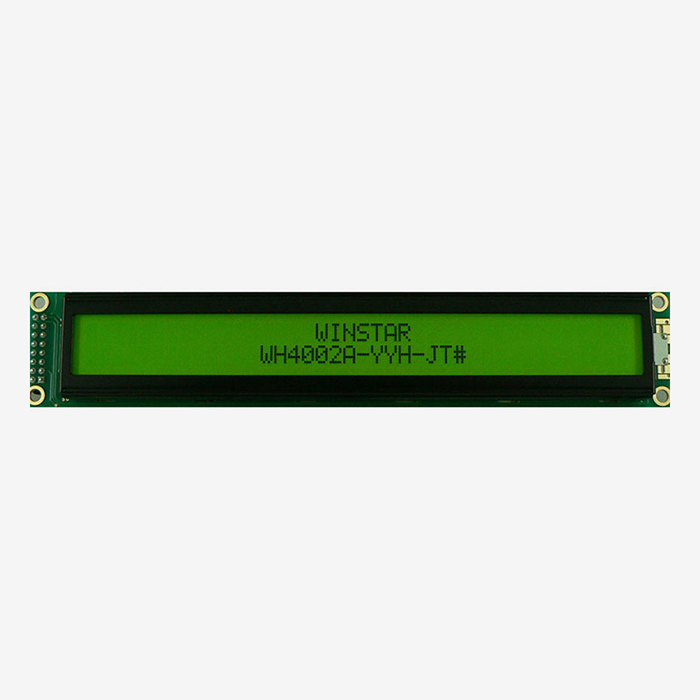

WH4002A
Active Area (mm):
147.5 x 11.5
Display Format:
40 x 2
Outline Dimension (mm):
182 x 33.5
Interface:
6800 | SPI | I2C
Built-in Controller:
ST7066 -

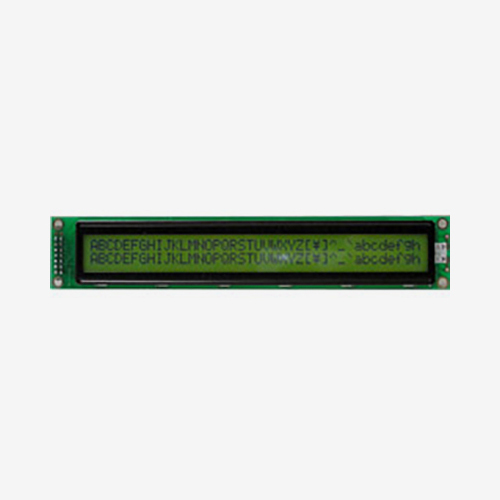

VC4021
Active Area (mm):
154.4 x 16.5
Display Format:
40 x 2
Outline Dimension (mm):
182 x 33.5
Interface:
Built-in Controller:
ST7066U -

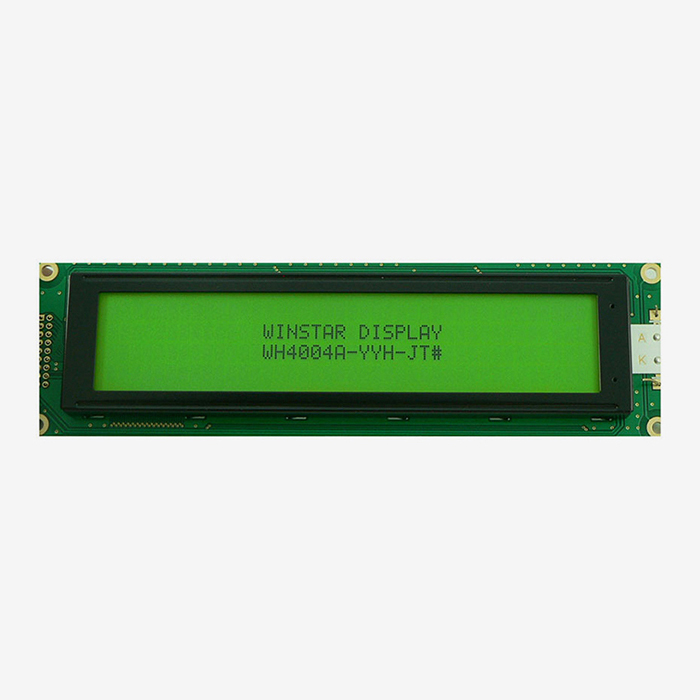

WH4004A
Active Area (mm):
140.45 x 23.16
Display Format:
40 x 4
Outline Dimension (mm):
190 x 54
Interface:
6800
Built-in Controller:
ST7066 -

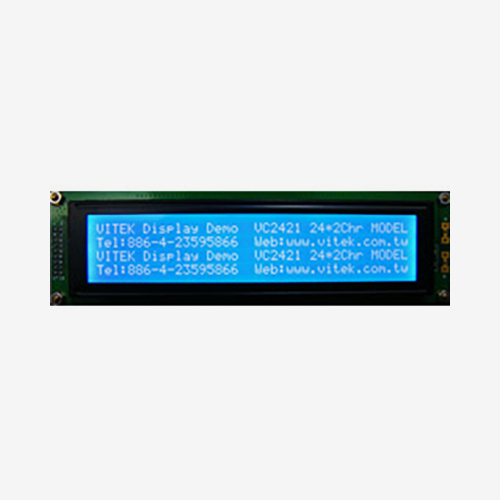

VC4041
Active Area (mm):
147.0 x 29.5
Display Format:
40 x 4
Outline Dimension (mm):
190 x 54
Interface:
Built-in Controller:
ST7066U
