RTPC070W-X07TG1
Size (in):
7 W
Outline Dimension (mm):
161.86 x 103.57
Sensor Active Area (mm):
154.7 x 93.77
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
0.7 -
RTPC070W-X30BP1
Size (in):
7 W
Outline Dimension (mm):
193 x 136
Sensor Active Area (mm):
153.4 x 92.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC070W-X30WP1
Size (in):
7 W
Outline Dimension (mm):
193 x 136
Sensor Active Area (mm):
153.4 x 92.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC101W-H11TG1
Size (in):
10.1 W
Outline Dimension (mm):
232 x 156.7
Sensor Active Area (mm):
218.96 x 137.1 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.1 -
RTPC101W-H30BP1
Size (in):
10.1 W
Outline Dimension (mm):
283 x 202
Sensor Active Area (mm):
216.96 x 135.6
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -

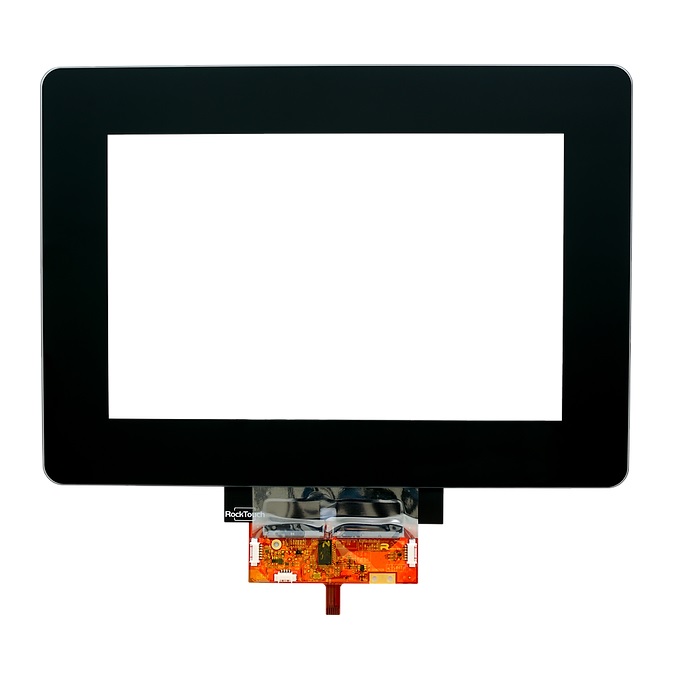

RTPC101W-H60BC1
Size (in):
10.1 W
Outline Dimension (mm):
283 x 202
Sensor Active Area (mm):
216.96 x 135.6
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

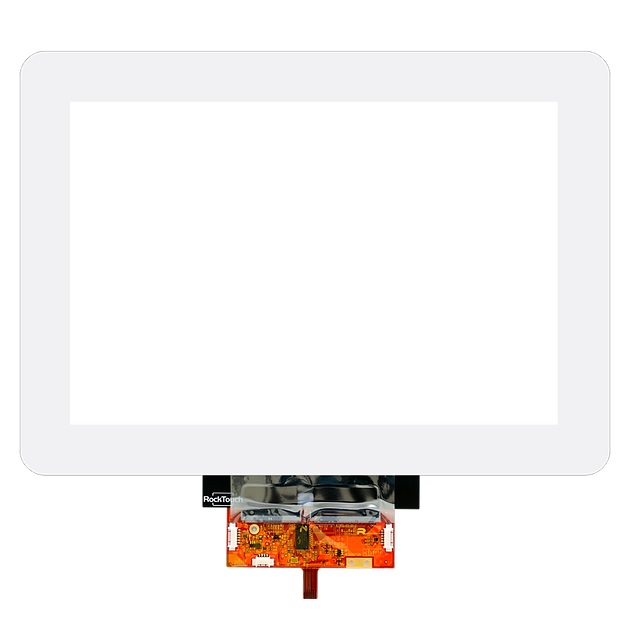

RTPC101W-H30WP1
Size (in):
10.1 W
Outline Dimension (mm):
283 x 202
Sensor Active Area (mm):
216.96 x 135.6
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC101W-H60WC1
Size (in):
10.1 W
Outline Dimension (mm):
283 x 202
Sensor Active Area (mm):
216.96 x 135.6
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

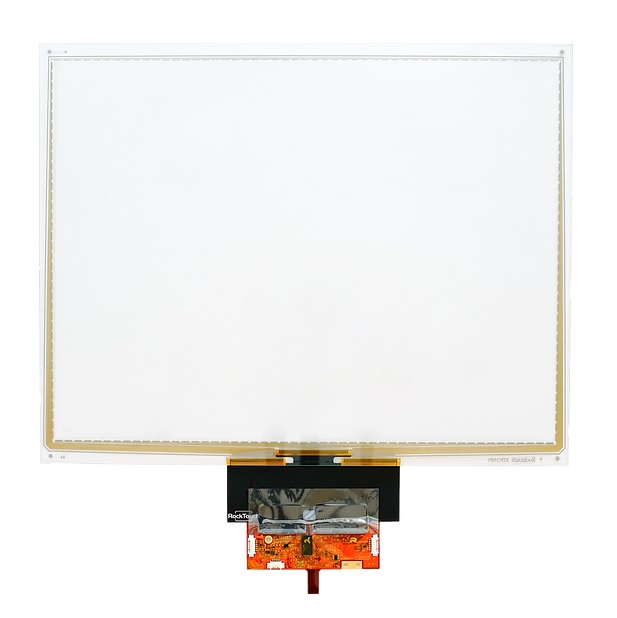

RTPC104-H11TG1
Size (in):
10,4
Outline Dimension (mm):
233.9 x 187.9
Sensor Active Area (mm):
221.49 x 168.46 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.1 -

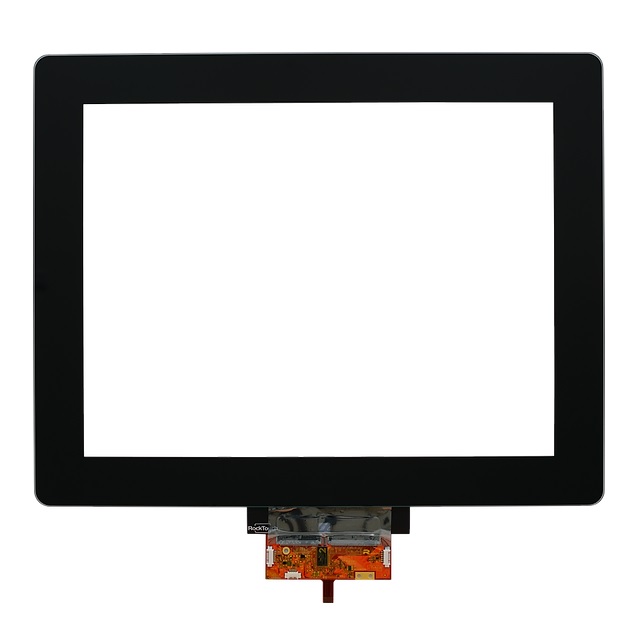

RTPC104-H30BP1
Size (in):
10,4
Outline Dimension (mm):
280 x 227
Sensor Active Area (mm):
211.2 x 158.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC104-H60BC1
Size (in):
10,4
Outline Dimension (mm):
280 x 227
Sensor Active Area (mm):
211.2 x 158.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC104-H30WP1
Size (in):
10,4
Outline Dimension (mm):
280 x 227
Sensor Active Area (mm):
211.2 x 158.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC104-H60WC1
Size (in):
10,4
Outline Dimension (mm):
280 x 227
Sensor Active Area (mm):
211.2 x 158.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

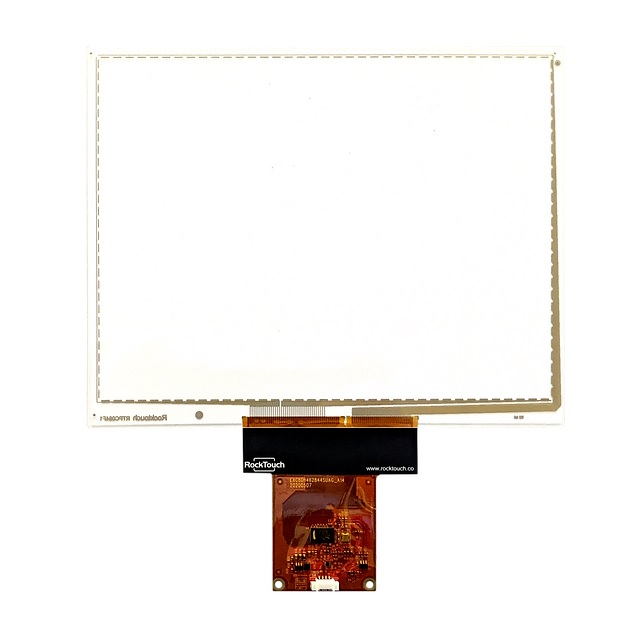

RTPC121-H11TG1
Size (in):
12,1
Outline Dimension (mm):
271.3 x 213.6
Sensor Active Area (mm):
255 x 193.5 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.1 -

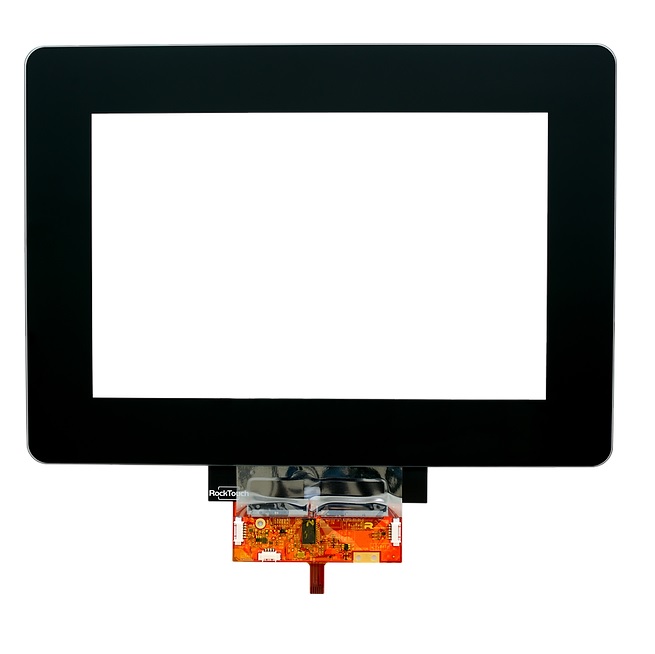

RTPC121-H30BP1
Size (in):
12,1
Outline Dimension (mm):
315 x 253
Sensor Active Area (mm):
246.0 x 184.5
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC121-H60BC1
Size (in):
12,1
Outline Dimension (mm):
315 x 253
Sensor Active Area (mm):
246.0 x 184.5
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC121-H30WP1
Size (in):
12,1
Outline Dimension (mm):
315 x 253
Sensor Active Area (mm):
246.0 x 184.5
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC121-H60WC1
Size (in):
12,1
Outline Dimension (mm):
315 x 253
Sensor Active Area (mm):
246.0 x 184.5
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

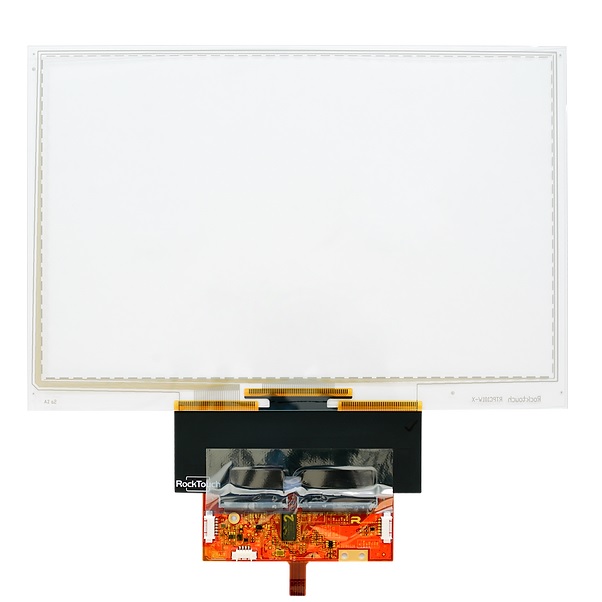

RTPC121W-H11TG1
Size (in):
12.1 W
Outline Dimension (mm):
285 x 186.8
Sensor Active Area (mm):
269 x 166.92 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.1 -

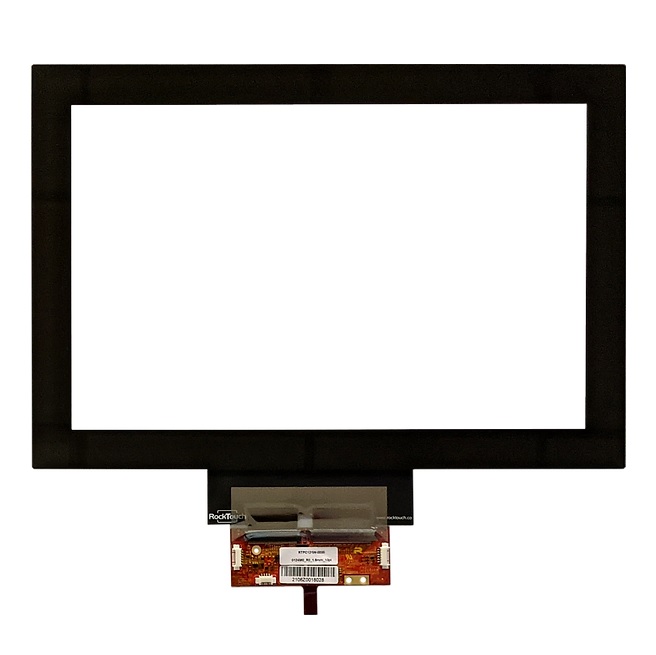

RTPC121W-H30BP1
Size (in):
12.1 W
Outline Dimension (mm):
328 x 226
Sensor Active Area (mm):
261.12 x 163.2
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC121W-H60BC1
Size (in):
12.1 W
Outline Dimension (mm):
328 x 226
Sensor Active Area (mm):
261.12 x 163.2
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC121W-H30WP1
Size (in):
12.1 W
Outline Dimension (mm):
328 x 226
Sensor Active Area (mm):
261.12 x 163.2
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC121W-H60WC1
Size (in):
12.1 W
Outline Dimension (mm):
328 x 226
Sensor Active Area (mm):
261.12 x 163.2
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

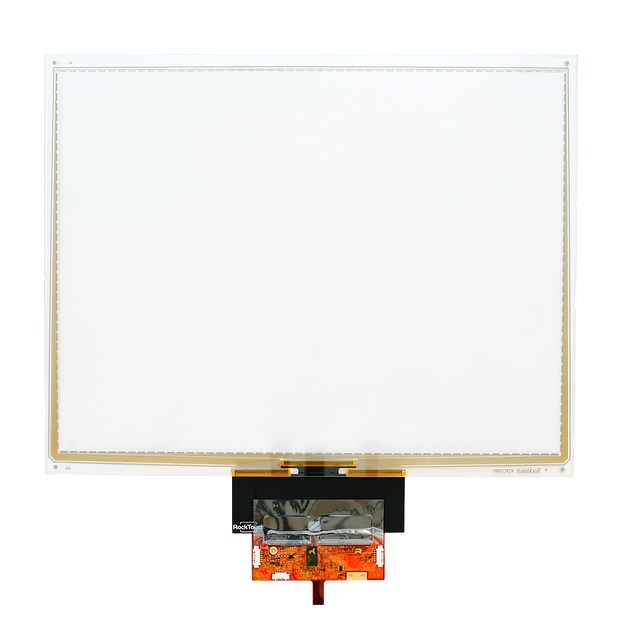

RTPC150-H11TG1
Size (in):
15
Outline Dimension (mm):
324.2 x 256.8
Sensor Active Area (mm):
308.13 x 232.02 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.1 -
RTPC150-H30BP1
Size (in):
15
Outline Dimension (mm):
370.1 x 294.1
Sensor Active Area (mm):
269 x 166.92 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC150-H60BC1
Size (in):
15
Outline Dimension (mm):
370.1 x 294.1
Sensor Active Area (mm):
269 x 166.92 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC150-H30WP1
Size (in):
15
Outline Dimension (mm):
370.1 x 294.1
Sensor Active Area (mm):
269 x 166.92 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC150-H60WC1
Size (in):
15
Outline Dimension (mm):
370.1 x 294.1
Sensor Active Area (mm):
269 x 166.92 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

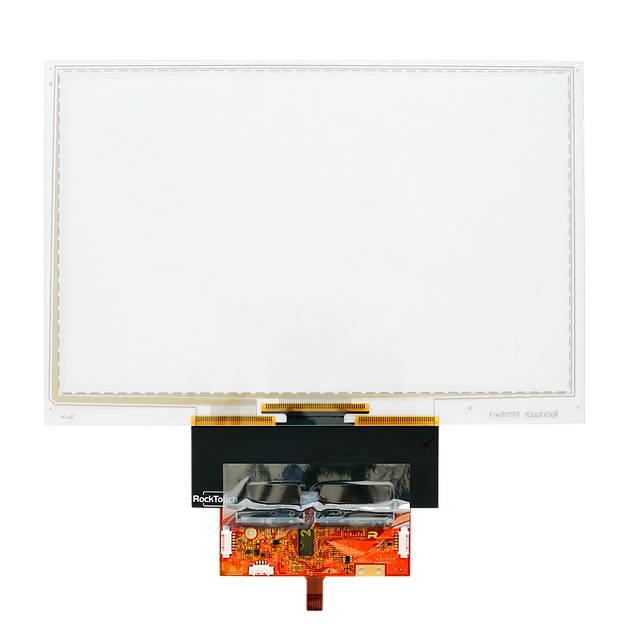

RTPC156W-H11TG1
Size (in):
15.6 W
Outline Dimension (mm):
370.3 x 222.2
Sensor Active Area (mm):
353.53 x 202.83 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.1 -

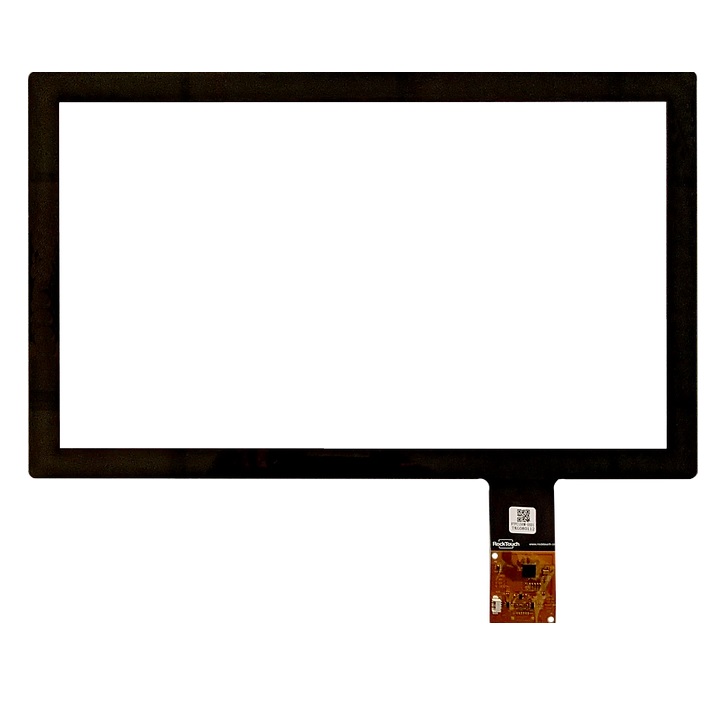

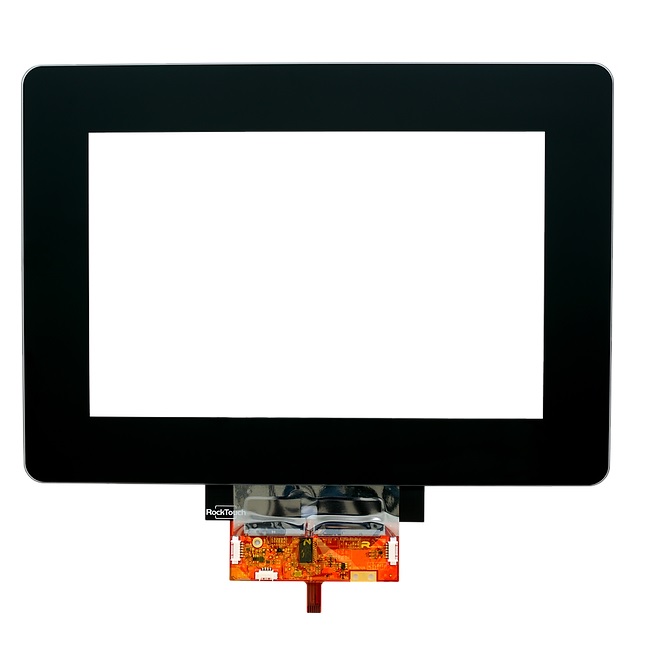

RTPC156W-H30BP1
Size (in):
15.6 W
Outline Dimension (mm):
424 x 273
Sensor Active Area (mm):
344.23 x 193.54
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC156W-H60BC1
Size (in):
15.6 W
Outline Dimension (mm):
424 x 273
Sensor Active Area (mm):
344.23 x 193.54
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC156W-H30WP1
Size (in):
15.6 W
Outline Dimension (mm):
424 x 273
Sensor Active Area (mm):
344.23 x 193.54
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC156W-H60WC1
Size (in):
15.6 W
Outline Dimension (mm):
424 x 273
Sensor Active Area (mm):
344.23 x 193.54
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC170-H18TG1
Size (in):
17
Outline Dimension (mm):
370 x 301.7
Sensor Active Area (mm):
348.2 x 280.88 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.8 -
RTPC170-H30BP1
Size (in):
17
Outline Dimension (mm):
424 x 357
Sensor Active Area (mm):
377.92 x 270.33
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC170-H60BC1
Size (in):
17
Outline Dimension (mm):
424 x 357
Sensor Active Area (mm):
377.92 x 270.33
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC170-H30WP1
Size (in):
17
Outline Dimension (mm):
424 x 357
Sensor Active Area (mm):
377.92 x 270.33
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC170-H60WC1
Size (in):
17
Outline Dimension (mm):
424 x 357
Sensor Active Area (mm):
377.92 x 270.33
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -

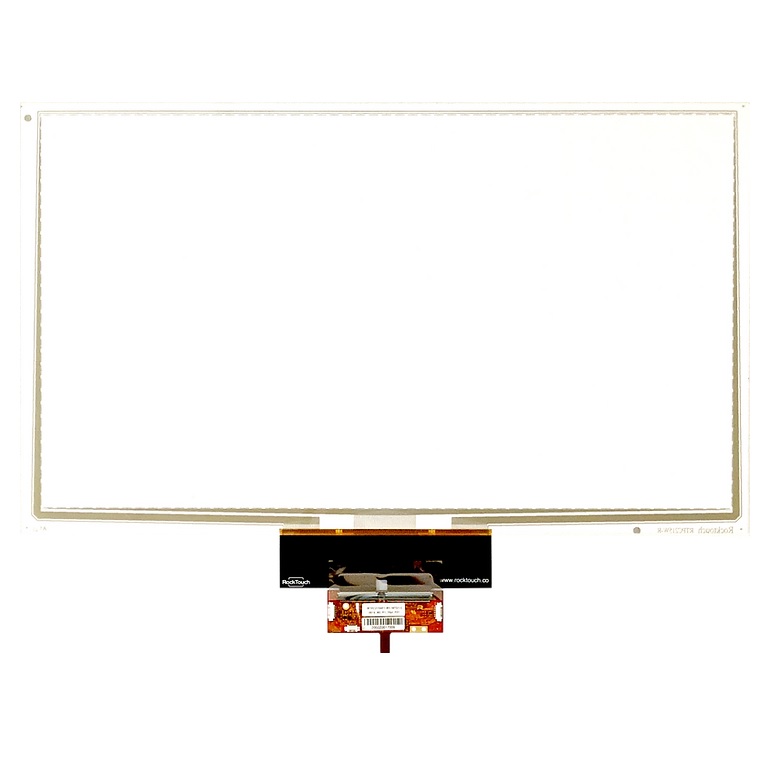

RTPC185W-H18TG1
Size (in):
18.5 W
Outline Dimension (mm):
440.6 x 261.6
Sensor Active Area (mm):
420.12 x 240.6 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.8 -
RTPC185W-H30BP1
Size (in):
18.5 W
Outline Dimension (mm):
491 x 312
Sensor Active Area (mm):
409.8 x 230.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC185W-H60BC1
Size (in):
18.5 W
Outline Dimension (mm):
491 x 312
Sensor Active Area (mm):
409.8 x 230.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC185W-H30WP1
Size (in):
18.5 W
Outline Dimension (mm):
491 x 312
Sensor Active Area (mm):
409.8 x 230.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC185W-H60WC1
Size (in):
18.5 W
Outline Dimension (mm):
491 x 312
Sensor Active Area (mm):
409.8 x 230.4
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC190-H18TG1
Size (in):
19
Outline Dimension (mm):
411.1 x 332.4
Sensor Active Area (mm):
386.65 x 311.52 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.8 -
RTPC190-H30BP1
Size (in):
19
Outline Dimension (mm):
457.32 x 382.06
Sensor Active Area (mm):
376.32 x 301.06
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC190-H60BC1
Size (in):
19
Outline Dimension (mm):
457.32 x 382.06
Sensor Active Area (mm):
376.32 x 301.06
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC190-H30WP1
Size (in):
19
Outline Dimension (mm):
457.32 x 382.06
Sensor Active Area (mm):
376.32 x 301.06
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC190-H60WC1
Size (in):
19
Outline Dimension (mm):
457.32 x 382.06
Sensor Active Area (mm):
376.32 x 301.06
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC215W-H18TG1
Size (in):
21.5 W
Outline Dimension (mm):
507.1 x 298.7
Sensor Active Area (mm):
486.78 x 276.96 (Max)
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
1.8 -
RTPC215W-H30BP1
Size (in):
21.5 W
Outline Dimension (mm):
559 x 350
Sensor Active Area (mm):
476.64 x 268.11
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC215W-H60BC1
Size (in):
21.5 W
Outline Dimension (mm):
559 x 350
Sensor Active Area (mm):
476.64 x 268.11
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC215W-H30WP1
Size (in):
21.5 W
Outline Dimension (mm):
559 x 350
Sensor Active Area (mm):
476.64 x 268.11
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
3 -
RTPC215W-H60WC1
Size (in):
21.5 W
Outline Dimension (mm):
559 x 350
Sensor Active Area (mm):
476.64 x 268.11
Interface:
COF USB/I2C
Cover Lens Thickness (mm):
6 -
RTPC315W-S18TG1
Size (in):
31.5 W
Outline Dimension (mm):
507.1 x 298.7
Sensor Active Area (mm):
486.78 x 276.96 (Max)
Interface:
E x ternal Controller
Cover Lens Thickness (mm):
1.8
