HF46F
Max Switching Current:
5A
Relay Type:
Power
Configuration:
1A
Rated Load:
6A/28VDC | 6A/250VAC
Dimensions (mm):
20.5 x 7.2 x 15.3 -

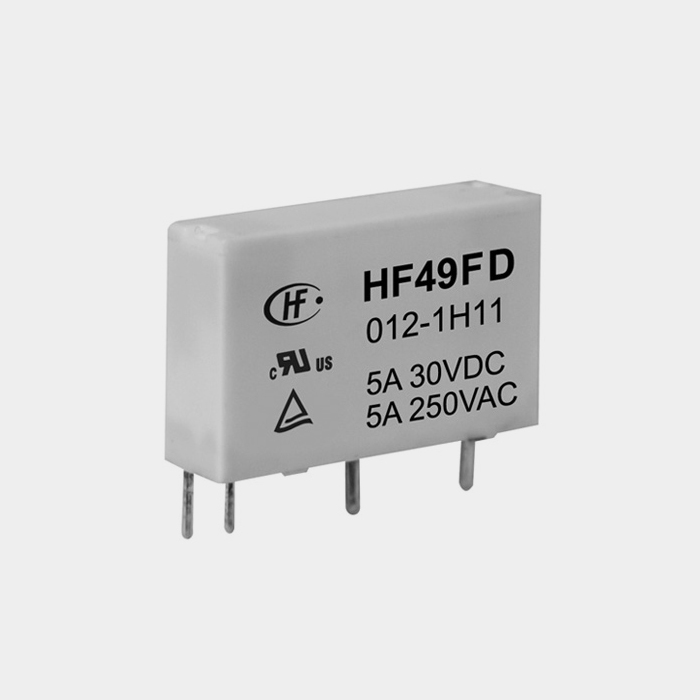

HF49FD
Max Switching Current:
5A
Relay Type:
Industrial
Configuration:
1A
Rated Load:
5A/30VDC | 5A/125VAC
Dimensions (mm):
20 x 5 x 12.5 -
HFA2
Relay Type:
Säkerhetsrelä
Configuration:
2C, 1NO+1NC
Rated Load:
1500VA / 180W
Max Switching Current:
6A
Dimensions (mm):
29 x 12.6 x 25.5 -

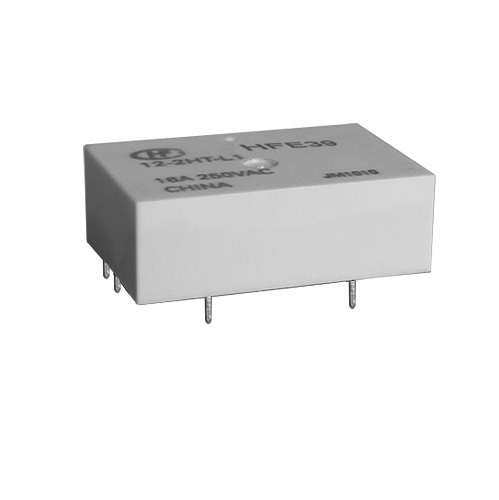

HFE39
Max Switching Current:
16A
Relay Type:
Bistabilt
Configuration:
2A | 2B | 1A+1B
Rated Load:
Dimensions (mm):
20 x 30 x 10.2 -

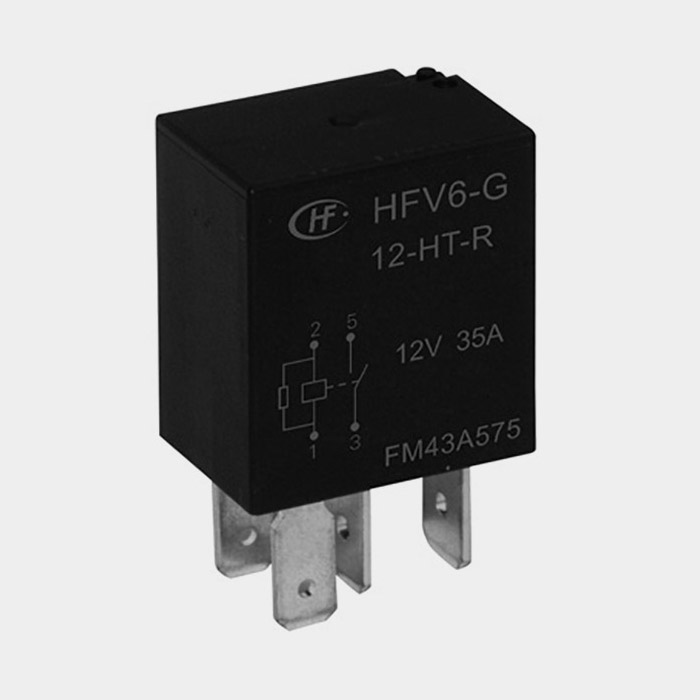

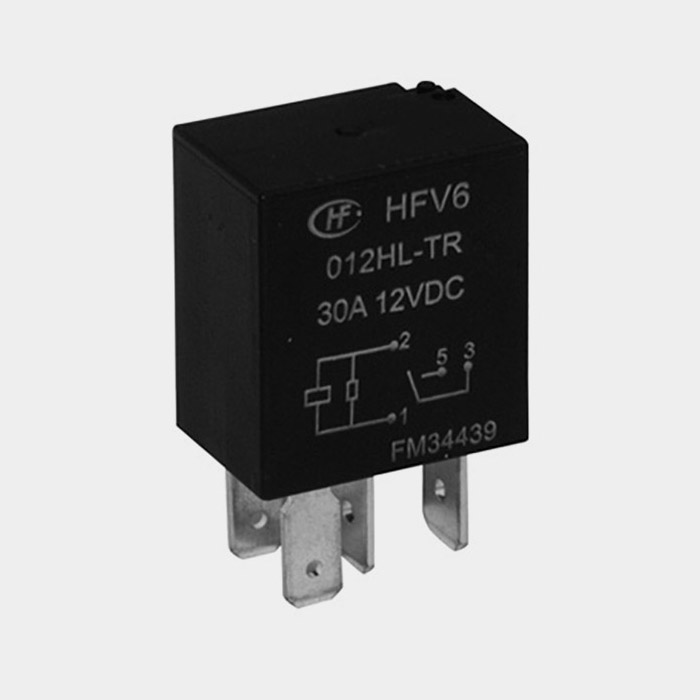

HFV6
Max Switching Current:
1A30A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
23 x 15.5 x 25.4 -

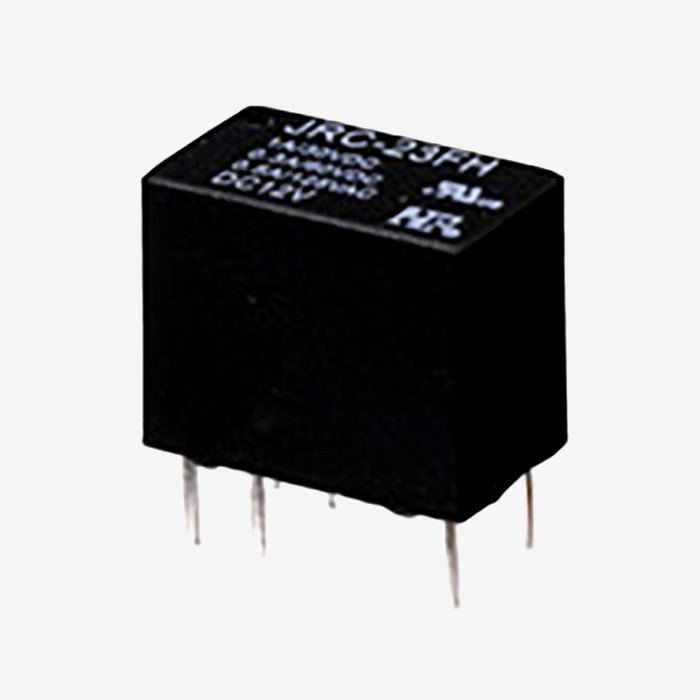

JRC-23F
Max Switching Current:
1A
Relay Type:
Signal
Configuration:
1C
Rated Load:
1A 30VDC, 0.5A 125VAC
Operating Temperature:
-30ºC~70ºC
Dimensions (mm):
12.5 x 7.5 x 10 -

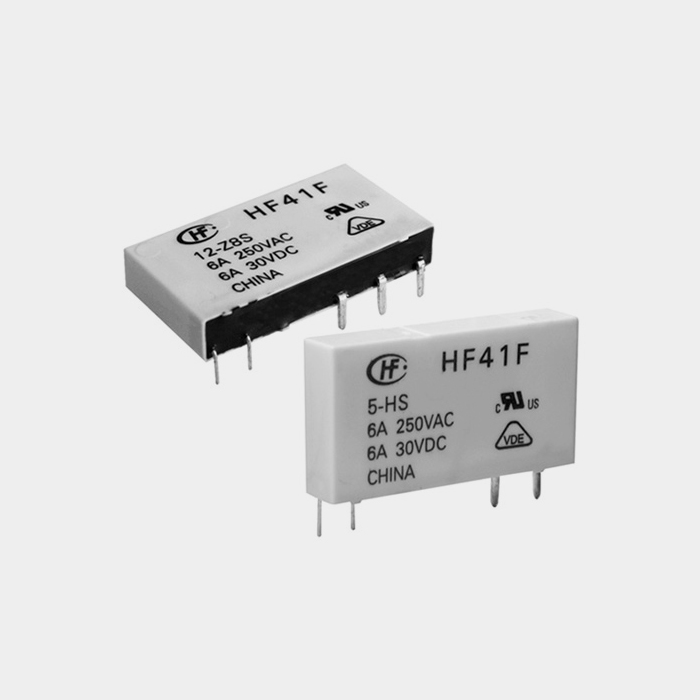

HF41F
Max Switching Current:
6A
Relay Type:
Industrial
Configuration:
1A | 1C
Rated Load:
6A/30VDC | 6A/125VAC
Dimensions (mm):
28 x 5 x 15 -
HF42F
Max Switching Current:
5A
Relay Type:
Power
Configuration:
2A
Rated Load:
5A/30VDC | 5A/250VAC
Dimensions (mm):
23.6 x 12 x 24.8 -
HFA4
Relay Type:
Säkerhetsrelä
Configuration:
2NO+2NC,3NO+1NC
Rated Load:
1500VA / 180W
Max Switching Current:
6A
Dimensions (mm):
40.0 x 13.0 x 24.0 -

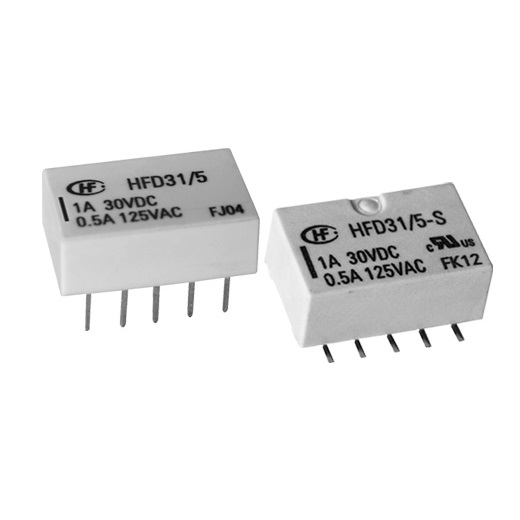

HFD31
Max Switching Current:
1A
Relay Type:
Signal
Configuration:
2C
Rated Load:
1A 30VDC, 0.5A 125VAC
Operating Temperature:
-40ºC~70ºC
Dimensions (mm):
14 x 9 x 5 -

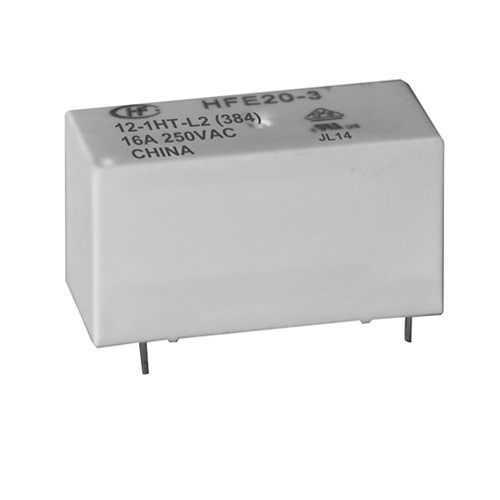

HFE20
Max Switching Current:
1A | 1B:20A
Relay Type:
Bistabilt
Configuration:
1A | 1B | 1C
Rated Load:
Dimensions (mm):
29 x 12.7 x 15.7 -

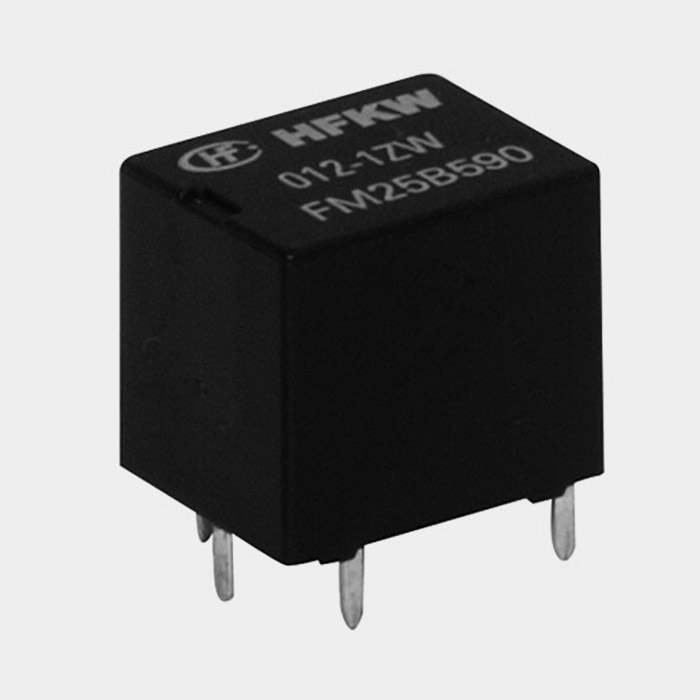

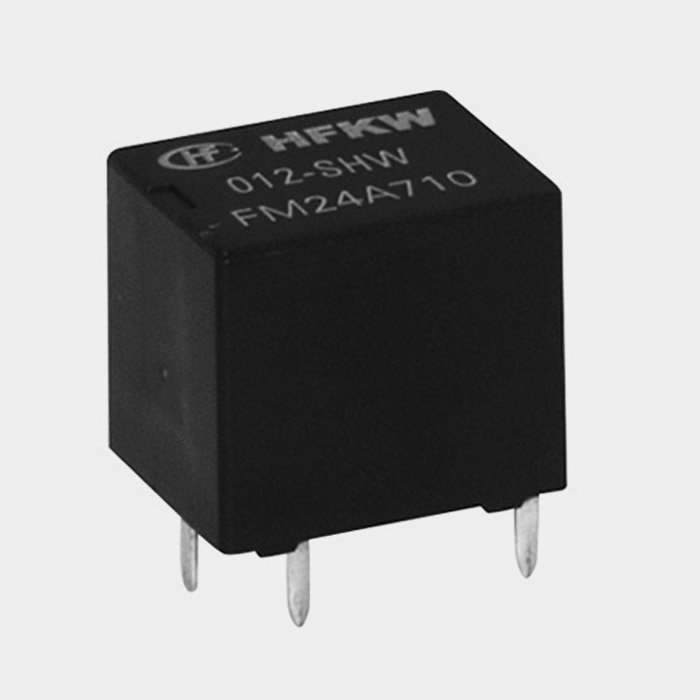

HFKW-SH
Max Switching Current:
2 x 6A
Relay Type:
Automotive
Configuration:
1U
Rated Load:
Dimensions (mm):
15.7 x 12.5 x 14 -

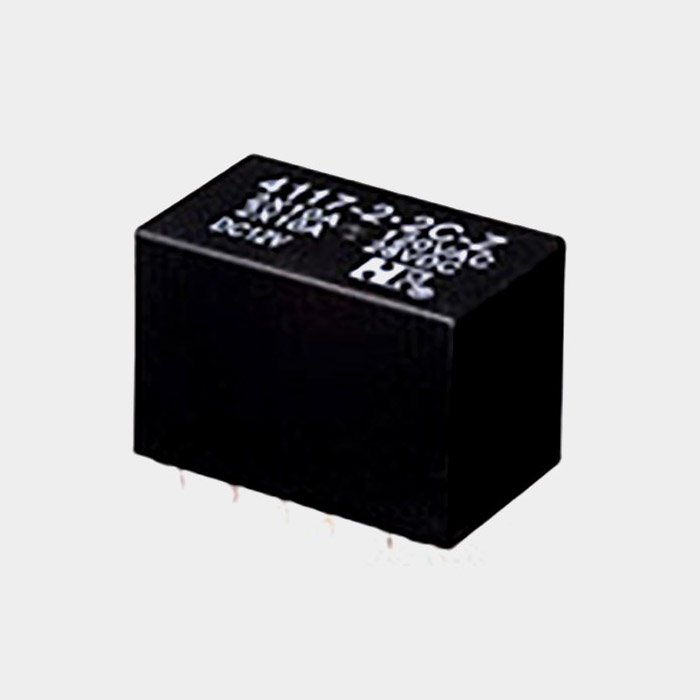

4117-2
Max Switching Current:
10A
Relay Type:
Automotive
Configuration:
2A | 2C | 2U | 2W
Rated Load:
10A/28VDC
Dimensions (mm):
29.6 x 18 x 20 -
HF32FA
Max Switching Current:
5A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
5A/30VDC | 5A/250VAC
Dimensions (mm):
17.6 x 10.1 x 12.3 -
HFA6
Relay Type:
Säkerhetsrelä
Configuration:
5NO+1NC, 4NO+2NC, 3NO+3NC
Rated Load:
1500VA / 180W
Max Switching Current:
6A
Dimensions (mm):
50.0 x 13.0 x 24.0 -

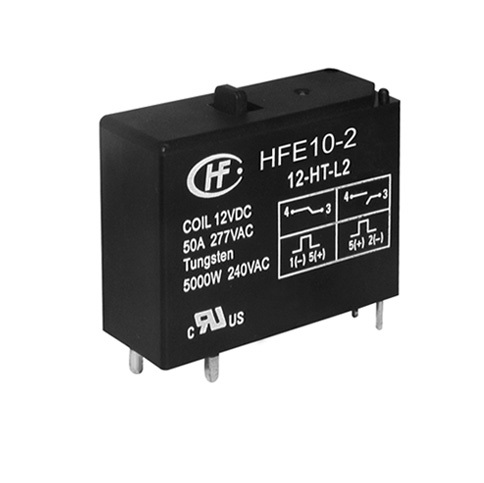

HFE10
Max Switching Current:
1A | 1B:50A
Relay Type:
Bistabilt
Configuration:
1A | 1C | 1B
Rated Load:
Dimensions (mm):
39 x 15 x 30.2 -
N68F
Max Switching Current:
8A
Relay Type:
Industrial
Configuration:
1A |1C
Rated Load:
8A 30VDC 8A 250VAC
Dimensions (mm):
28.5 x 10.1 x 12.3 -

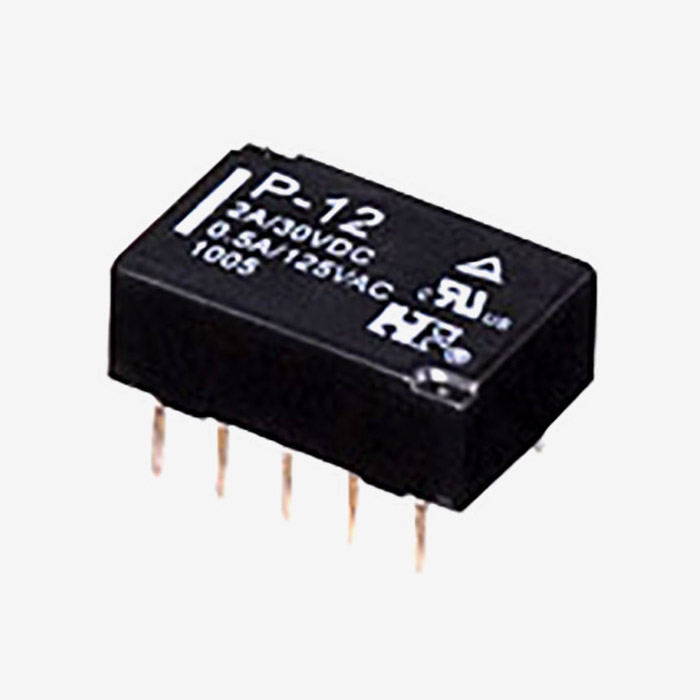

P
Max Switching Current:
1A
Relay Type:
Signal
Configuration:
2C
Rated Load:
1A 30VDC, 0.5A 125VAC
Operating Temperature:
-40ºC~70ºC
Dimensions (mm):
14 x 9 x 5 -

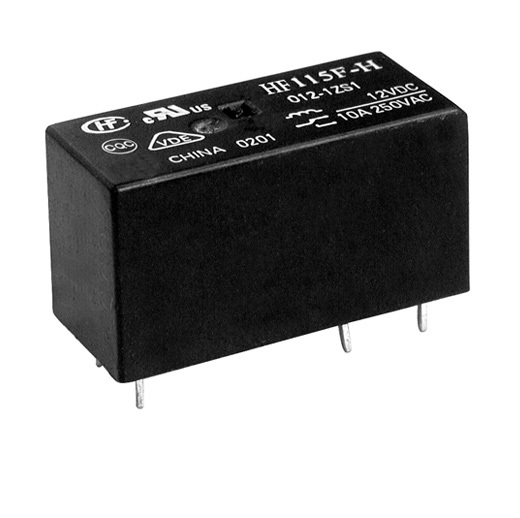

HF115F-H
Max Switching Current:
10A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C
Rated Load:
10A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
HF32FA-T
Max Switching Current:
5A
Relay Type:
Power
Configuration:
1A
Rated Load:
5A/30VDC | 5A/250VAC
Dimensions (mm):
17.6 x 10.1 x 12.3 -
HF3701
Relay Type:
Säkerhetsrelä
Configuration:
Rated Load:
Max Switching Current:
6A
Dimensions (mm):
113.5 x 99.0 x 22.5 -

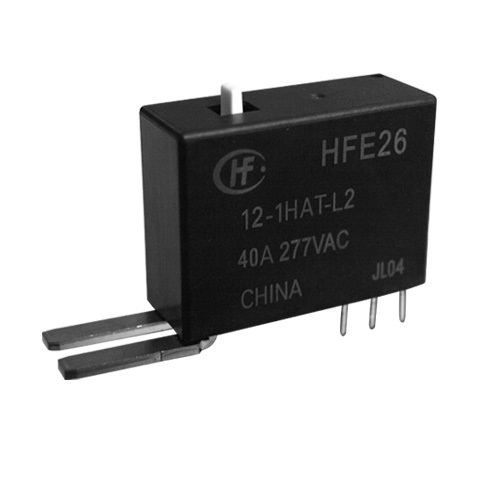

HFE26
Max Switching Current:
1A:40A
Relay Type:
Bistabilt
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
38.8 x 15 x 28.7 -
M4
Max Switching Current:
1A
Relay Type:
Signal
Configuration:
2C
Rated Load:
1A 30VDC, 0.5A 120VAC
Operating Temperature:
-40ºC~90ºC
Dimensions (mm):
20 x 9.8 x 12 -

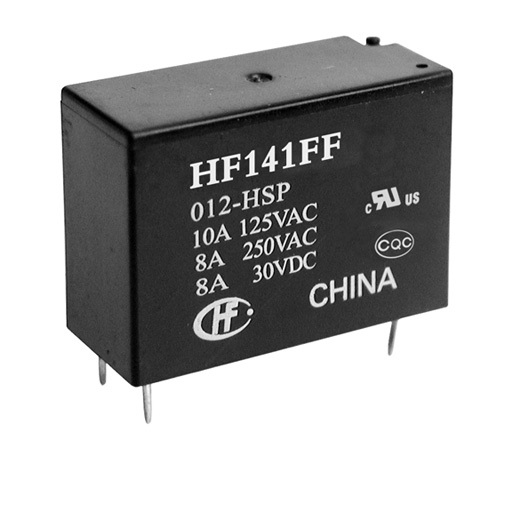

HF141FF
Max Switching Current:
10A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C
Rated Load:
10A(8A)/250VAC
Dimensions (mm):
29 x 12.6 x 20.6 -

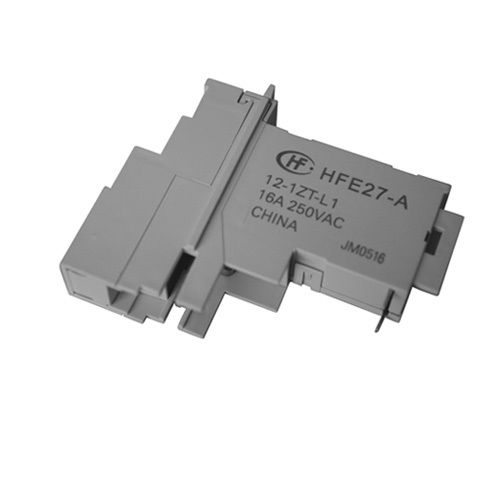

HFE27
Max Switching Current:
25A
Relay Type:
Bistabilt
Configuration:
1A | 1B | 1C
Rated Load:
Dimensions (mm):
66.7 x 51 x 13.6 -

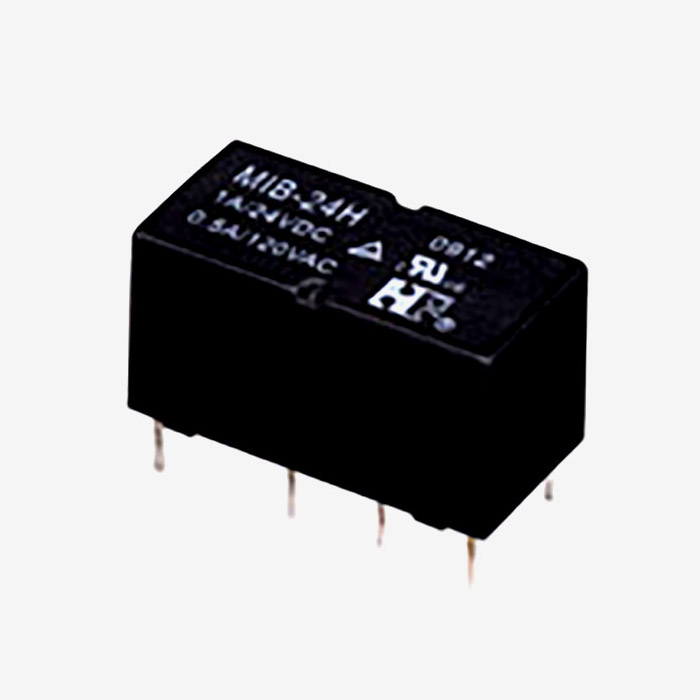

M1B
Max Switching Current:
1A
Relay Type:
Signal
Configuration:
2C
Rated Load:
1A 30VDC, 0.5A 120VAC
Operating Temperature:
-40ºC~90ºC
Dimensions (mm):
20 x 9.8 x 12 -
NG6D
Max Switching Current:
5A
Relay Type:
Power
Configuration:
1A
Rated Load:
5A/30VDC | 5A/250VAC
Dimensions (mm):
17.5 x 6.5 x 12.5 -

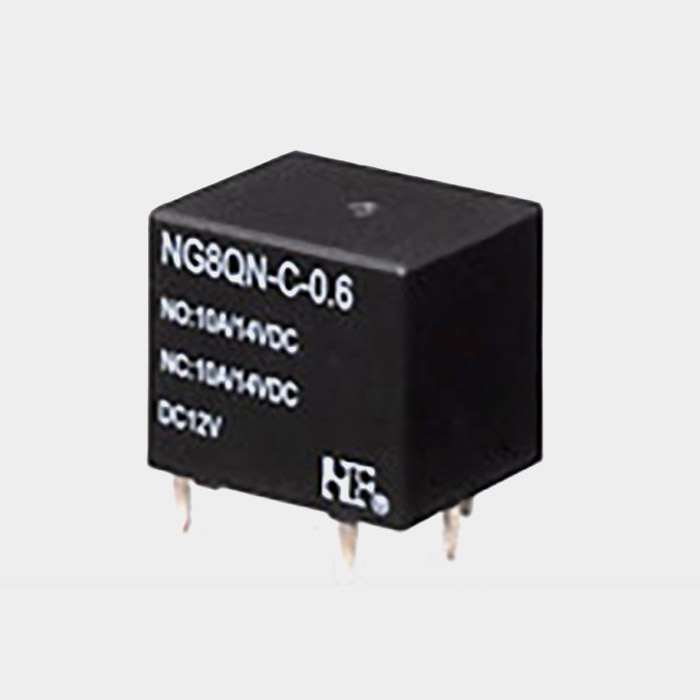

NG8QN & NG8QW
Max Switching Current:
10A
Relay Type:
Automotive
Configuration:
1C | 1U | 2C | 2U
Rated Load:
10A/14VDC
Dimensions (mm):
16 x 12.5(25.5) x 14.4 -

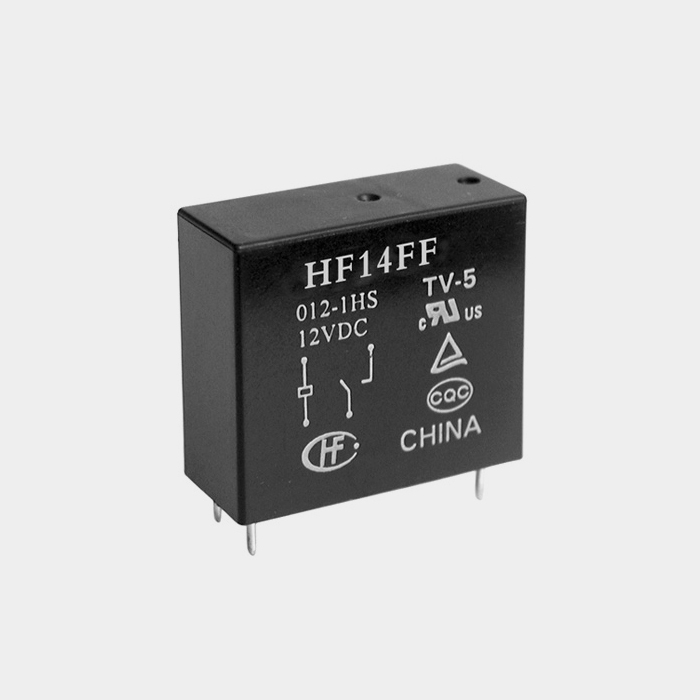

HF14FF
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/277VAC
Dimensions (mm):
29 x 13 x 26 -
HF46F-G
Max Switching Current:
7A
Relay Type:
Power
Configuration:
1A
Rated Load:
7A/28VDC | 7A/250VAC
Dimensions (mm):
20.5 x 7.2 x 15.3 -

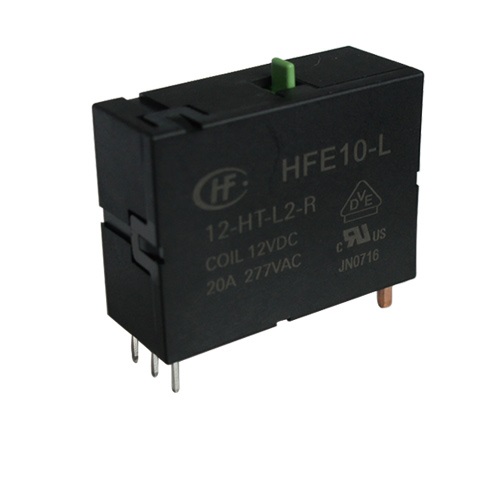

HFE10-L
Max Switching Current:
60A
Relay Type:
Bistabilt
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
39 x 15 x 29.3 -

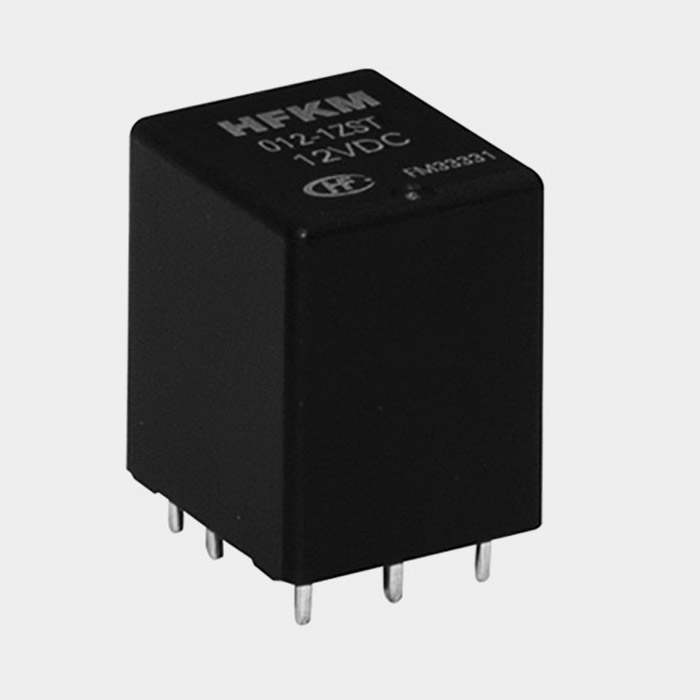

HFKM
Max Switching Current:
15A
Relay Type:
Automotive
Configuration:
1A | 1U | 1B | 1V | 1C | 1W
Rated Load:
15A/13 |5VDC
Dimensions (mm):
17.5 x 15 x 19.5 -

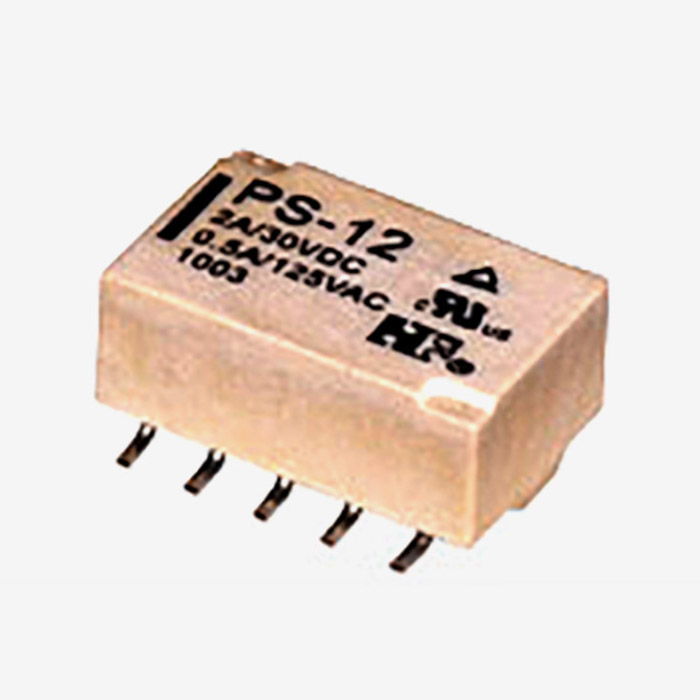

PS
Max Switching Current:
1A
Relay Type:
Signal SMD
Configuration:
2C
Rated Load:
1A 30VDC, 0.5A 125VAC
Operating Temperature:
-40ºC~70ºC
Dimensions (mm):
14 x 9 x 5 -

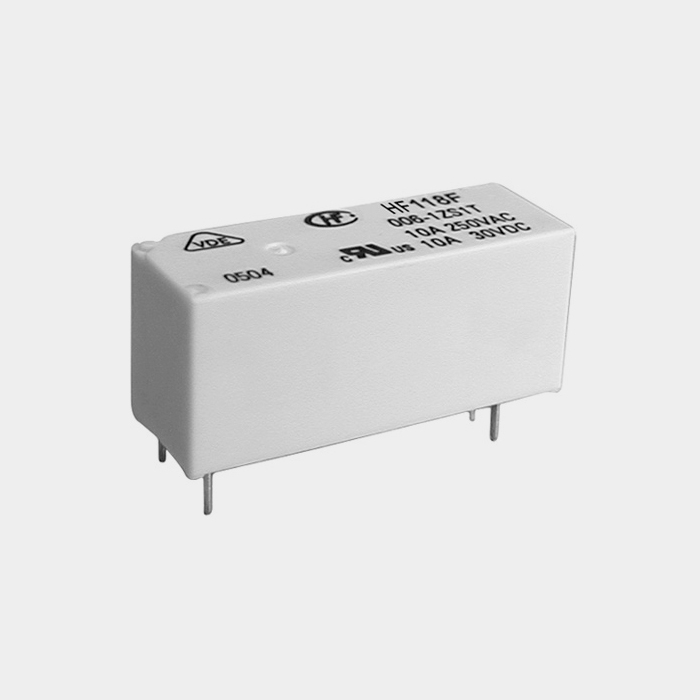

HF118F
Max Switching Current:
10A / 5A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C | 2A | 2B | 2C
Rated Load:
5A/10A/30VDC | 5A/10A/250VAC
Dimensions (mm):
28.5 x 10.1 x 12.5 -
HF140FF
Max Switching Current:
10A
Relay Type:
Power
Configuration:
2A | 2C
Rated Load:
10A/250VAC
Dimensions (mm):
29 x 13 x 26.3 -
HF3FF-M
Max Switching Current:
15A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
19 x 15.2 x 15.5 -

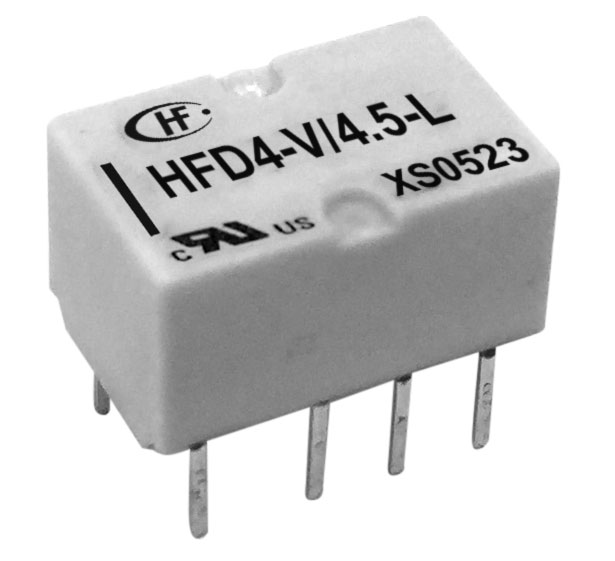

HFD4-V
Max Switching Current:
1A
Relay Type:
Signal
Configuration:
2C
Rated Load:
1A 30VDC, 0,3A 125VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
10 x 6.5 x 5.65 -
HFE9
Max Switching Current:
60A
Relay Type:
Bistabilt
Configuration:
1A | 1B
Rated Load:
Dimensions (mm):
38 x 30 x 16 -

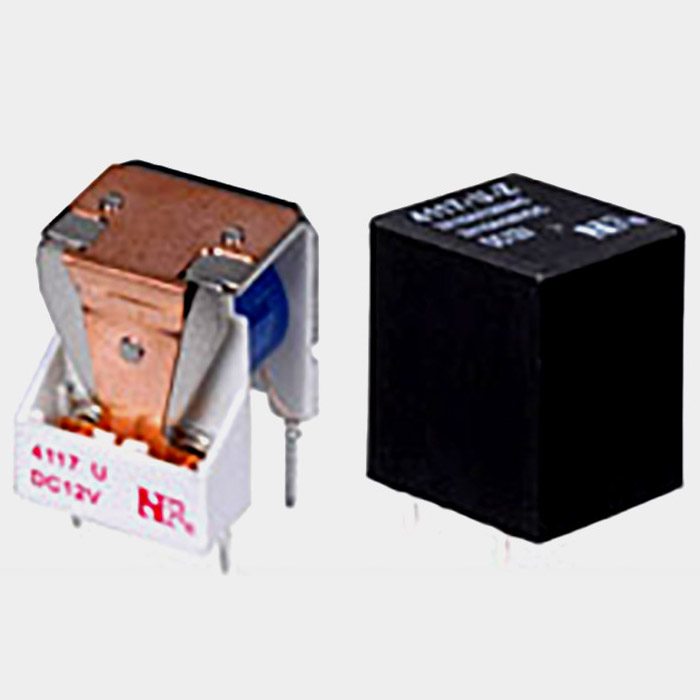

4117
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
1A | 1C | 1U | 1W
Rated Load:
20A/14VDC
Dimensions (mm):
17 x 15 x 20 -

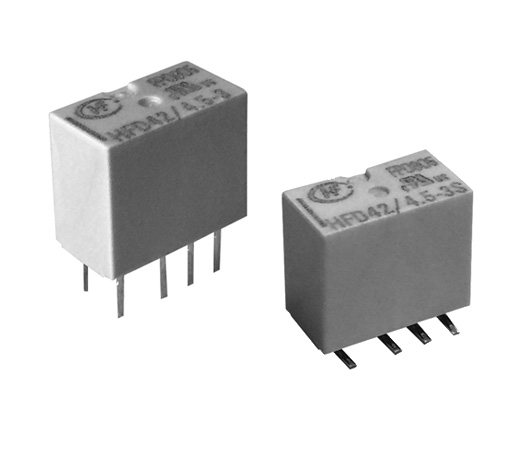

HFD42
Max Switching Current:
2A
Relay Type:
Signal SMD
Configuration:
2C
Rated Load:
2A 30VDC, 1A 125VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
10,6 x 5,7 x 9 -

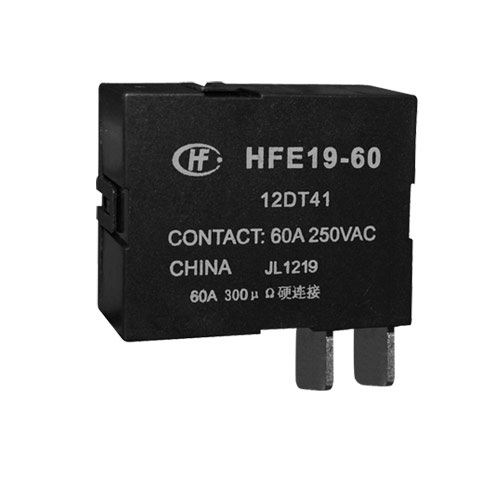

HFE19-60
Max Switching Current:
60A
Relay Type:
Bistabilt
Configuration:
1A | 1B
Rated Load:
Dimensions (mm):
38 x 30 x 16.5 -
JZC-33F
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
5A/30VDC | 10A/125VAC
Dimensions (mm):
20.5 x 10.6 x 15.6 -

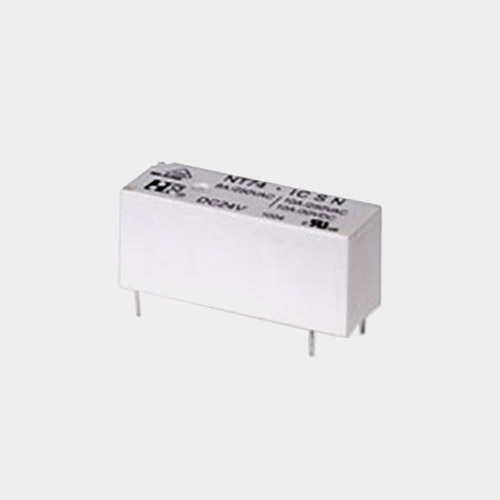

NT74
Max Switching Current:
10A / 5A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C | 2A | 2B | 2C
Rated Load:
10A/5A/250VAC
Dimensions (mm):
28.5 x 12.5 x 10.1 -
HFD27
Max Switching Current:
2A
Relay Type:
Signal
Configuration:
2C
Rated Load:
2A 30VDC, 0.5A 120VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
20.2 x 10 x 11.5 -

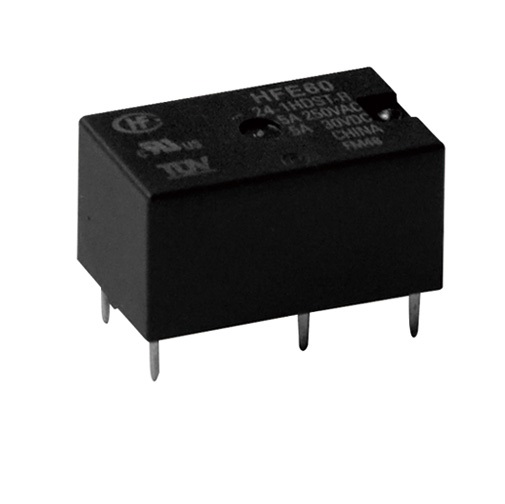

HFE60
Max Switching Current:
8A
Relay Type:
Bistabilt
Configuration:
1A | 2A | 1A+1B
Rated Load:
Dimensions (mm):
20.2 x 11.3 x 10.5 -

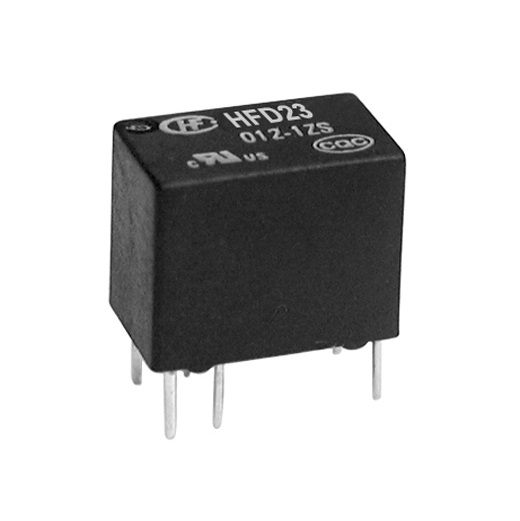

HFD23
Max Switching Current:
2A
Relay Type:
Signal
Configuration:
1C
Rated Load:
1A 30VDC, 0.5A 125VAC
Operating Temperature:
-30ºC~70ºC
Dimensions (mm):
12.5 x 7.5 x 10 -

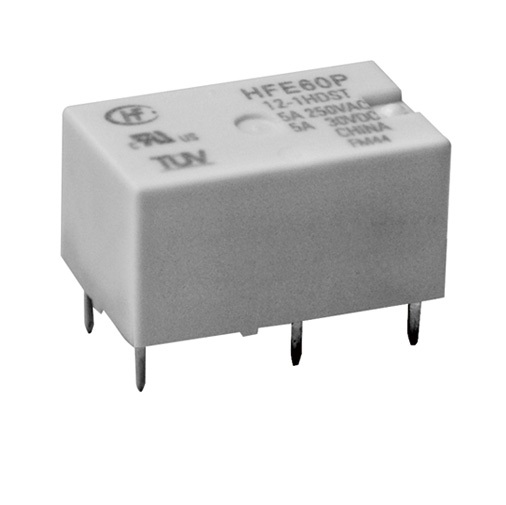

HFE60P
Max Switching Current:
8A
Relay Type:
Bistabilt
Configuration:
1A | 2A | 1A+1B
Rated Load:
Dimensions (mm):
20.2 x 11.3 x 10.5 -
N4099(JZC-7F)
Max Switching Current:
10A
Relay Type:
Power
Configuration:
2A | 2B | 2C
Rated Load:
10A/277VAC
Dimensions (mm):
22 x 16.5 x 16.5 -

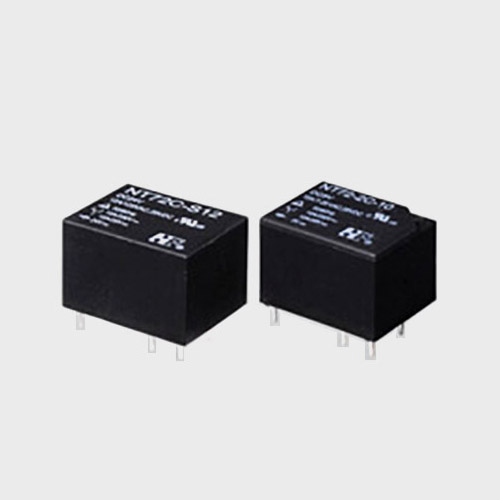

NT72-2
Max Switching Current:
12A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C
Rated Load:
12A/125VAC
Dimensions (mm):
21.4 x 16.5 x 15 -

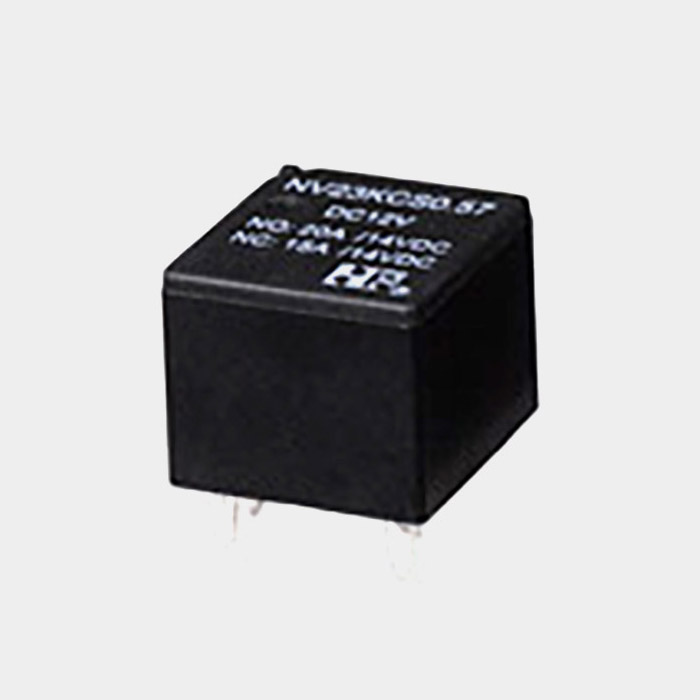

NV23K
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
20A/14VDC
Dimensions (mm):
12 x 12.9 x 9.9 -
HF36FD
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A
Rated Load:
5A/10A/30VDC | 5A/10A/250VAC
Dimensions (mm):
23.8 x 9.5 x 24.5 -

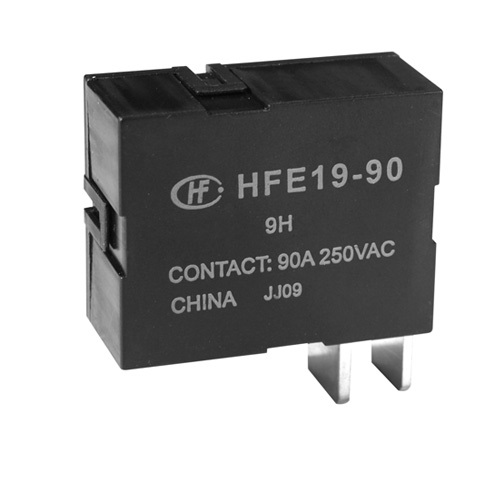

HFE19-90
Max Switching Current:
90A
Relay Type:
Bistabilt
Configuration:
1A | 1B
Rated Load:
Dimensions (mm):
38 x 30 x 16.5 -

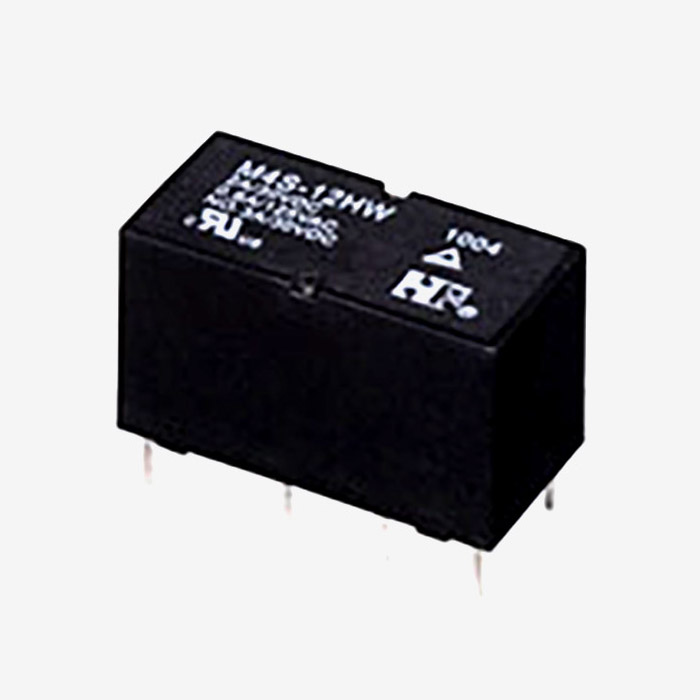

M4S
Max Switching Current:
2A
Relay Type:
Signal
Configuration:
2C
Rated Load:
2A 30VDC, 0.6A 125VAC
Operating Temperature:
-40ºC~65ºC
Dimensions (mm):
20 x 9.8 x 12 -

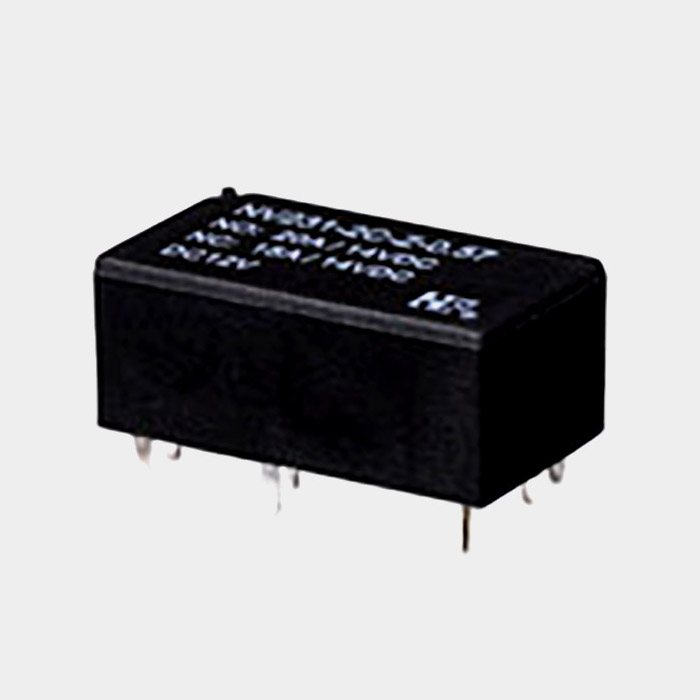

NV231
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
2A | 2C
Rated Load:
20A/14VDC
Dimensions (mm):
23.8 x 12.9 x 12.9 -

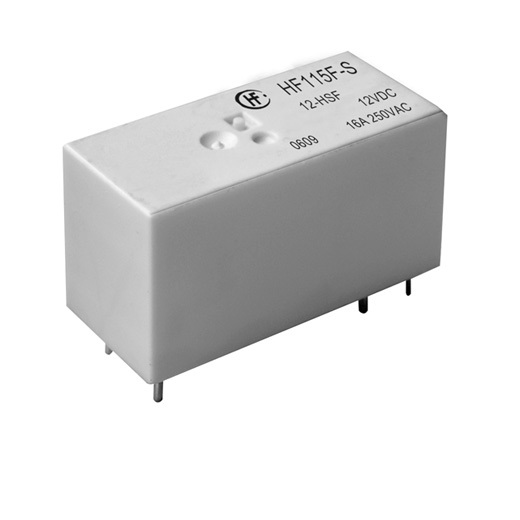

HF115F-S
Max Switching Current:
16A
Relay Type:
Industrial
Configuration:
1A
Rated Load:
16A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
HF162F
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A
Rated Load:
10A 125VAC
Dimensions (mm):
23.6 x 26.1 x 10 -

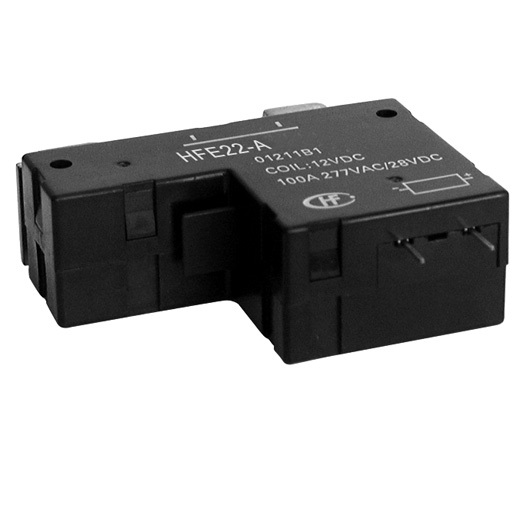

HFE22
Max Switching Current:
100A
Relay Type:
Bistabilt
Configuration:
1A | 1B
Rated Load:
Dimensions (mm):
60 x 40 x 21 -

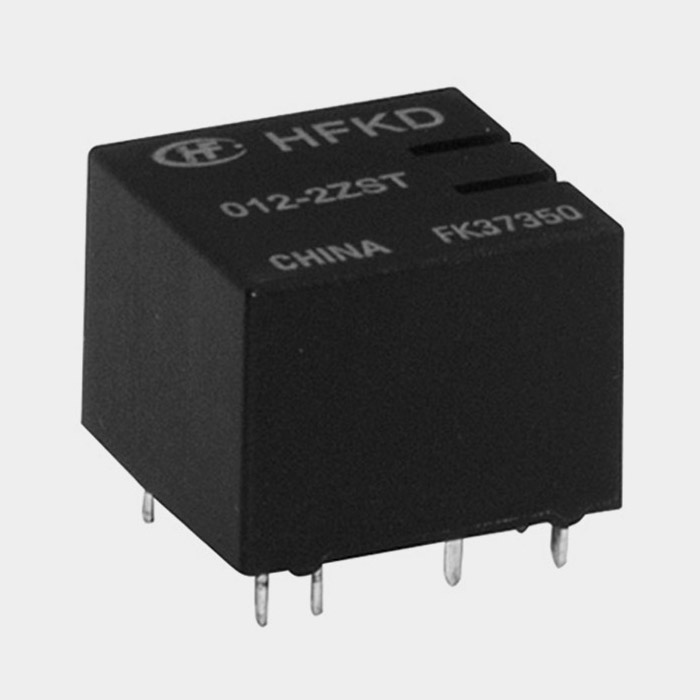

HFKD
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
2C
Rated Load:
20A/13 |5VDC
Dimensions (mm):
17.5 x 16.9 x 13.2 -
M1BS
Max Switching Current:
2A
Relay Type:
Signal
Configuration:
2C
Rated Load:
2A 30VDC, 0.6A 125VAC
Operating Temperature:
-40ºC~65ºC
Dimensions (mm):
20 x 9.8 x 12 -

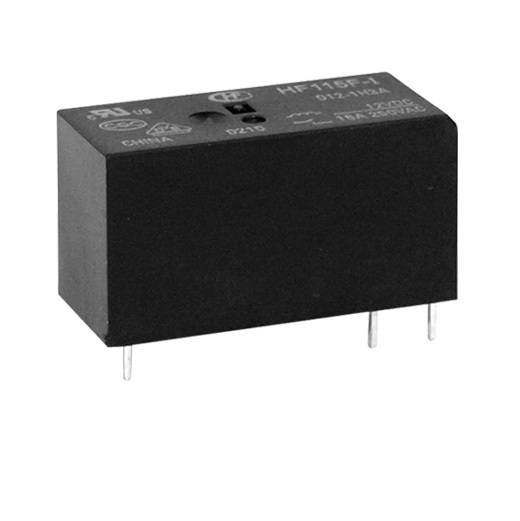

HF115F-I
Max Switching Current:
16A (80A)
Relay Type:
Industrial
Configuration:
1A | 1C
Rated Load:
16A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
HF8
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/125VAC
Dimensions (mm):
21.5 x 16.5 x 14.6 -
HFE37
Max Switching Current:
100A
Relay Type:
Bistabilt
Configuration:
2U | 2V
Rated Load:
Dimensions (mm):
60 x 52 x 23 -

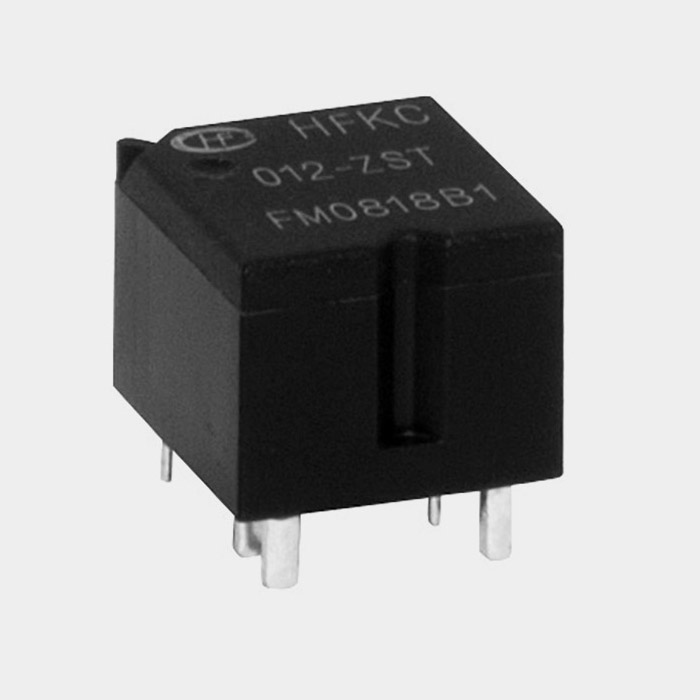

HFKC/HFKC-T
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
20A/13 |5VDC
Dimensions (mm):
12 x 12.9 x 9.9 -

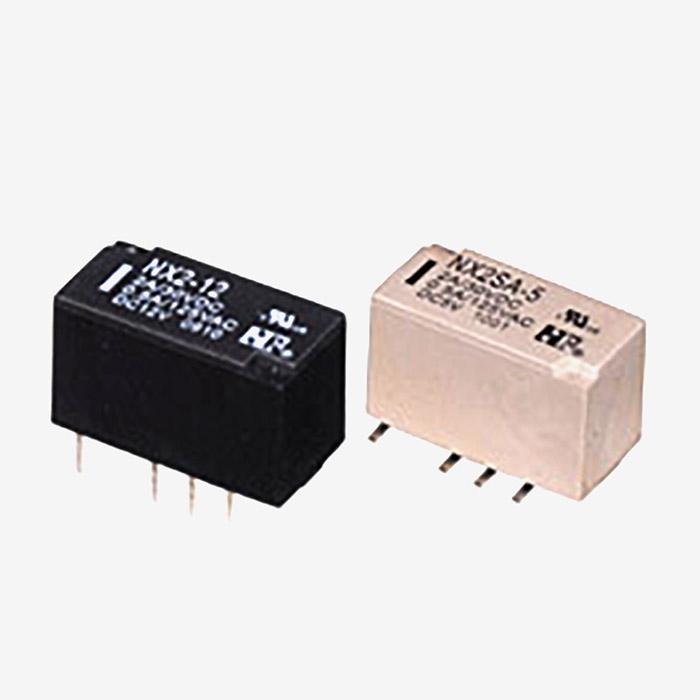

NX
Max Switching Current:
2A
Relay Type:
Signal SMD
Configuration:
2C
Rated Load:
2A 30VDC, 0.5A 120VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15 x 7.5 x 9 -
HF115F-T/TH
Max Switching Current:
16A / 10A
Relay Type:
Industrial
Configuration:
1A | 1C
Rated Load:
16A/10A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
HF3FA
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/250VAC
Dimensions (mm):
19 x 15.2 x 15.5 -
HFD3
Max Switching Current:
2A
Relay Type:
Signal SMD
Configuration:
2C
Rated Load:
2A 30VDC, 0.5A 120VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15 x 7.5 x 9 -
HFE28
Max Switching Current:
100A
Relay Type:
Bistabilt
Configuration:
2A | 2B | 2U | 2V
Rated Load:
Dimensions (mm):
66 x 75 x 23.5 -
HFV6V
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
23 x 15.5 x 25.4 -
HF115F
Max Switching Current:
16A / 8A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C | 2A | 2B | 2C
Rated Load:
8A/16A/30VDC. 8A/16A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
HF36F
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/30VDC | 10A/250VAC
Dimensions (mm):
23.8 x 9.5 x 24.5 -
HFE35
Max Switching Current:
100A
Relay Type:
Bistabilt
Configuration:
3U | 3V
Rated Load:
Dimensions (mm):
128 x 30.5 x 34.5 -
HFV11
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
15.6 x 15.2 x 16.4 -
HF115F-A
Max Switching Current:
16A / 8A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C | 2A | 2B | 2C
Rated Load:
8A/16A/30VDC. 8A/16A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
HF33F
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A(3A)/125VAC
Dimensions (mm):
20.5 x 10.2 x 15.3 -
HFD4
Max Switching Current:
2A
Relay Type:
Signal SMD
Configuration:
2C
Rated Load:
2A 30VDC, 0.5A 125VAC
Operating Temperature:
-45ºC~85ºC
Dimensions (mm):
10 x 6.5 x 5.65 -
HFE36
Max Switching Current:
100A
Relay Type:
Bistabilt
Configuration:
3U | 3V
Rated Load:
Dimensions (mm):
128 x 30.5 x 34.5 -
HFV9
Max Switching Current:
20A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
22.5 x 15 x 25 -
HF32FA-G
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A
Rated Load:
10A/250VAC
Dimensions (mm):
17.6 x 10.1 x 12.3 -
HFD3-VI
Max Switching Current:
2A
Relay Type:
Signal/Latching
Configuration:
2A | 2C
Rated Load:
2A 30VDC, 1A 277VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15 x 7.5 x 9 -
HFE12
Max Switching Current:
120A
Relay Type:
Bistabilt
Configuration:
1A | 1B
Rated Load:
Dimensions (mm):
52 x 43 x 22 -
NT75-1/2
Max Switching Current:
16A / 8A
Relay Type:
Industrial
Configuration:
1A | 1C | 2A | 2C
Rated Load:
16A/8A/250VAC
Dimensions (mm):
29 x 12.7 x 15.7 -
NVF
Max Switching Current:
25A
Relay Type:
Automotive
Configuration:
1A | 1B
Rated Load:
25A/14VDC
Dimensions (mm):
20.3 x 15.3 x 22.5 -
HF115FP
Max Switching Current:
16A / 8A
Relay Type:
Industrial
Configuration:
1C | 2C
Rated Load:
16A/8A/250VAC
Dimensions (mm):
29 x 13 x 25.5 -
HF32F-G
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A
Rated Load:
10A/30VDC | 10A/250VAC
Dimensions (mm):
18.4 x 10.2 x 15.3 -
HFE21
Max Switching Current:
120A
Relay Type:
Bistabilt
Configuration:
1A | 1B | 1U | 1V
Rated Load:
Dimensions (mm):
52 x 43 x 22 -
NG8N
Max Switching Current:
25A
Relay Type:
Automotive
Configuration:
1C
Rated Load:
25A/14VDC
Dimensions (mm):
14.3 x 7.5 x 13.8 -
NPA
Max Switching Current:
5A
Relay Type:
Signal
Configuration:
1A
Rated Load:
5A 30VDC, 5A 250VAC
Operating Temperature:
-40ºC~70ºC
Dimensions (mm):
20 x 5 x 12.5 -
PK
Max Switching Current:
2A
Relay Type:
Latching(2coil)
Configuration:
2C
Rated Load:
2A 30VDC, 0.5A 125VAC
Operating Temperature:
-45ºC~85ºC
Dimensions (mm):
14 x 9 x 5 -
HF115F-Q
Max Switching Current:
20A
Relay Type:
Industrial
Configuration:
1A | 1B
Rated Load:
20A/250VAC
Dimensions (mm):
41 x 12.7 x 15.7 -
HFE23
Max Switching Current:
120A
Relay Type:
Bistabilt
Configuration:
3A | 3B | 3U | 3V
Rated Load:
Dimensions (mm):
115 x 54 x 24 -
NG8ND
Max Switching Current:
25A
Relay Type:
Automotive
Configuration:
2 x 1C
Rated Load:
25A/14VDC
Dimensions (mm):
14.5 x 14.1 x 14 -
PL
Max Switching Current:
2A
Relay Type:
Latching(1coil)
Configuration:
2C
Rated Load:
2A 30VDC, 0.5A 125VAC
Operating Temperature:
-45ºC~85ºC
Dimensions (mm):
14 x 9 x 5 -
HF3FD
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/250VAC
Dimensions (mm):
19 x 15.2 x 15.5 -
HFD2
Max Switching Current:
3A
Relay Type:
Signal
Configuration:
2C
Rated Load:
3A 30VDC, 1A 125VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
20.2 x 10.2 x 10.6 -
HFE31
Max Switching Current:
200A
Relay Type:
Bistabilt
Configuration:
1U | 1V
Rated Load:
Dimensions (mm):
61.3 x 57 x 29.3 -
HFKA/HFKA-T
Max Switching Current:
25A
Relay Type:
Automotive
Configuration:
1C | 2C
Rated Load:
25A/13 |5VDC
Dimensions (mm):
14 x 15.4 x 13.5 -
NT73-2
Max Switching Current:
20A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C
Rated Load:
20A/125VAC | 10A/250VAC
Dimensions (mm):
19.5 x 16.5 x 15.3 -
4078(JRC-19F)
Max Switching Current:
3A
Relay Type:
Signal
Configuration:
2A | 2C
Rated Load:
2A 30VDC, 0.6A 125VAC
Operating Temperature:
-30ºC~70ºC
Dimensions (mm):
21 x 10 x 12 -
HF3FF
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/277VAC
Dimensions (mm):
19 x 15.2 x 15.5 -
HFE25
Max Switching Current:
200A
Relay Type:
Bistabilt
Configuration:
2A | 2B
Rated Load:
Dimensions (mm):
73.3 x 74.8 x 29.5 -
HFV4-SH
Max Switching Current:
25A
Relay Type:
Automotive
Configuration:
1U
Rated Load:
Dimensions (mm):
26.2 x 26.2 x 23.7 -
NT73-3
Max Switching Current:
20A
Relay Type:
Industrial
Configuration:
1A | 1B | 1C
Rated Load:
20A/125VAC | 10A/250VAC
Dimensions (mm):
19.5 x 16 x 17.1 -
HF14FW
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A | 1B | 1C
Rated Load:
16A/277VAC
Dimensions (mm):
29 x 13 x 26.5 -
HF7FF
Max Switching Current:
10A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A/250VAC
Dimensions (mm):
22.5 x 16.5 x 16.5 -
HFD4-I
Max Switching Current:
3A
Relay Type:
Signal/Latching
Configuration:
2C
Rated Load:
3A 30VDC, 1A 125VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
10 x 6.5 x 5.65 -
HFE6
Max Switching Current:
200A
Relay Type:
Bistabilt
Configuration:
2A | 2B
Rated Load:
Dimensions (mm):
100 x 80 x 29.8 -
HFD3-I
Max Switching Current:
4A
Relay Type:
Signal/Latching
Configuration:
2C
Rated Load:
4A 30VDC, 1A 277VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15 x 7.5 x 9 -
HFE17
Max Switching Current:
200A
Relay Type:
Bistabilt
Configuration:
2A | 2B
Rated Load:
Dimensions (mm):
97.6 x 73.2 x 29.5 -
JZC-32F
Max Switching Current:
10A | 5A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
5A/30VDC | 5A/250VAC
Dimensions (mm):
18.8 x 10.6 x 12(15.3) -
NVFS
Max Switching Current:
30A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
30A/14VDC
Dimensions (mm):
32.6 x 25.2 x 21 -
HF32F
Max Switching Current:
10A (3A)
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
10A(3A)/125VAC
Dimensions (mm):
18.4 x 10.2 x 15.3 -
HFD3-V
Max Switching Current:
4A
Relay Type:
Signal/Latching
Configuration:
2C
Rated Load:
2A 30VDC, 1A 277VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15 x 7.5 x 9 -
HFE29
Max Switching Current:
HFE29-100:100A
Relay Type:
Bistabilt
Configuration:
1U | 1V
Rated Load:
Dimensions (mm):
43 x 37 x 22 -
HFKW
Max Switching Current:
30A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
30A/13 |5VDC
Dimensions (mm):
15.7 x 12.5 x 14 -
HFE7
Max Switching Current:
Relay Type:
Bistabilt
Configuration:
2A | 2B | 1AD:8A
Rated Load:
Dimensions (mm):
20 x 15 x 10.2 -
HFKF / HFKF-T
Max Switching Current:
30A
Relay Type:
Automotive
Configuration:
1A | 2C Twin (8 pins) | 2C Twin (10 pins)
Rated Load:
Dimensions (mm):
12 x 14 x 7.3 -
N4100
Max Switching Current:
5A
Relay Type:
Signal
Configuration:
1A | 1B | 1C
Rated Load:
5A 30VDC, 0.5A 120VAC
Operating Temperature:
-25ºC~70ºC
Dimensions (mm):
15.5 x 11 x 11.5 -
HFD41A
Max Switching Current:
5A
Relay Type:
Signal
Configuration:
1C
Rated Load:
5A 30VDC, 0.5A 120VAC
Operating Temperature:
-25ºC~70ºC
Dimensions (mm):
15.7 x 11 x 12 -
HFKJ
Max Switching Current:
30A
Relay Type:
Automotive
Configuration:
2C
Rated Load:
Dimensions (mm):
12 x 14 x 7.3 -
NT77
Max Switching Current:
12A
Relay Type:
Power
Configuration:
1A
Rated Load:
12A/125VAC
Dimensions (mm):
18.4 x 15.2 x 10.2 -
HFD16
Max Switching Current:
5A
Relay Type:
Signal
Configuration:
1Z
Rated Load:
3A 30VDC, 1A 125VAC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15,7 x 10,6 x 11,8 -
NVFM
Max Switching Current:
35A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
35A/14VDC
Dimensions (mm):
23 x 15.5 x 26 -
4100-F2
Max Switching Current:
5A
Relay Type:
Signal
Configuration:
1A | 1B | 1C
Rated Load:
5A 30VDC, 2A 250VAC
Operating Temperature:
-25ºC~70ºC
Dimensions (mm):
15.5 x 11 x 11.5 -
HFV6-G
Max Switching Current:
35A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
23 x 15.5 x 25.4 -
HFD17
Max Switching Current:
8A
Relay Type:
Signal
Configuration:
2C
Rated Load:
3A 30VDC
Operating Temperature:
-40ºC~85ºC
Dimensions (mm):
15,7 x 10,6 x 12 -
HFV9-G
Max Switching Current:
35A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
22.5 x 15 x 25 -
JZC-22F(2 |3)
Max Switching Current:
15A
Relay Type:
Power
Configuration:
1A | 1B | 1C
Rated Load:
15A/120VAC
Dimensions (mm):
20.3 x 16.8 x 20.2 -
4120(JQC-4)
Max Switching Current:
40A
Relay Type:
Automotive
Configuration:
1A | 1B | 1C
Rated Load:
40A/14VDC
Dimensions (mm):
26.8 x 21.5 x 22.3 -
HF3FF-M
Max Switching Current:
15A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
15A/13 |5VDC
Dimensions (mm):
19 x 15.2 x 15.5 -
NVF4-1
Max Switching Current:
40A
Relay Type:
Automotive
Configuration:
1A | 1C | 1U
Rated Load:
40A/14VDC
Dimensions (mm):
26.5 x 26.5 x 24.5 -
HF21FF
Max Switching Current:
15A (10A)
Relay Type:
Power
Configuration:
1A | 1B | 1C
Rated Load:
15A/120VAC
Dimensions (mm):
20.2 x 16.5 x 20.2 -
NVF4-2
Max Switching Current:
40A
Relay Type:
Automotive
Configuration:
1A | 1C | 1U
Rated Load:
40A/14VDC
Dimensions (mm):
26.5 x 26.5 x 24.5 -
HF84F
Max Switching Current:
16A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
16A/240VAC
Dimensions (mm):
47 x 32 x 28.5 -
HFKT/HFKT-T
Max Switching Current:
40A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
18.3 x 16 x 15.9 -
HFV15
Max Switching Current:
40A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
26 x 26 x 22.7 -
NT76
Max Switching Current:
16A
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
16A/250VAC
Dimensions (mm):
22.3 x 16.6 x 11 -
HF62F
Max Switching Current:
16A
Relay Type:
Power
Configuration:
1A
Rated Load:
16A/250VAC
Dimensions (mm):
29 x 12.6 x 24.4 -
HFV4N
Max Switching Current:
40A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
26.2 x 26.2 x 23.7 -
HF7520
Max Switching Current:
16A (10A)
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
16A/250VAC
Dimensions (mm):
22 x 16 x 10.5 -
HFKP
Max Switching Current:
45A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
26.5 x 22 x 22.3 -
HF7FD
Max Switching Current:
16A (12A)
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
16A/250VAC
Dimensions (mm):
22 x 16 x 16.4 -
HFKT-L/HFKT-LT
Max Switching Current:
50A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
18.3 x 16 x 15.9 -
HF94F
Max Switching Current:
18A
Relay Type:
High Power
Configuration:
1A | 1B | 1C | 1A+1B
Rated Load:
18A/277VAC
Dimensions (mm):
47 x 32 x 28.5 -
HFV7A
Max Switching Current:
50A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
Dimensions (mm):
26.5 x 26.2 x 23.7 -
JQX-102F
Max Switching Current:
20A
Relay Type:
High Power
Configuration:
1A
Rated Load:
20A/250VAC
Dimensions (mm):
30.5 x 16 x 23.5 -
NVF4-7
Max Switching Current:
70A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
70A/14VDC
Dimensions (mm):
26.5 x 26.5 x 25 -
NT78
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A | 1C | 1U
Rated Load:
20A/14VDC
Dimensions (mm):
15.7 x 12.3 x 14 -
NVF4-8
Max Switching Current:
70A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
70A/14VDC
Dimensions (mm):
26.5 x 26.5 x 25 -
HF160F
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A
Rated Load:
20A/250VAC
Dimensions (mm):
30.4 x 15.9 x 25.4 -
HFV16
Max Switching Current:
70A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
26 x 26 x 22.7 -
HF25F
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A
Rated Load:
20A/250VAC
Dimensions (mm):
22.8 x 12.3 x 24.4 -
HF25F
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A
Rated Load:
20A/250VAC
Dimensions (mm):
22.8 x 12.3 x 24.4 -
HFV7
Max Switching Current:
70A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
26.5 x 26.5 x 25.2 -
HF102F
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A
Rated Load:
20A/250VAC
Dimensions (mm):
30.5 x 16 x 23.5 -
NVF4-4
Max Switching Current:
80A
Relay Type:
Automotive
Configuration:
1A | 1C | 1U
Rated Load:
80A/14VDC
Dimensions (mm):
29 x 29 x 26.5 -
JZC-22F(2 |3)
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A | 1B | 1C
Rated Load:
20A/120VAC
Dimensions (mm):
22.5 x 16.8 x 20.2 -
NVF4-3
Max Switching Current:
80A
Relay Type:
Automotive
Configuration:
1A | 1C | 1U
Rated Load:
80A/14VDC
Dimensions (mm):
29 x 29 x 26.5 -
JZC-22F(2 |3)
Max Switching Current:
20A
Relay Type:
Power
Configuration:
1A | 1B | 1C
Rated Load:
20A/120VAC
Dimensions (mm):
21 x 16 x 20.3 -
NVF4-6
Max Switching Current:
100A
Relay Type:
Automotive
Configuration:
1A | 1C
Rated Load:
100A/12VDC
Dimensions (mm):
34.5 x 32.5 x 34 -
HFV12
Max Switching Current:
180A
Relay Type:
Automotive
Configuration:
1A
Rated Load:
Dimensions (mm):
86 x 83 x 33 -
HF152F
Max Switching Current:
20A (16A)
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
20A/125VAC
Dimensions (mm):
21 x 16 x 20.6 -
HF152FD
Max Switching Current:
20A (17A)
Relay Type:
Power
Configuration:
1A | 1C
Rated Load:
20A/125VAC
Dimensions (mm):
21.2 x 16 x 20.6 -
JQX-54FE
Max Switching Current:
25A
Relay Type:
High Power
Configuration:
1A
Rated Load:
25A/250VAC
Dimensions (mm):
30.4 x 16 x 26 -
HF92F
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
2A | 2C
Rated Load:
30A/250VAC
Dimensions (mm):
52 x 33.7 x 26.7 -
HF2160
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
32.2 x 27.5 x 19.8 -
HF116F-1
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 2A
Rated Load:
30A/250VAC
Dimensions (mm):
50.5 x 33.5 x 48 -
HF116F-2
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 2A
Rated Load:
30A/250VAC
Dimensions (mm):
52.5 x 35.5 x 47 -
HF116F-3
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 2A
Rated Load:
30A/250VAC
Dimensions (mm):
50.5 x 34.5 x 51 -
HF2150
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
31.8 x 27 x 19.1 -
HF2110/HF2120
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
30.5 x 24.6 x 15.7 -
HF105F-1
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
32.2 x 27 x 20.1 -
HF105F-2
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
32.4 x 27.5 x 27.8 -
HF105F-4
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
32.4 x 27.5 x 27.8 -
HF2100
Max Switching Current:
30A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
30A/240VAC
Dimensions (mm):
32.2 x 27.5 x 28 -
HF37F
Max Switching Current:
30A
Relay Type:
Power
Configuration:
1A
Rated Load:
30A/250VAC
Dimensions (mm):
35.2 x 32.2 x 24 -
NT90TP
Max Switching Current:
(30A) 40A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
40A/250VAC
Dimensions (mm):
32.4(50) x 27 x 28.5 -
NT90T
Max Switching Current:
(30A) 40A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
40A/250VAC
Dimensions (mm):
32.4 x 27.5 x 28 -
NT90
Max Switching Current:
(30A) 40A
Relay Type:
High Power
Configuration:
1A | 1B | 1C
Rated Load:
40A/250VAC
Dimensions (mm):
32.5 x 27.6 x 20.5 -
HF8565
Max Switching Current:
50A
Relay Type:
High Power
Configuration:
1B
Rated Load:
16A(50A)/400VAC
Dimensions (mm):
51.2 x 46.6 x 36.5 -
JMX-94F
Max Switching Current:
80A
Relay Type:
Magnetic Latching
Configuration:
1A | 1B
Rated Load:
80A/250VDC
Dimensions (mm):
39 x 30 x 17.5
