WF0096ATYAA3DNN0
Resolutiont:
80 × 160
Size(inch):
0,96
Outline Dimension(mm):
13,5 × 27,95
Active Area(mm):
10,8 × 21,69
Interface:
SPI -
WF0096ATYAA3DNF10
Resolutiont:
80 × 160
Size(inch):
0,96
Outline Dimension(mm):
18,7 × 31,9
Active Area(mm):
10,8 × 21,69
Interface:
SPI -
WF24LTYAJDNN0
Resolutiont:
240 × 320
Size(inch):
2,4
Outline Dimension(mm):
42,72 × 60,26
Active Area(mm):
36,72 × 48,96
Interface:
SPI,MCU -
WF28JTYAJDNN0
Resolutiont:
240 × 320
Size(inch):
2,8
Outline Dimension(mm):
50,5 × 69,7
Active Area(mm):
43,2 × 57,6
Interface:
SPI,MCU -
WF28JSYAJDNN0
Resolutiont:
240 × 320
Size(inch):
2,8
Outline Dimension(mm):
50,5 × 69,7
Active Area(mm):
43,2 × 57,6
Interface:
SPI,MCU -
WF35XTYACDNN0
Resolutiont:
320 × 240
Size(inch):
3,5
Outline Dimension(mm):
76,84 × 63,84
Active Area(mm):
70,08 × 52,56
Interface:
RGB -
WF35XSYACDNN0
Resolutiont:
320 × 240
Size(inch):
3,5
Outline Dimension(mm):
76,84 × 63,84
Active Area(mm):
70,08 × 52,56
Interface:
RGB -
WF35UTYAIDNN0
Resolutiont:
320 × 480
Size(inch):
3,5
Outline Dimension(mm):
54,5 × 83
Active Area(mm):
48,96 × 73,44
Interface:
SPI,MCU,RGB -
WF40CTYAQMNN0
Resolutiont:
480 × 800
Size(inch):
3,97
Outline Dimension(mm):
57,14 × 96,85
Active Area(mm):
51,84 × 86,4
Interface:
MIPI DSI -
WF40ETWAA6MNN0
Resolutiont:
480 × 800
Size(inch):
4
Outline Dimension(mm):
78,8 × 82,95
Active Area(mm):
71,85 × 70,17
Interface:
MIPI DSI -
WF40ETWAA6DNN0
Resolutiont:
480 × 800
Size(inch):
4
Outline Dimension(mm):
78,8 × 82,95
Active Area(mm):
71,85 × 70,17
Interface:
RGB -
WF40ESWAA6MNN0
Resolutiont:
480 × 800
Size(inch):
4
Outline Dimension(mm):
78,8 × 82,95
Active Area(mm):
71,85 × 70,17
Interface:
MIPI DSI -
WF40ESWAA6MNT0
Resolutiont:
480 × 800
Size(inch):
4
Outline Dimension(mm):
78,8 × 82,95
Active Area(mm):
71,85 × 70,17
Interface:
MIPI DSI -
WF43WSWAEDNN0
Resolutiont:
480 × 272
Size(inch):
4,3
Outline Dimension(mm):
105,5 × 67,2
Active Area(mm):
95,04 × 53,85
Interface:
RGB -
WF43WTWAEDNN0
Resolutiont:
480 × 272
Size(inch):
4,3
Outline Dimension(mm):
105,5 × 67,2
Active Area(mm):
95,04 × 53,85
Interface:
RGB -
WF43XTWAGDNN0
Resolutiont:
800 × 480
Size(inch):
4,3
Outline Dimension(mm):
105,5 × 67,2
Active Area(mm):
95,04 × 53,85
Interface:
RGB -
WF43XTWAGDNG0
Resolutiont:
800 × 480
Size(inch):
4,3
Outline Dimension(mm):
105,5 × 67,2
Active Area(mm):
95,04 × 53,85
Interface:
RGB -
WF50FTWAGDNN0
Resolutiont:
800 × 480
Size(inch):
5
Outline Dimension(mm):
120,7 × 75,8
Active Area(mm):
108 × 64,8
Interface:
RGB -
WF50FTWAGLNN0
Resolutiont:
800 × 480
Size(inch):
5
Outline Dimension(mm):
120,7 × 75,8
Active Area(mm):
108 × 64,8
Interface:
LVDS -
WF50FSWAGDNN0
Resolutiont:
800 × 480
Size(inch):
5
Outline Dimension(mm):
120,7 × 75,8
Active Area(mm):
108 × 64,8
Interface:
RGB -
WF50DTYA3MNN0
Resolutiont:
720 × 1280
Size(inch):
5
Outline Dimension(mm):
66,1 × 120,4
Active Area(mm):
62,1 × 110,4
Interface:
MIPI DSI -
WF50DTYA3MNG10
Resolutiont:
720 × 1280
Size(inch):
5
Outline Dimension(mm):
73,3 × 127,6
Active Area(mm):
62,1 × 110,4
Interface:
MIPI DSI -
WF50DSYA3MNN0
Resolutiont:
720 × 1280
Size(inch):
5
Outline Dimension(mm):
68,4 × 122,7
Active Area(mm):
62,1 × 110,4
Interface:
MIPI DSI -
WF70A9TWAGDNN0
Resolutiont:
800 × 480
Size(inch):
7
Outline Dimension(mm):
165,8 × 106,61
Active Area(mm):
152,4 × 91,44
Interface:
RGB -
WF70A9TWAGDNT0
Resolutiont:
800 × 480
Size(inch):
7
Outline Dimension(mm):
165,8 × 106,61
Active Area(mm):
152,4 × 91,44
Interface:
RGB -
WF70A9SWAGDNN0
Resolutiont:
800 × 480
Size(inch):
7
Outline Dimension(mm):
165,8 × 106,61
Active Area(mm):
152,4 × 91,44
Interface:
RGB -
WF70A9SWAGDNT0
Resolutiont:
800 × 480
Size(inch):
7
Outline Dimension(mm):
165,8 × 106,61
Active Area(mm):
152,4 × 91,44
Interface:
RGB -
WF70A9SWAGDNB0
Resolutiont:
800 × 480
Size(inch):
7
Outline Dimension(mm):
165,8 × 106,61
Active Area(mm):
152,4 × 91,44
Interface:
RGB -
WF70A9SWAGLNN0
Resolutiont:
800 × 480
Size(inch):
7
Outline Dimension(mm):
165,8 × 106,61
Active Area(mm):
152,4 × 91,44
Interface:
LVDS -

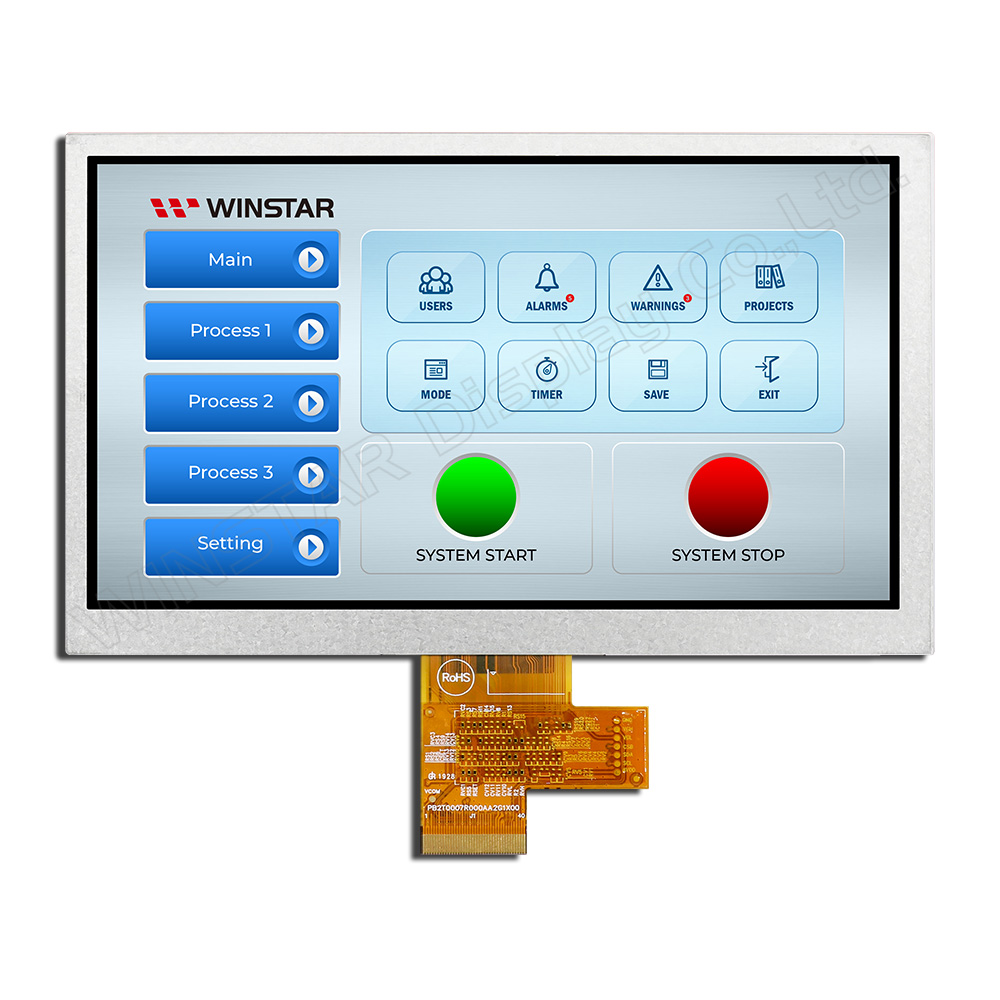

WF70A8SYAHLNN0
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
LVDS -

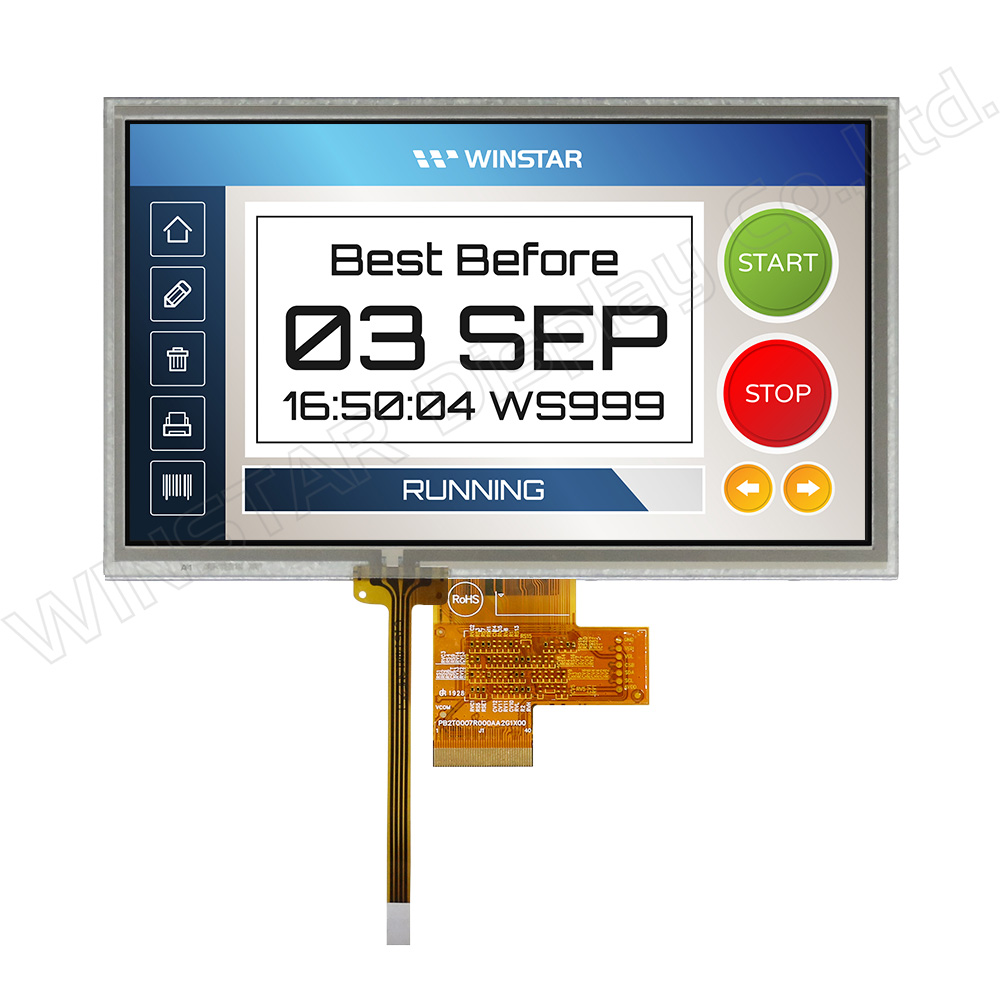

WF70A8SYAHLNT0
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
LVDS -

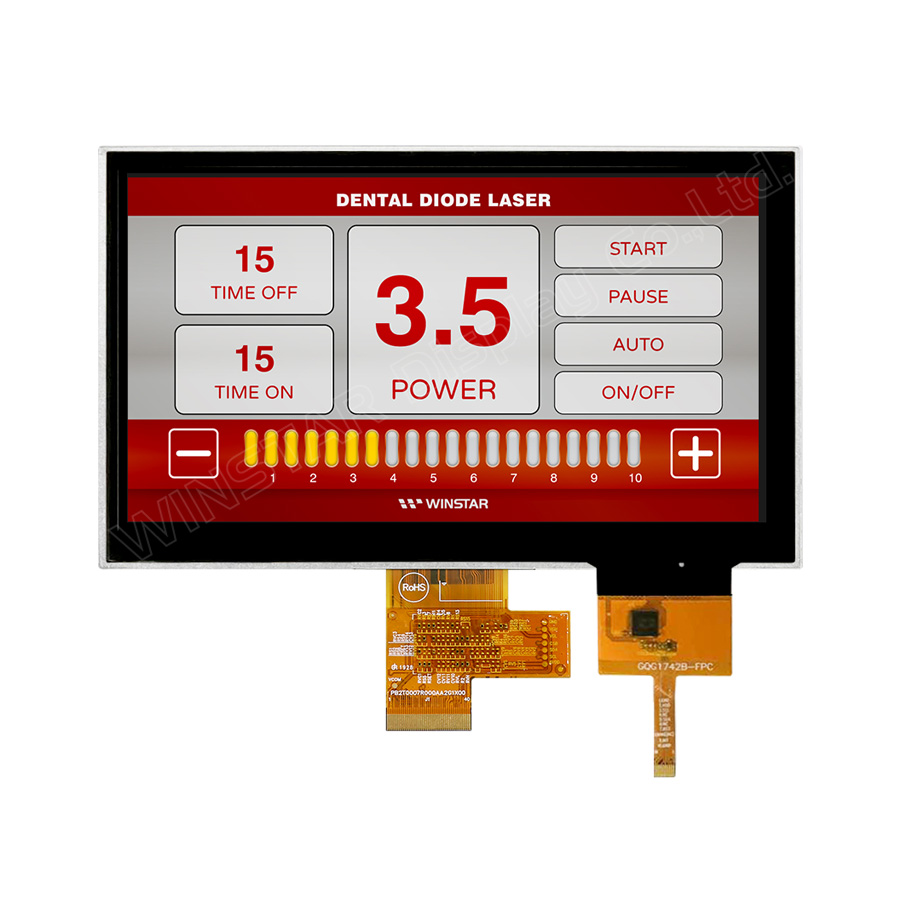

WF70A8SYAHLNGB
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
LVDS -

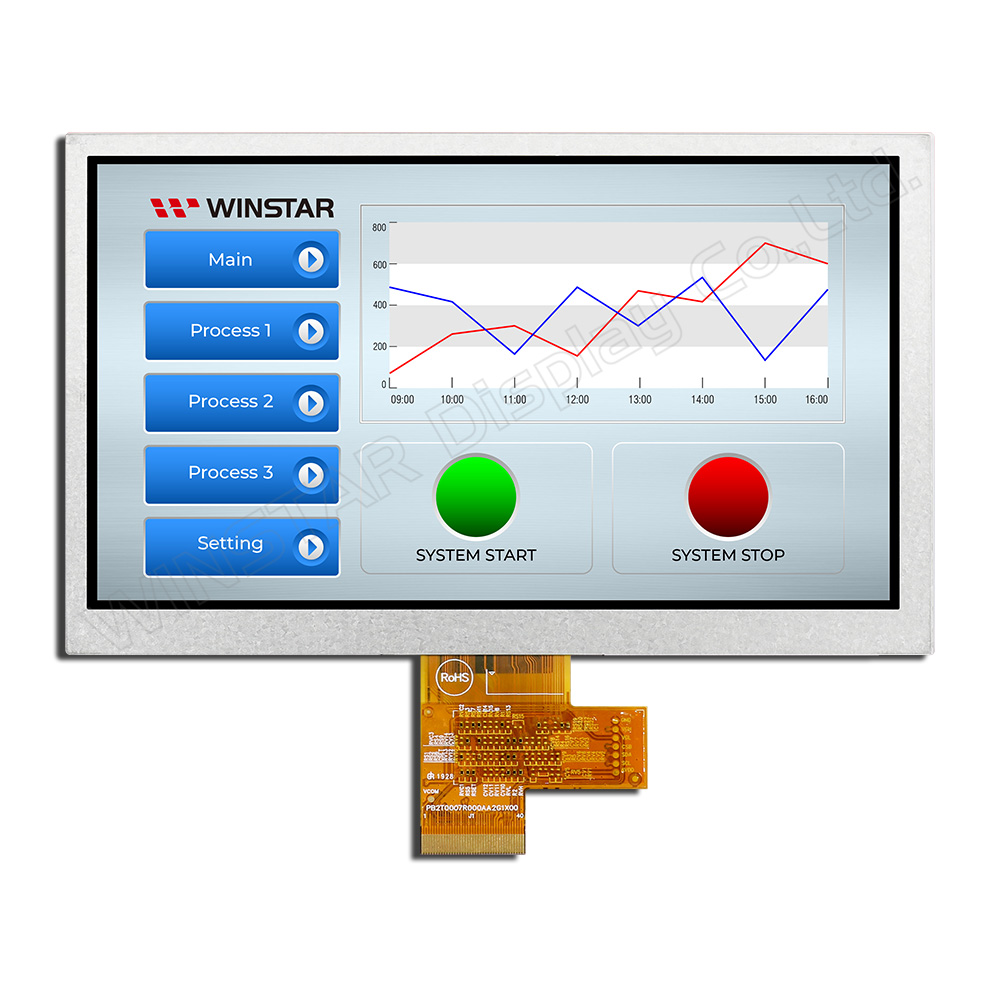

WF70A8TYAHLNN0
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
LVDS -

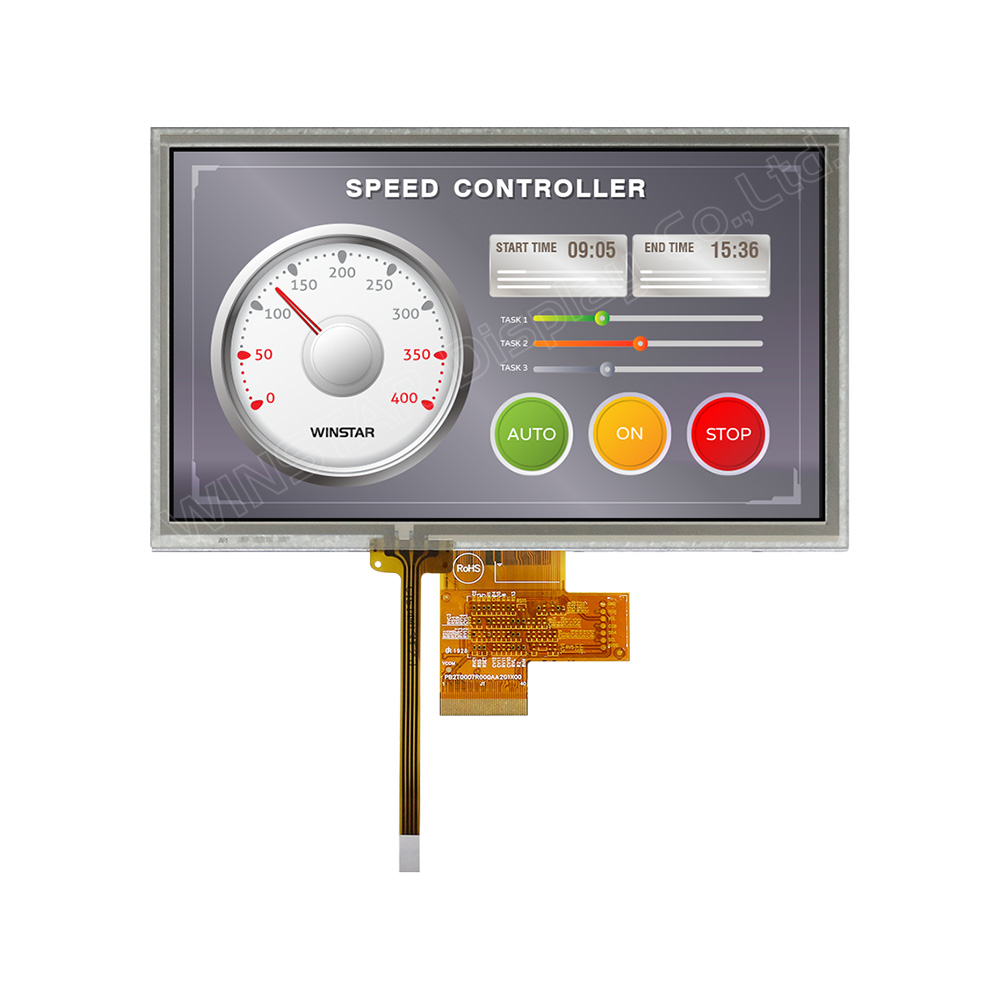

WF70A8TYAHLNT0
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
LVDS -

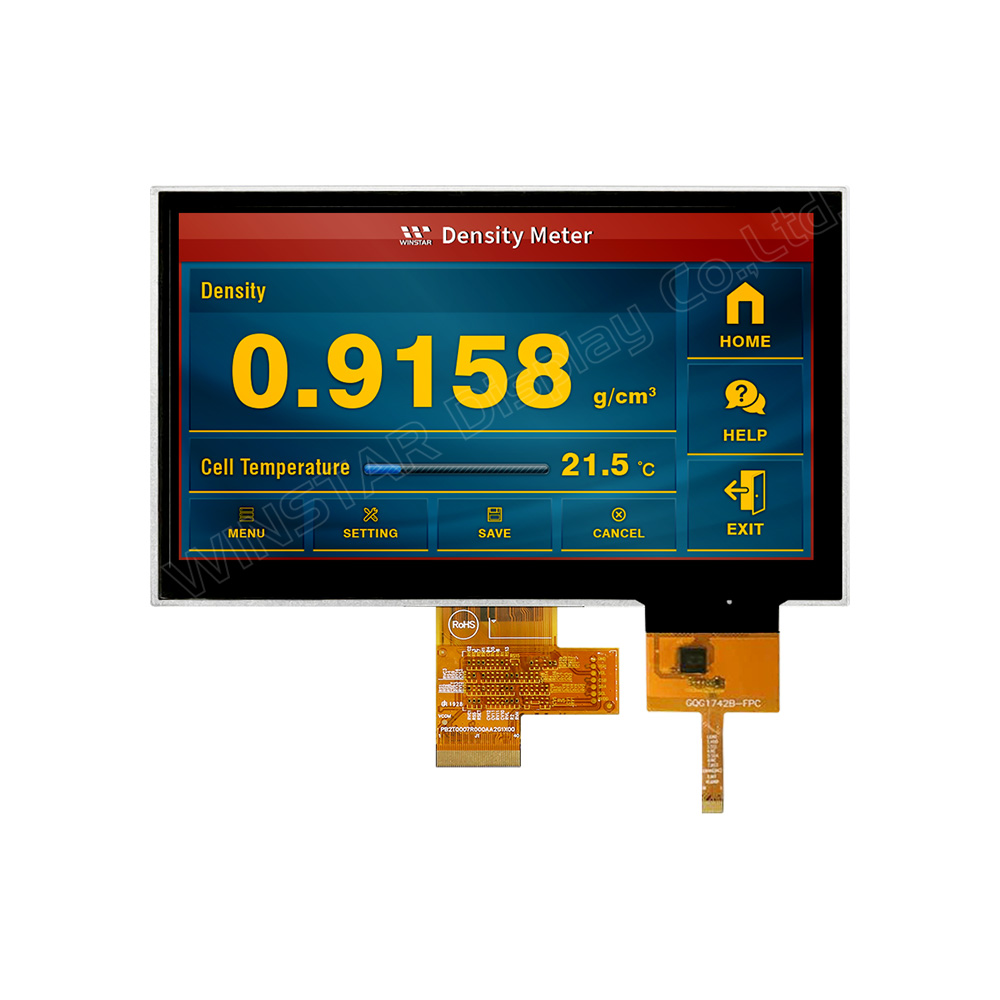

WF70A8TYAHLNGB
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
LVDS -

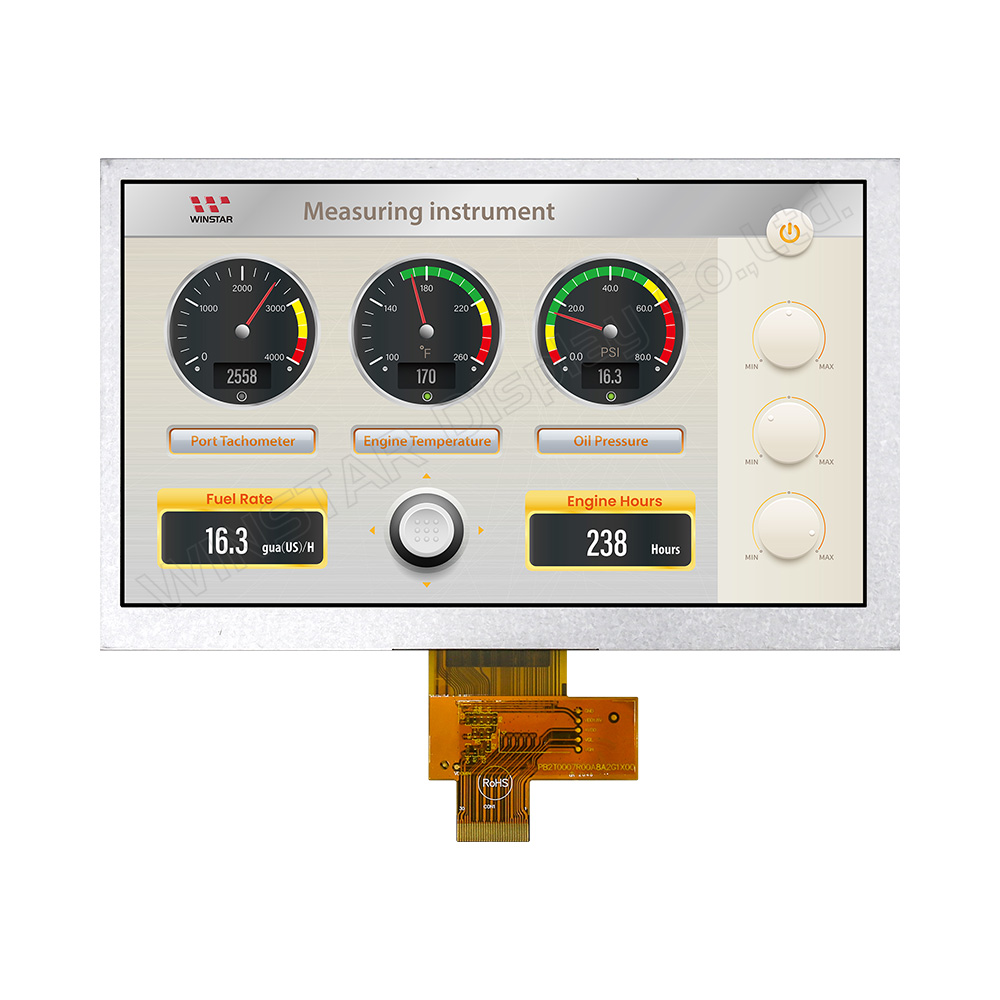

WF70A8TYAHMNN0
Resolutiont:
1024 × 600
Size(inch):
7
Outline Dimension(mm):
169,9 × 103,4
Active Area(mm):
154,21 × 85,92
Interface:
MIPI DSI -

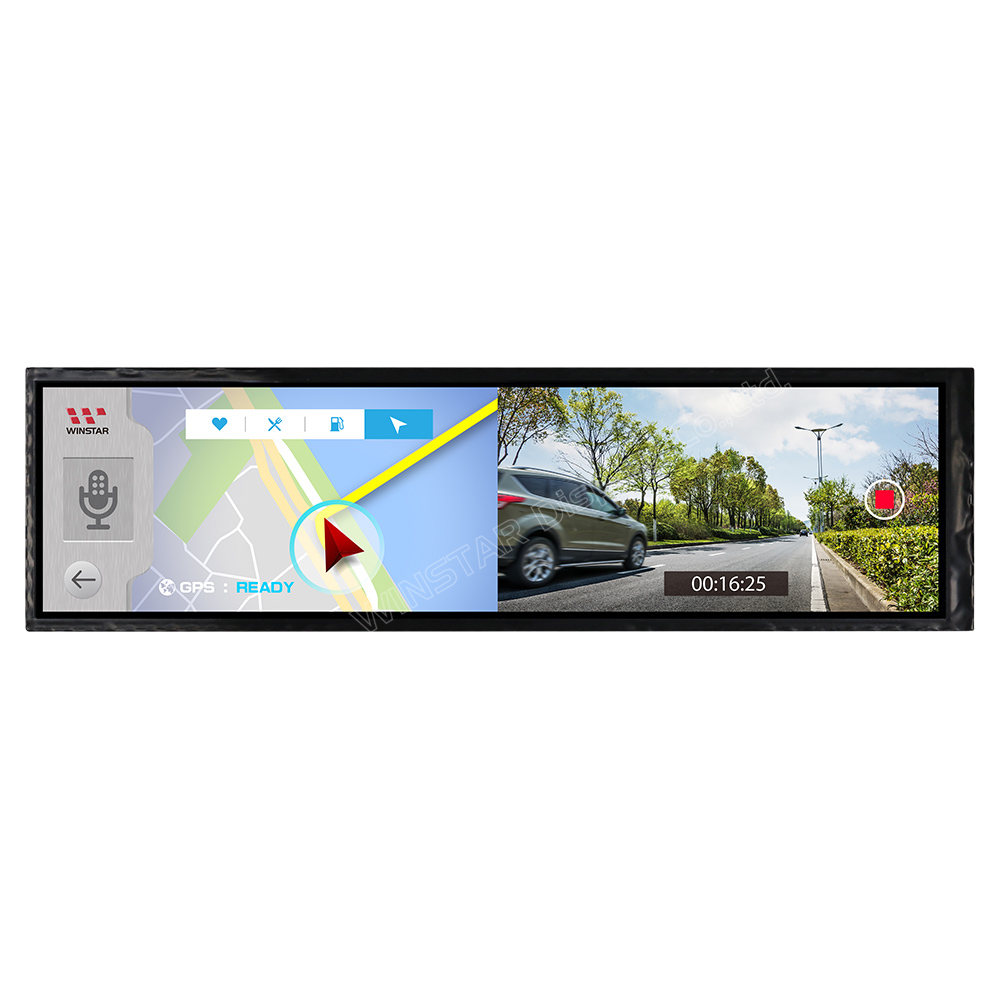

WF88BTYA8MNN0
Resolutiont:
480 × 1920
Size(inch):
8,8
Outline Dimension(mm):
231,3 × 64,3
Active Area(mm):
218,88 × 54,72
Interface:
MIPI DSI -

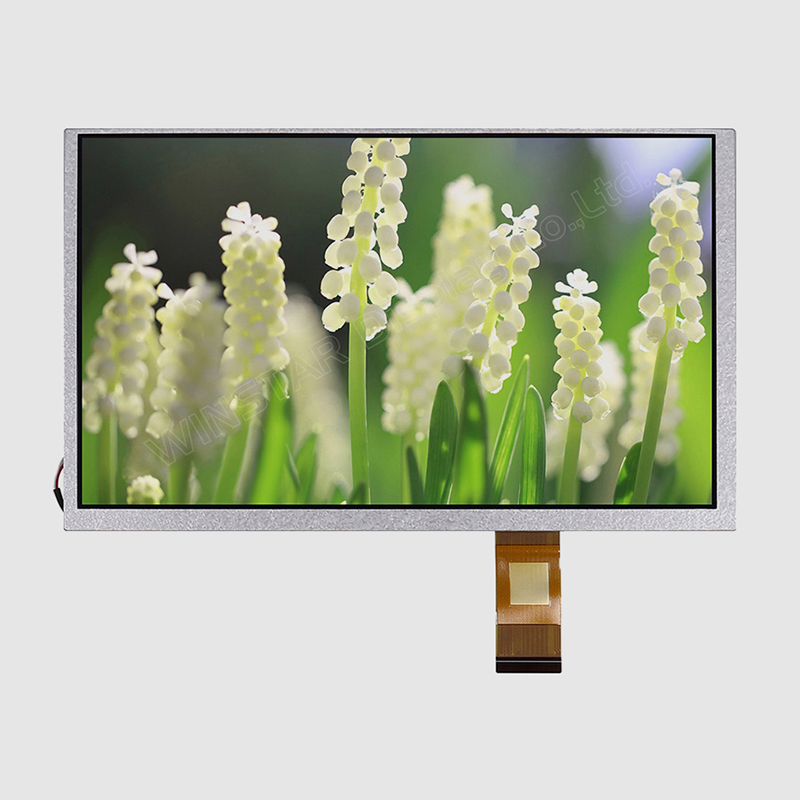

WF90BTWAHLNN0
Resolutiont:
1024 × 600
Size(inch):
9
Outline Dimension(mm):
211,1 × 126,5
Active Area(mm):
196,60 × 114,15
Interface:
LVDS -

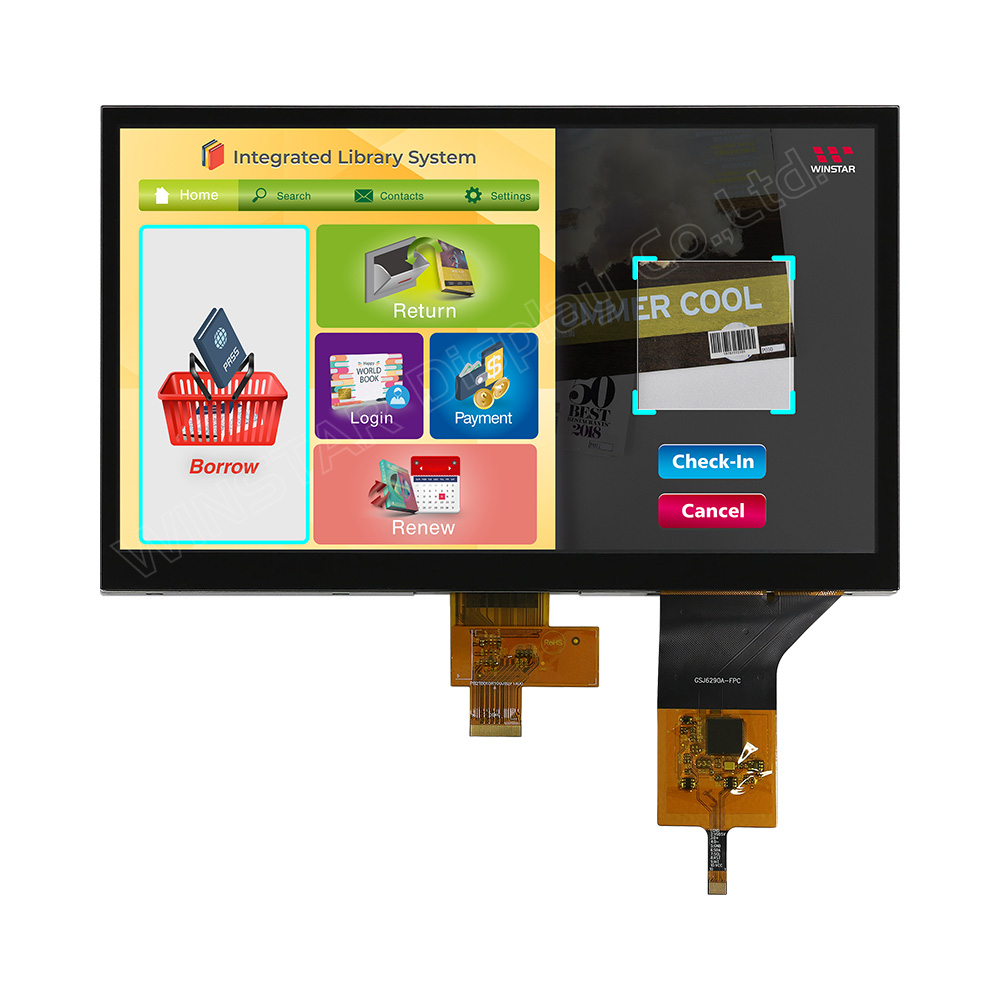

WF101JTYAHMNB0
Resolutiont:
1024 × 600
Size(inch):
10,1
Outline Dimension(mm):
235 × 143
Active Area(mm):
222,72 × 125,28
Interface:
MIPI DSI -

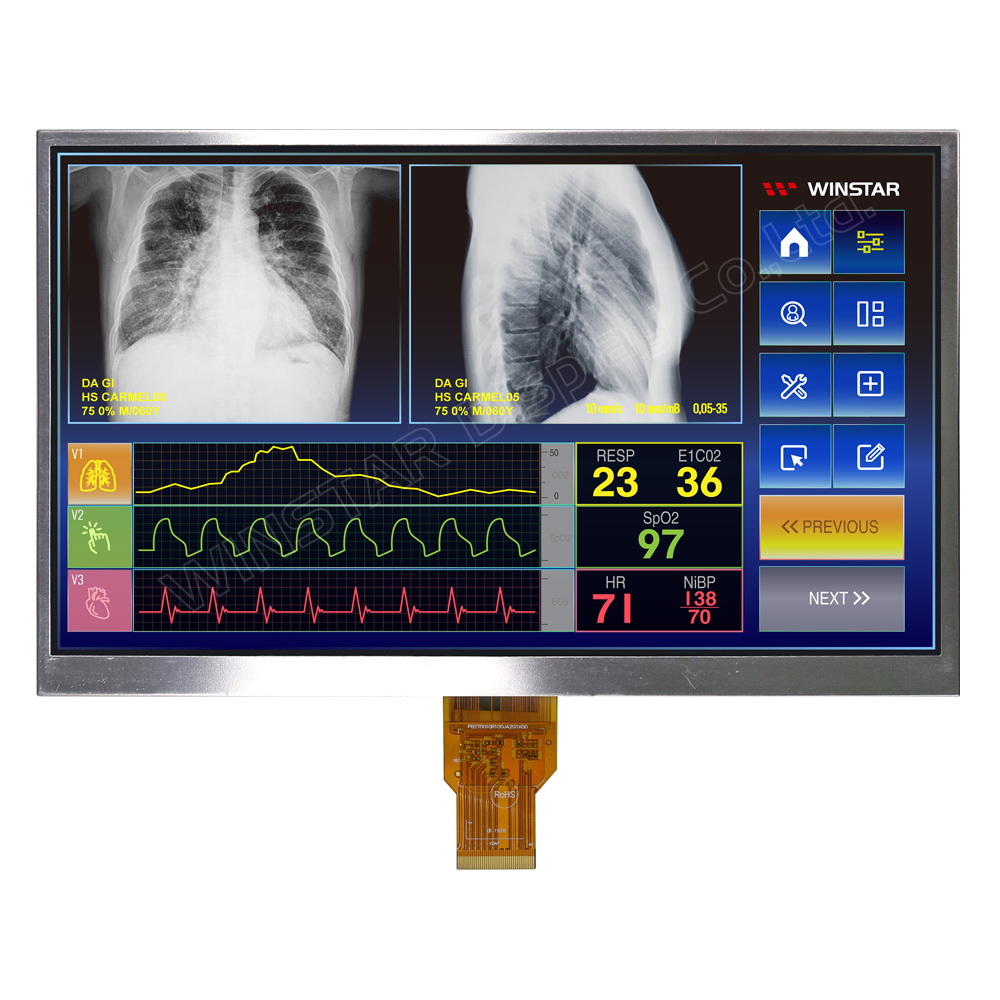

WF101JSYAHLNN0
Resolutiont:
1024 × 600
Size(inch):
10,1
Outline Dimension(mm):
235 × 143
Active Area(mm):
222,72 × 125,28
Interface:
LVDS -

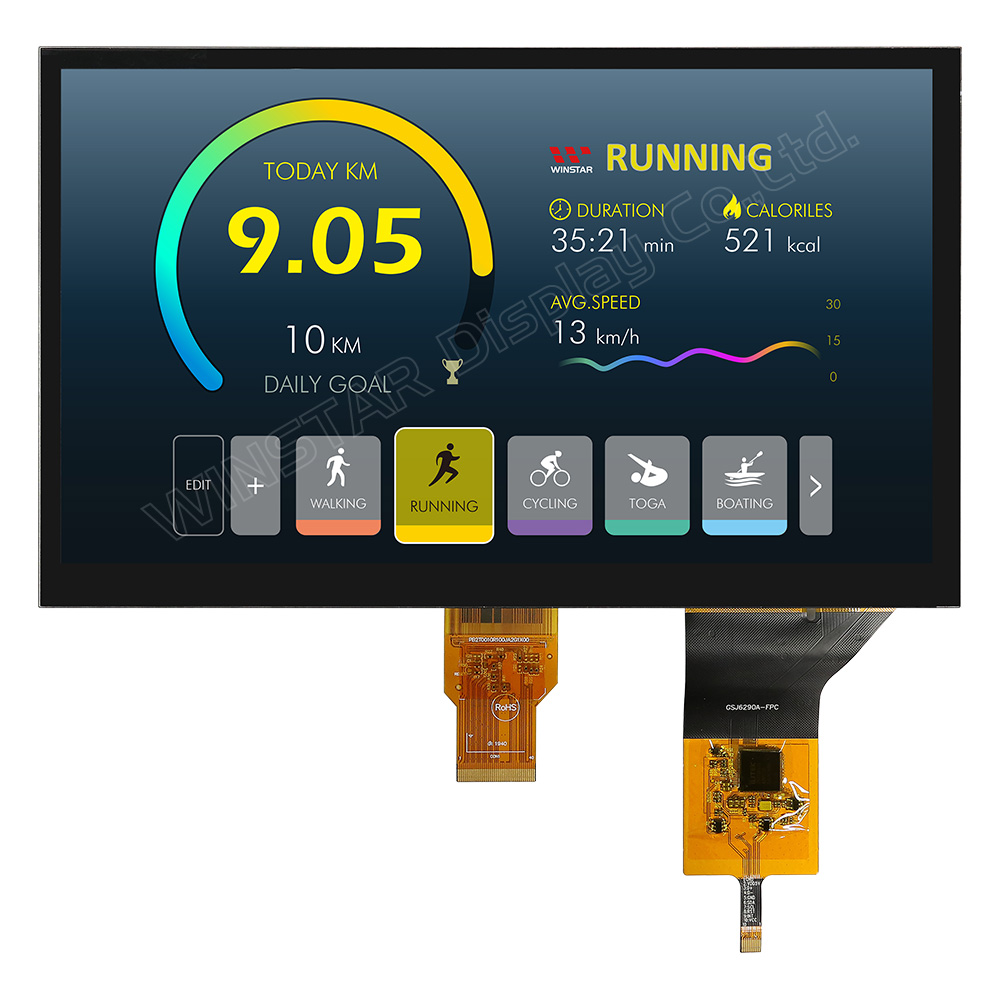

WF101JSYAHLNB0
Resolutiont:
1024 × 600
Size(inch):
10,1
Outline Dimension(mm):
235 × 143
Active Area(mm):
222,72 × 125,28
Interface:
LVDS -

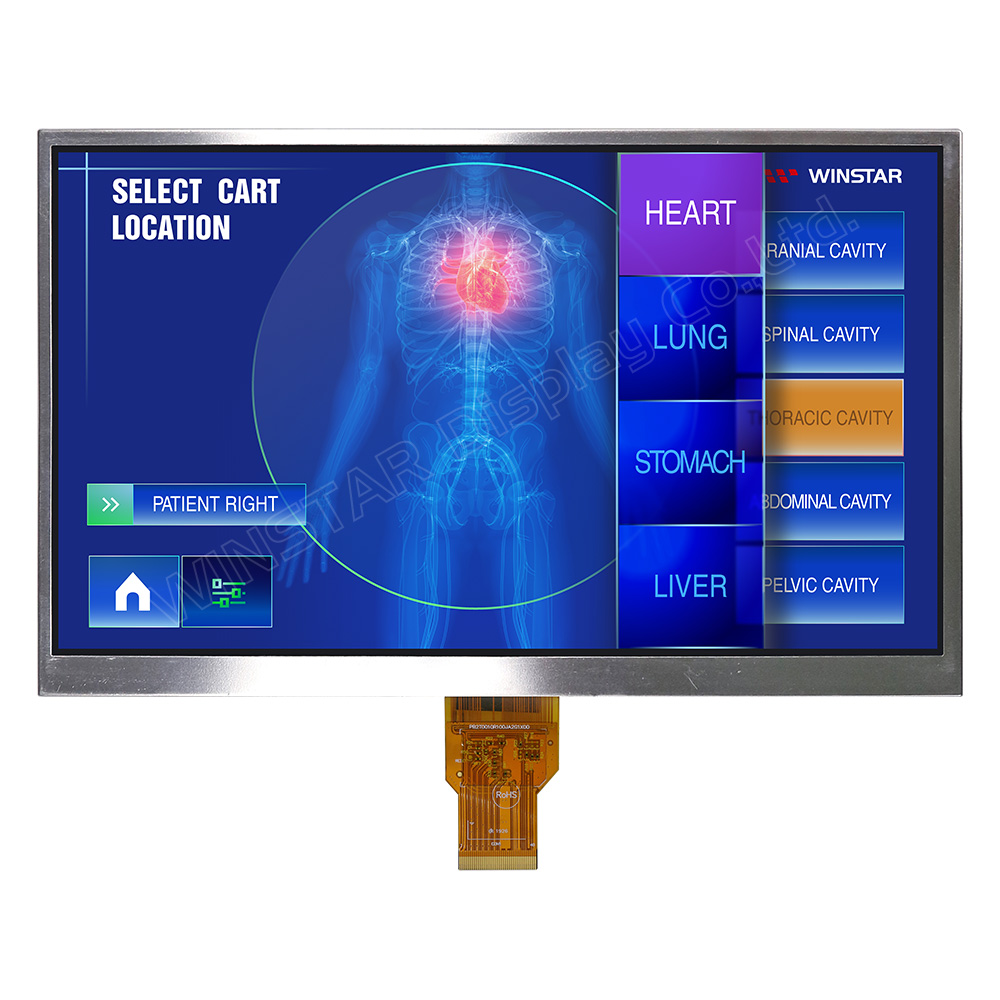

WF101JTYAHLNN0
Resolutiont:
1024 × 600
Size(inch):
10,1
Outline Dimension(mm):
235 × 143
Active Area(mm):
222,72 × 125,28
Interface:
LVDS -

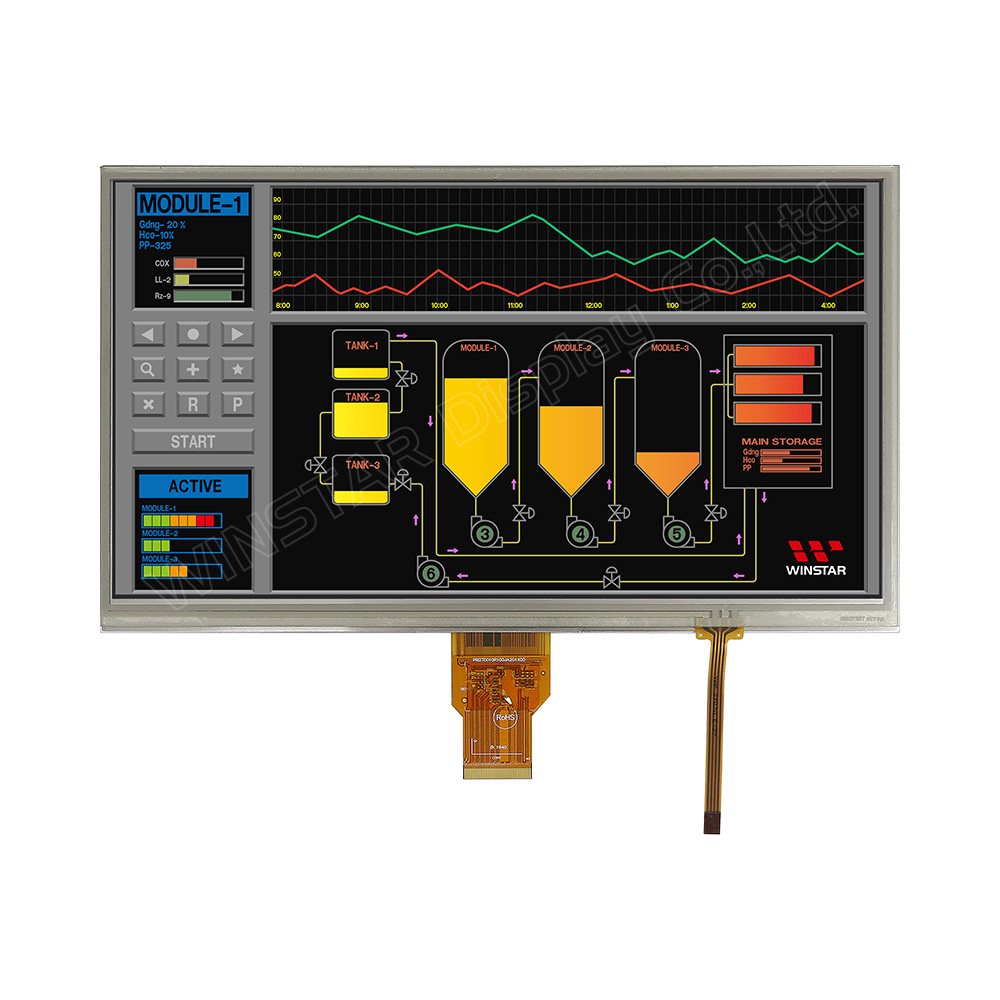

WF101JTYAHLNT0
Resolutiont:
1024 × 600
Size(inch):
10,1
Outline Dimension(mm):
235 × 143
Active Area(mm):
222,72 × 125,28
Interface:
LVDS -

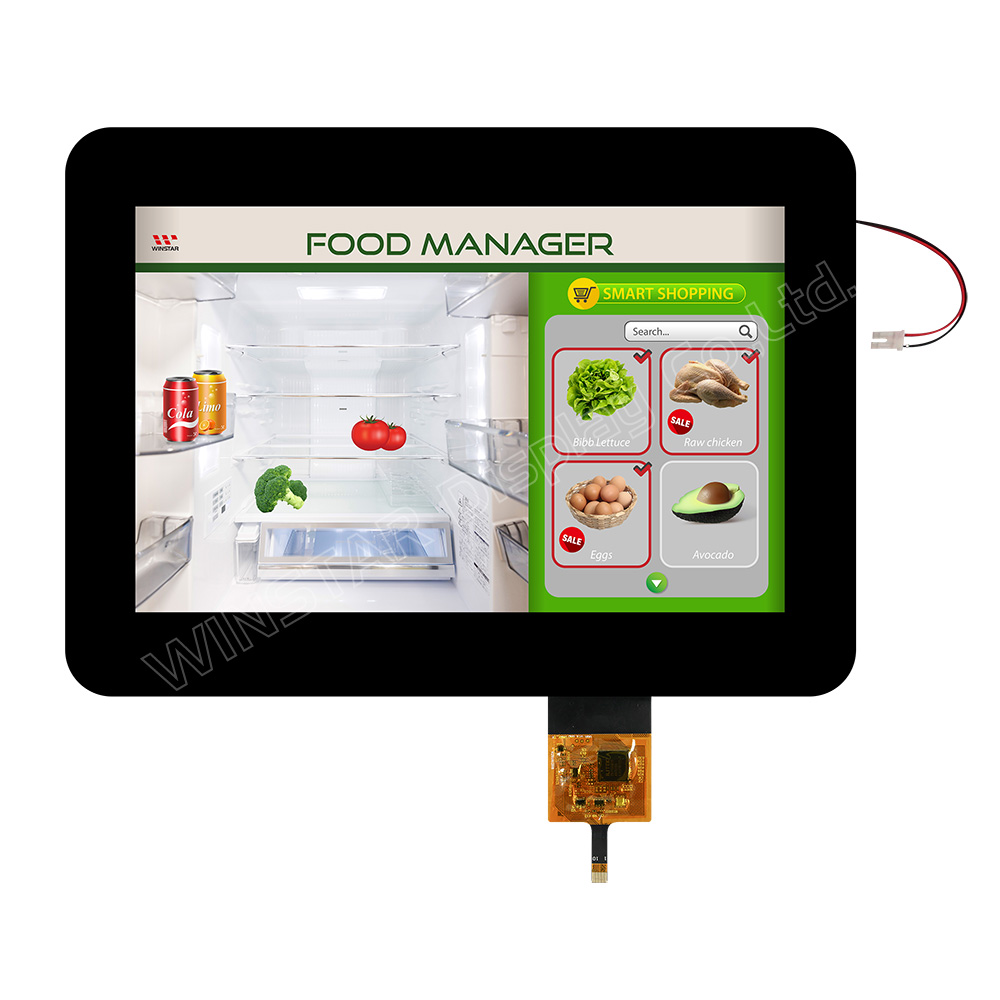

WF101FSYAPLNB0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
274,5 × 198
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

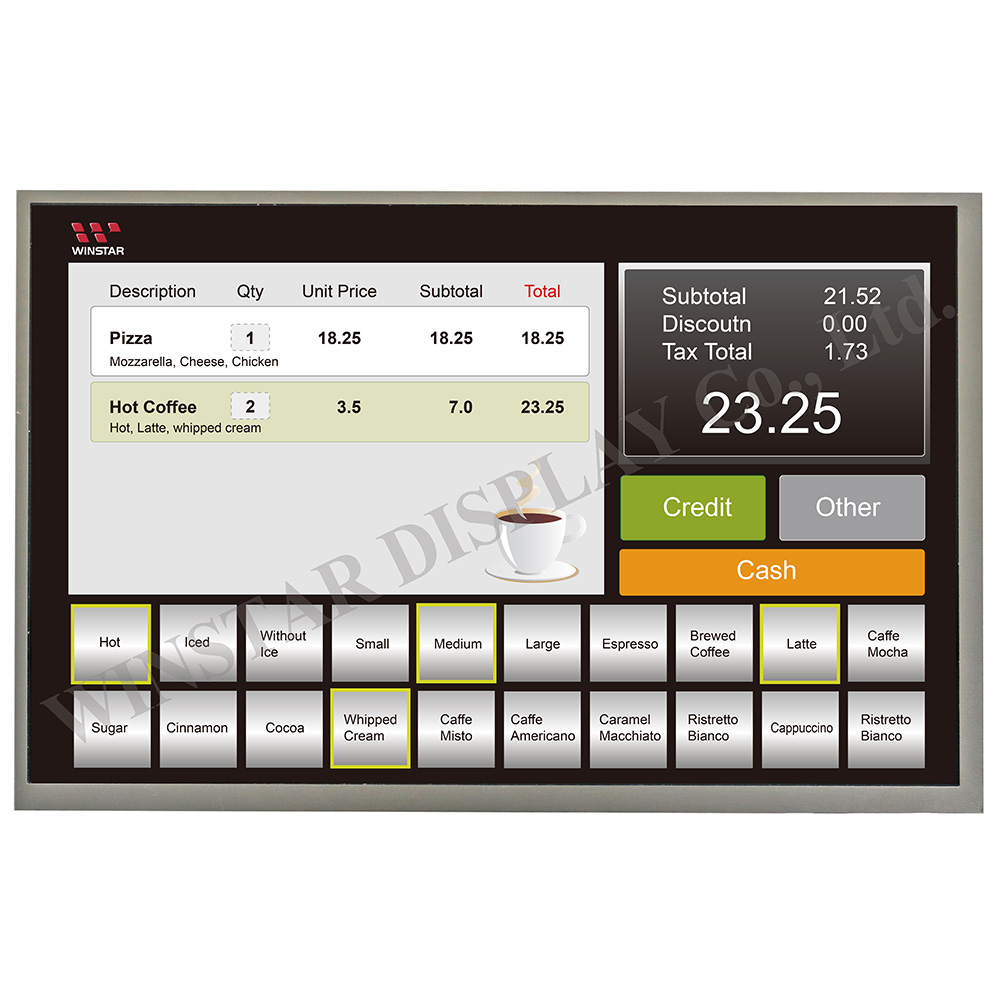

WF101GTYAPLNN0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
229,34 × 148,98
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

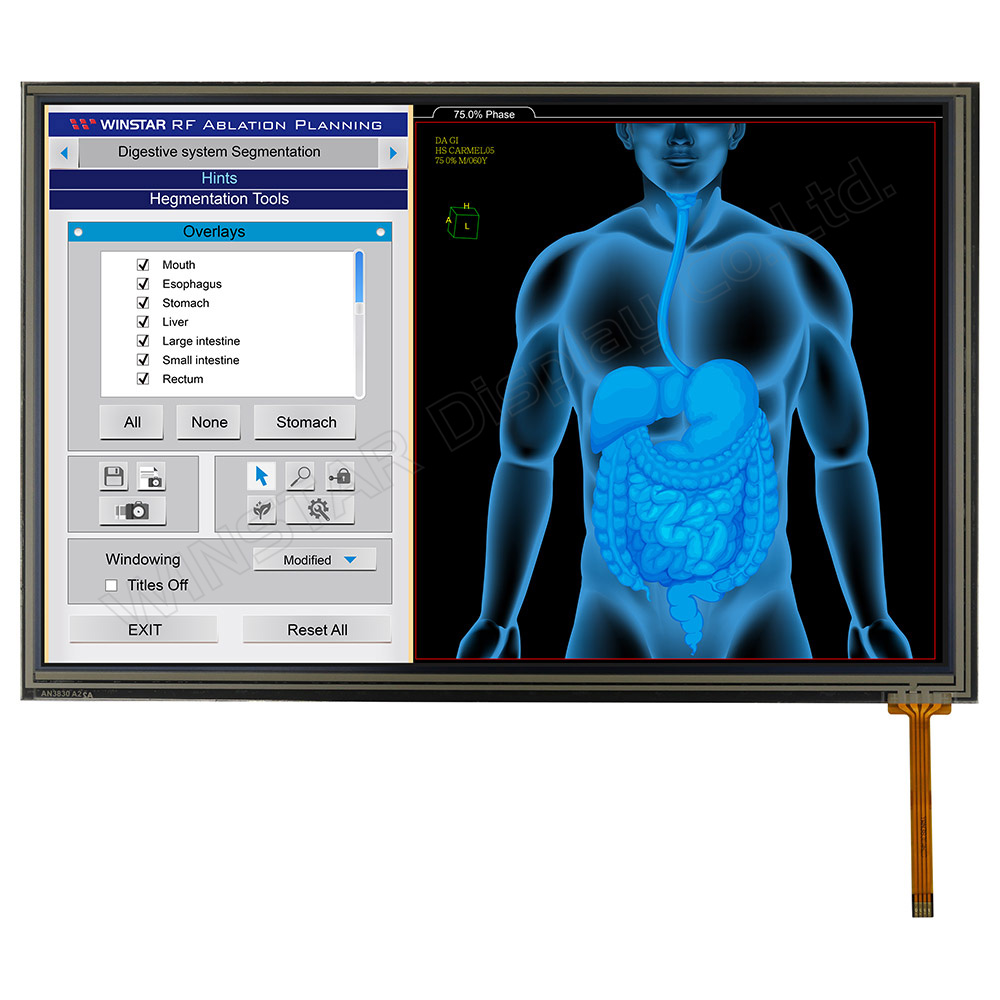

WF101GTYAPLNT0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
229,34 × 148,98
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -
WF101GTYAPLNG0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
257,96 × 168,6
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

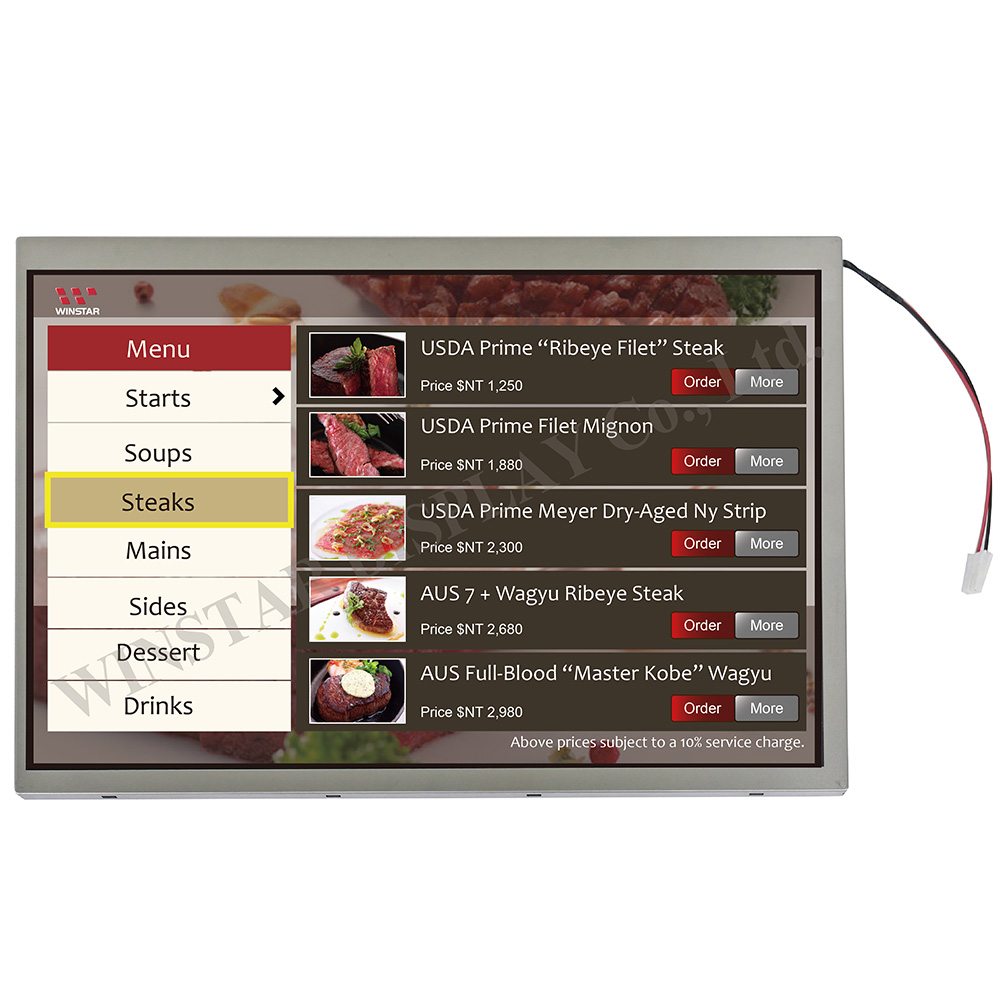

WF101FSYAPLNN0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
230,56 × 155,01
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

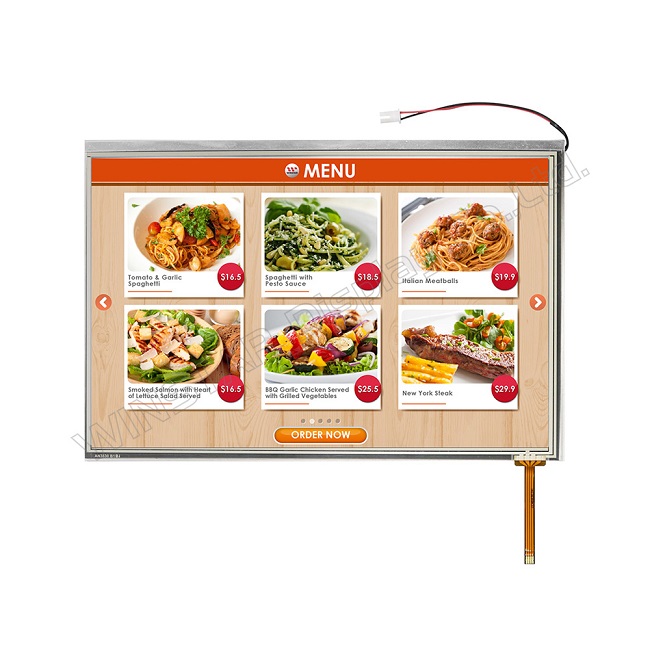

WF101FSYAPLNT0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
230,56 × 155,01
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

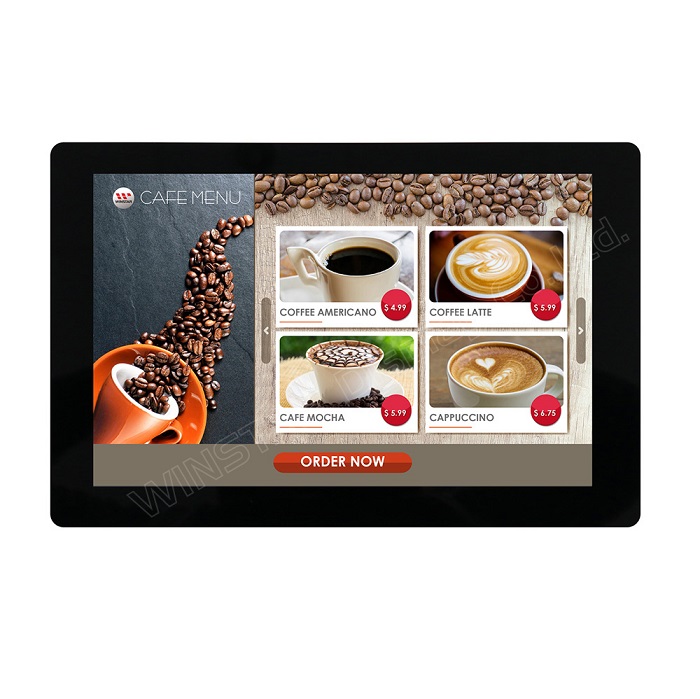

WF101FSYAPLNG0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
257,96 × 168,6
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

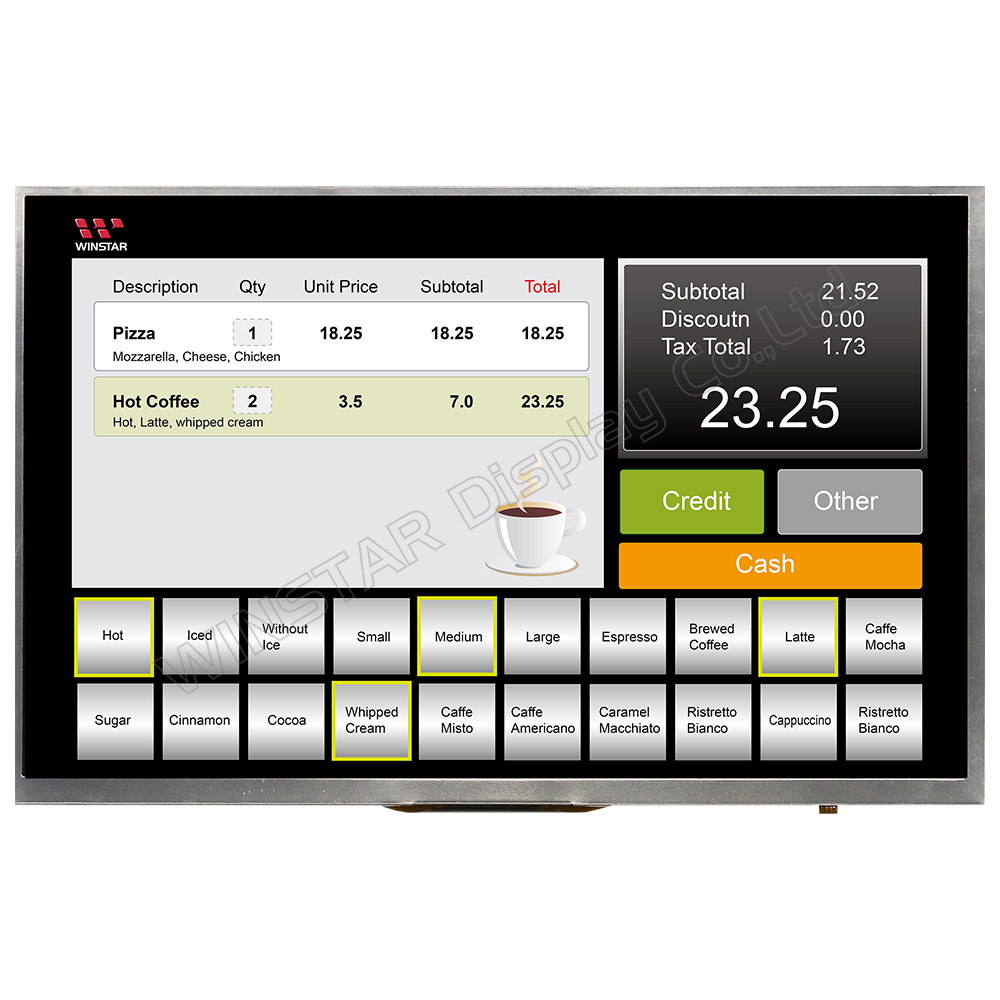

WF101KTYAPLNN0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
229,34 × 148,98
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

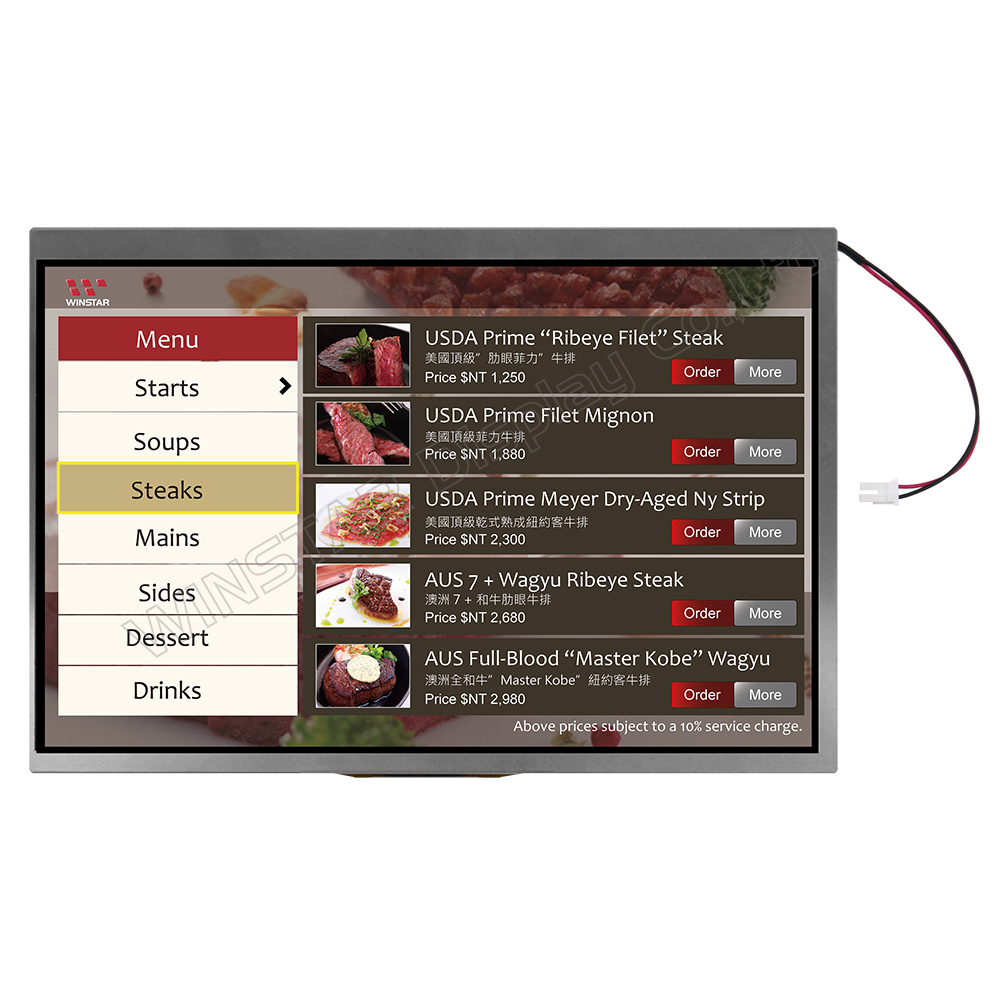

WF101LSYAPLNN0
Resolutiont:
1280 × 800
Size(inch):
10,1
Outline Dimension(mm):
230,56 × 155,01
Active Area(mm):
216,96 × 135,6
Interface:
LVDS -

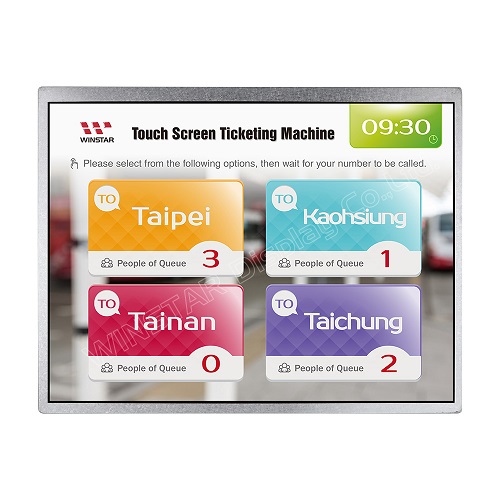

WF121ETWAMLNN0
Resolutiont:
1024 × 768
Size(inch):
12,1
Outline Dimension(mm):
260,5 × 204
Active Area(mm):
245,76 × 184,32
Interface:
LVDS -

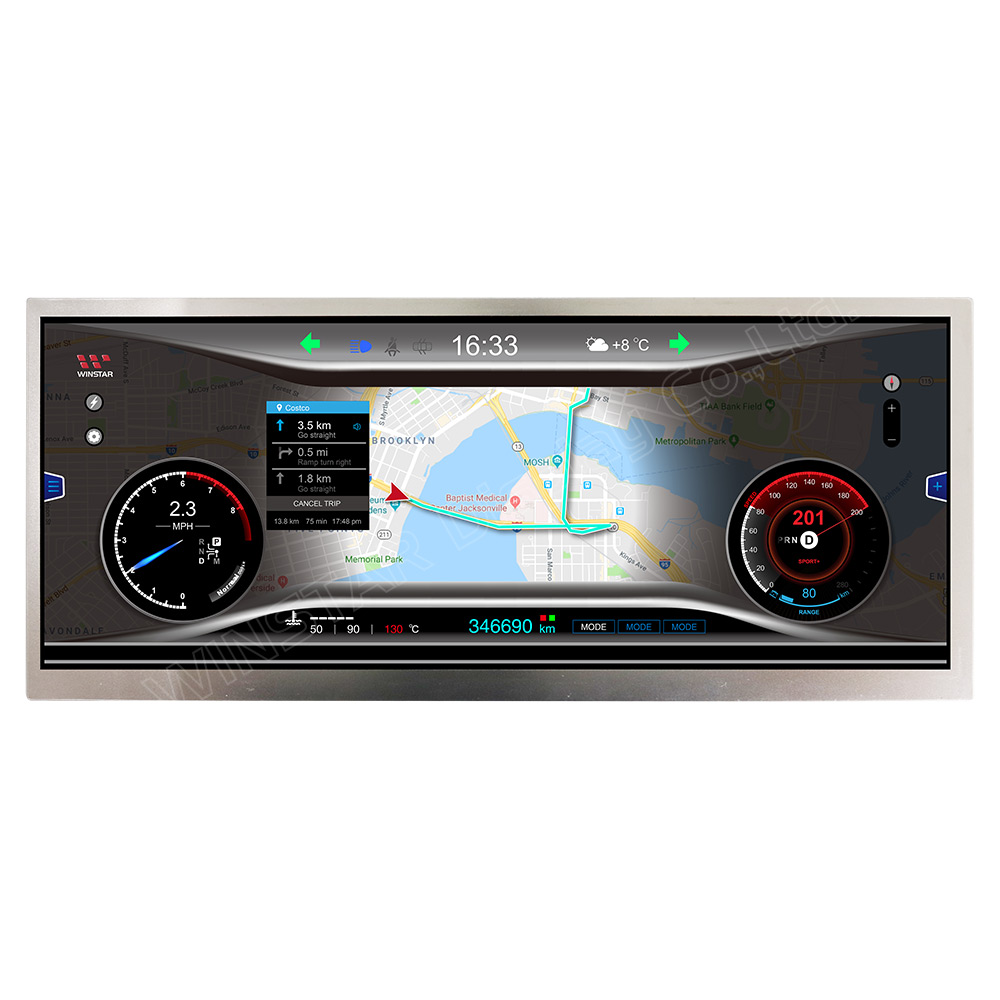

WF123BSWAYLNN0
Resolutiont:
1920 × 720
Size(inch):
12,3
Outline Dimension(mm):
308,1 × 130,0
Active Area(mm):
292,03 × 109,51
Interface:
LVDS
